$ 2,299.99

Have questions? Give us a call at 260-637-0054.

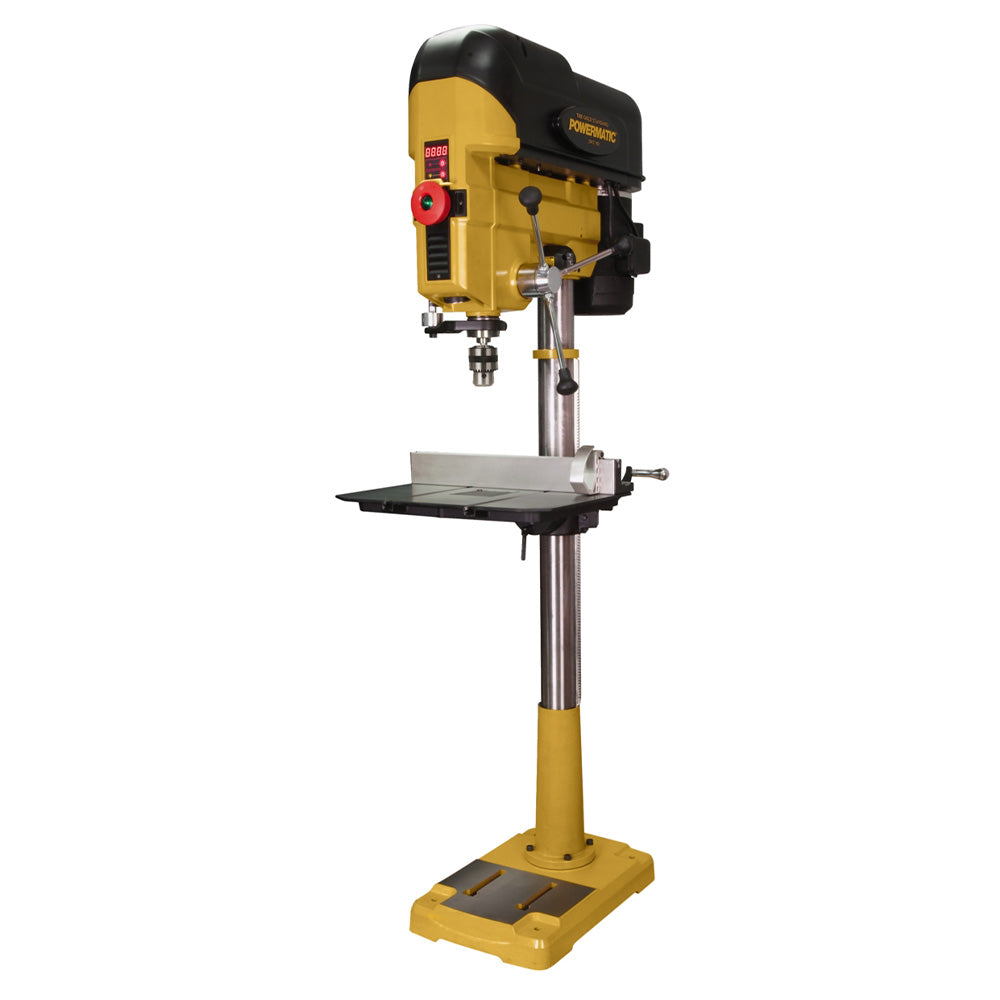

The Powermatic PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you€™ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

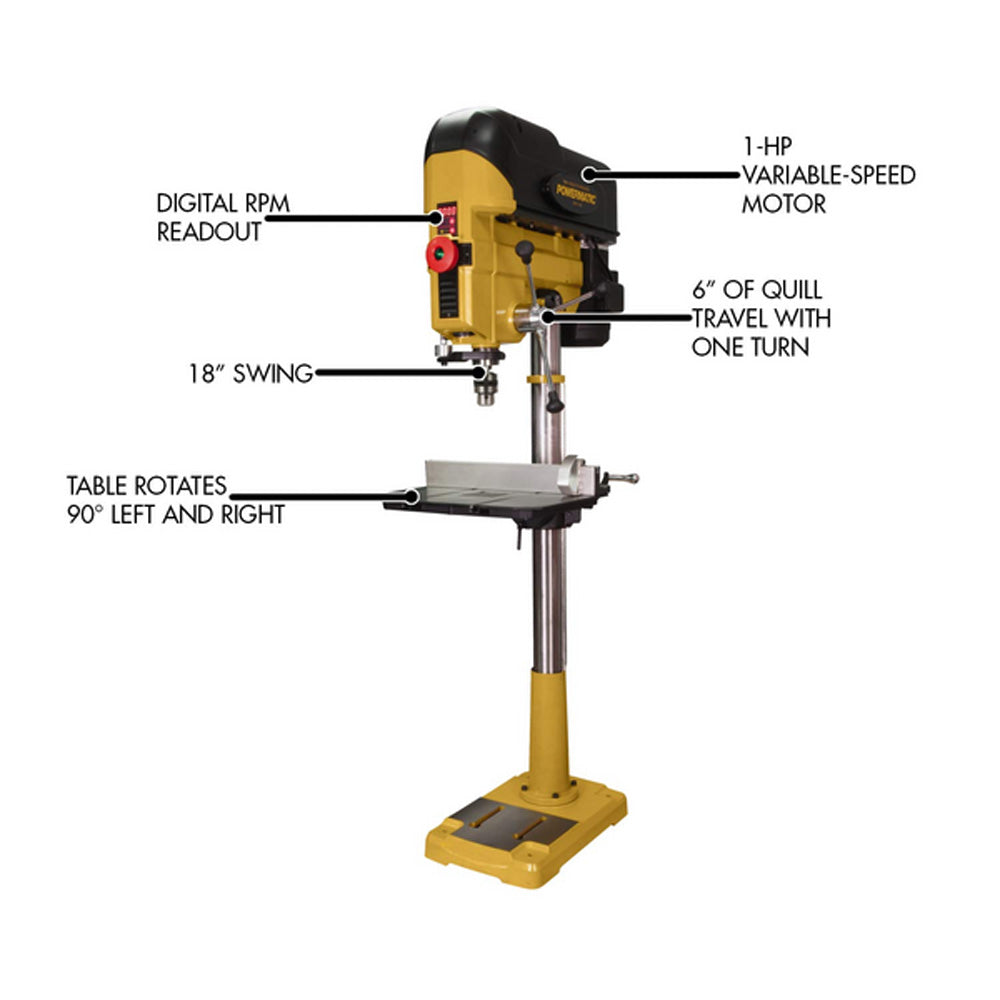

This drill press features a 1hp single-phase motor, 6" quill travel, and a fence system adjustable for a perfect 90° relationship to the table. Mechanical variable speeds allow for full range with no belt changes. Additionally, laser guides provide an accurate indication for tool point, and a digital RPM readout allows you to optimize the spindle speed to the application.

The PM2800B Drill Press is an ergonomic machine that features reversible handles which can be mounted on either side for more comfortable working of the quill. There are two independently adjustable LED work lights that eliminate shadows for optimum view of the workpiece. The work table can be rotated to a full 90° position, making this drill press truly versatile.

Features
  • Mechanical variable speed allows for full range of speeds with no belt changes
  • 6" of quill travel with one revolution of the handle

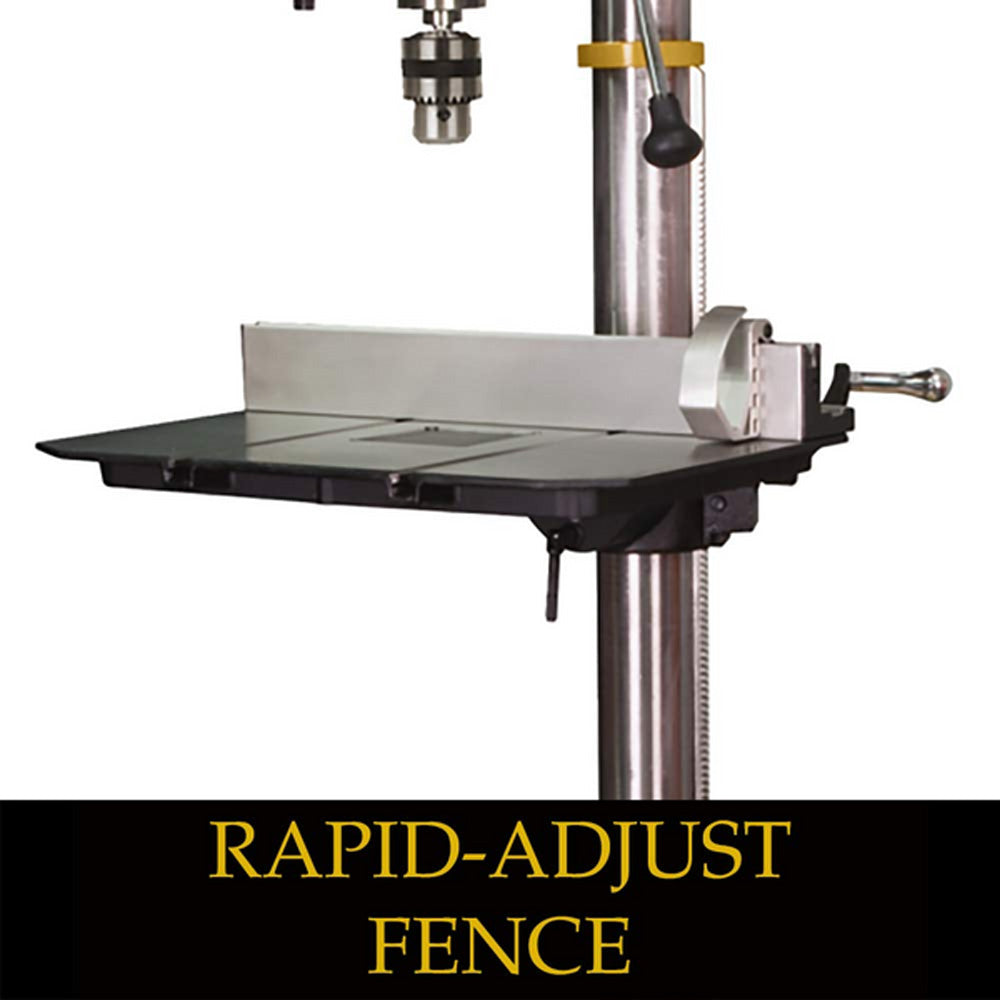

  • Fence system adjustable for a perfect 90 degree relationship to the table and for rapid alignment of stock
  • A digital RPM readout allows user to optimize the spindle speed to the application
  • Work table can be rotated to a full 90 degree position

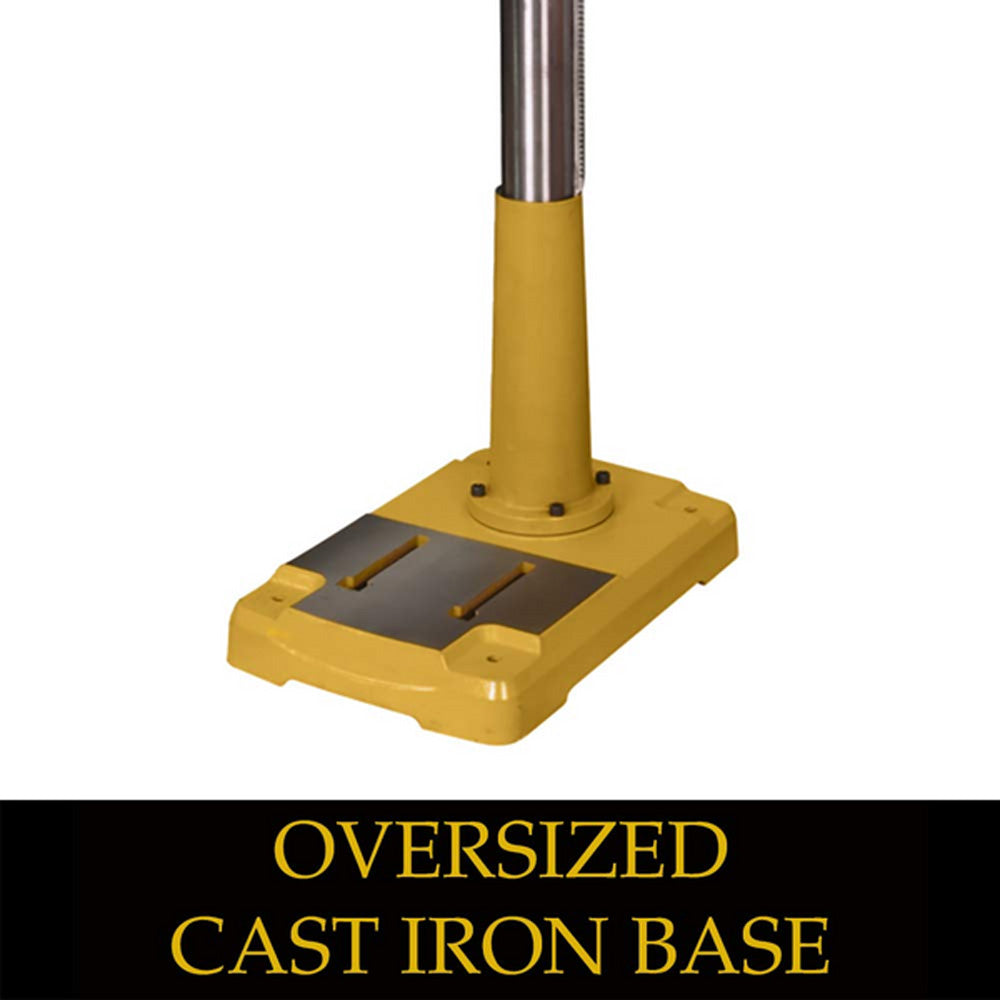

  • Oversize cast iron base for added stability
  • Laser guides provide an accurate indication for tool point
  • Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
  • Two independently adjustable LED worklights eliminates shadows
  • Includes 5/8" keyed chuck
Specs

Style (Type): Floor
Swing: 18"
Spindle Travel: 6"
Number of Spindle Speeds: Variable
Spindle Taper: MT-2/JT-3
Spindle Distance to Table (Max.): 26-5/8"
Spindle Distance to Base: 44-3/4"
Table Size (L x W): 20-1/4" x 14"
Table Tilt: 90° Left, 90° Right
Fence Size (L x H): 20" x 2-3/4"
Chuck Distance to Base: 40-1/2"
Chuck Distance to Table: 22-3/8"
Chuck Size: 5/8"
Column Diameter: 3-1/8"
Base Size: 13-1/2" x 20-1/2"
Motor Power (HP): 1
Motor Phase: 1
Motor Voltage (V.): 115/230
Prewired Voltage (V.): 115
Motor Current (Amps): 15/7.5

Video

SKU: PM9-1792800B
