$ 5,999

Have questions? Give us a call at 260-637-0054.

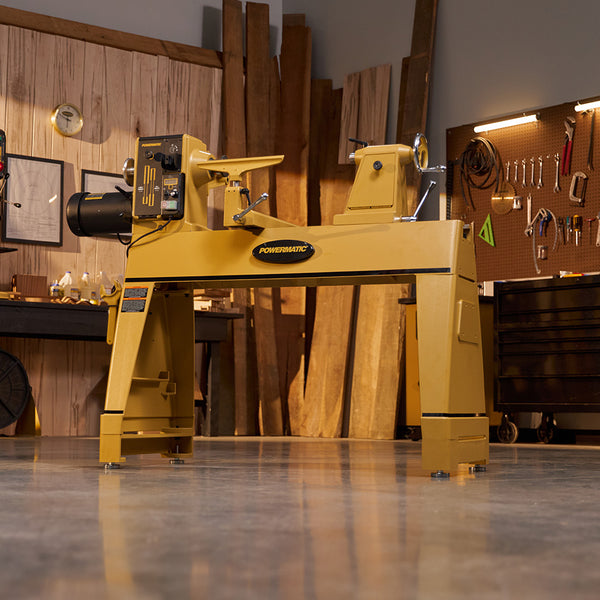

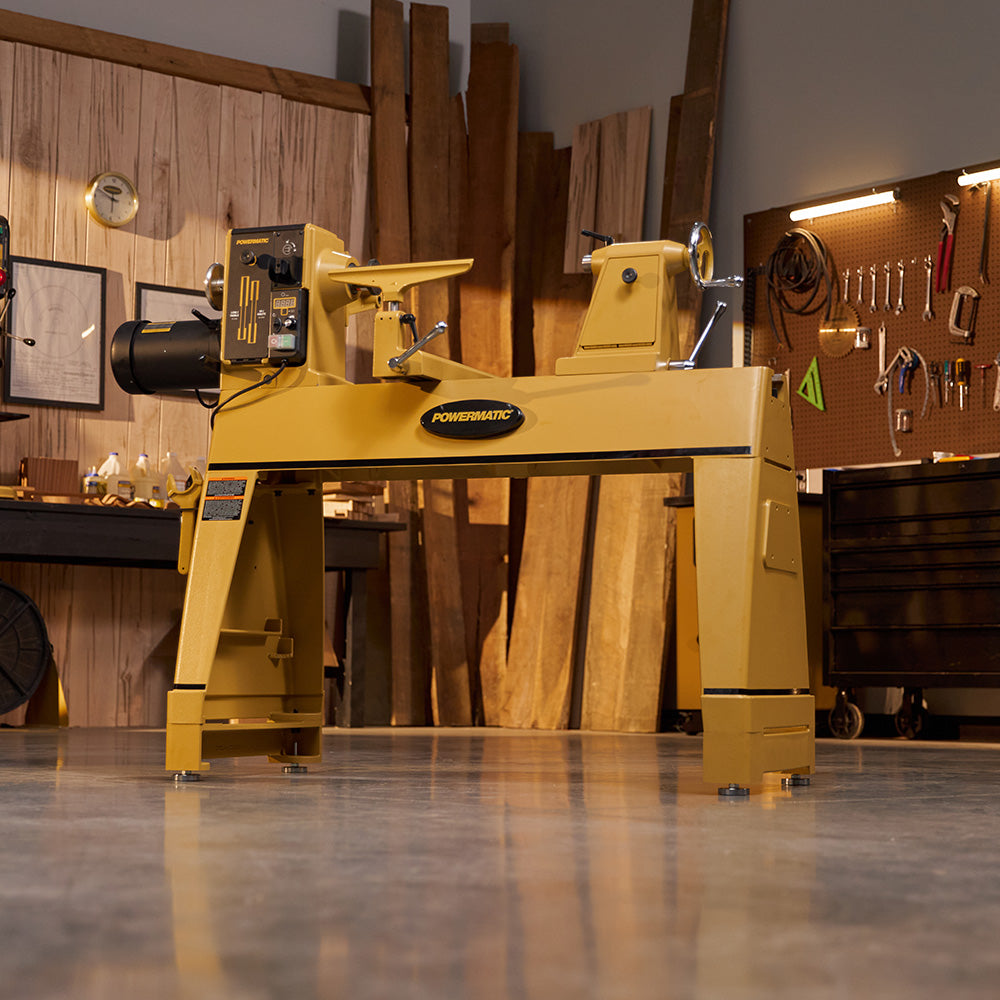

The Powermatic 3520C pairs vibration-dampening cast-iron with ergonomic controls and intuitive digital readouts. These features reduce user fatigue and deliver smooth, precise control during long turning sessions. With a powerful 2HP motor and an impressive 36" between centers, this lathe is ideal for woodworkers or contractors turning medium-to-large projects, such as table legs or bed posts.

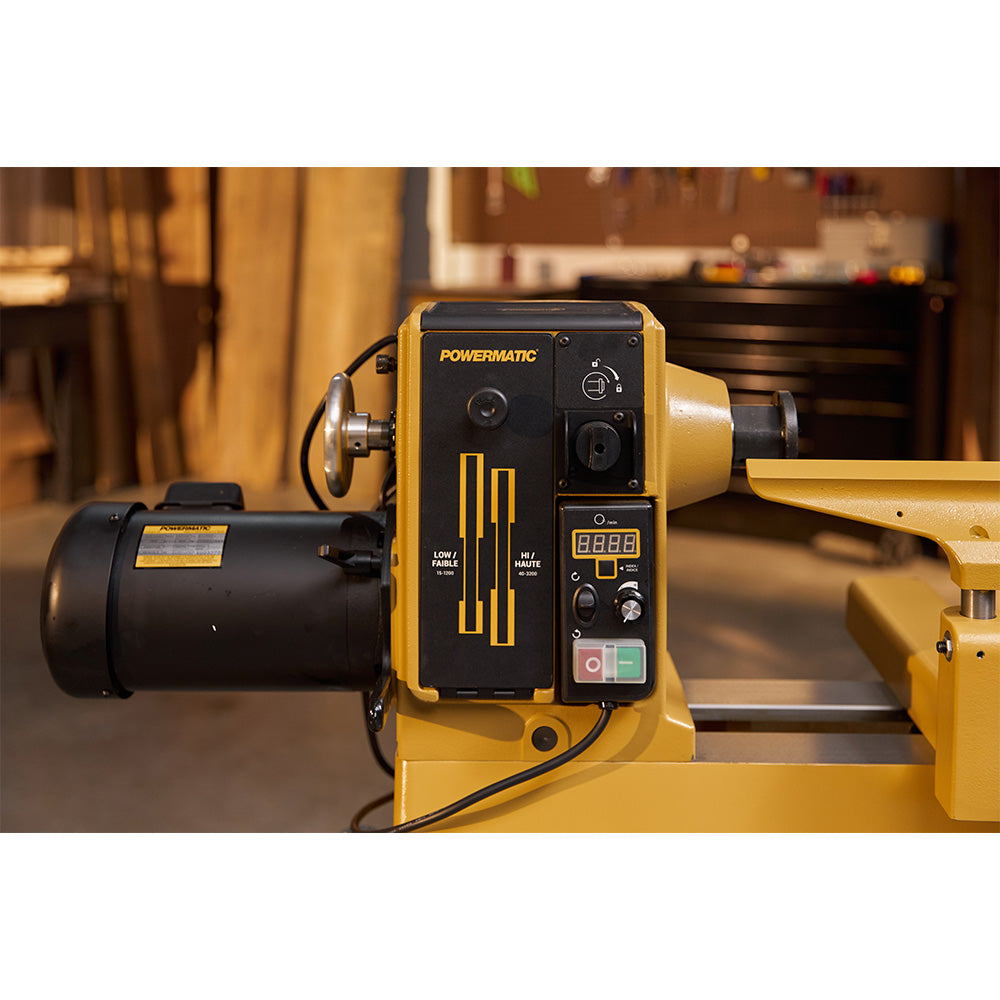

Enhanced features of the 3520C include a moveable control box for maximum versatility, adjustable riser blocks for 4" of height adjustment, and an increased weight of 726 lbs. (814 lbs. with the bed extension). The moveable control box magnetically mounts to the headstock or anywhere along the lathe bed, and has a digital speed readout, variable speed control dial, start/stop buttons, and a forward/reverse switch.

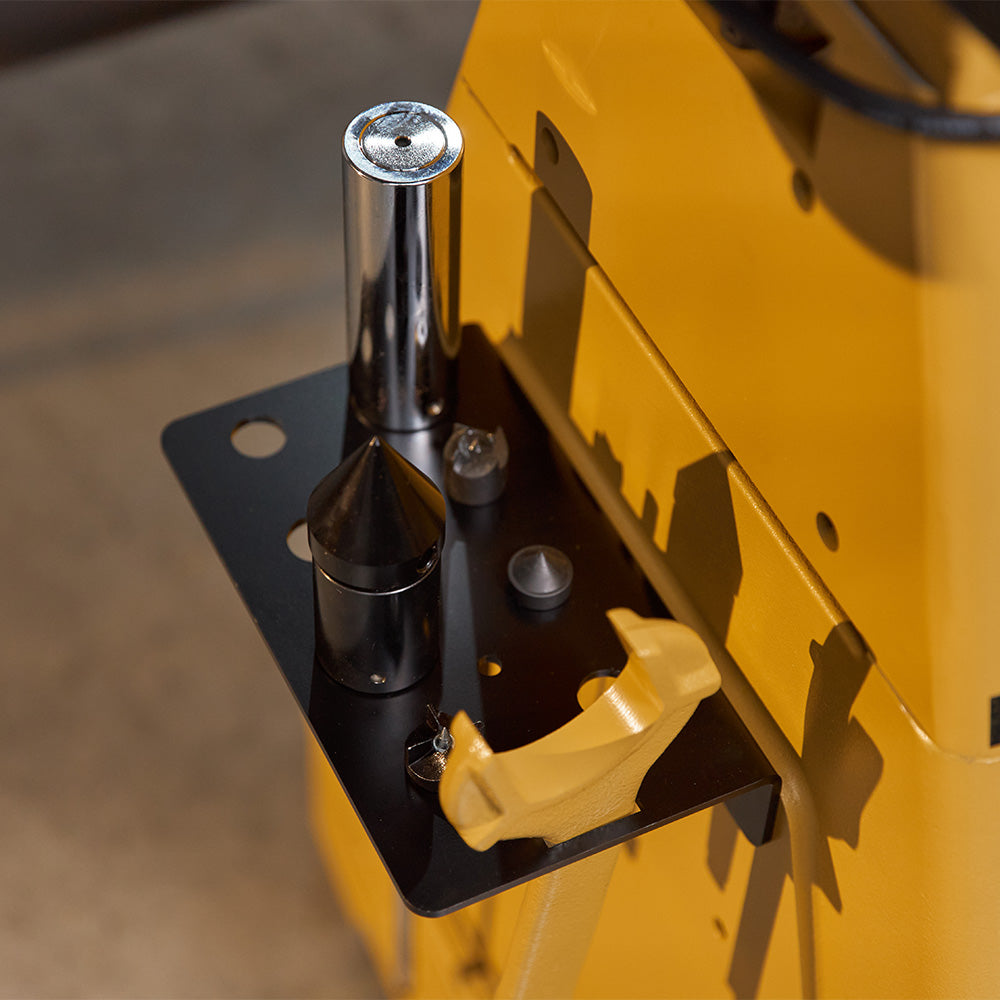

Additional features include an ergonomic spindle lock design, anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two-position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

Please note: This lathe cannot be run on a GFCI circuit.

Features
  • Powerful 2HP motor with single-phase power delivers controlled torque for demanding applications and long run times
  • Electronic variable speed with digital RPM display allows precise speed adjustments for consistent control during roughing and finishing
  • Sliding headstock design improves access to the workpiece and supports flexible positioning for bowl and spindle turning
  • Digital spindle indexing readout simplifies repeatable layout work such as fluting, carving, and decorative details

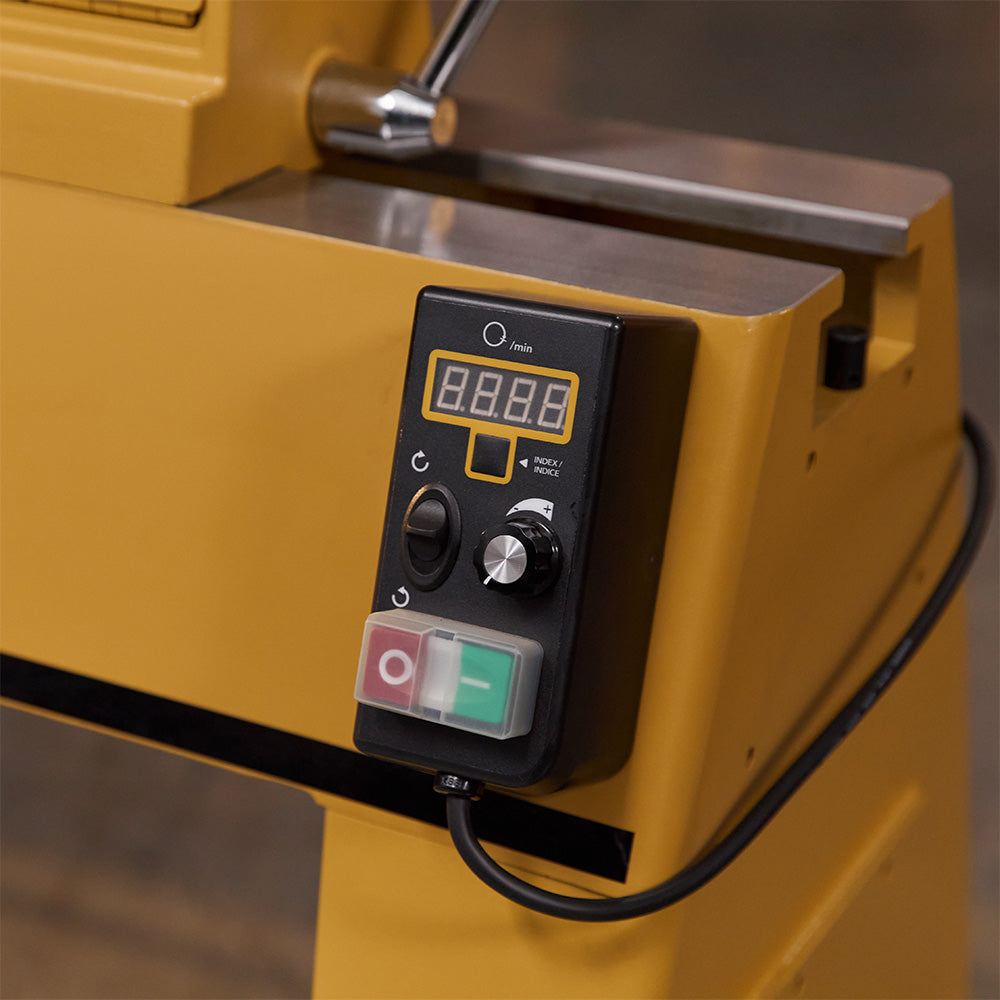

  • Magnetic-backed movable control box allows you to reposition controls closer to the work area for improved visibility and convenience
  • Adjustable riser blocks provide up to 4" of height adjustment to accommodate different operator preferences

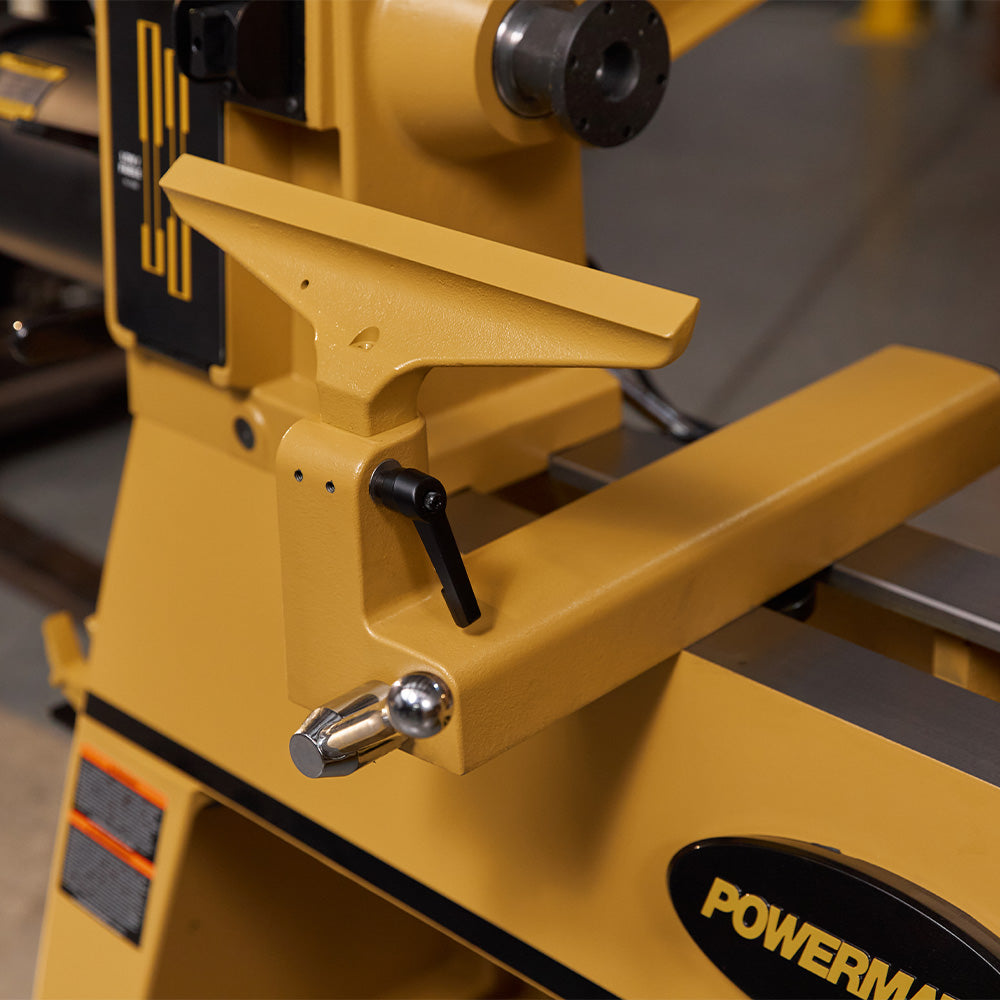

  • Upgraded banjo with non-marring pinch-style clamp secures the tool rest firmly while protecting the lathe bed surface
  • Extended spindle nose increases clearance and access when mounting or removing turning workpieces
  • Fully enclosed VFD enhances operator protection while supporting smooth electronic speed control
  • Anti-rotation tailstock design with self-ejecting quill supports smooth operation and accurate alignment
Specs

Horsepower: 2hp (1.5 kW)
Motor: 220V, 3-phase, 60 Hz
Recommended circuit: 20 A
Full load amps: 6.2 A
Working distance between centers: 36"
Swing over bed: 20"
Spindle thread size: 1-1/4" x 8TPI
Headstock spindle taper: #2 Morse
Headstock spindle hole dia.: 5/8" (16mm)
Outboard external threads: 1-3/16"-18 UNC
Faceplate: 3"
Hole through tailstock quill: 3/8"
Tailstock quill travel: 4-1/2"
Overall Dimensions (L x W x H): 69-1/2" x 36-1/2" x 47"
Riser block height: 4"
Net weight: 726 lbs.

Video

SKU: PM9-1353001
