SCM Minimax SI 400es Sliding Table Saw w/Ready Control (1PH)
- Sale price
- $ 15,200
- List price
- $ 17,275
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
Made in Italy. Ships from the United States.
- Freight included in price*
- Sale price valid while supplies last - Please call before ordering
- In stock as of 12.4.25

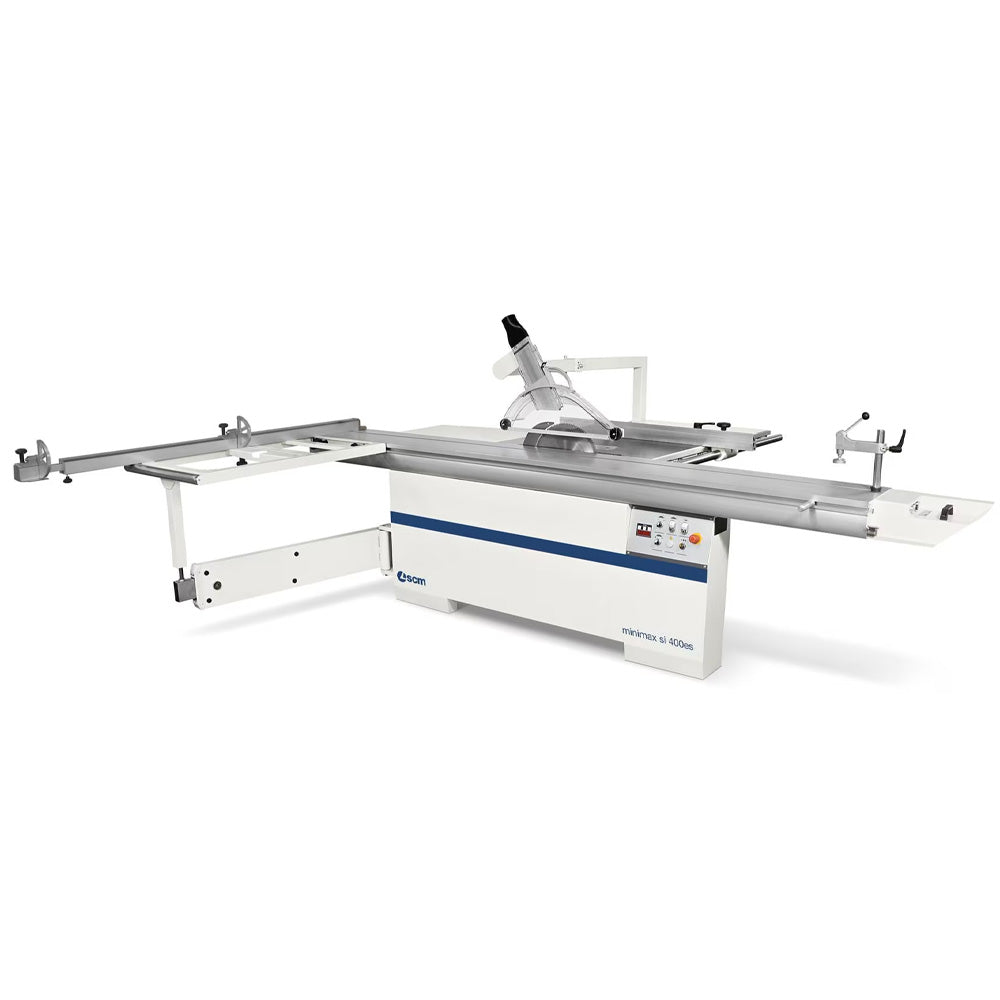

The Minimax SI 400es is the best choice for professionals who require a quality sliding table saw without compromises. This saw features a 10.5' slider, 16" tilting blade, 50" rip capacity, an independent scoring unit, dado capability, and a numerical-controlled rip fence.

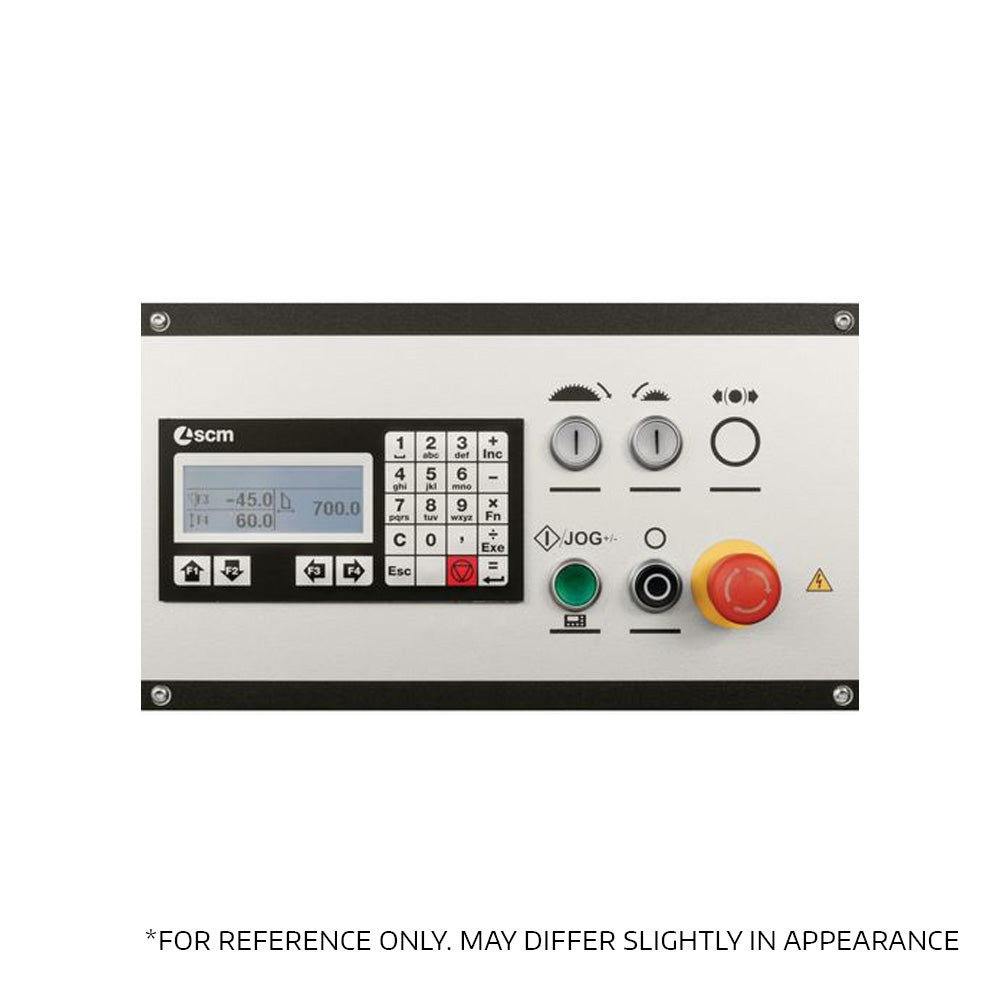

Most notable on the Minimax SI 400es is the "Ready" control panel. This panel gives the operator full powered control over the parallel fence. Move the fence manually by simply holding a button, or program the exact desired position by keying it in on the panel. The operator can also use the Ready control panel to set the angle of both the blade and the fence for a variety of cuts.

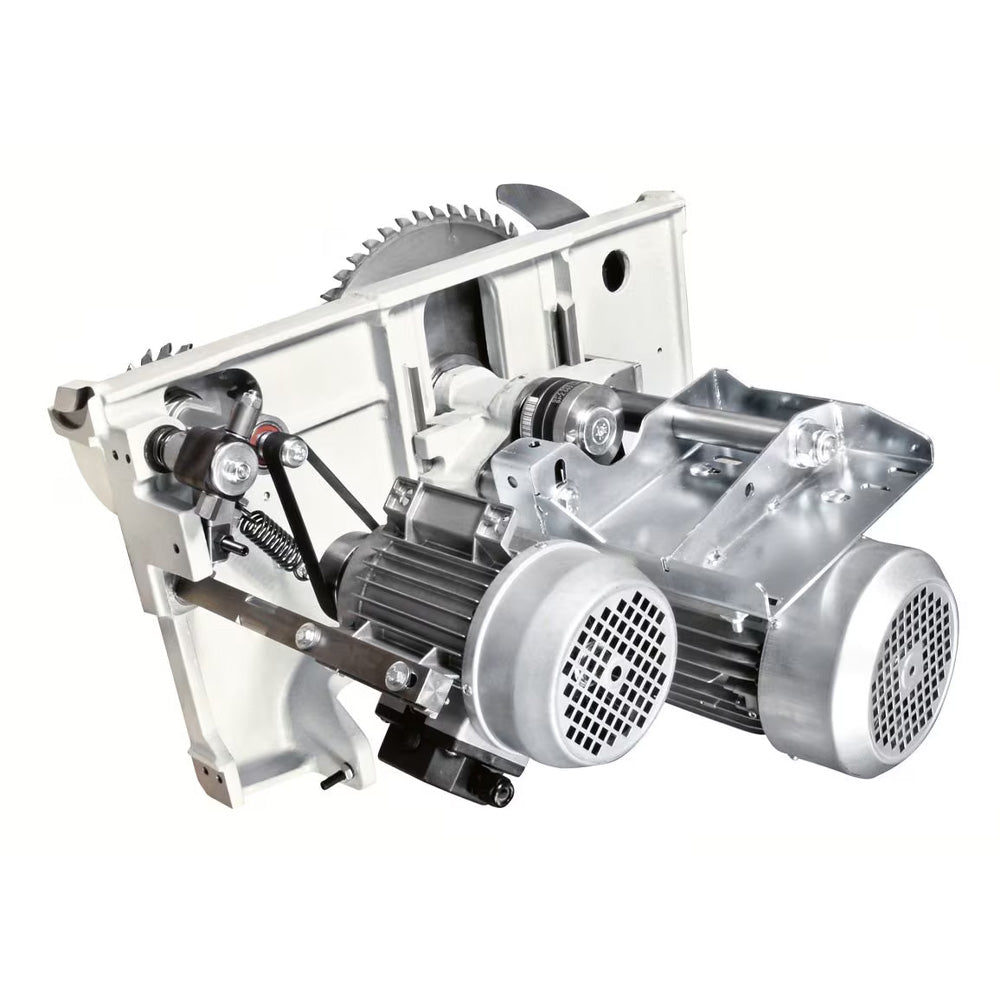

The cast iron saw unit on the Minimax SI 400es can accommodate a 400mm (16") blade with the scoring blade mounted, ensuring easy and precise cuts in solid wood materials and veneer panels. This unit runs on dovetail guideways and features high rigidity sliding side trunnions for effortless passes.
Utilize SCM's Thundercut App to get the most out of the SI 400es. This app is compatible with iOS and Android operating systems, and allows you to:
- Manage stock material and guides you through the cut
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
- Choose different cutting patterns based on app's suggestions, such as "minimum waste," "maximum speed," etc.
- View machine configuration in 2D or 3D
- Print panel labels
Optional Installation & Training
When purchased, installation will be performed by an SCM factory-trained service technician or certified dealer technician. Installation is defined as assembling the machine to its "ready-to-run" state; it does not include floor/masonry work or running electrical, pneumatic, or dust extraction services. Training will be conducted on site by the technician after installation is completed.
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Features
- "Ready" control panel for both programmed and manual fence adjustment and blade tilt
- Cast iron saw unit with main blade and scoring blade
- Dado capability (8" max. diameter, 3/4" max. thickness)
- Large sliding carriage with guides secured by riveting

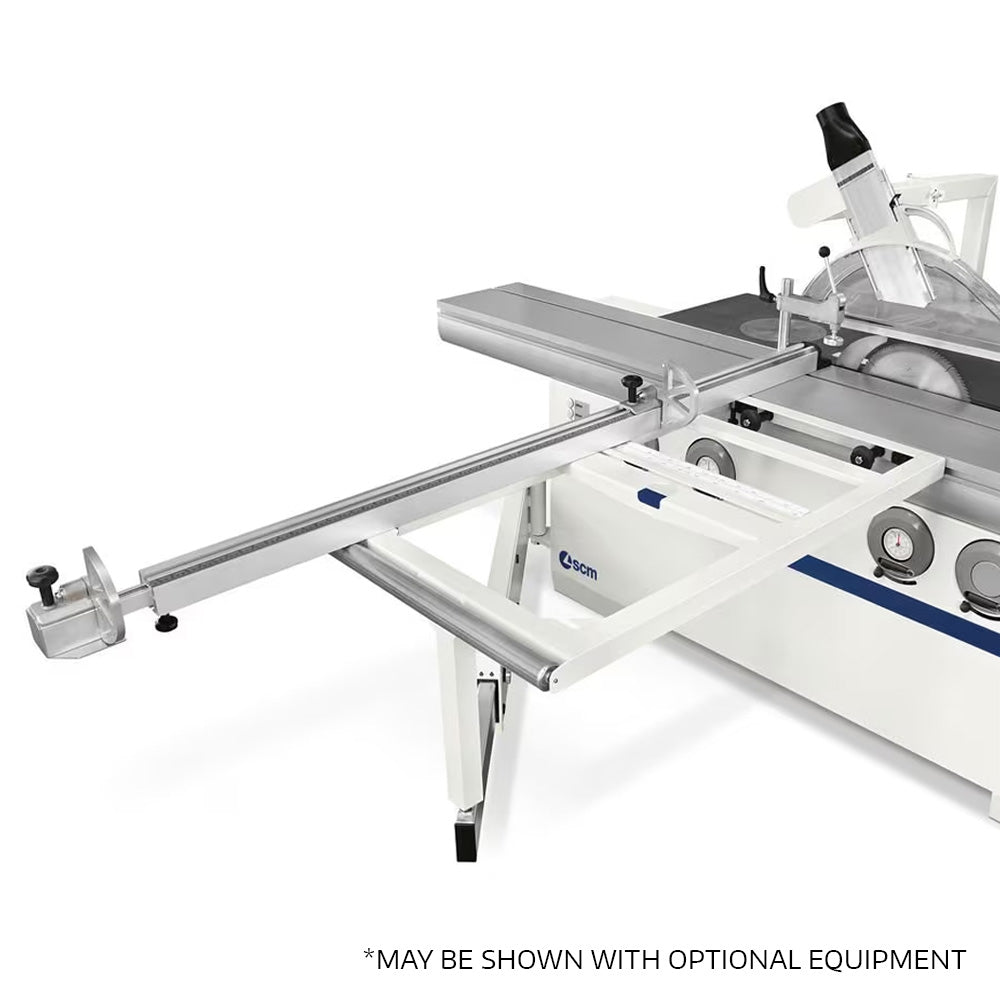

- Squaring frame equipped with swinging arm support and idle roller to facilitate panel loading/unloading
- Telescopic squaring fence equipped with two flip-over stops and a scale (metric & imperial) tilted towards operator
Specs
Main motor: 4.8hp, 60 Hz
Scoring motor: ~1hp
Electrical requirements*: 220V, single-phase, 26 A
Cast iron worktable: 37" x 22" (940 x 560mm)
Max. blade (w/scoring blade installed): 16" (400mm)
Blade arbor: 1" (25.4mm)
Scoring blade: 4.69" (120mm)
Scoring blade arbor: 0.75" (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° - 45°
Max. rip capacity: 50" (1,270mm)
Max. cutting height (90°): 5.3" (136mm)
Max. cutting height (45°): 3.8" (97mm)
Dust port: 4.7" (120mm)
Dust collection required: 955 CFM
*Subject to change; must verify prior to installation
Includes
- Main blade (400mm)
- Scoring blade
- Eccentric clamp
- Trimming shoe
- Push stick & handle
- Toolbox
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
"Minimax Ease" mobile trolley
-Designed to store various accessories. Equipped with an upper table that can be used as workpiece support, two shelves with rubber surfaces, and rotating lockable wheels.
Squaring fence with 2 DRO flip stops
-Each stop features a detecting system and micrometric adjustment, and is equipped with independent electronic digital readout on LCD displays. The stop can be positioned close to the blade with a minimum distance of 420mm. Not compatible with CompeX.
Extra squaring fence stop with LCD readout
Angular cutting device with flip-over stops
-This device is pre-set for rapid angle selection and is equipped with a telescopic fence with two flip-over stops.
Additional table on sliding table
-For supporting large panels.
Expandable scoring blade
-120mm diameter, 20mm bore, 24 teeth
Eccentric clamp
