SCM Minimax SI 400es Sliding Table Saw w/Ready Control (3PH)

Price
$ 16,475

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Made in Italy. Ships from the United States.


  • Freight included in price*
  • Next available: Early October 2025

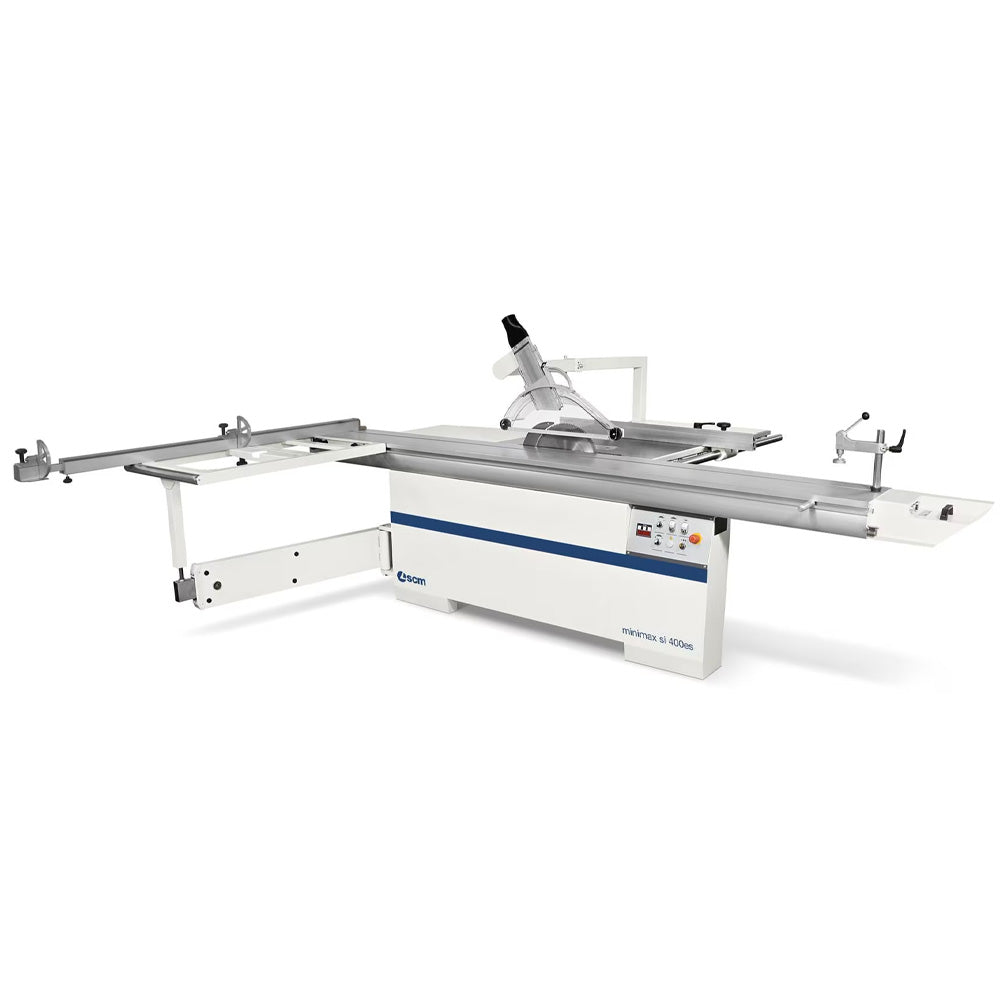

The Minimax SI 400es is the best choice for professionals who require a quality sliding table saw without compromises. This saw features a 10.5' slider, 16" tilting blade, 50" rip capacity, an independent scoring unit, dado capability, and a numerical-controlled rip fence.

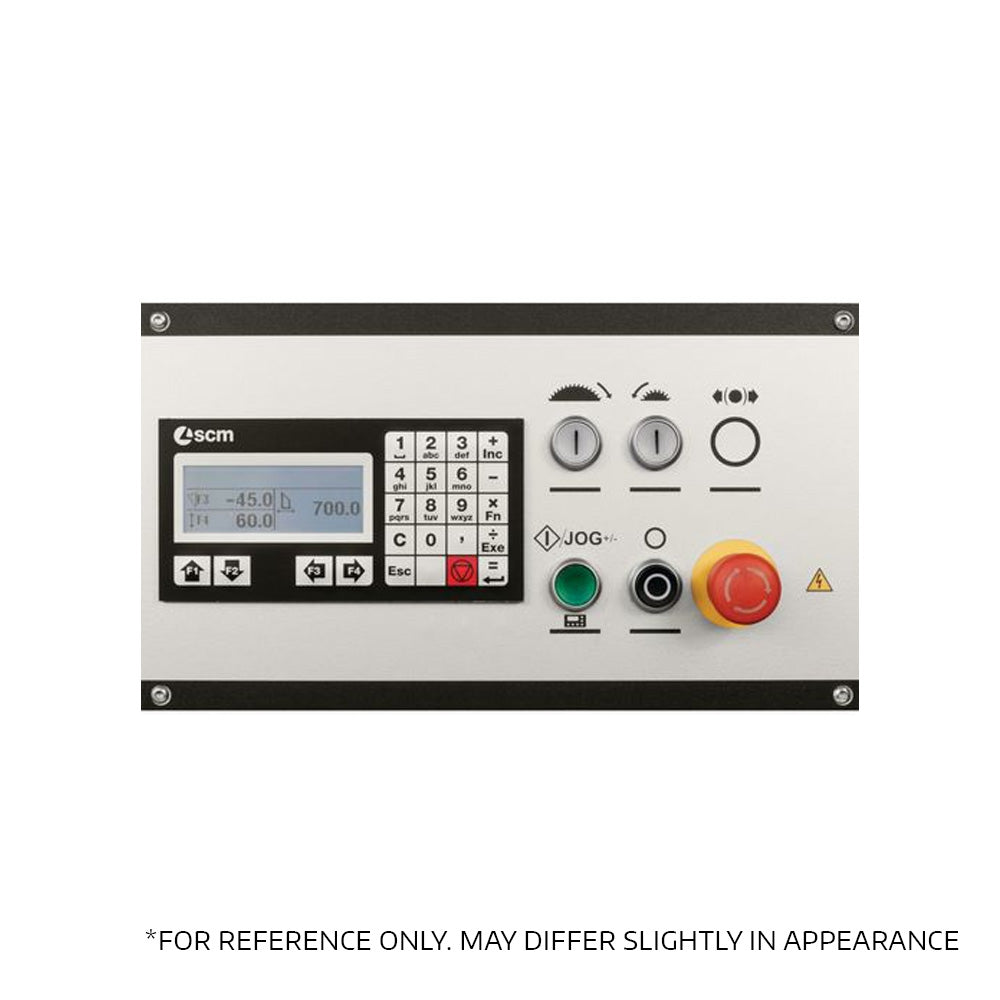

Most notable on the Minimax SI 400es is the "Ready" control panel. This panel gives the operator full powered control over the parallel fence. Move the fence manually by simply holding a button, or program the exact desired position by keying it in on the panel. The operator can also use the Ready control panel to set the angle of both the blade and the fence for a variety of cuts.

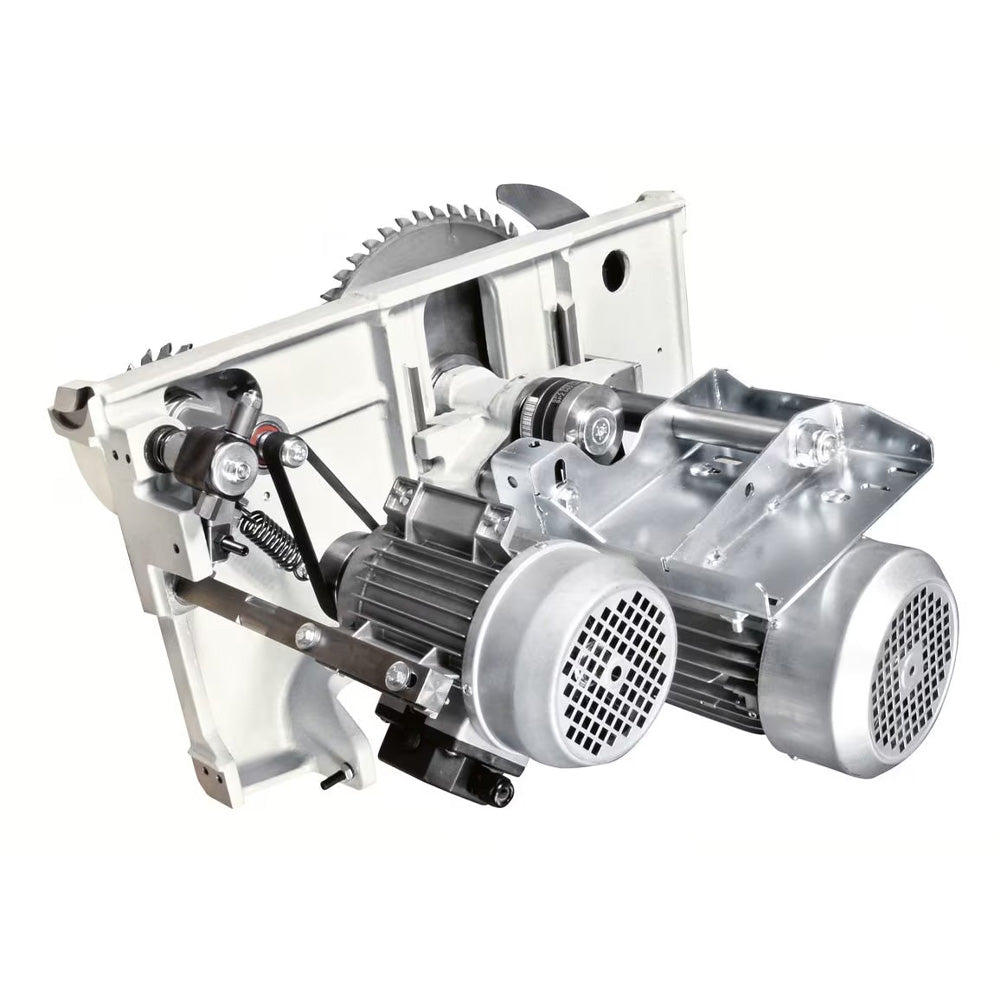

The cast iron saw unit on the Minimax SI 400es can accommodate a 400mm (16") blade with the scoring blade mounted, ensuring easy and precise cuts in solid wood materials and veneer panels. This unit runs on dovetail guideways and features high rigidity sliding side trunnions for effortless passes.

Utilize SCM's Thundercut App to get the most out of the SI 400es. This app is compatible with iOS and Android operating systems, and allows you to:

  • Manage stock material and guides you through the cut
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
  • Choose different cutting patterns based on app's suggestions, such as "minimum waste," "maximum speed," etc.
  • View machine configuration in 2D or 3D
  • Print panel labels

Also available in 1-phase.

Features
  • "Ready" control panel for both programmed and manual fence adjustment and blade tilt
  • Cast iron saw unit with main blade and scoring blade
  • Dado capability (8" max. diameter, 3/4" max. thickness)

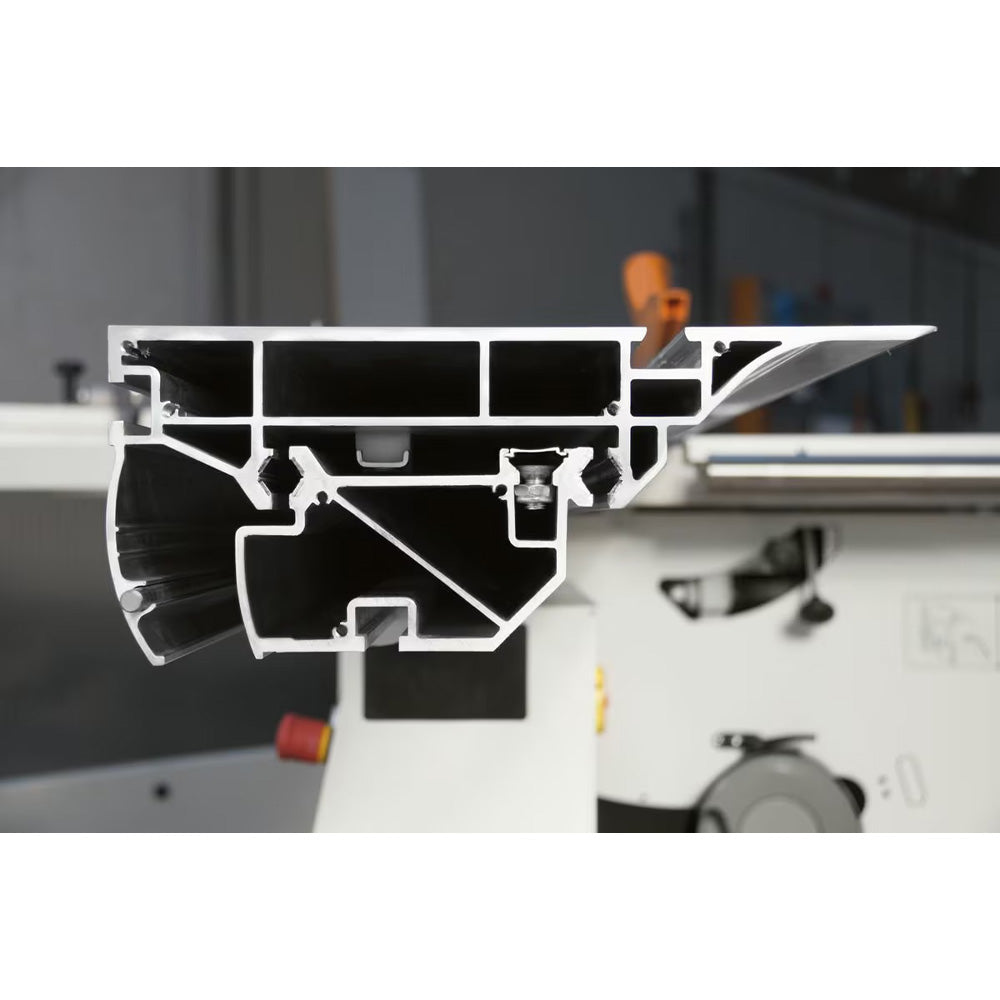

  • Large sliding carriage with guides secured by riveting

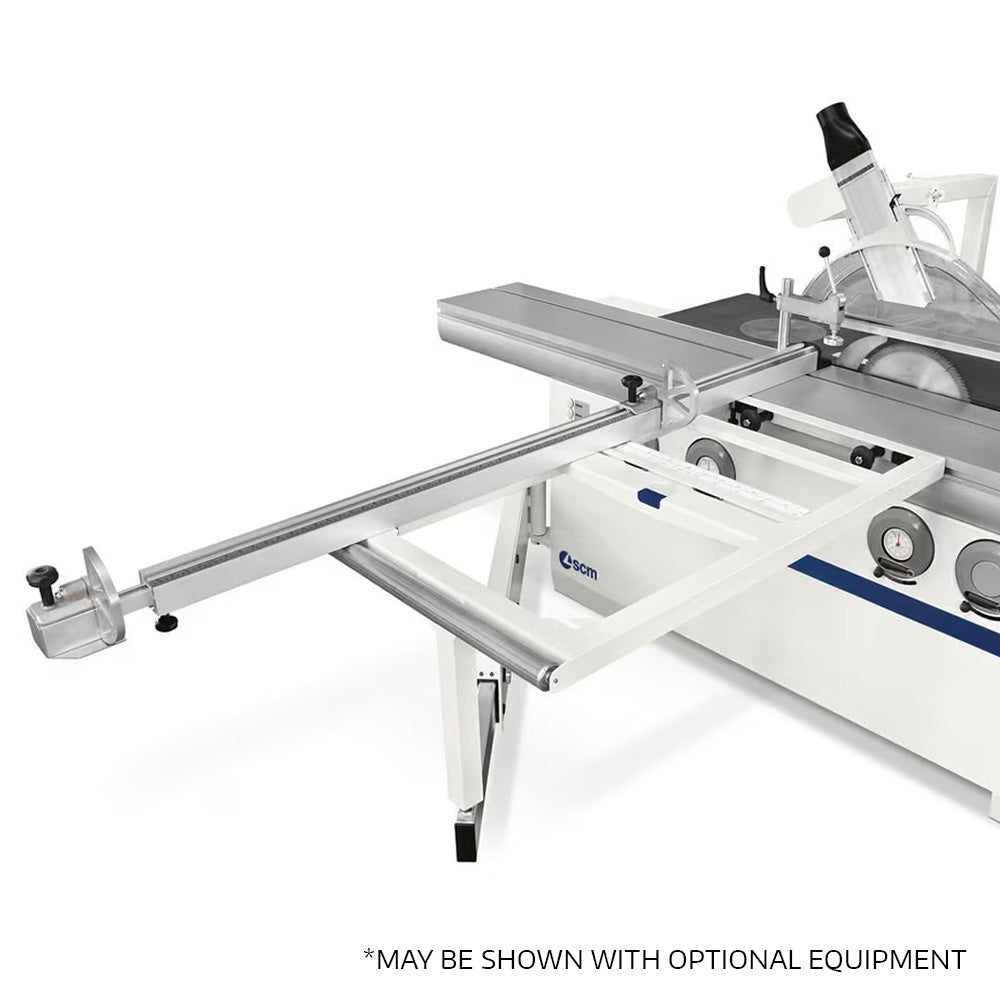

  • Squaring frame equipped with swinging arm support and idle roller to facilitate panel loading/unloading
  • Telescopic squaring fence equipped with two flip-over stops and a scale (metric & imperial) tilted towards operator
Specs

Main motor: 8hp, 60 Hz
Scoring motor: ~1hp
Electrical requirements*: 220V, 3-phase, 22 A
Cast iron worktable: 37" x 22" (940 x 560mm)
Max. blade (w/scoring blade installed): 16" (400mm)
Blade arbor: 1" (25.4mm)
Scoring blade: 4.69" (120mm)
Scoring blade arbor: 0.75" (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° - 45°
Max. rip capacity: 50" (1,270mm)
Max. cutting height (90°): 5.3" (136mm)
Max. cutting height (45°): 3.8" (97mm)
Dust port: 4.7" (120mm)
Dust collection required: 955 CFM

*Subject to change; must verify prior to installation

Includes
  • Main blade (400mm)
  • Scoring blade
  • Eccentric clamp
  • Trimming shoe
  • Push stick & handle
  • Toolbox
