SCM Formula S 740P 29" Band Saw 6.6hp, 3PH, 220V
- Price
- $ 10,685
Have questions? Give us a call at 260-637-0054.
Designed specifically for the North American market, the Formula S 740P has everything hobbyist and larger craft shops need. This versatile band saw can handle delicate or tight curved work and heavy-duty resaw operations. This robust machine features a 6.6 horsepower 3-phase motor, 17.7” resaw height, massive 29” flywheel diameter, an impressive 28.3" cutting width, and a 28” x 39” worktable that can tilt up to 45°!
The Formula S 740P comes with upper and lower Europeans-style guides on the machine. These guides provide for quick and easy adjustments without the need for tools. They can be adjusted up or down to accommodate the tilting of the table. When you are not tilting the table, you can raise the guides all the way up to the lower table surface to decrease the distance between your guides, maintaining maximum stability through your cut.
This machine boasts plenty of features. A rigid, rectified steel guidepost with rack and pinion positioning allows for rapid and precise raising or lowering of the guides. Thick cast iron wheels are perfectly balanced to reduce vibration and produce a fly wheel effect to aid in the processing of your pieces. Heavy-duty steel frames are the most rigid in their class and are designed to withstand the tension required for a carbide tipped blade.
The Formula S 740P also has vulcanized tires that not only bonds the rubber tires to the wheel, but they become like one with them. This means a greater transfer of power, as well as making it nearly impossible to shred them if a blade breaks resulting in less wear and maintenance over their lifetime. Two dust ports are included on this band saw, not just one like most others. This helps ensure that you will capture more debris, more efficiently.
Note: This machine is built to order.
Features
- Steel frame
- Cast-iron worktable
- Cast-iron rip fence
- Saw-blade tensioning indicator
- Rack and pinion lifting system
- Quick-tilting table with single-handle adjust feature
- Disc-type cast-iron flywheels running on sealed ball bearings
- Thick, vulcanized tires
- American miter slot (3/8” deep x 3/4" wide)
- Band saw lower footbrake
- Overload motor protection
- Emergency push/stop button
- Top/bottom European-style roller guides with ball bearings
- Cleaning brush on bottom wheel
- Safety micro switches

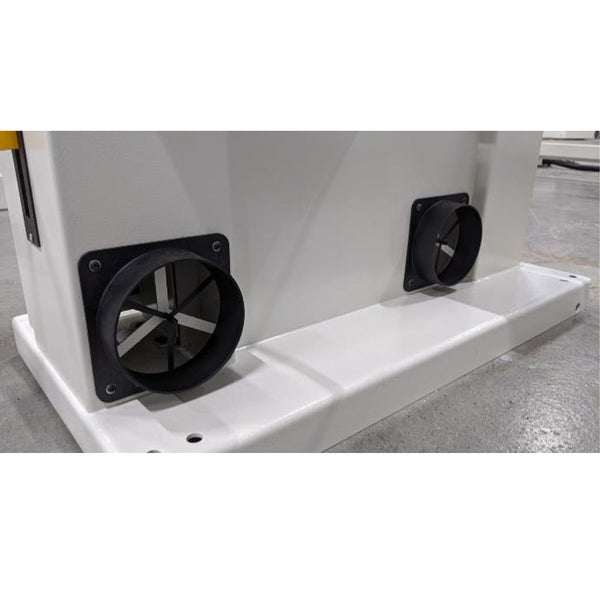

- Two lower exhaust port outlets for dust extraction
- Tool set and owner’s manual
Specs

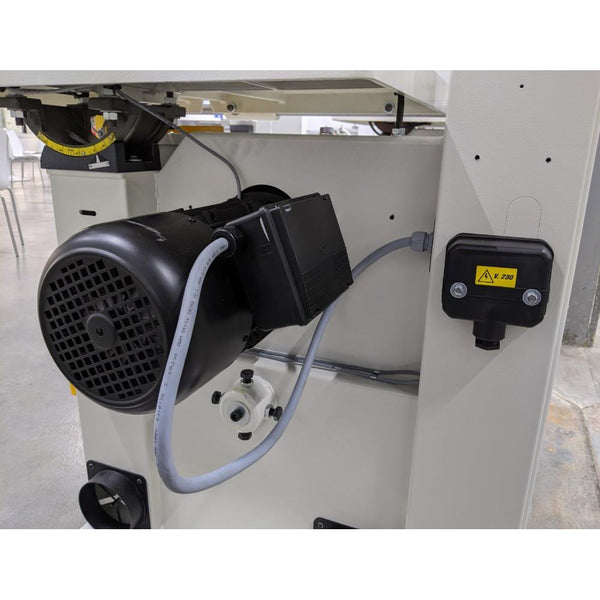

Motor: 3-phase, 220V
Horsepower: 6.6 Hp
Flywheel Diameter: 29” (740 mm)
Table Size: 28.3” x 39.4” (720 x 1,000 mm)
Table Tilt: 0° - 45°
Cutting Height/Depth: 17.7” (400 mm)
Cutting Width: 28.3” (720 mm)
Min. Blade Length: 210.23” (5,340 mm)
Max. Blade Length: 213.4” (5,420 mm)
Min Blade Width: .31” (8 mm)
Max Blade Width: 1.5” (40 mm)
Overall Dimensions (Used Upright/Vertically): 46.4” x 28.3” x 104.3” (118 x 72 x 265 cm)
Net Weight: 992 lbs. (450 kg)
Total Dust Extraction Ports: 2 Total
Dust Extraction Ports Diameter: 4.7” (120 mm)
Includes
- Mobility kit
- Tool set
- Operator's manual
