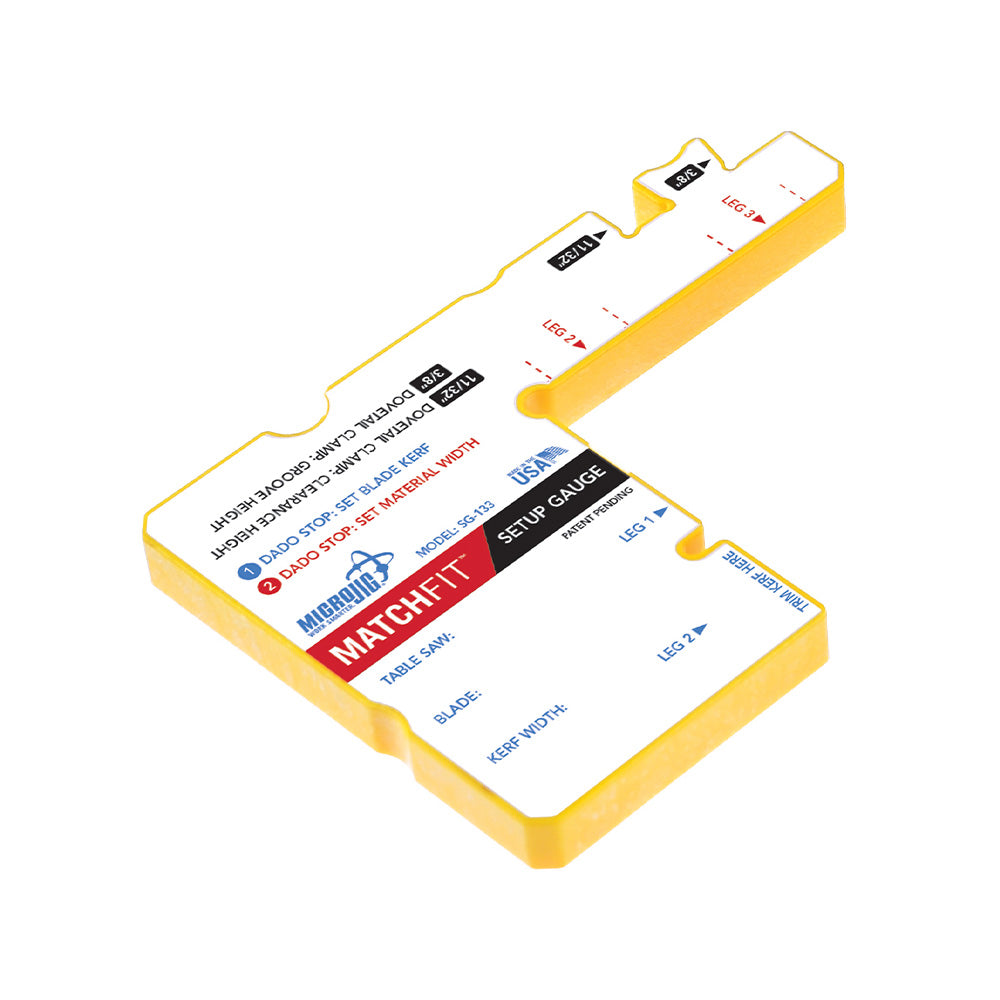

MicroJig MATCHFIT Setup Gauge

Price
$ 16

Have questions? Give us a call at 260-637-0054.

Fast, accurate setups for blade kerf, dado stop, bit depth, and blade height.

Record your blade’s actual kerf (including runout) by trimming it into the Setup Gauge. This serves as a template to set up your Dado Stop for a fast, precise dado cut. Best of all, there's no dado blade required.

Set the precise blade kerf with your own personal template that exactly matches your table saw kerf. The Setup Gauge also allows you to square your inlay material and set the exact width of the dado cut. No need for multiple test cuts, no cumbersome measuring, and no tricky setups – just perfectly fitted dados to make your project stand out. Easily record dado settings for future reference.

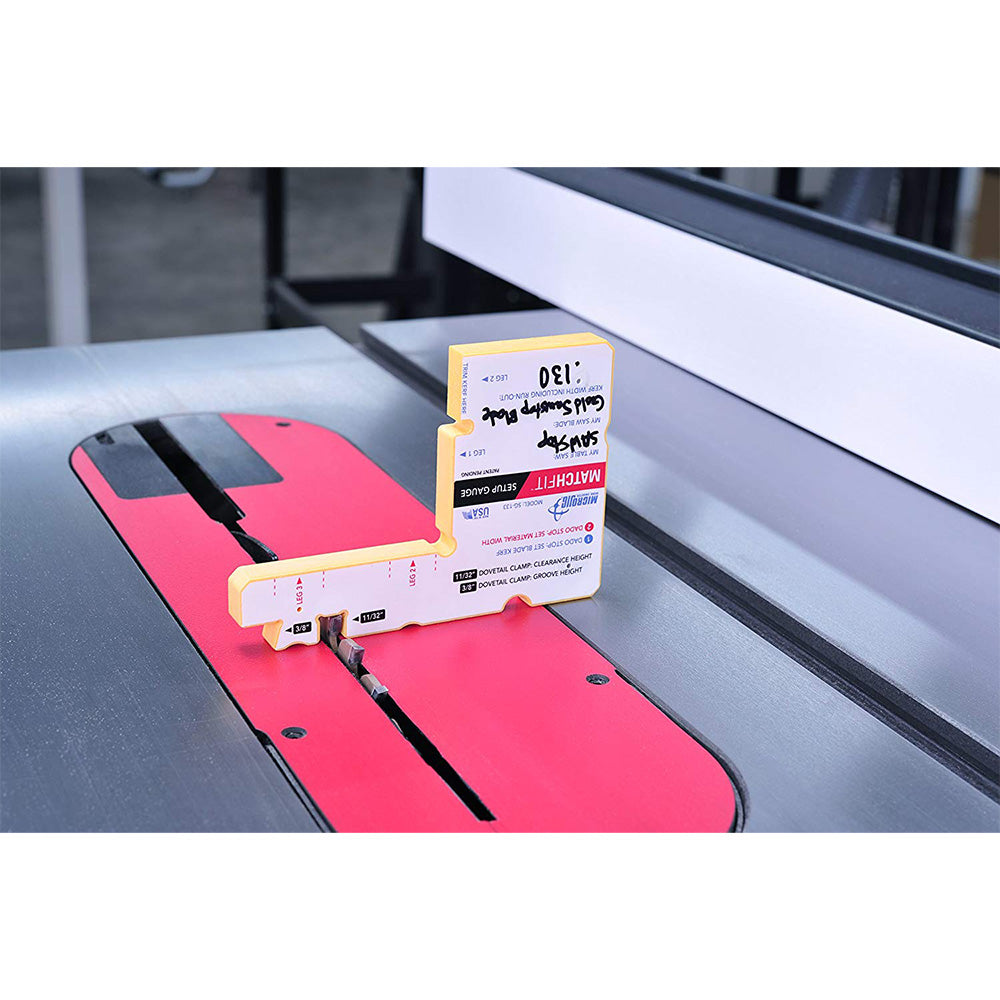

Pre-built templates let you quickly set the saw blade height for grooving clearance slots and a convenient router bit template let’s you set the exact 3/8″ depth for Dovetail Clamp grooves.

Features
  • Even faster setup and additional accuracy for cutting dados in minutes with MATCHFIT Dado Stop
  • Set the precise blade kerf with your own personal template that exactly matches your table saw kerf
  • Setup Gauge also allows you to square your inlay material and set the exact width of the dado cut
  • No need for multiple test cuts, no cumbersome measuring, and no tricky setups
  • Convenient router bit template lets you set the exact 3/8" depth for Dovetail Clamp grooves
Directions

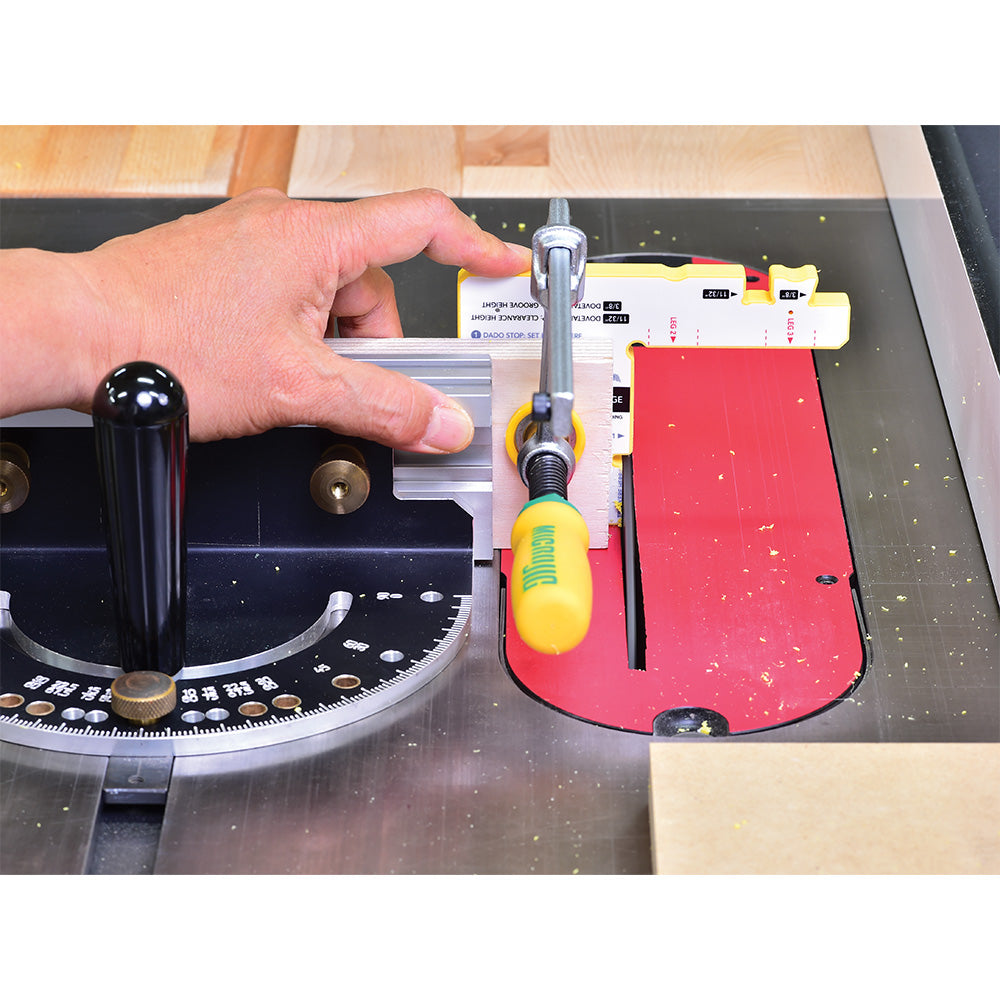

  1. Cut a scrap piece of MDF to template on side of your kerf. Without moving the fence, clamp the Setup Gauge to a crosscut sled, contacting the cut piece.

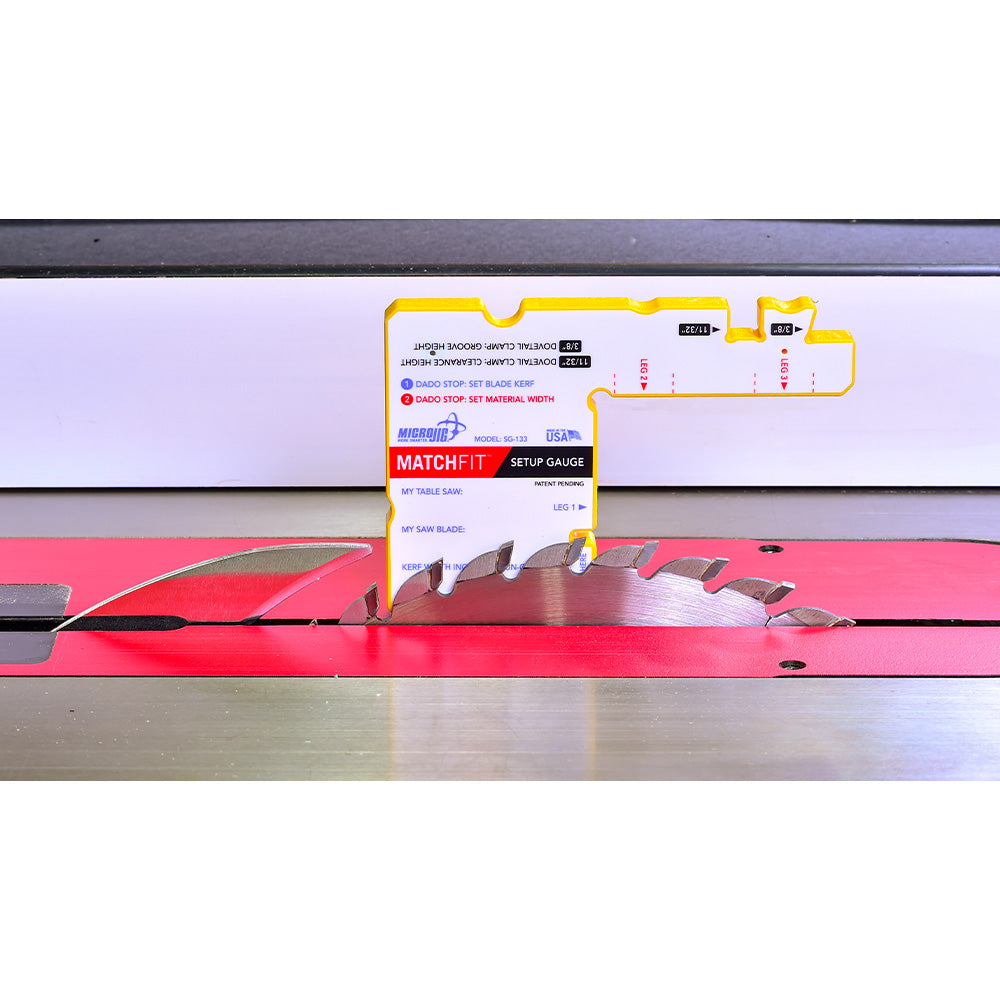

  2. Set blade height to the center of the notch. Remove MDF piece and push Setup Gauge through the cut.

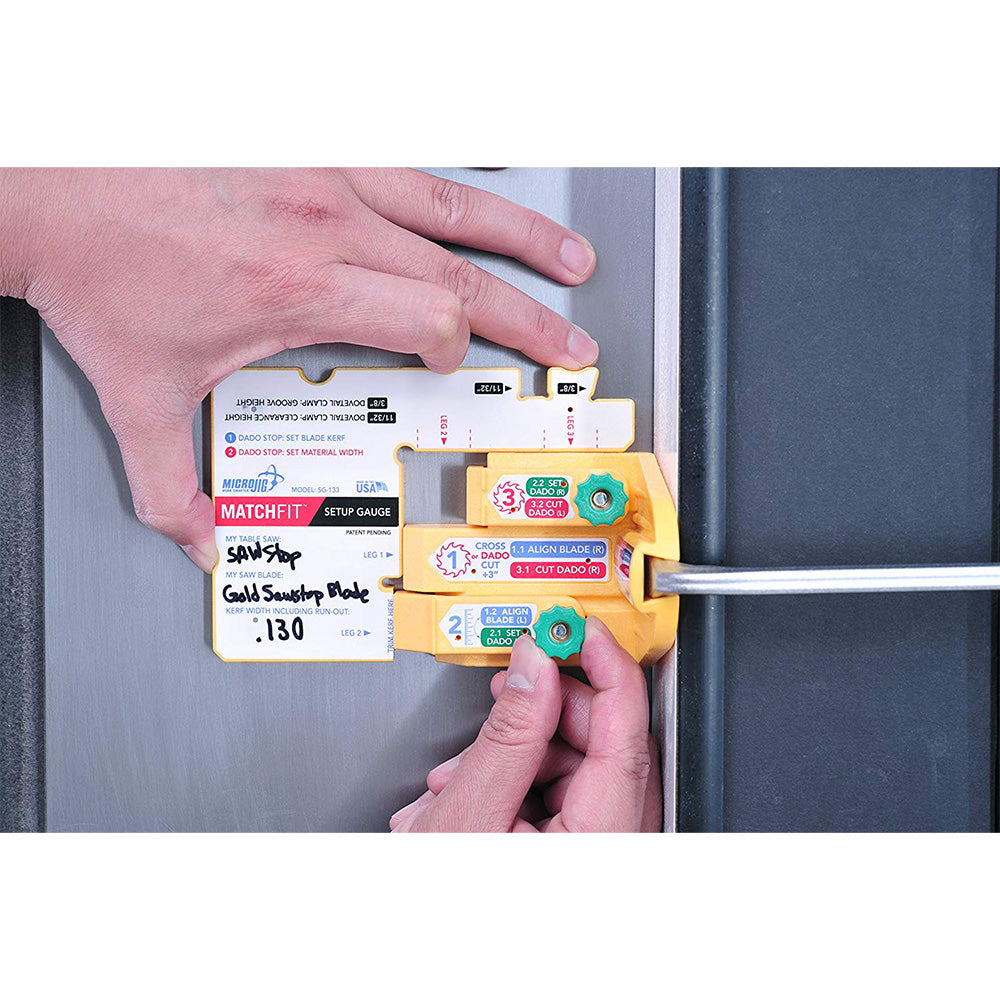

  3. The material trimmed out is an exact replica of the blade’s kerf, including runout. The resulting gap is used to account for the kerf when setting Leg 2 of the Dado Stop.
Video

SKU: SG-133
