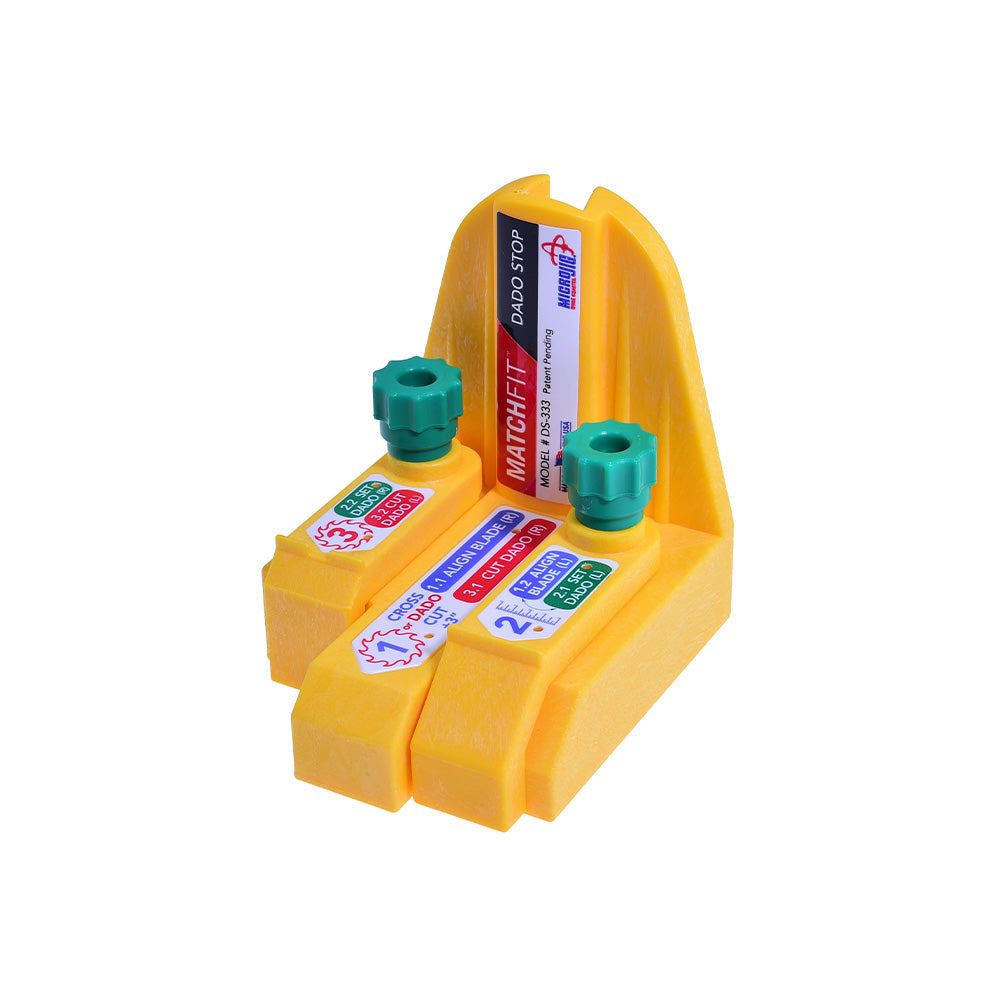

MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
Click image to open expanded view
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop
MicroJig MATCHFIT Dado Stop

MicroJig MATCHFIT Dado Stop

$ 25

Have questions? Give us a call at 260-637-0054.

For use with MATCHFIT Dovetail Clamps.

Quickly make perfect fitting dados with any table saw blade.

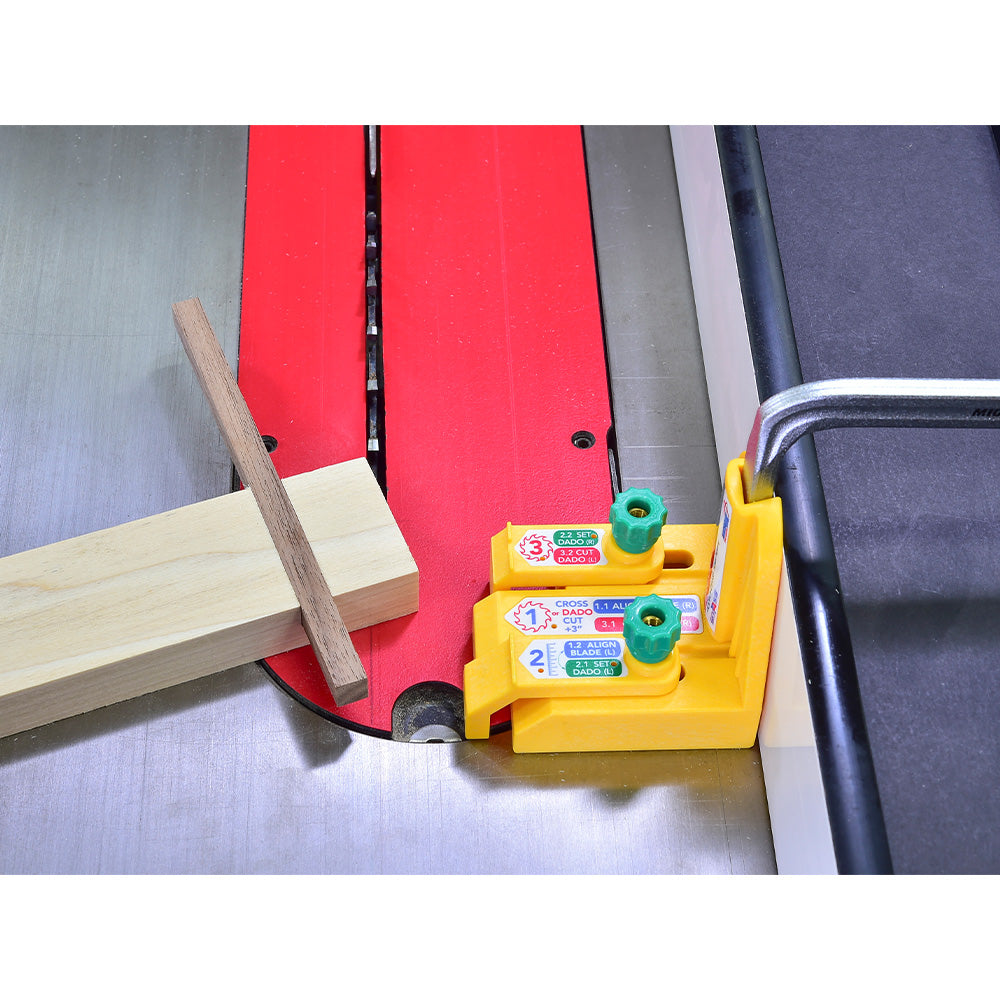

The Dado Stop references the blade’s unique kerf and the actual inlay material to measure the cut. Setting up your dado cut takes just a few seconds, and eliminates the need for measuring, test cuts, and wrestling with multiple blades and shims. Best of all—there's no dado blade required.

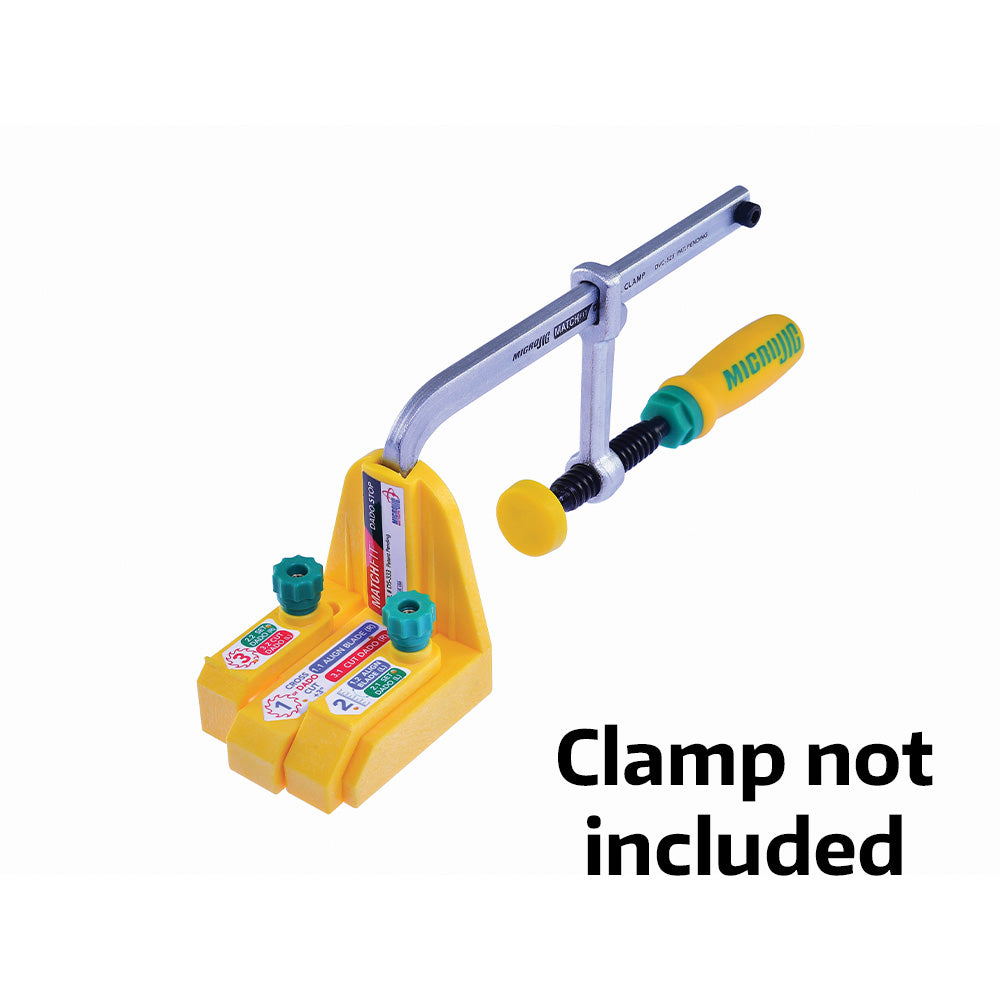

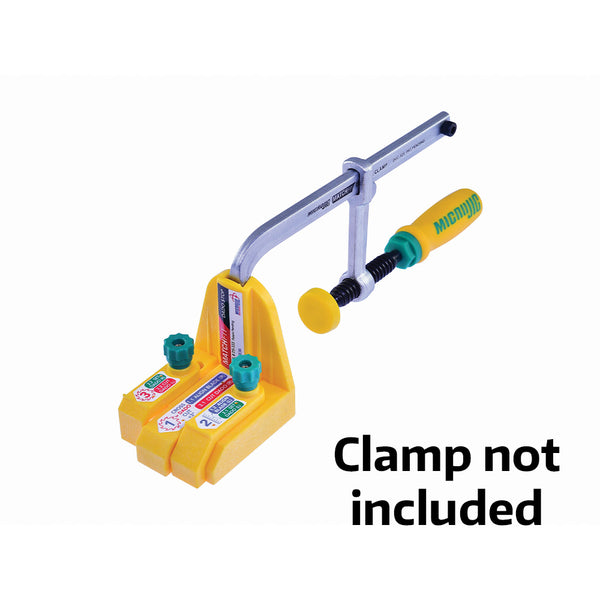

Note: MATCHFIT Dovetail Clamps are required but not included. You can purchase the Dado Stop in a set that includes a Clamp and Setup Gauge here.

Features
  • Create perfect-fitting dados, joinery, and inlays with any saw blade, fast
  • No hassles, no tricky measurements, just perfect-fitting dado cuts
  • Create intricate beautiful joinery simply and quickly
  • Can be used as a safe and effective crosscut stop
  • For use with MATCHFIT Dovetail Clamps
Directions

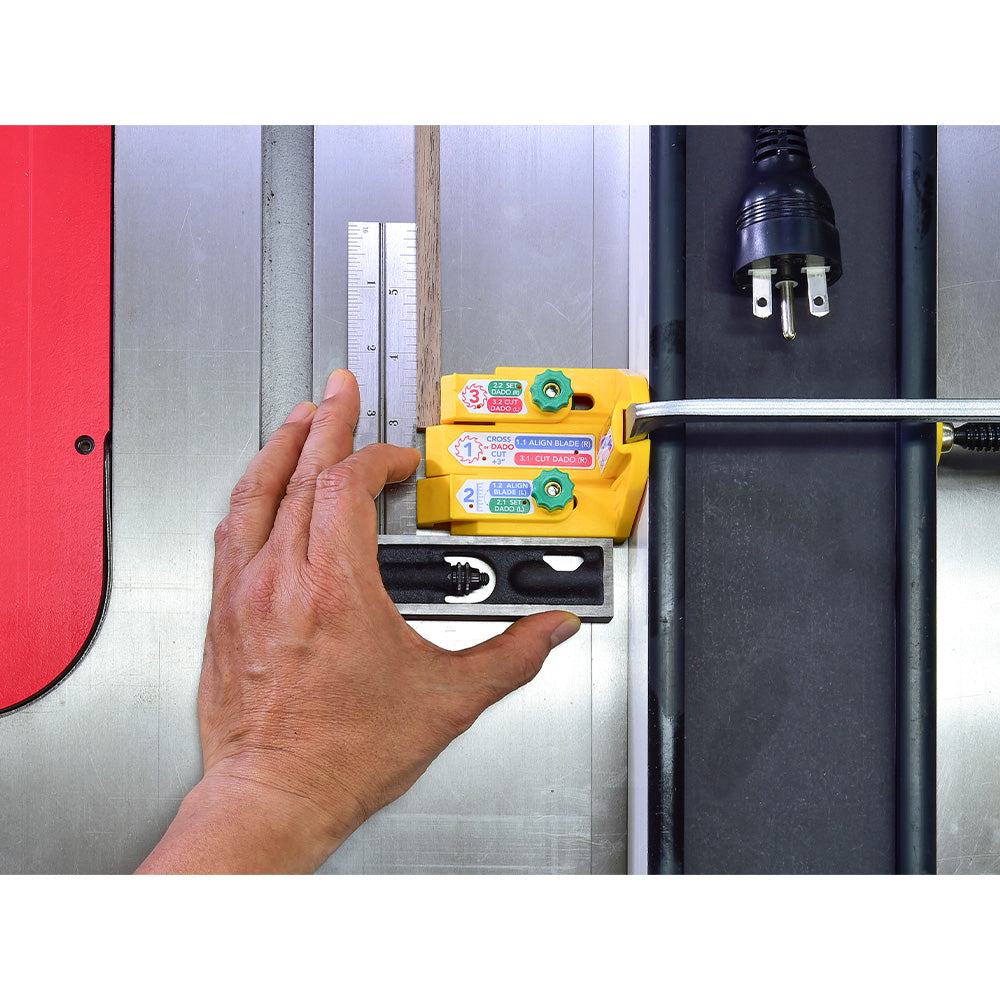

  1. Template your blade’s kerf.
  2. Set Leg 2 to cut one shoulder, accounting for the kerf.
  3. Set Leg 3 to match your inlay material.

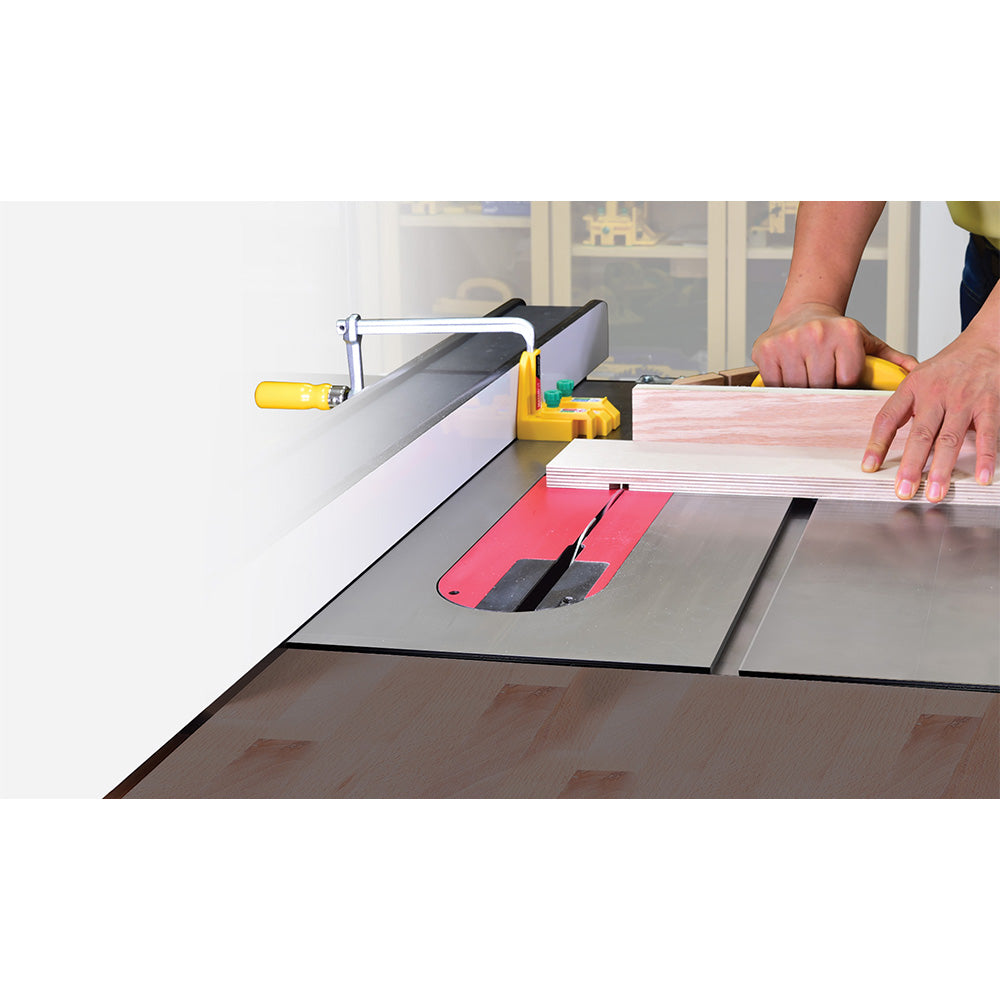

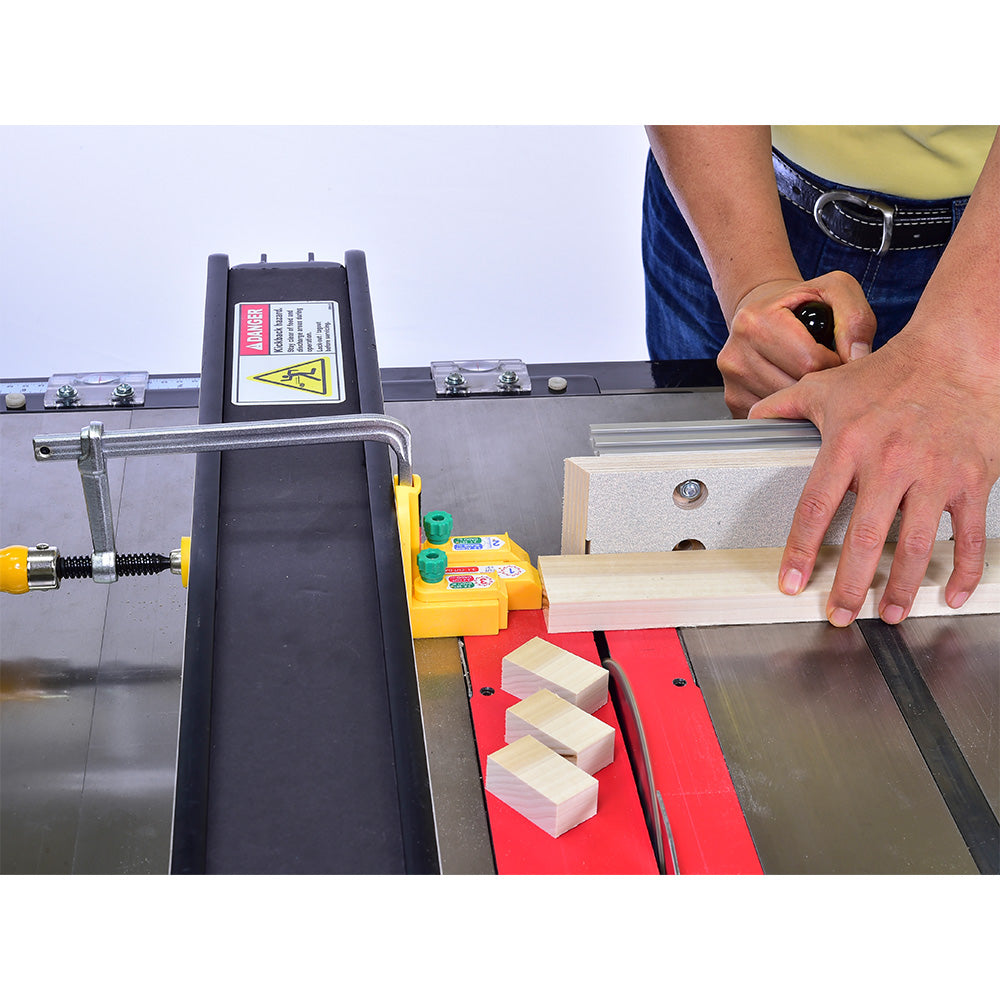

  4. Cut both outside shoulders, registering off Leg 1 and Leg 3.
  5. Clear out remaining material from the center.
Video

SKU: DS-333
