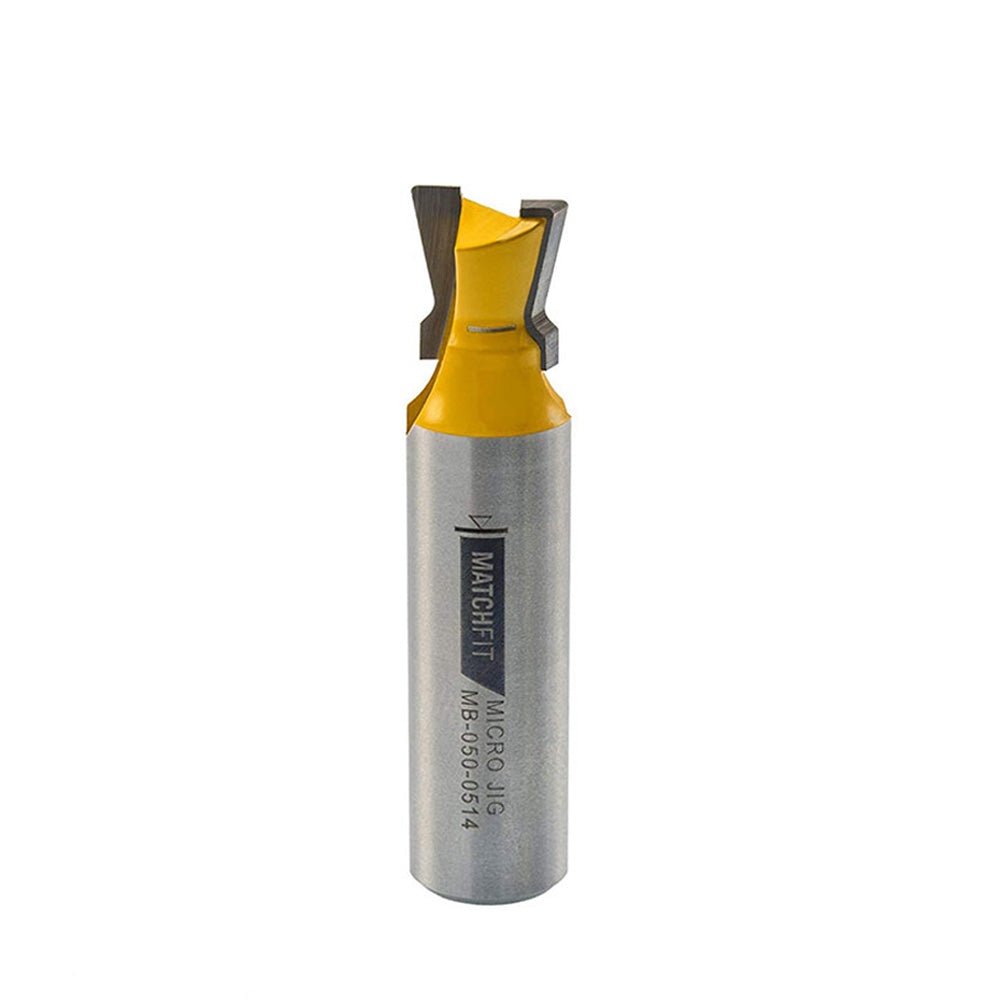

MicroJig MATCHFIT Dovetail Router Bit (1/2" x 14°)

The MATCHFIT 1/2" Dovetail Router Bit Shank is specially designed to route tracks for Dovetail Clamps and Dovetail Hardware. The Dovetail Bit's built-in roundovers cut clean dovetail grooves in a single pass. Less time sanding, more time building. Its unique design uses the same standard 14°, 1/2” profile, but with rounded corners. It routes incredibly clean Dovetail grooves and requires less sanding, making the match fit system faster and easier than ever before.

The 1/32” round over strengthens that bottom corner by removing less material. This is especially important when routing grooves in plywood, as it minimizes the possibility of plies separating.

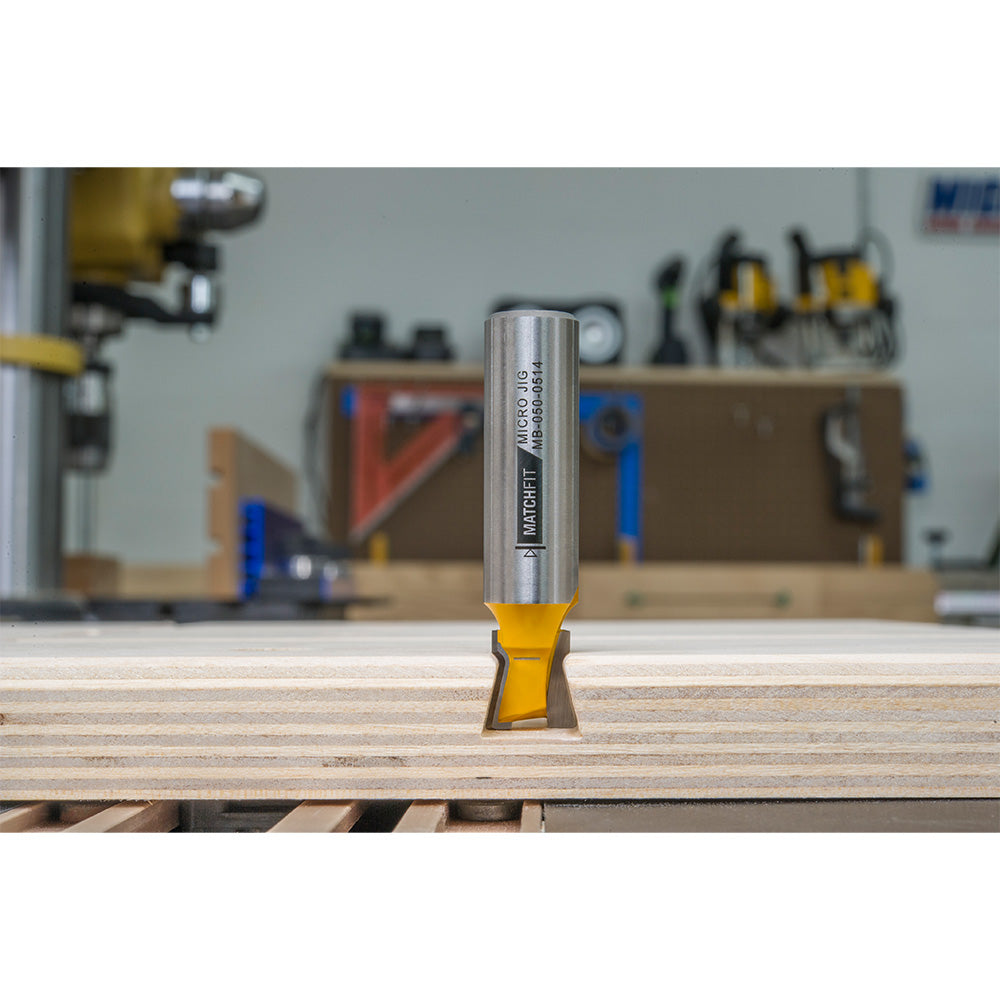

The bit can be set to a depth anywhere between .365” and .385”, and still be fully compatible with the match fit line of products. Within that range, the width of the Groove opening at the top will remain the same, but with varying round over exposure. The shallower the Groove, the smaller the round over. The deeper the Groove, the more pronounced the round over will be.

Also available in 1/4" shank.
