Lamello Clamex P-10 P-System Connectors

For use with Zeta P2 Handheld Joiners or CNC Router with P-System tooling.

• Detachable, two-part connection (metal lever locks & unlocks connector)

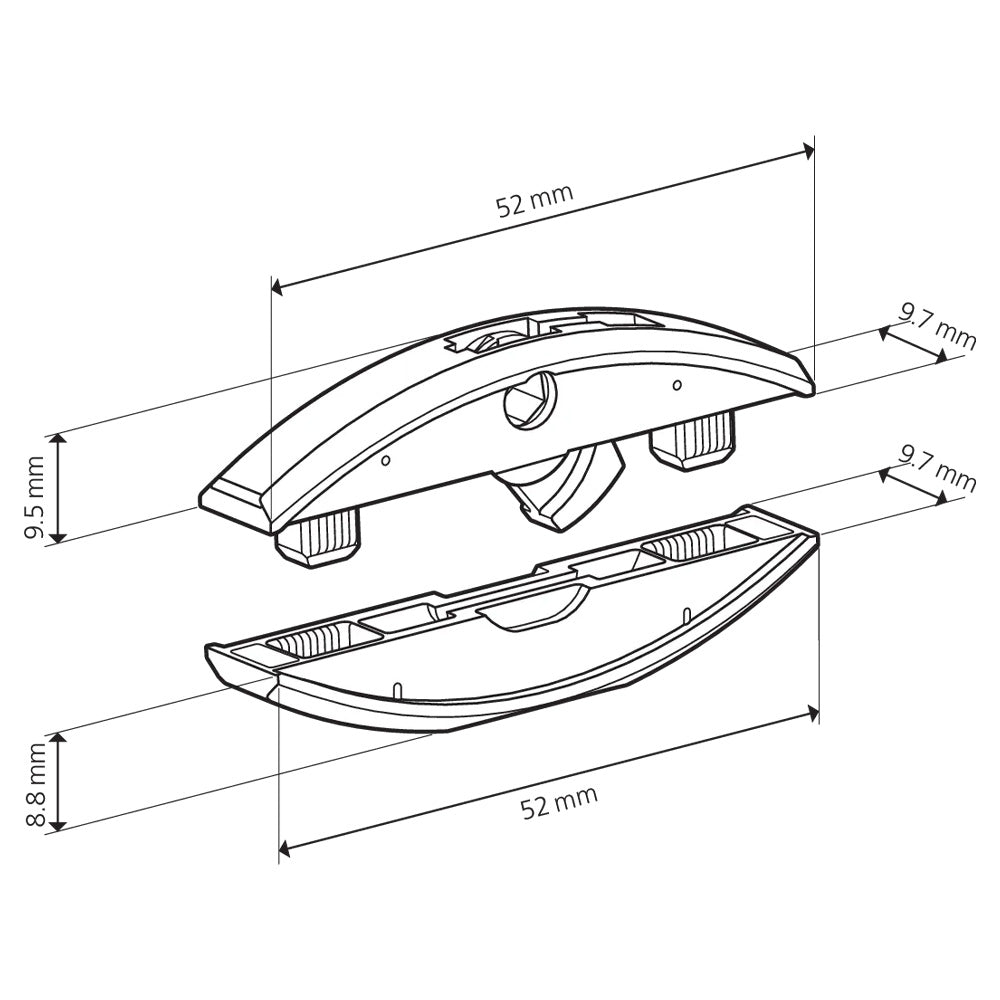

• Similar to Clamex P-14 but has a shallower installation depth of 10mm, so it is ideal for thinner material

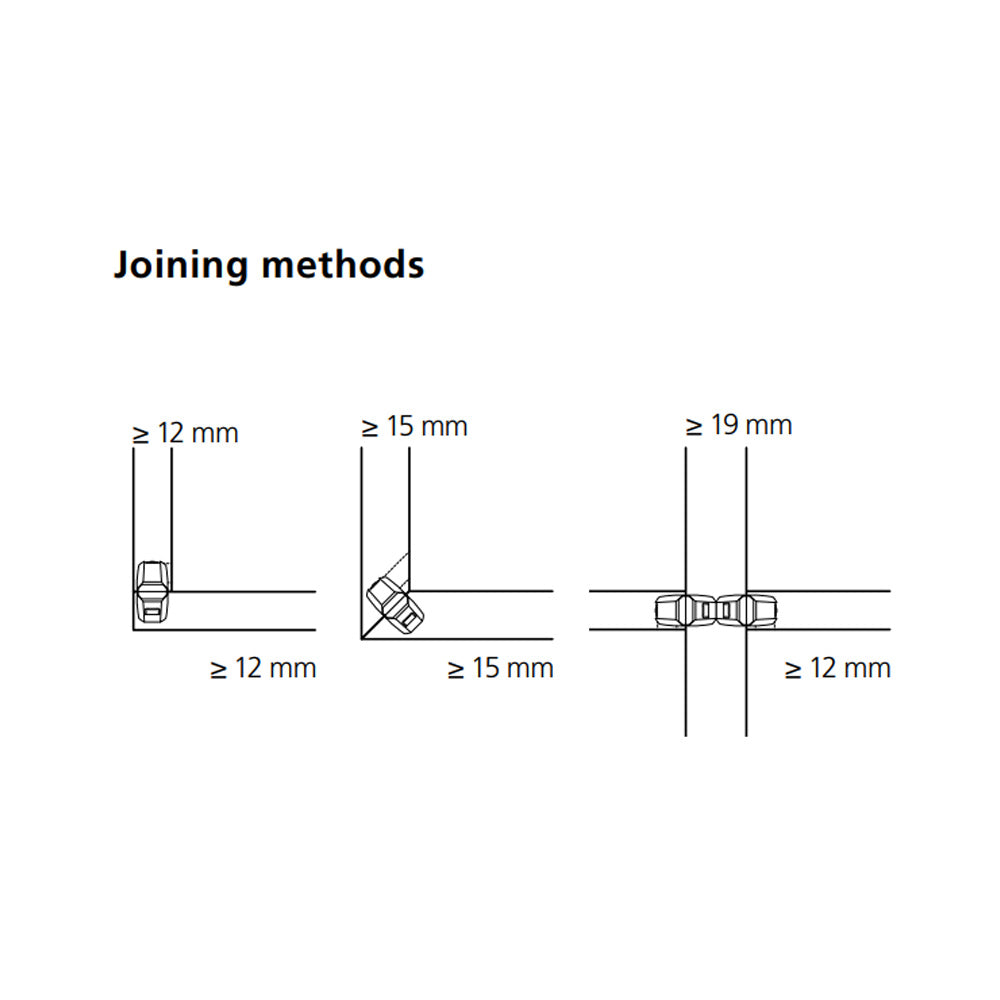

• Can be used for butt joints in material as thin as 12mm
• Nearly invisible connection with 6mm access holes (colored Cover Caps available)
• No gluing necessary
• Ideal for miter joints and sharp angles in furniture, kitchen manufacturing, open shelves, outside crown molding, etc.

Clamex P-10 works just like Clamex P-14, but has a shallower installation depth of 10mm. Clamex P-10 Connectors are therefore ideal for thinner materials where a deeper groove is not needed or even possible. They can also be used for miter joints in outside crown molding as thin as 15mm!

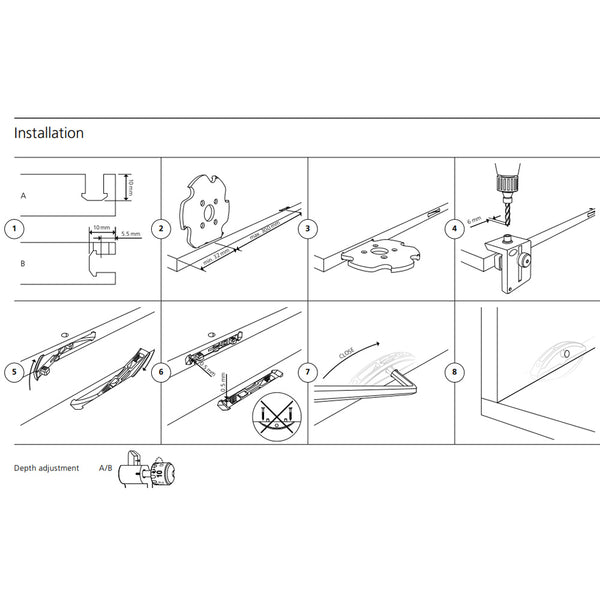

Installation Instructions

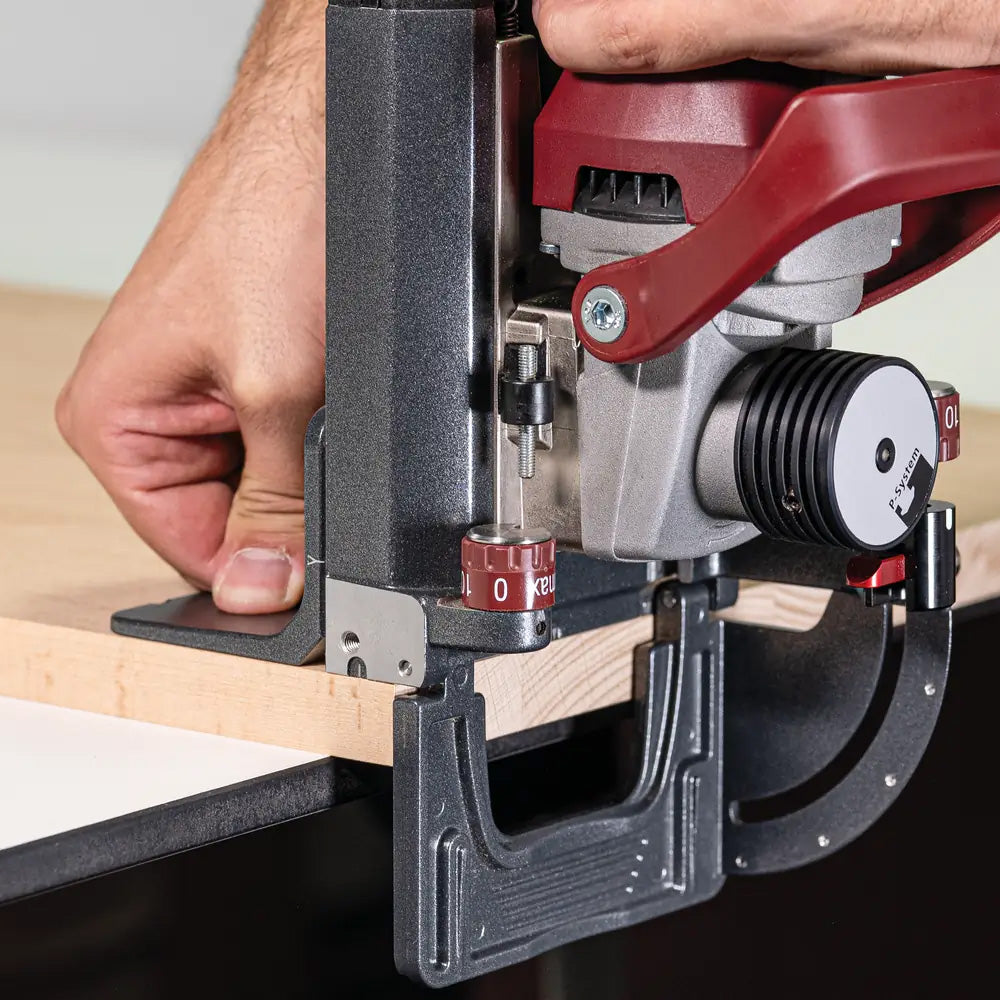

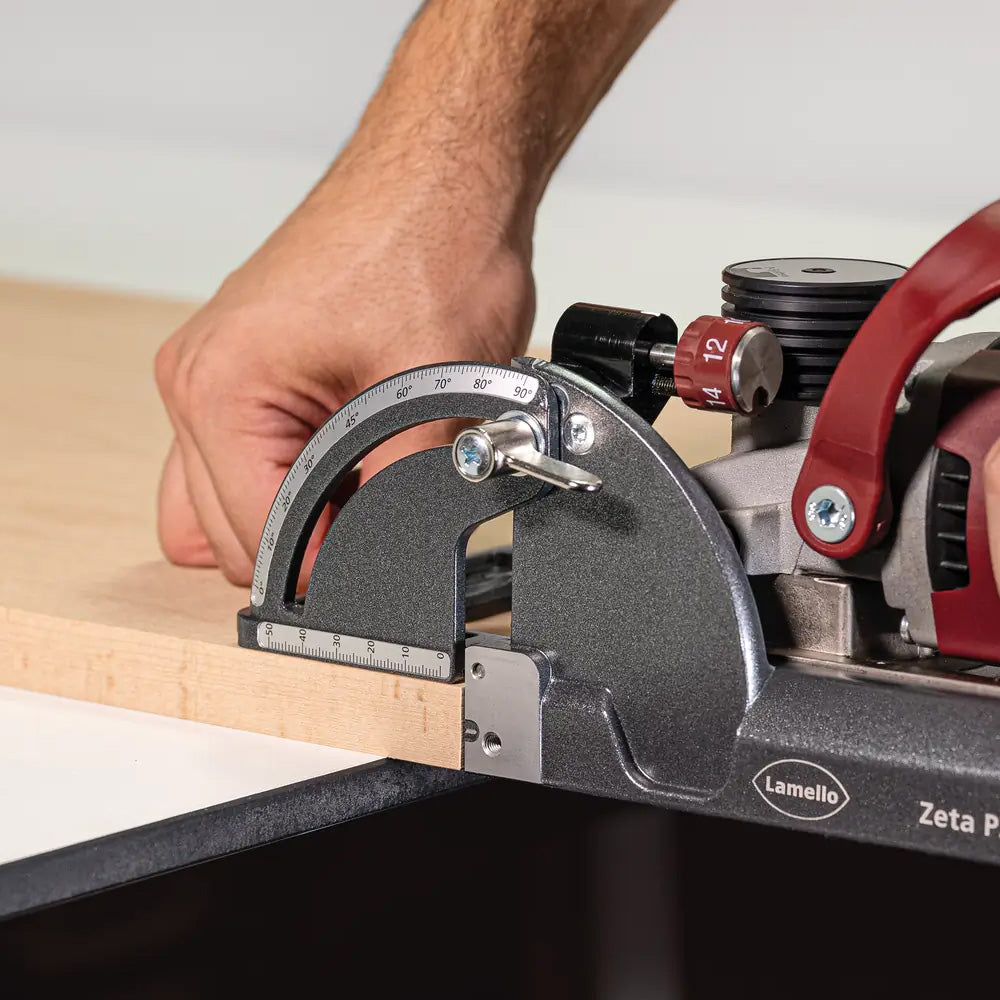

1. Cut grooves with a Zeta P2 with the depth adjustment set to 10. You can also use a CNC equipped with P-System tooling

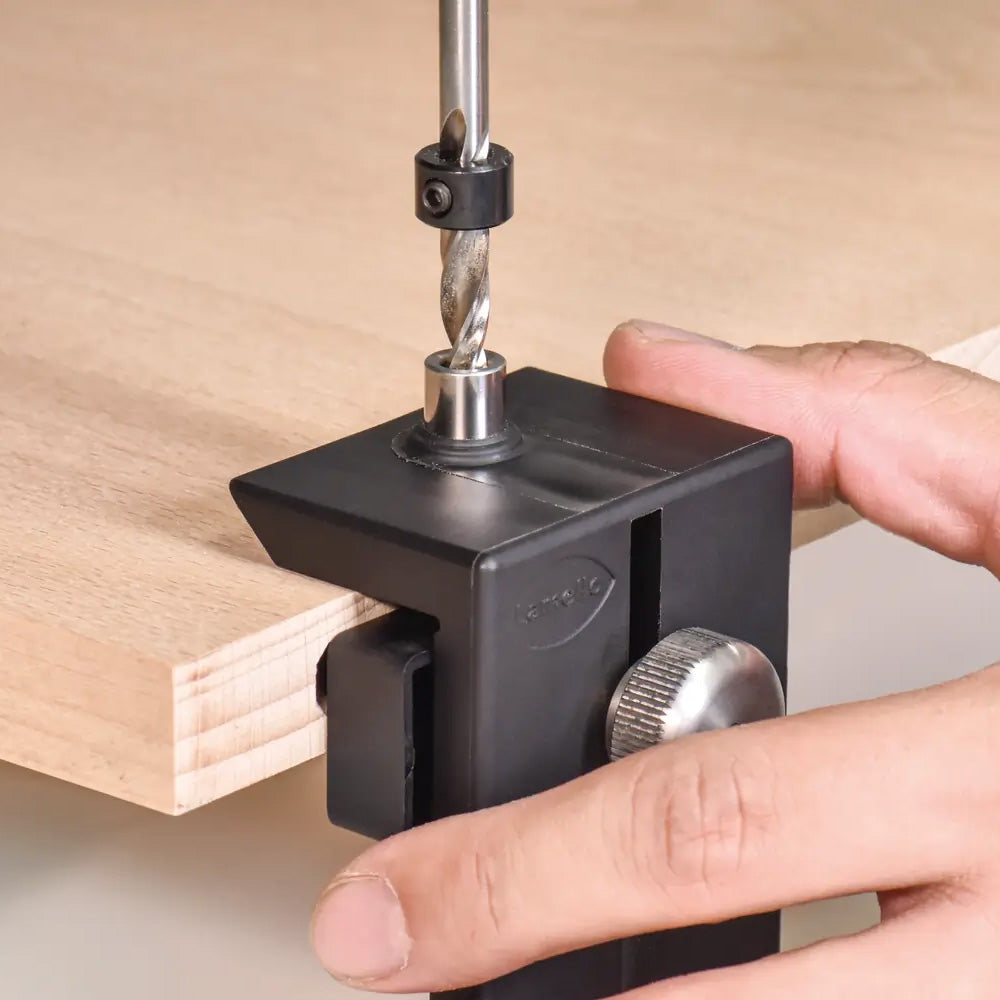

2. Use the drilling jig to drill the access hole (Included with Zeta P2 or sold separately).

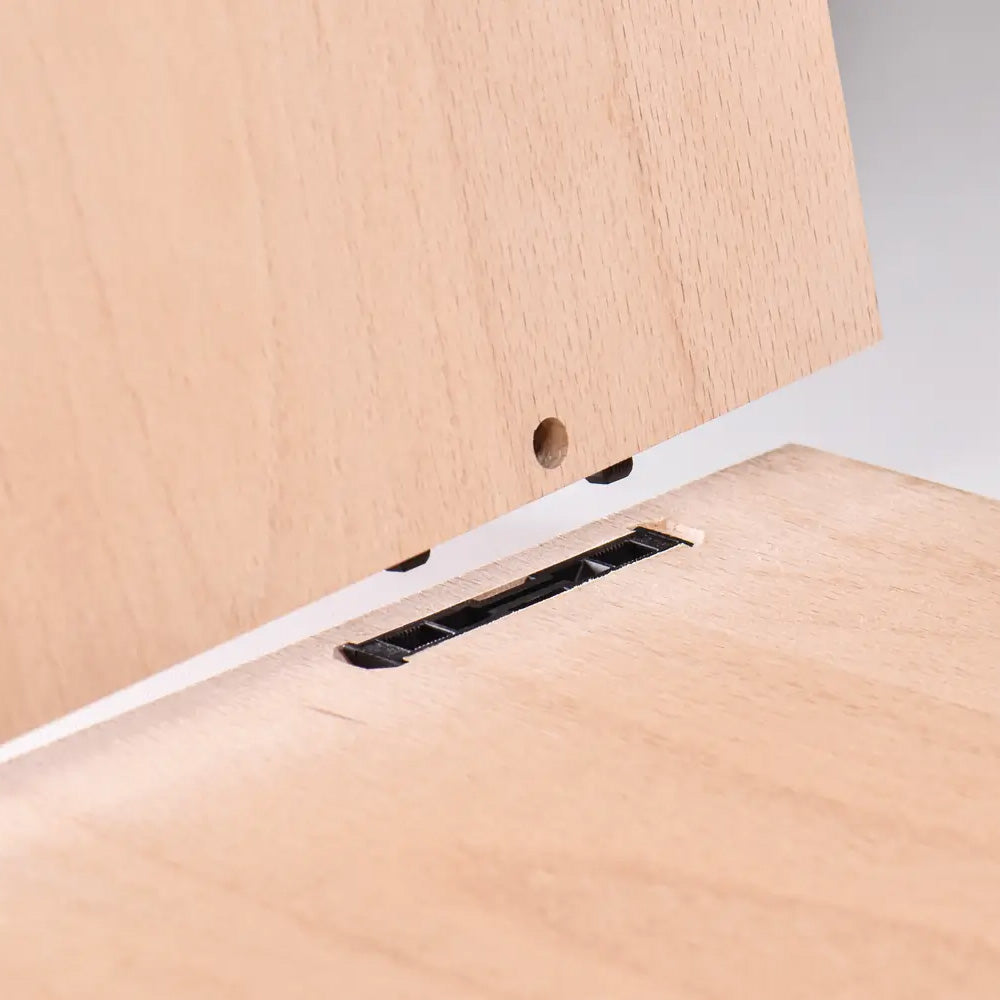

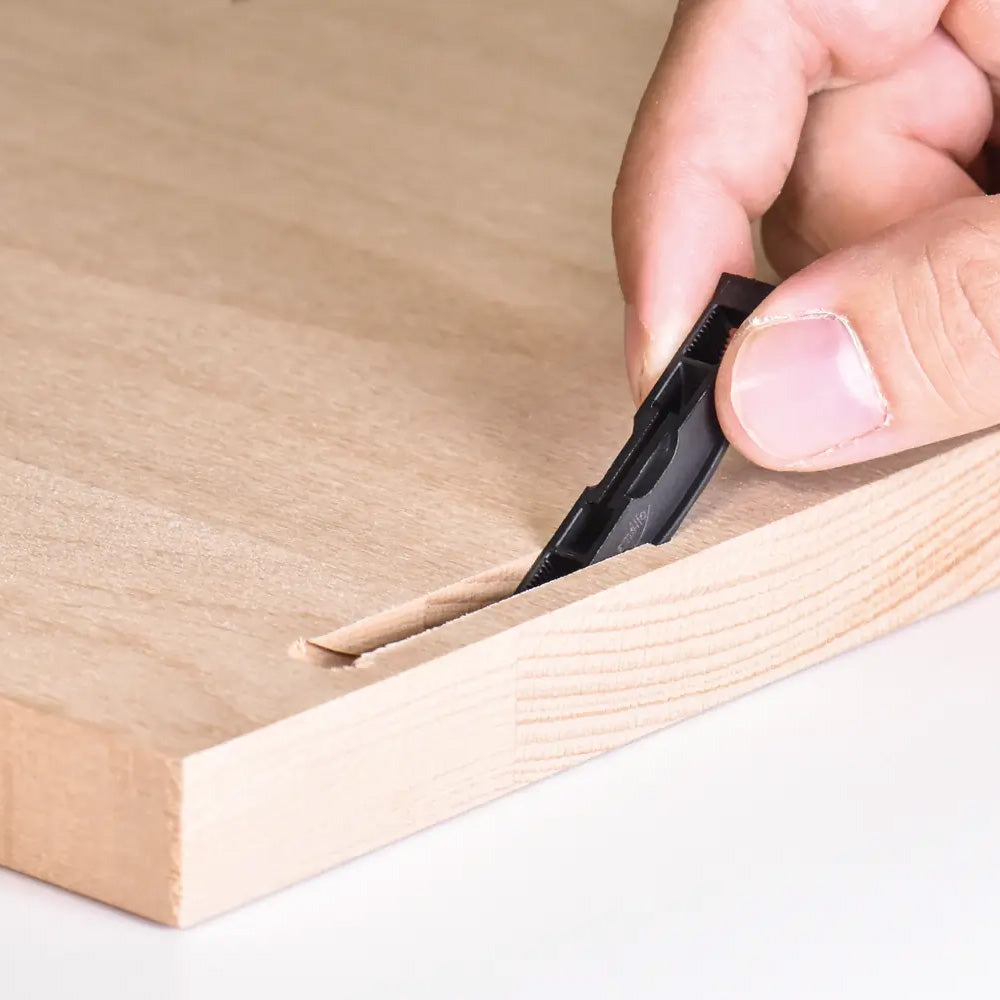

3. Slide P-10 Connectors into their respective grooves.

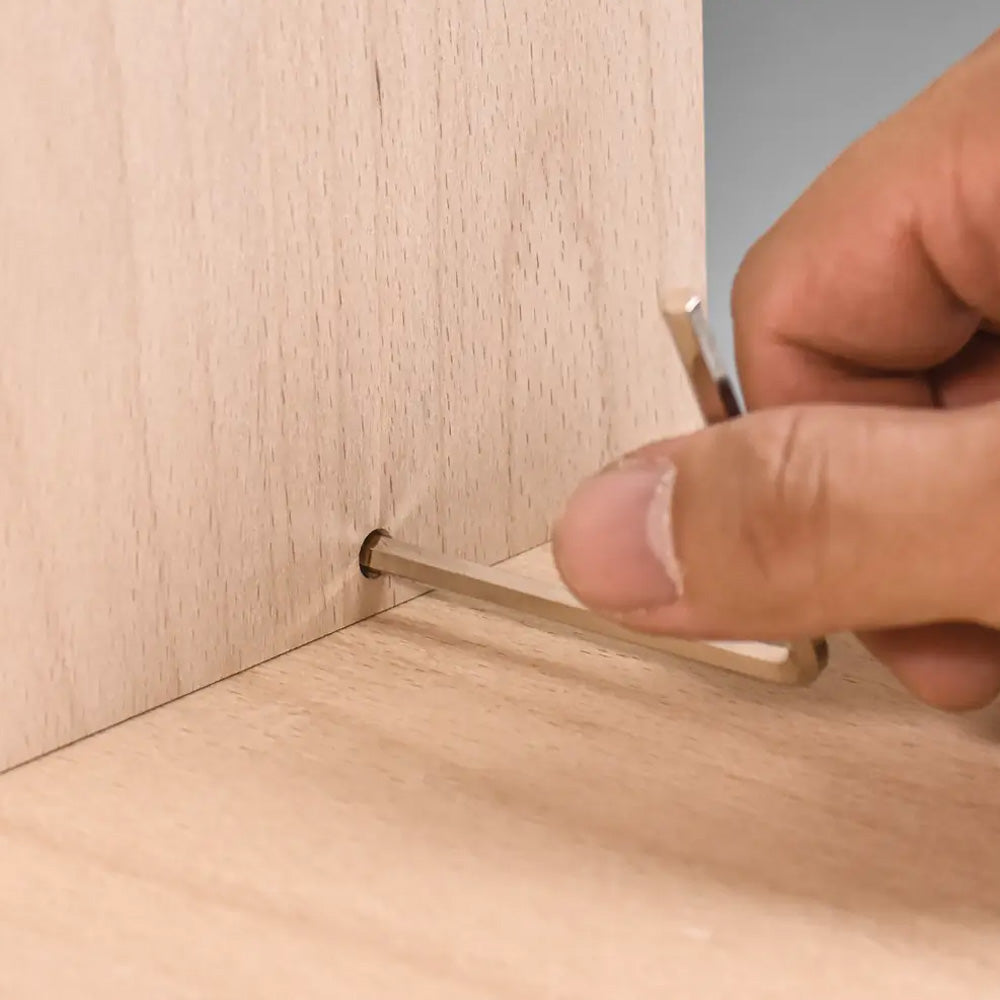

4. Connect workpieces and lock the P-10 together using a 4mm Allen Key or the flexible Clamex Installation Tool. (See secondary images)

Clamex P-10 Connectors are available to purchase on their own, as well as in the Professional Starter Set and the Basic Starter Set. These starter sets are a great way to become familiar with Lamello's full line of P-System Connectors. Plus, you'll always have a nice Systainer to store your connectors in for years to come!

Compare P-System Connectors with our Quick Guide.
