Lamello Clamex P-14 P-System Connectors

$ 145

Have questions? Give us a call at 260-637-0054.


For use with Lamello Zeta P2 Joiners.

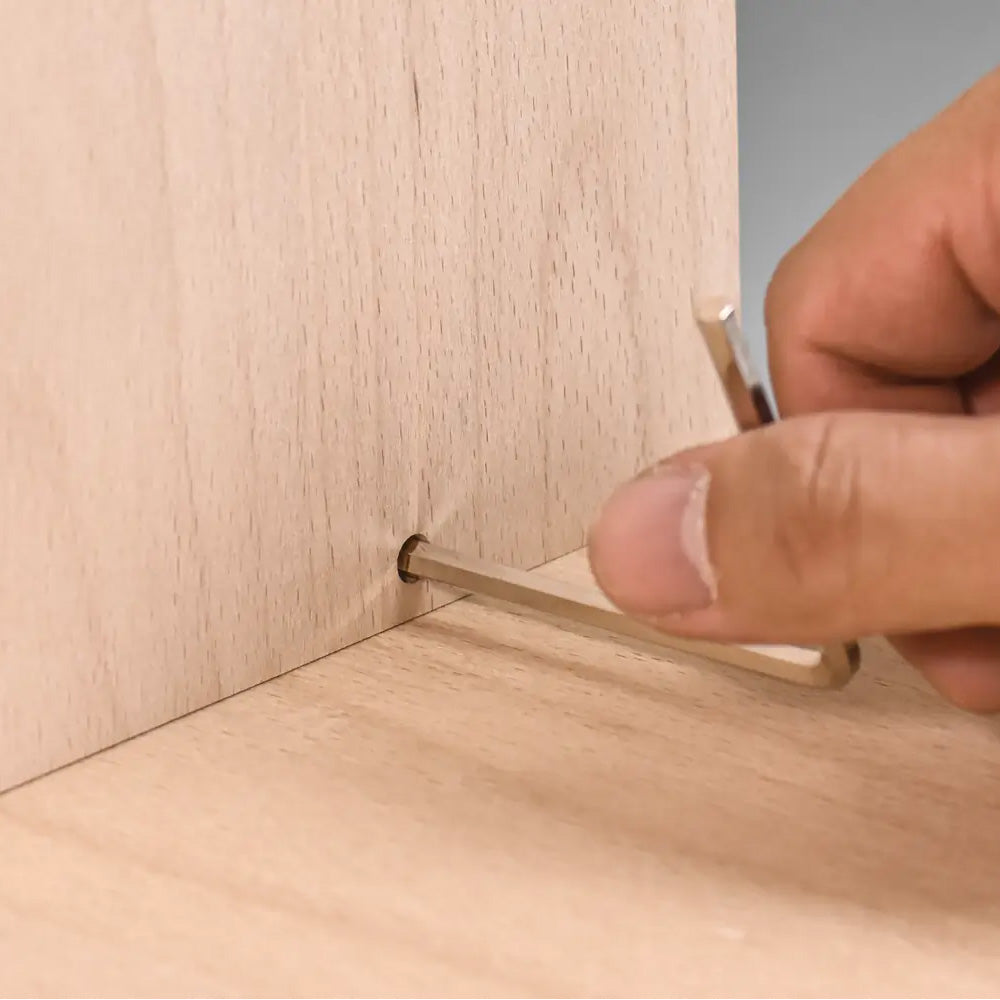

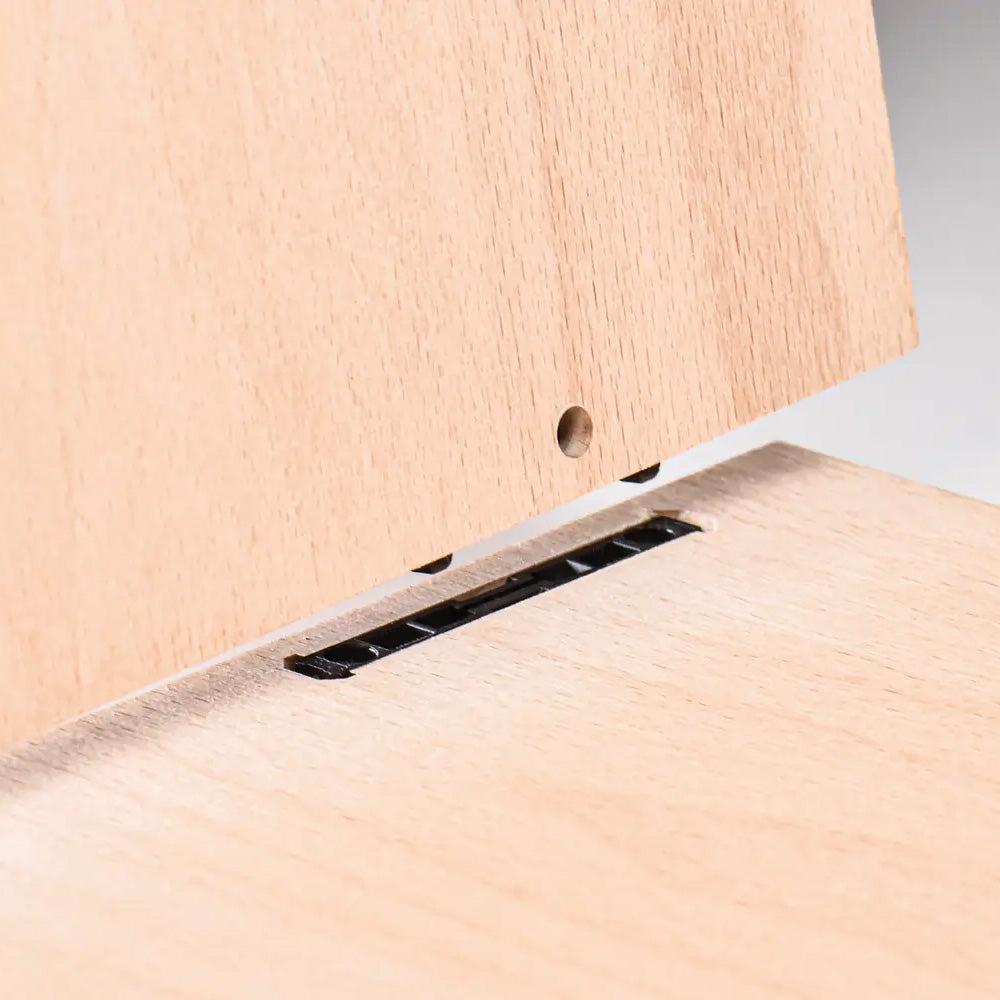

Clamex P-14 is a detachable, two-part connector with an internal cam lock, which is engaged with a lever. Clamex P-14 offers an exceptionally fast and powerful anchorage in the workpiece without tools. Clamex P needs neither glue nor screws, providing the woodworker with numerous advantages in the production process and in the differentiation from standard connecting hardware.

Clamex P-14 has a very small installation depth of 14 mm and may be used in a variety of materials with a minimum thickness of 16 mm (5/8").

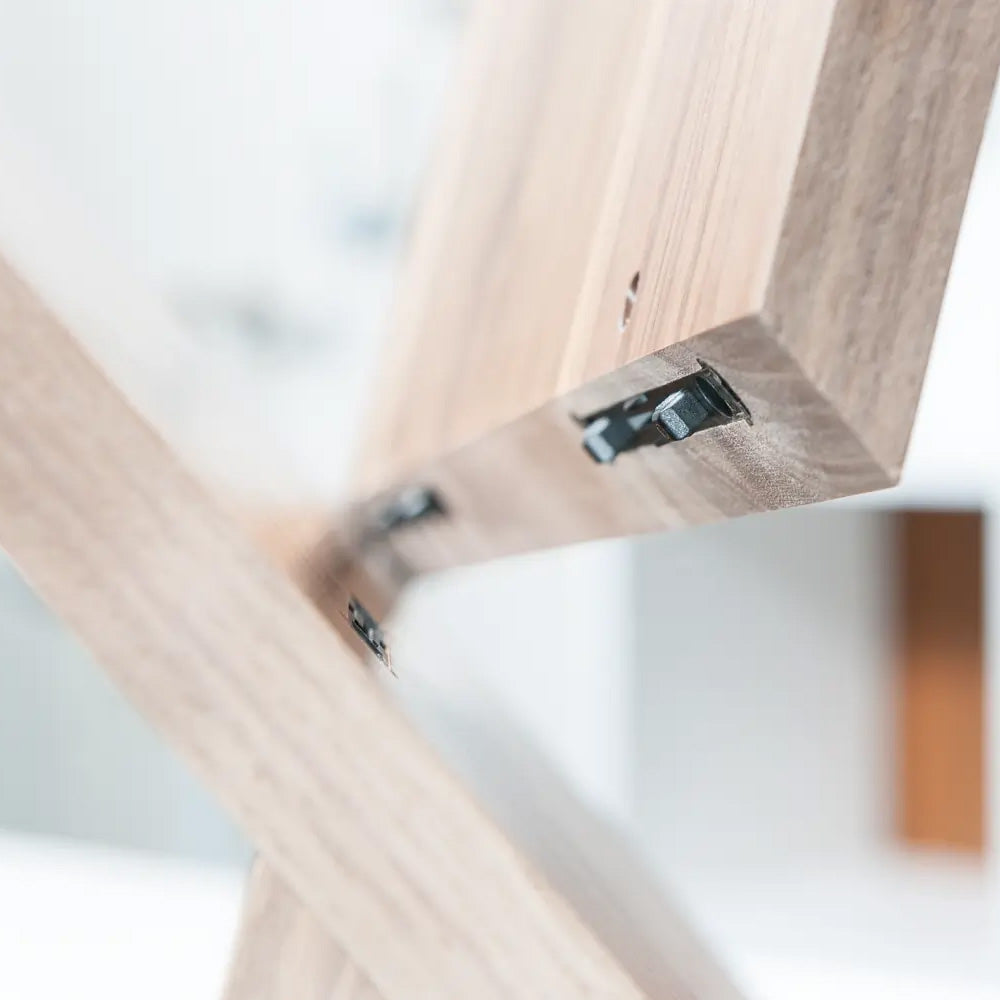

Clamex P can be used in furniture serial production or in individual pieces as well as for interior fitting, shop fitting, or trade booths. The connecting fitting is a popular solution for open shelf units, large pieces of furniture, and angled counters, while also being used as a general gluing aid. It is frequently employed as an aesthetic, high-quality connection for premium products.

Cover Clamex drill holes with Lamello's aesthetic Clamex Cover Caps!

Top 3 reasons to use Clamex P-14 as a standard connector:

  1. High-quality aesthetic solution: P-14 Connectors are nearly invisible, and they secure connections with high clamping strength.
  2. Saves time: Process advantages in production, transport, and assembly.
  3. Versatile with a range of applications: One connector for all connection applications and angles. For detachable or glued connections.

  • Practically wear-free knock-down fitting

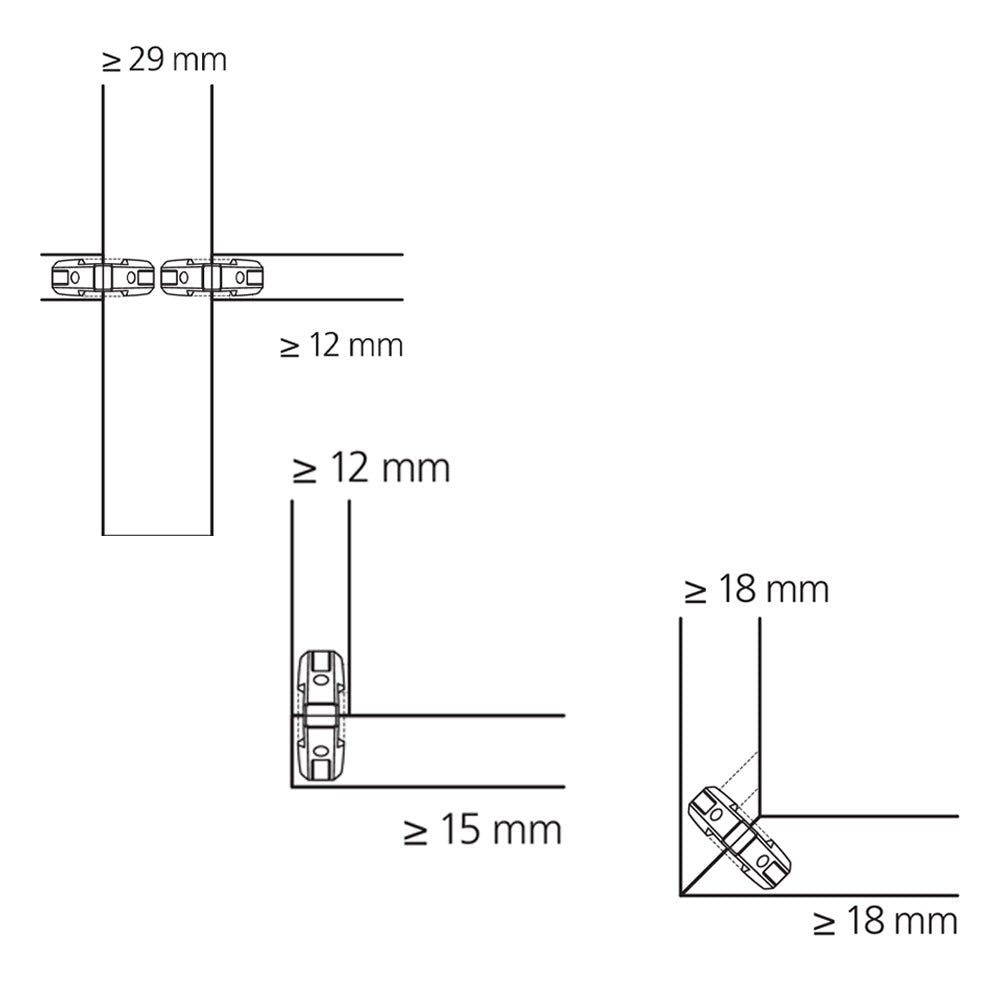

  • Detachable miter connector for 22.5-180° angles and all butt joints
  • Minimal tool opening of just 6 mm

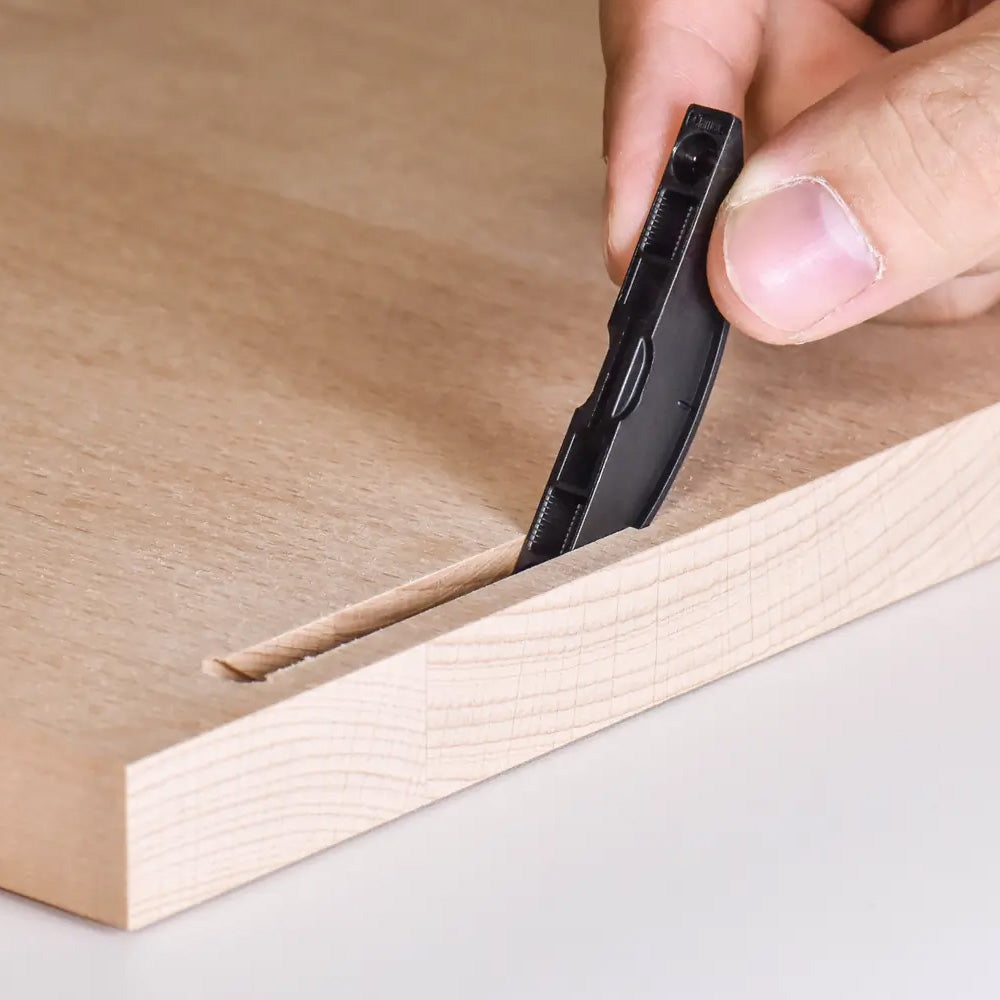

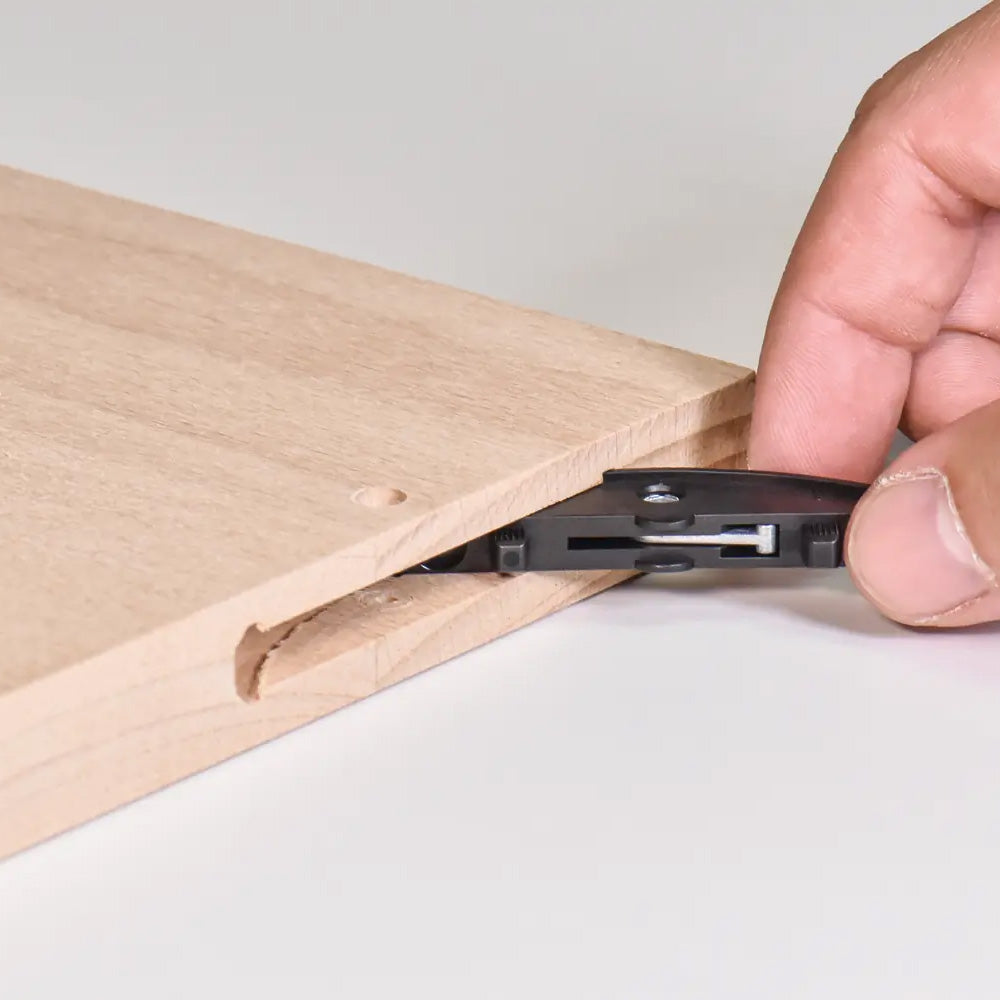

  • Extremely rapid, tool-free installation of connectors
  • Stackable components for transport with connectors pre-installed
  • High clamping force of 200 lbs. for joinery at all angles

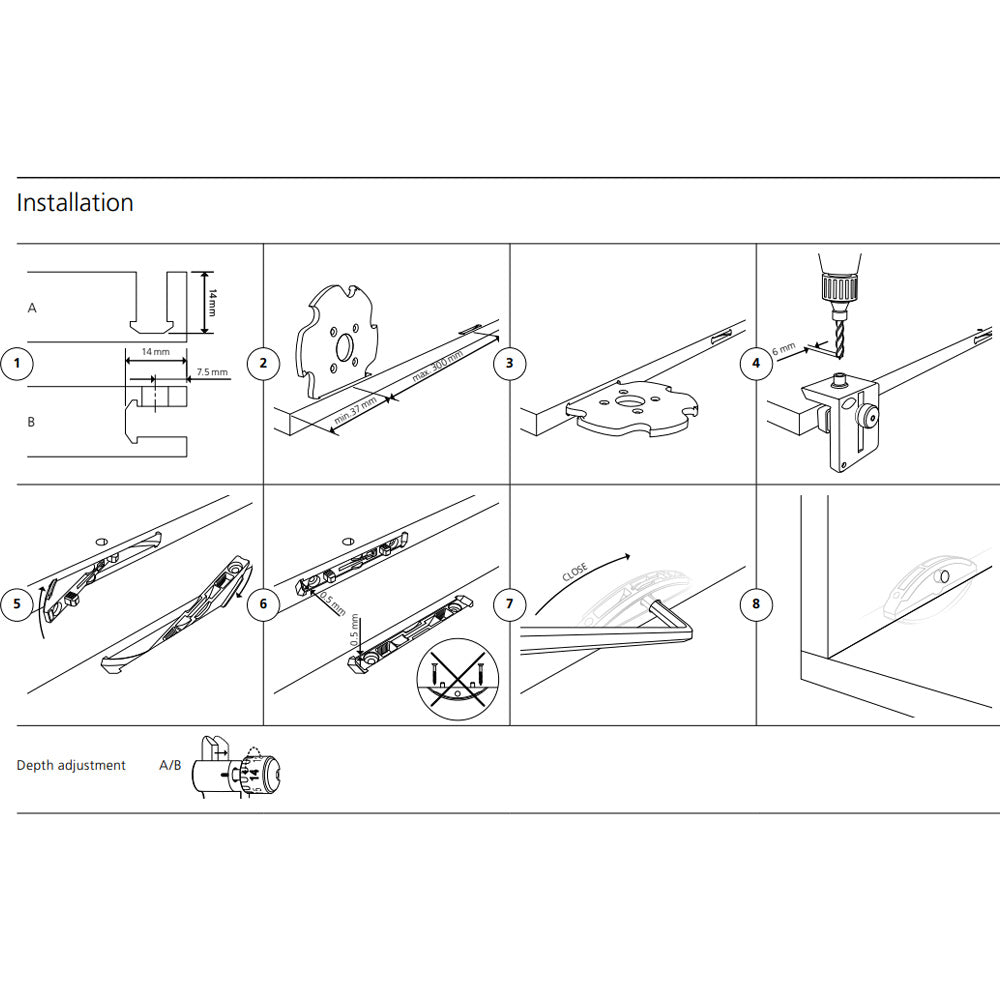

  • Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine

Tensile strength (N) MDF: ~ 900 N ≈ 90 kg
Tensile strength (N) Particle board: ~ 800 N ≈ 80 kg
Tensile strength (N) Beech: ~ 1000 N ≈ 100 kg
Installation tolerance: Longitudinal ± 1 mm
Material lever: Zinc die cast
Material connector: Fiberglass reinforced plastic
Cutter: Ø 100.4 x 7 x 22

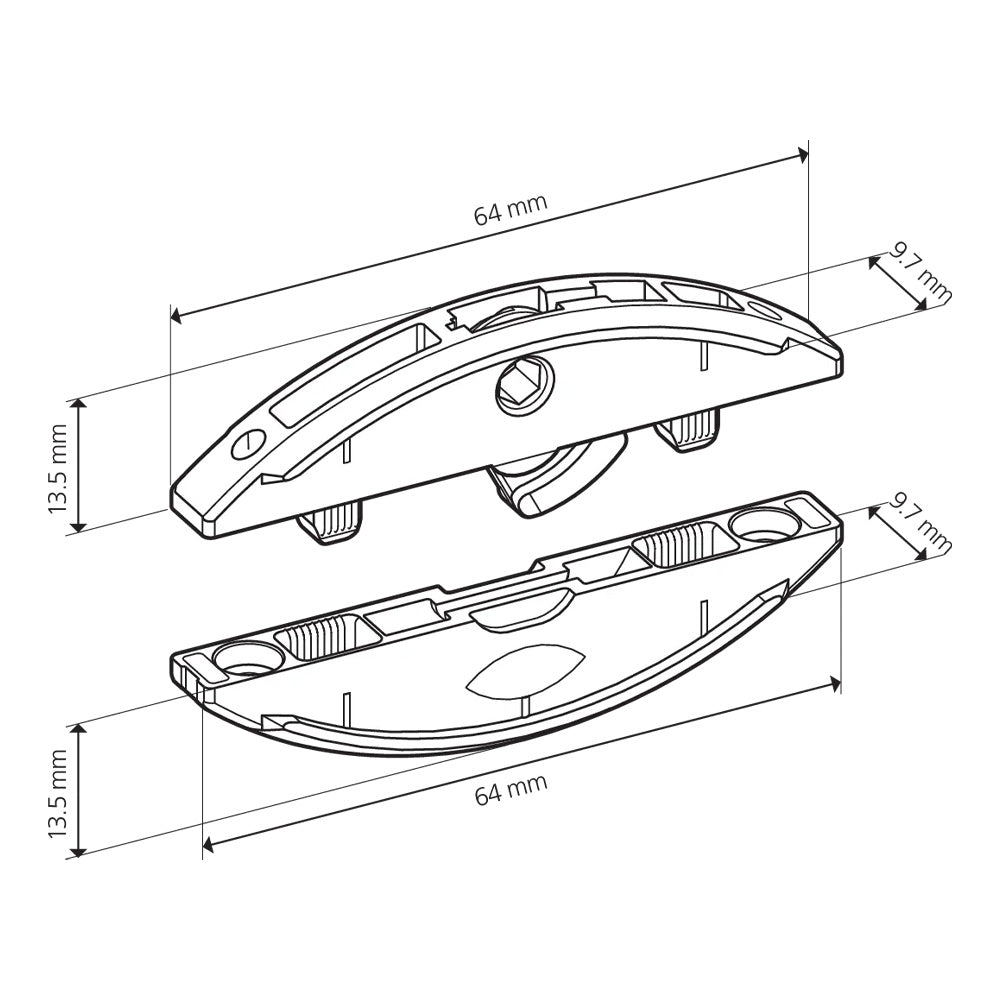

Size (mm): 64 x 27 x 9.7 mm


SKU: 145334
