Laguna V:10 Band Saw

Sale price
$ 584.10
List price
$ 649

Have questions? Give us a call at 260-637-0054.

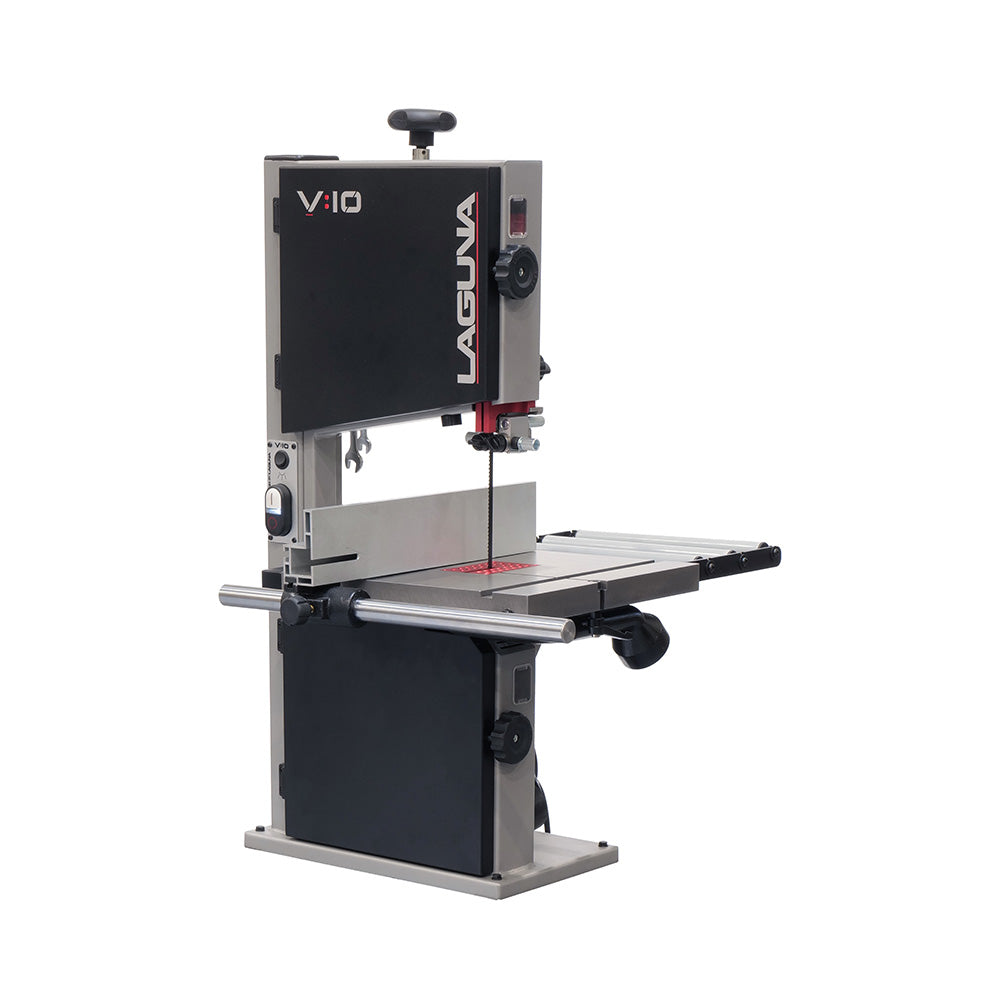

Laguna has been at the forefront of band saw innovation for 40 years, and the V:10 is one more addition. This 10" band saw leads the competition with many Best-In-Class features. The V:10 is loaded with innovative features normally found on Laguna's larger machines, like cast iron wheels and a large 1hp motor — the largest in its class.

The V:10 features a high-low fence, meaning there are two positions to choose from. The tall or "high" position is great for doing accurate resaw work, while the low position is ideal for delicate work. The fence is attached to a cast iron knuckle that slides back and forth on a solid, steel shaft for the precision you need.

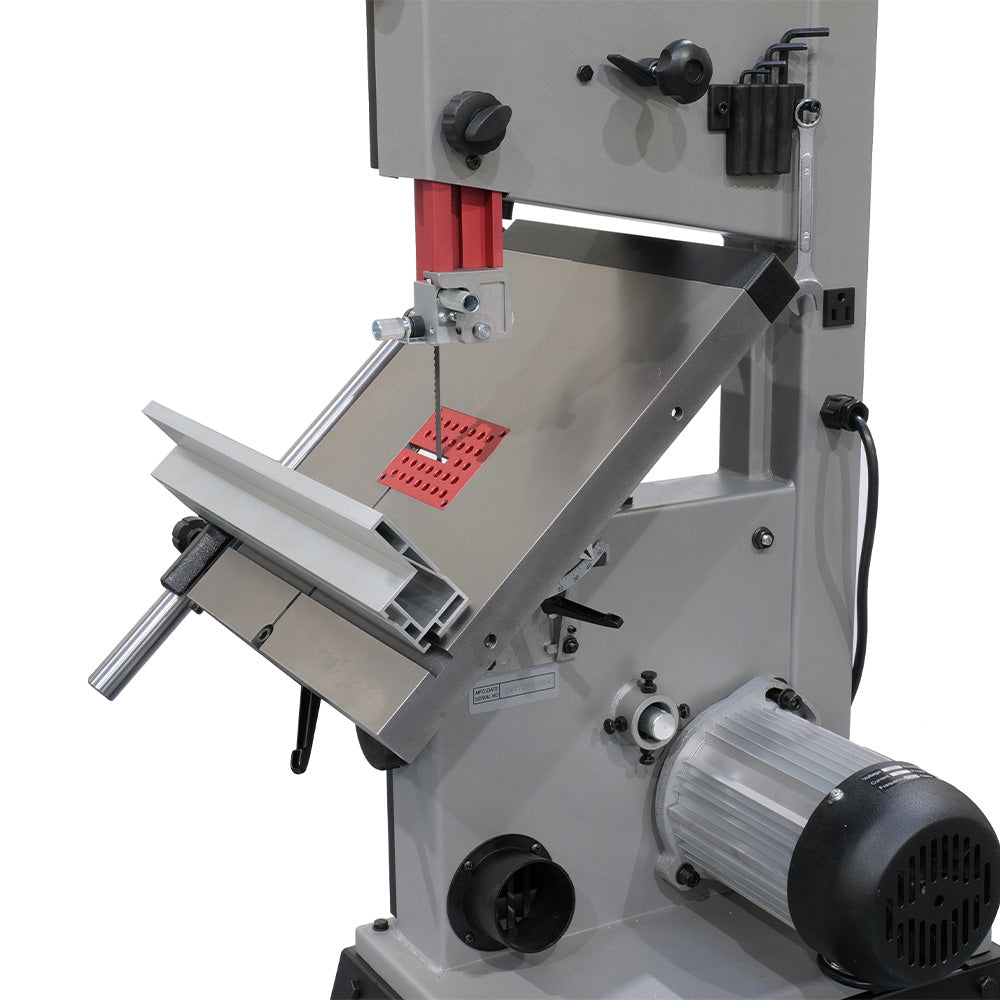

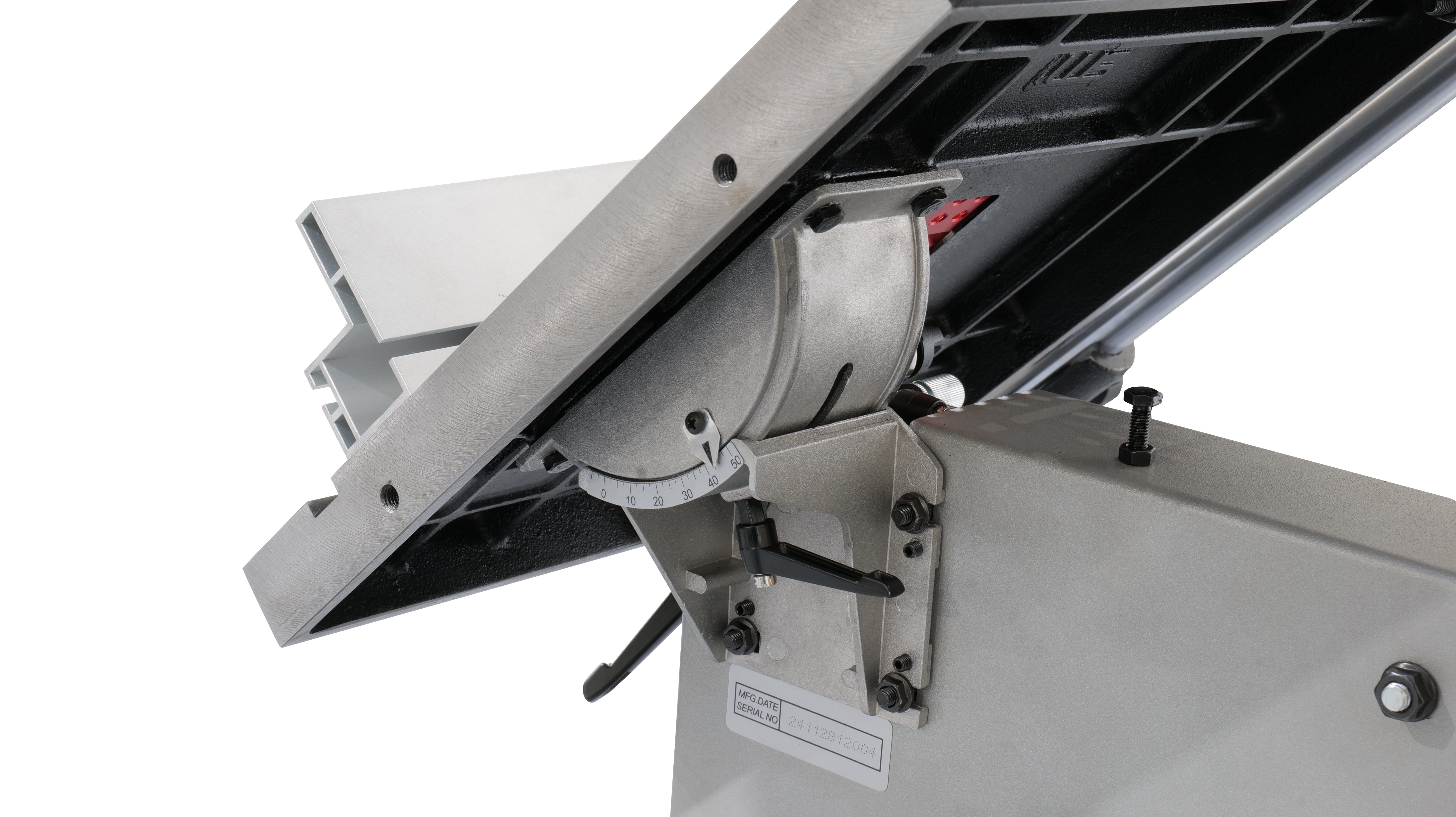

For projects of all types, the V:10 Band Saw features a tiltable table (up to 45°). Simply loosen the lock handle and raise the table up to the desired height. There's even a gauge to ensure precise angle setting. Lock the handle back down and you're ready to cut! A light is built into the frame of the saw to illuminate the worktable and make tasks like adjusting the guides easier.

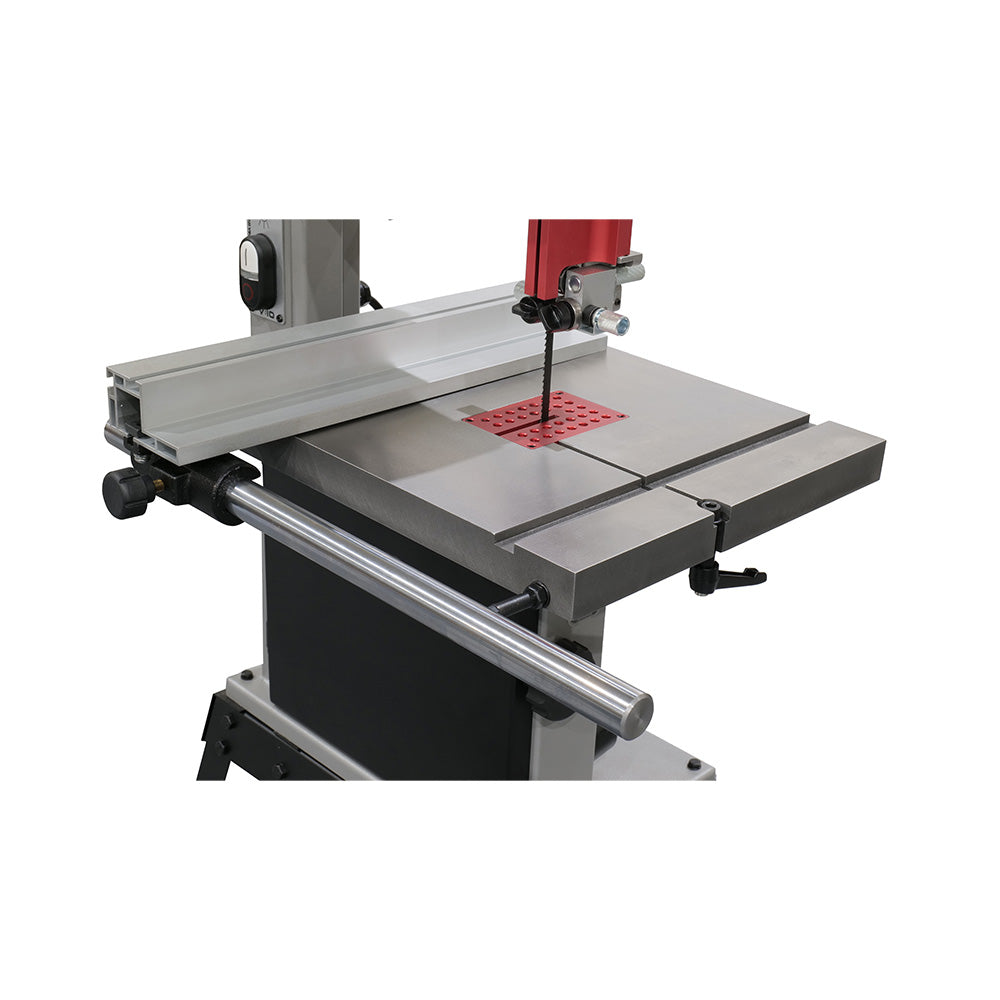

The solid, cast iron worktable on the V:10 features a miter slot as well as a side slot for the blade introduction. The oversized throat plate aids in optimal dust extraction thanks to the perforated holes. These holes draw saw dust down through the table and into the dust pickup. There are four screws in the throat plate to keep it perfectly balanced and level.

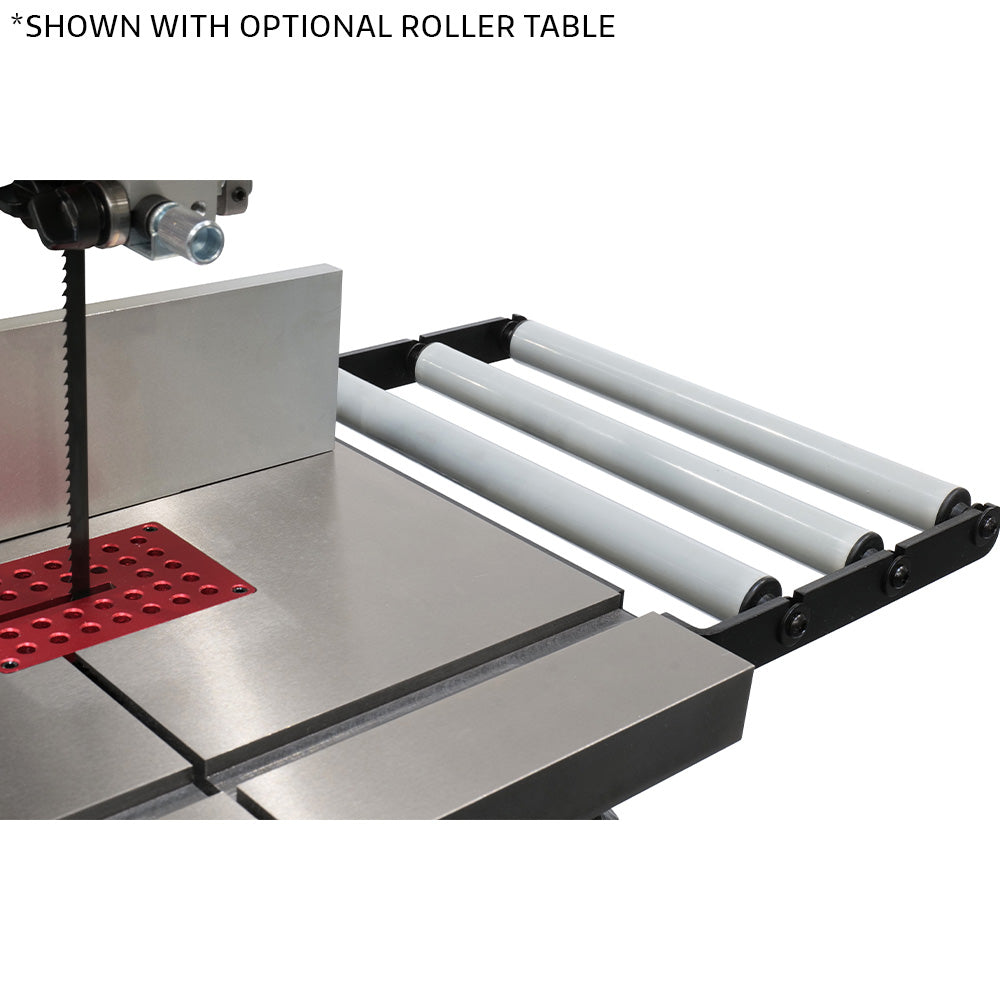

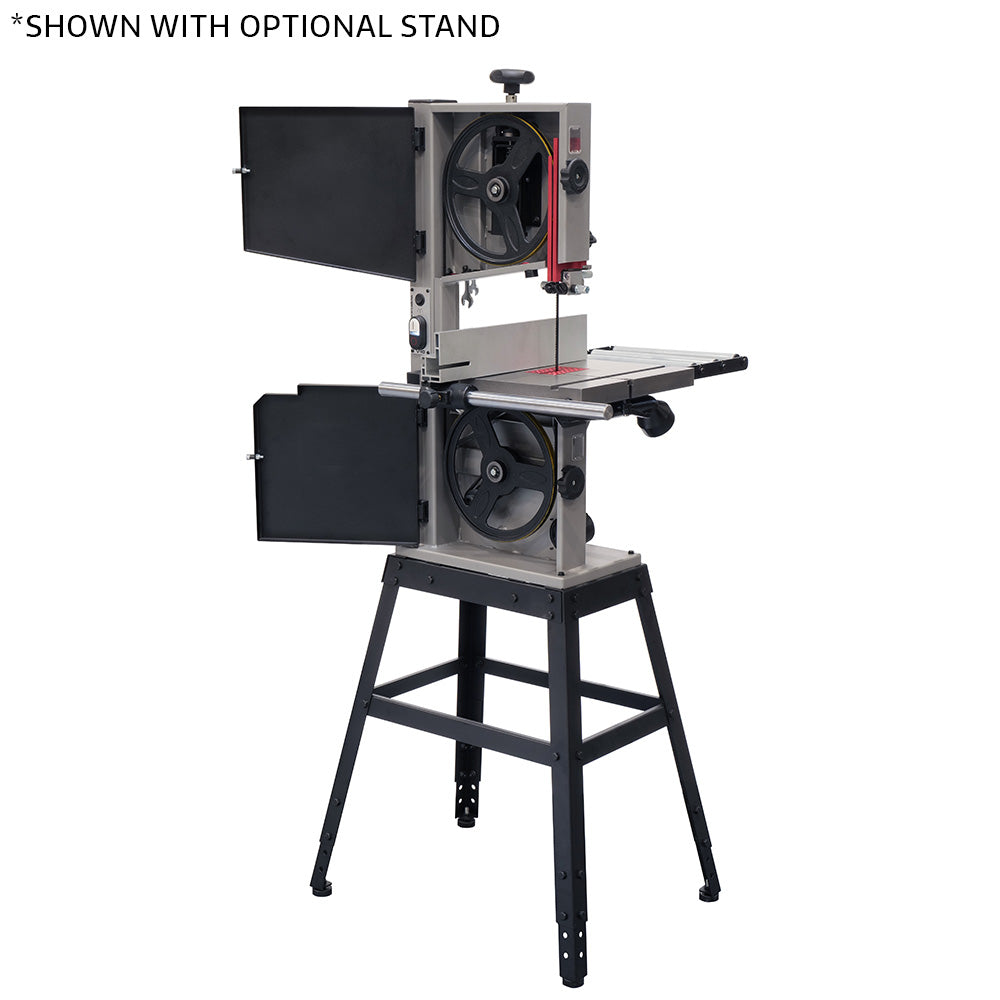

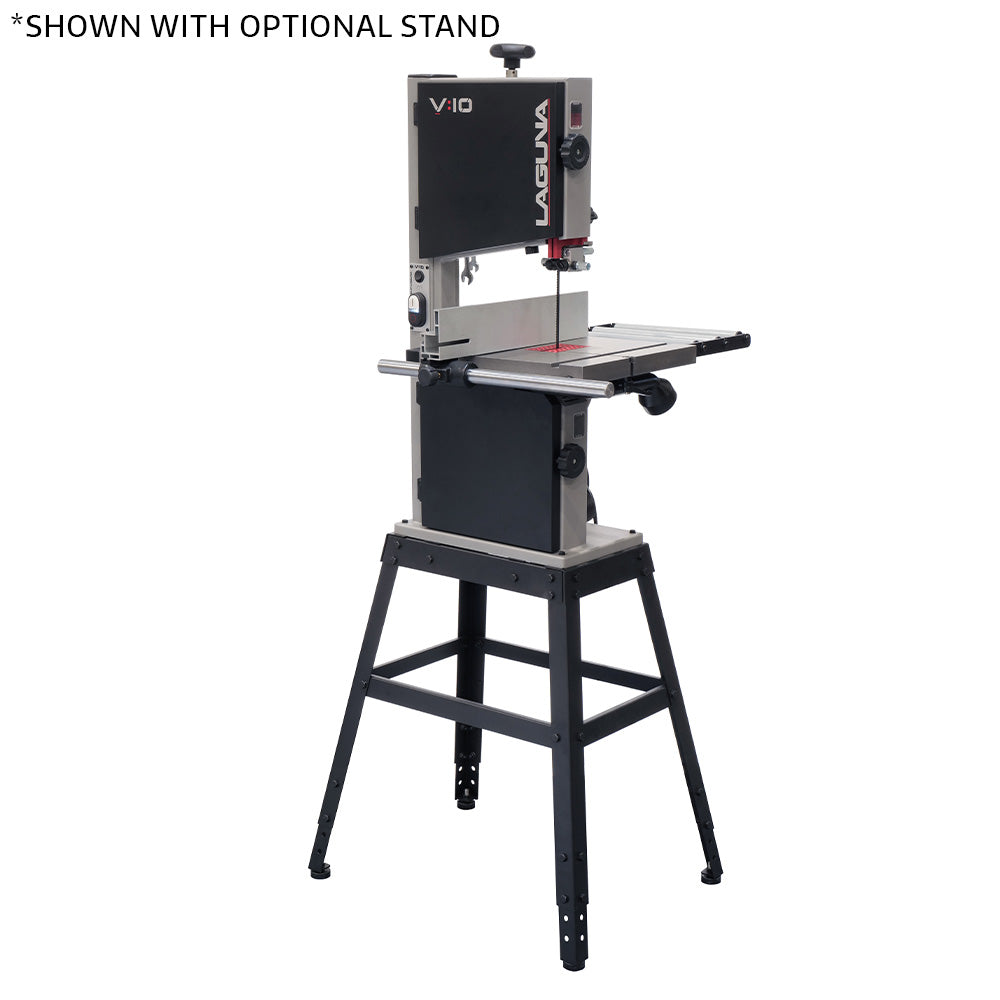

Add the optional Adjustable Stand for more height, and the casters to make your V:10 Band Saw mobile! There's also an optional Roller Table to assist with the offloading of cut material.

Includes 3/8" blade.

Features

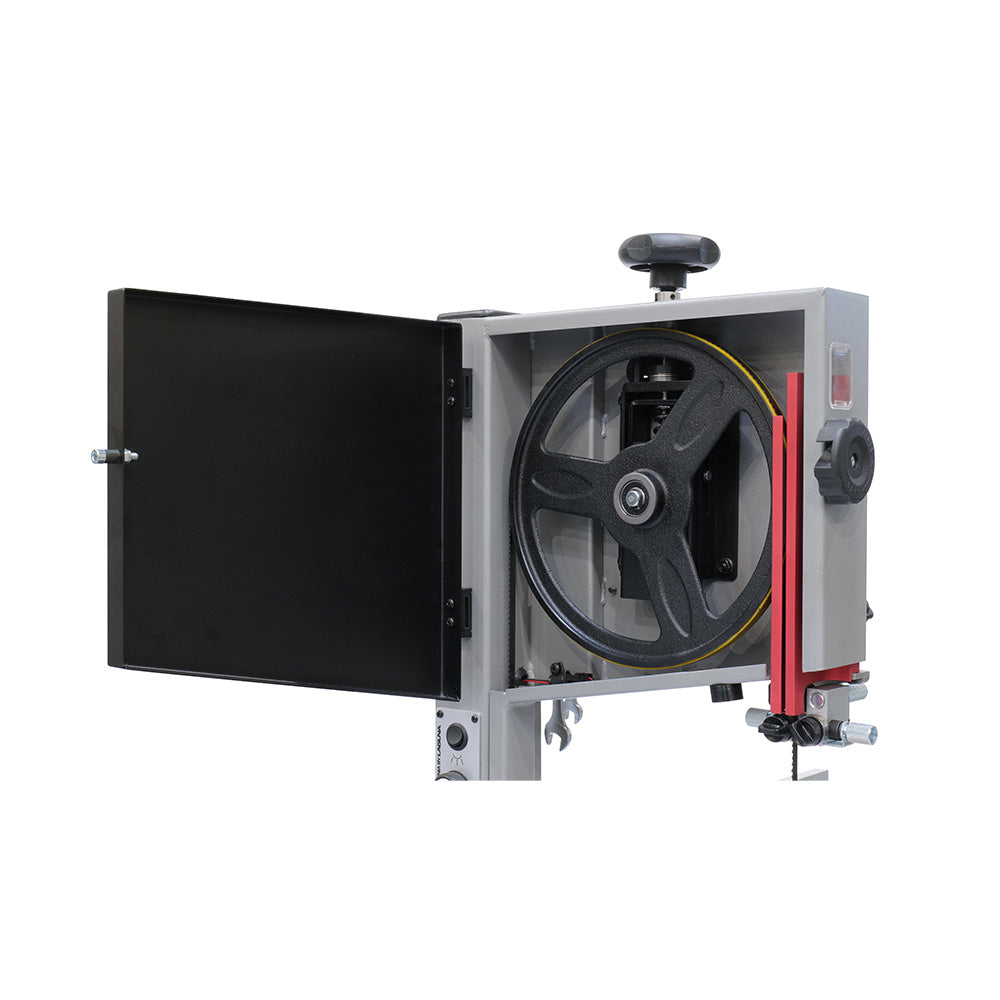

  • Cast Iron Wheels: Only 10" woodworking bandsaw currently on the market with this feature
  • 1hp Induction Motor: Delivers consistent power for demanding cuts
  • 5.75” Resaw Capacity: Best for 10” Bandsaw
  • Advanced Dust Collection: Dual dust ports including thru-table extraction for cleaner operation

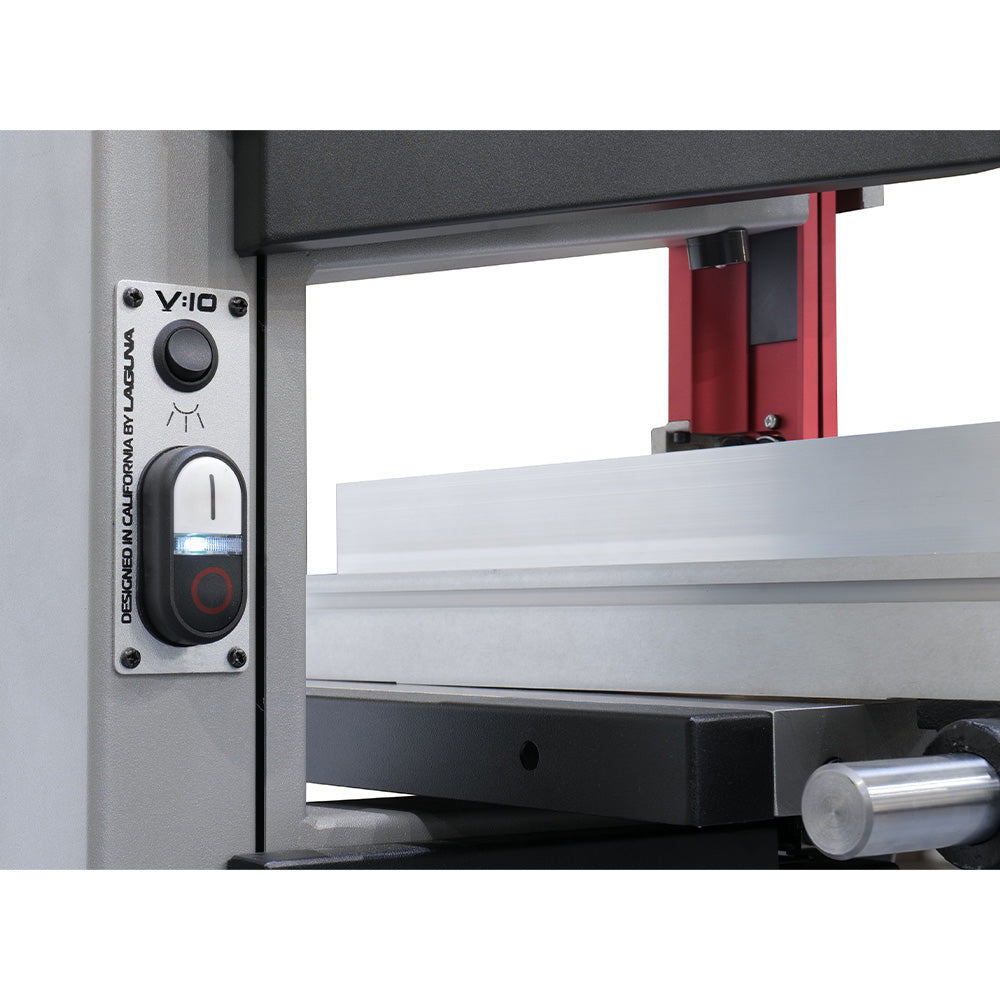

  • Integrated Lighting: Built-in LED work light with 120V outlet for optional auxiliary lighting

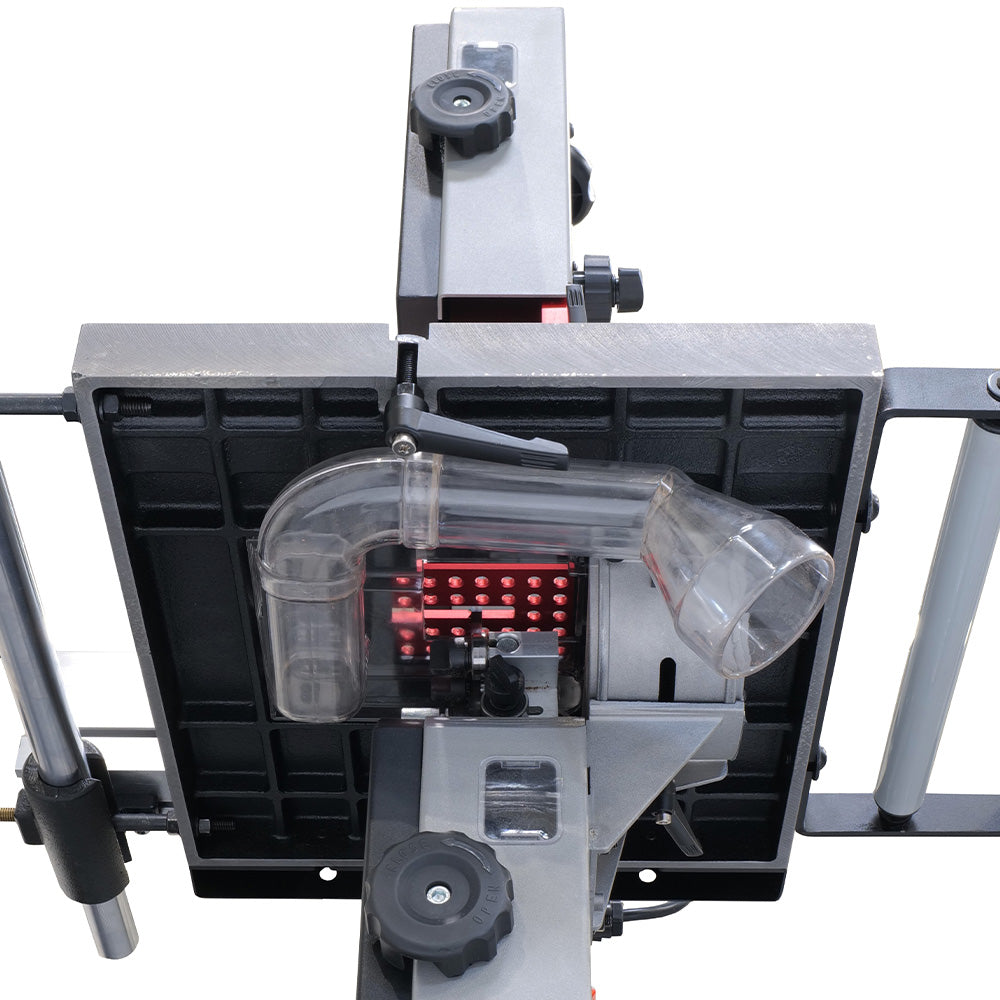

  • Quick-release magnetic under-table dust port
  • Perforated throat plate Insert with levelling screws

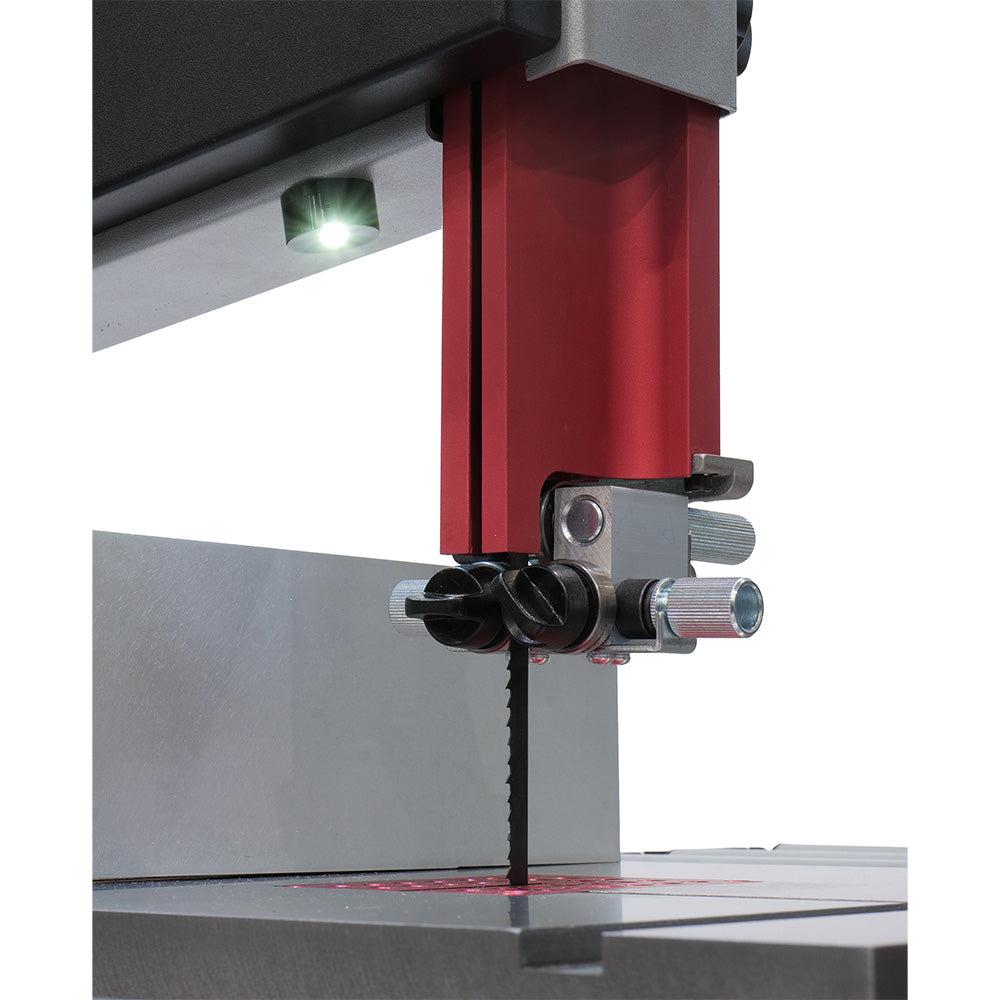

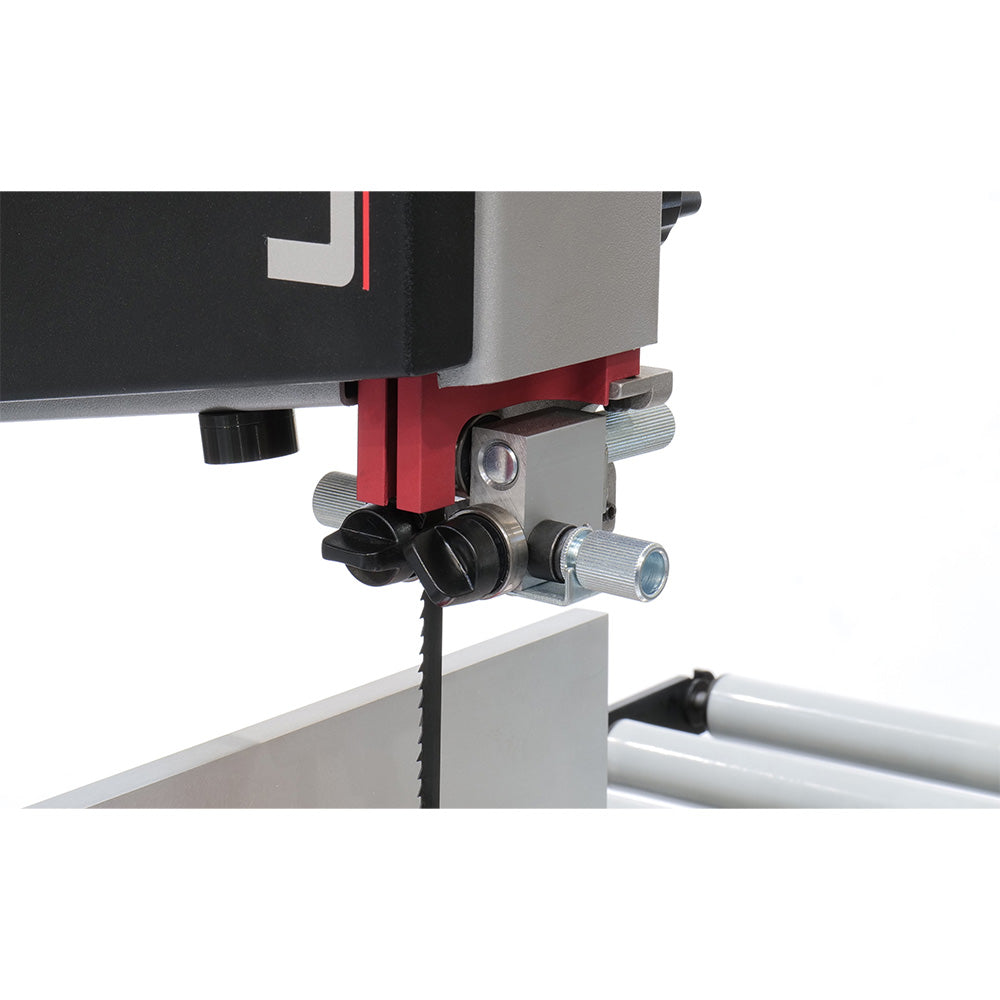

  • Roller bearing blade guides with micro-adjustment
  • Hi/Low fence with solid steel rail
  • Dual-blade tracking windows
  • Quick-release blade tension lever
  • Dual blade speeds
Specs

Motor: 1hp
Power: 120V, 60 Hz
Flywheel dia.: 10"
Resaw height: 5.75" (146mm)
Throat: 9-5/8" (245mm)
Blade length: 70-1/2" (1,791mm)
Min. blade width: 1/8" (3.18m)
Max. blade width: 1/2" (12.7mm)
Table size: 13-3/4" x 12-1/2" (350 x 318mm)
Table tilt: -5° left / 45° right
Table height: 14-1/2" (without optional stand)
Dust port dia. (x2): 2-1/2" (64mm)
Base size: 9-1/4" x 15-3/4" (235 x 400mm)
Overall size (L x W x H): 22-1/2” x 21” x 34-1/2” (546 x 533 x 876mm)
Net weight: 95 lbs.

Video

SKU: MBAND10V10
