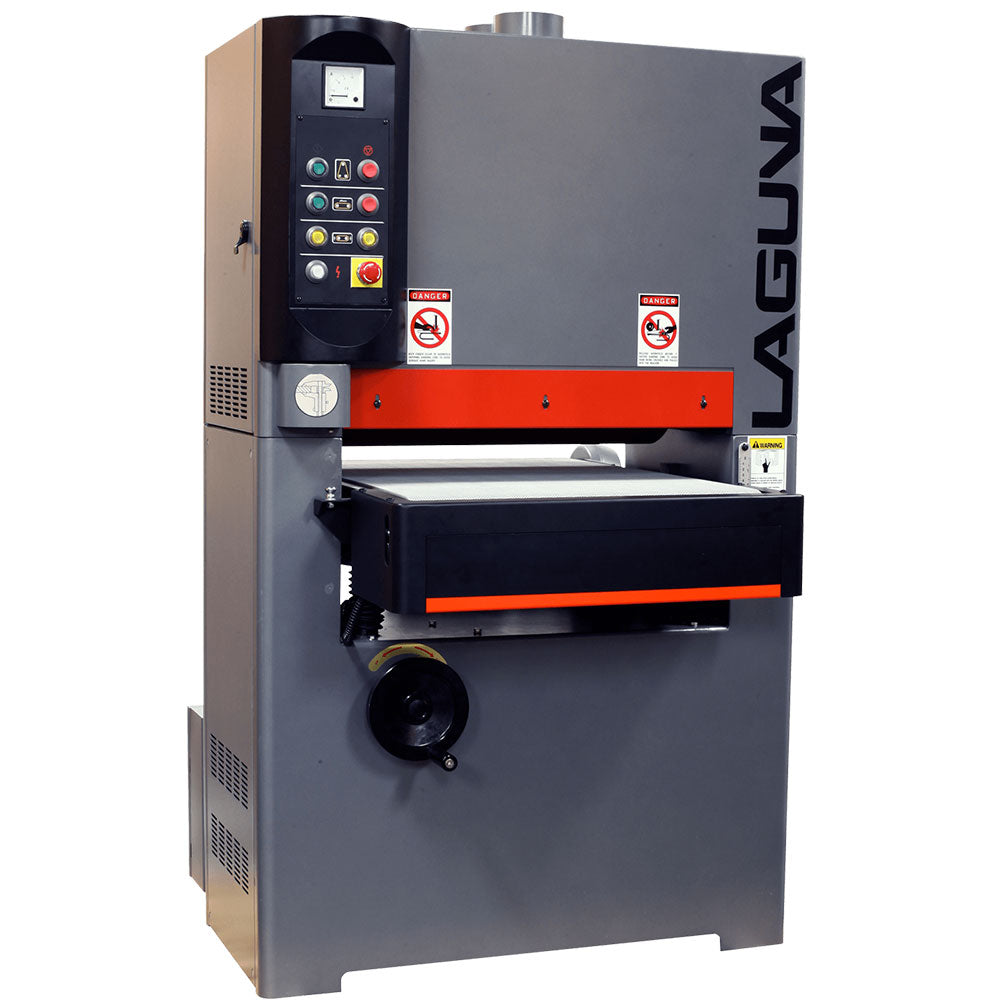

Laguna’s Compact Widebelt Sander is perfect for the shop looking for an industrial quality sander at an affordable price. The Compact is impressive in its offerings: 60″ belt length with Automatic Pneumatic Oscillation, 2 feed speeds, industrial cast iron bed sitting on 4 Acme threaded screws with center alignment designed for precision results even when handling heavy material.

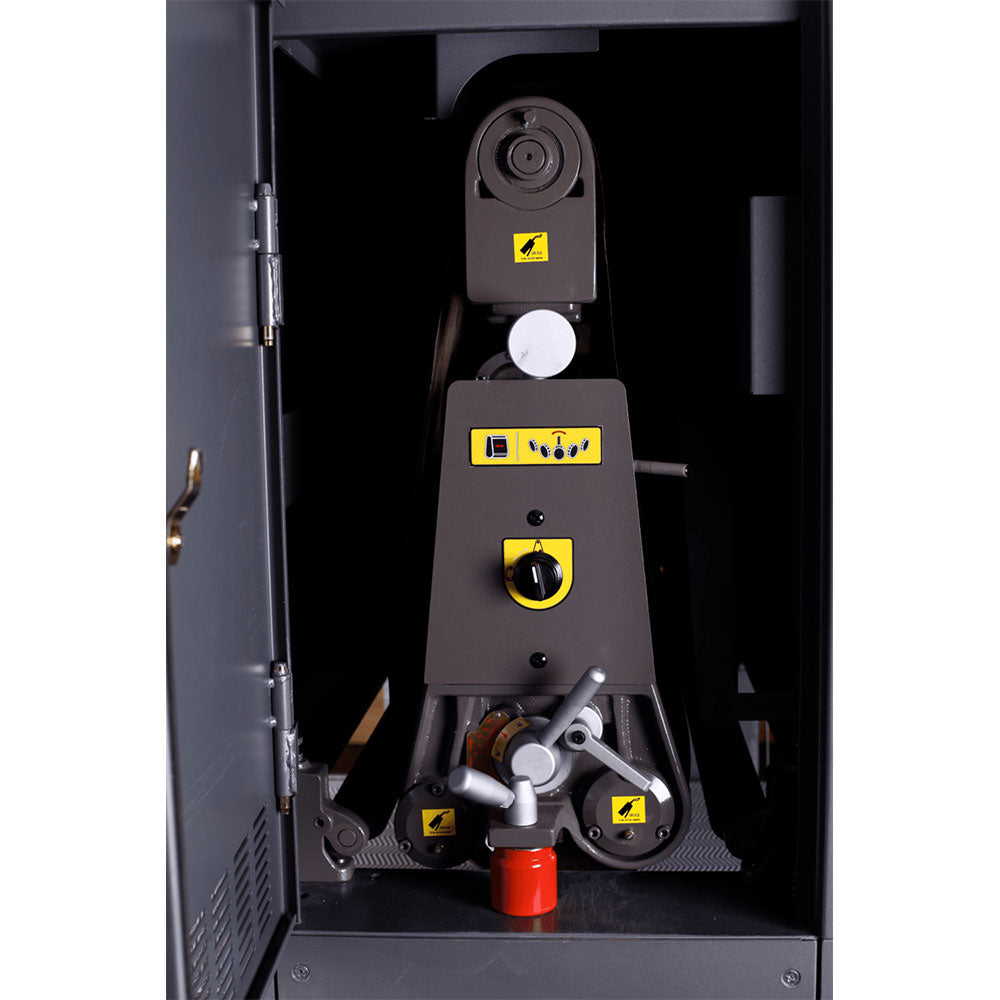

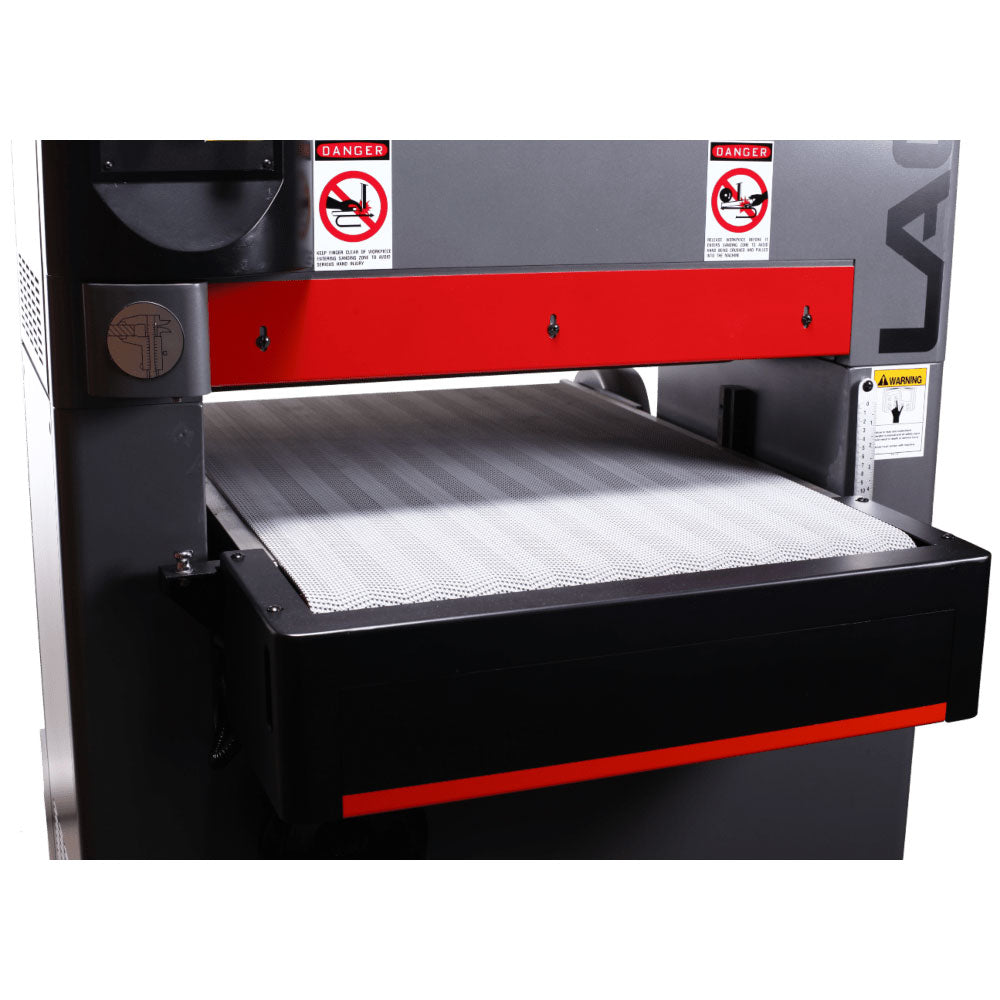

The bed is adjustable with an electronic motor and manual handle for micro movement. Industrial quality carpet offers the perfect balance between grip & rigid support. The platen is fully adjustable enabling you to run in combination with the 4″ rubber drum for optimum results.
Raise it and use the drum alone to dimension wood. Lower it to sand sensitive material such as veneer without the risk of going through the material. Don’t let the price fool you, this is a serious piece of machinery!
Volt: 220, 1 phase, 60 Hz.
HP: 7.5 Main Motor

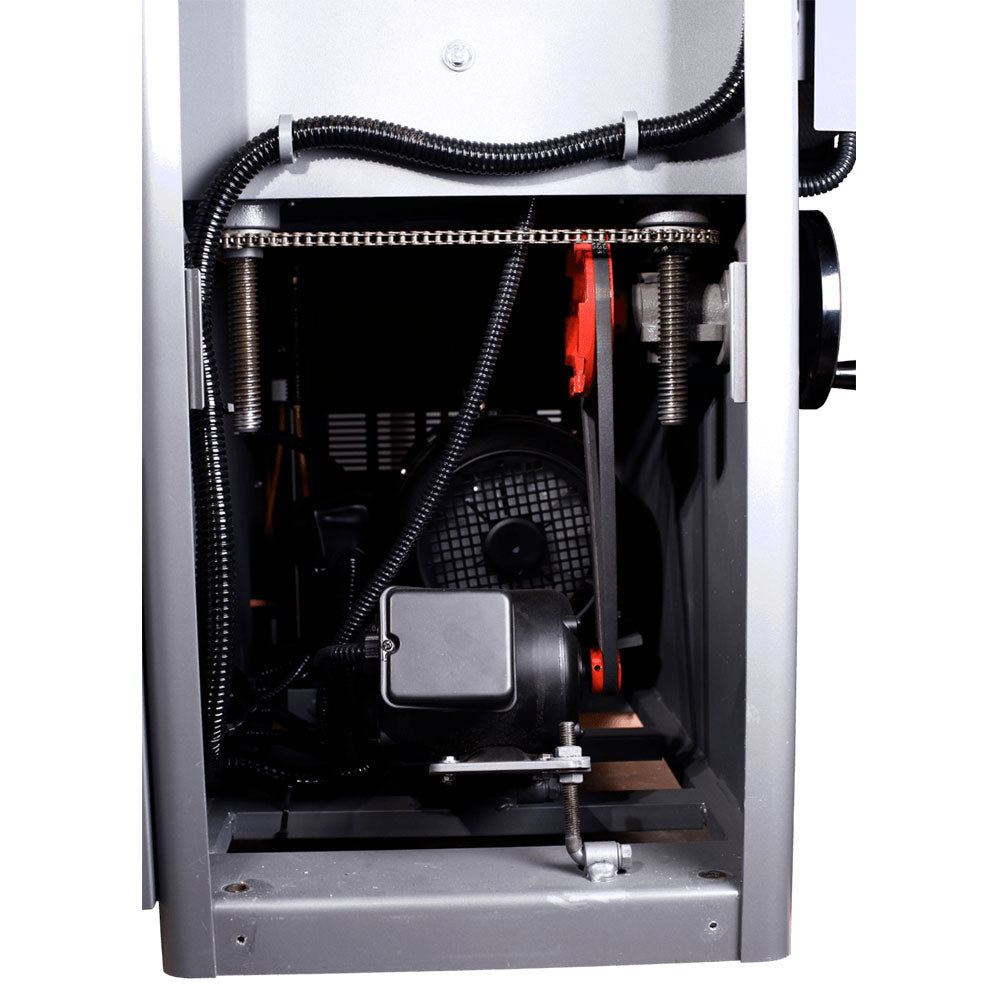

Bed Adjustment: Electric, 0.33 HP Motor
Micro Adjust: Manual Handle

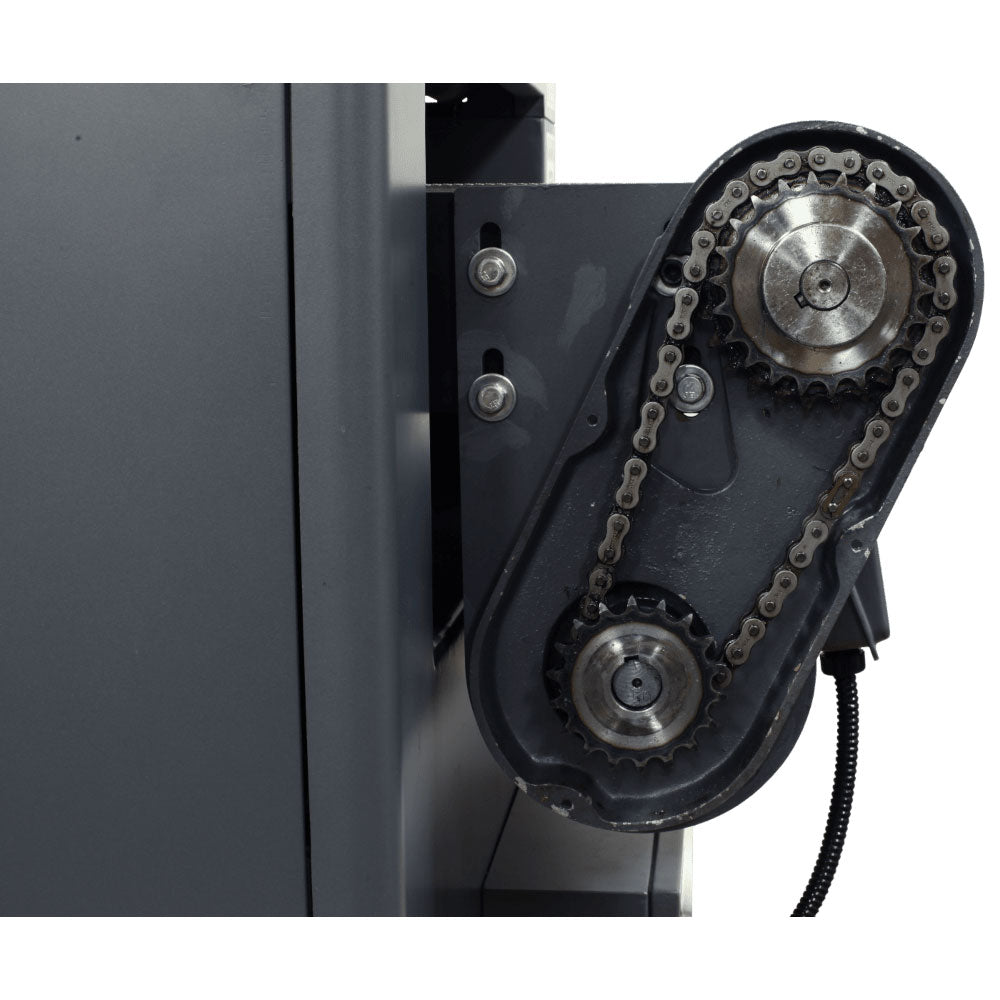

Conveyor: 22 & 49 FPM. Gear Change, 1 HP
Bed Height: 32″(Min) – 38″ (Max)
Max Capacity: 5.9″ (150mm)
Max Width Capacity: 24-3/8″
Belt Size: 25″ x 60″
Drum: 4 x 26″ Rubber Roller
Configuration: Combo Head, Roller + Platen
Platen: Felt & Graphite, Fully Adjustable With Scale
RPM: 1750 Drum
Safety Bar: Front off Bed, Stops Belt
Oscillation: Pneumatic, Adjustable
Air Pressure: 75 psi
Brake: Main Motor, Air Disc
Dust Port: 5″ x 2
Foot Print: 20″ x 40″
Total Size (W x D): 40″ x 50″
Height Included Dust Ports: 66-1/4″
CSA: Fully Certified
Weight (Net/Gross): 1,650/1,920 lbs.
