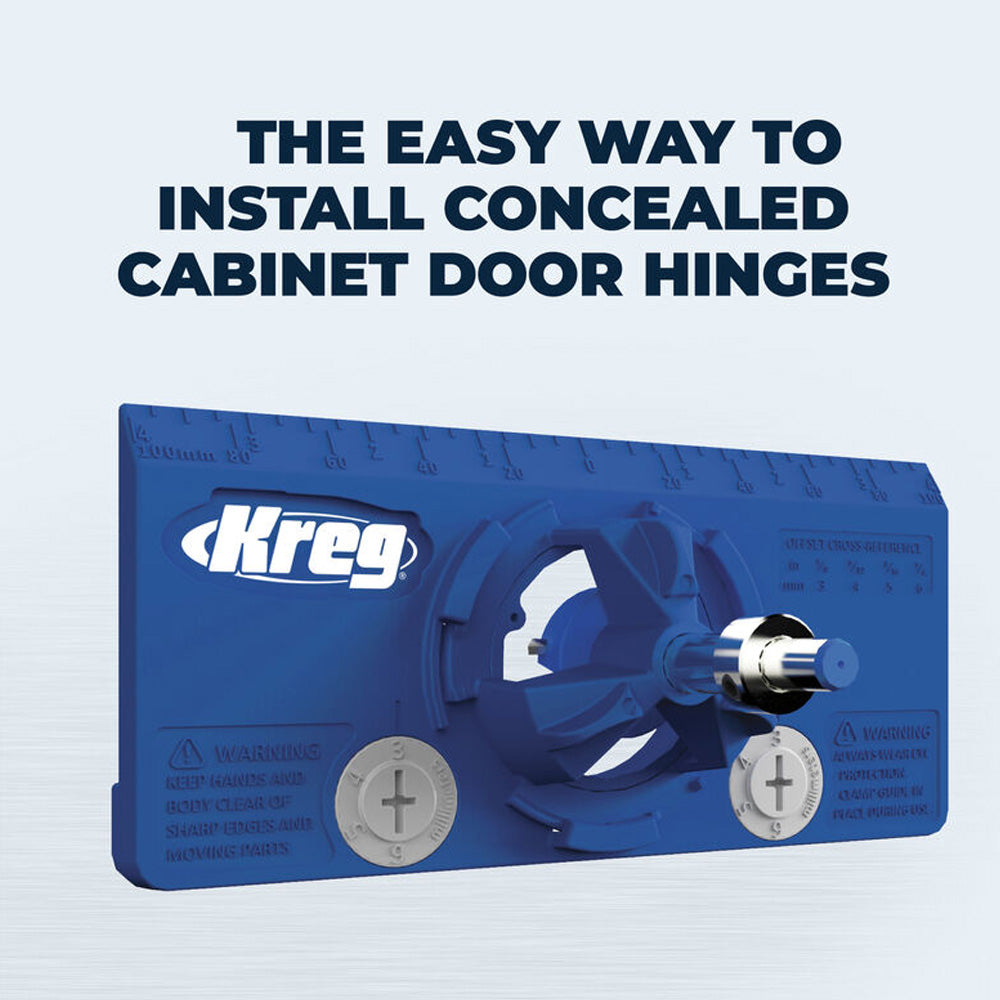

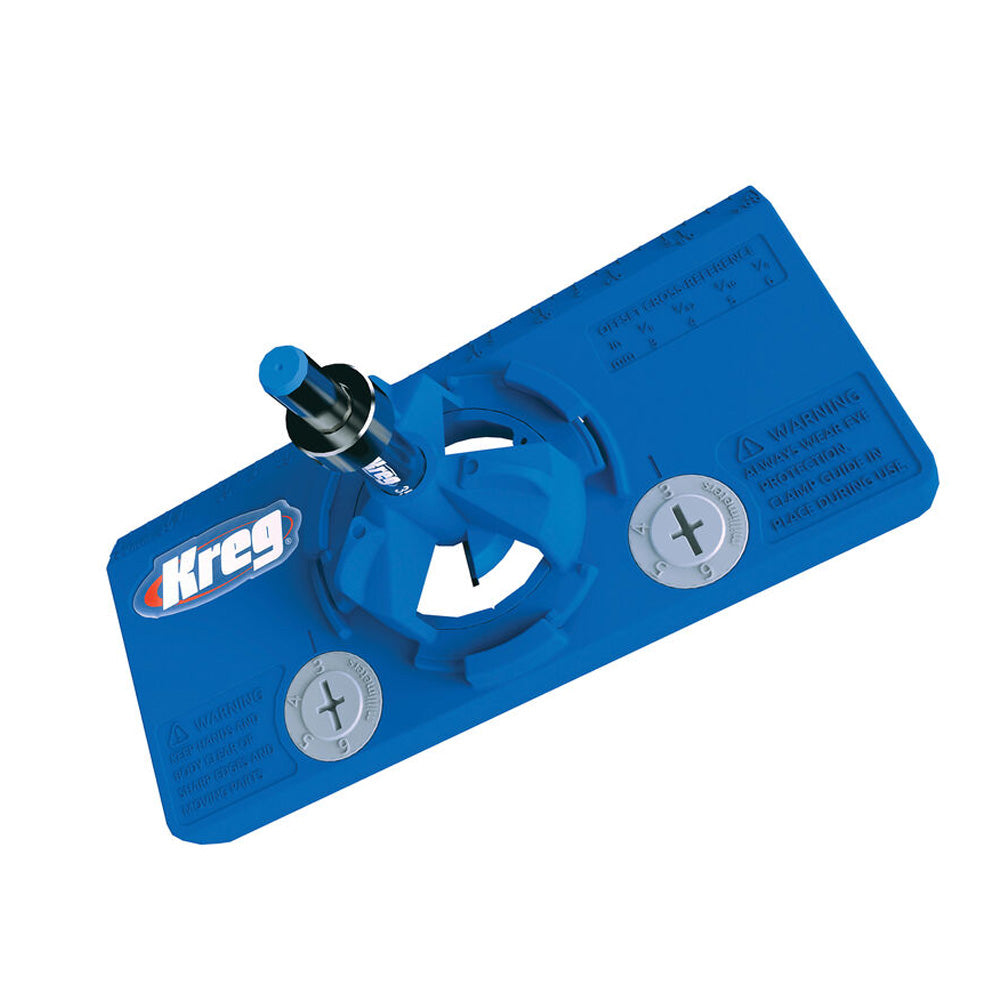

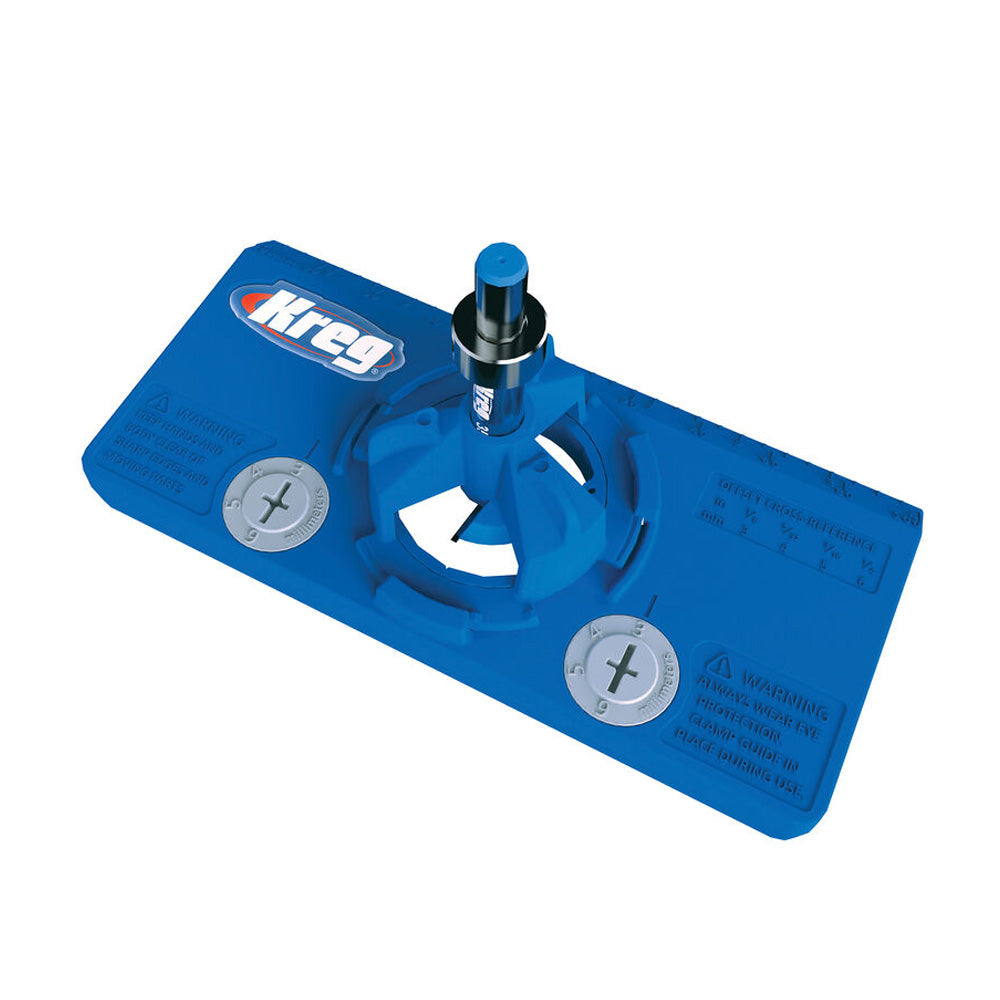

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped bit.
The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called "Euro hinges") using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset, and drills to the perfect depth every time thanks to a depth stop collar. The jig is simple to use, and it ensures that you can mount cabinet doors that fit great and work properly.
Concealed hinges are great for mounting cabinet doors because they stay out of sight, they’re adjustable, and they work very well. Mounting them, though, requires drilling a large hole at a very specific position and depth. The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes, and allows you to do it with nothing more than a drill and the carbide-tipped bit that comes with the jig.
Note: 1/16" required drill bit not included. Check out our selection of drill bits here.
[TABS]
Features
Accurate hinge positioning with built-in indexing tabs

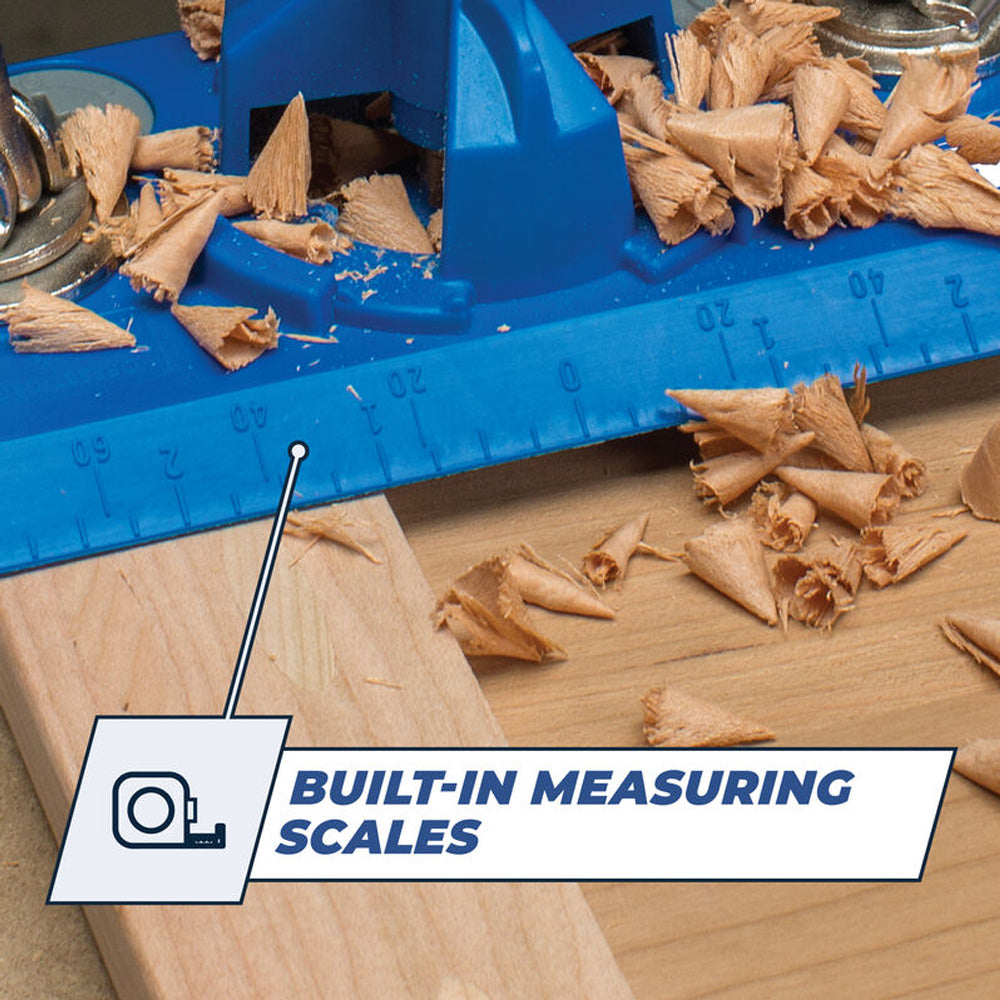

Repeatable results with built-in measuring scales

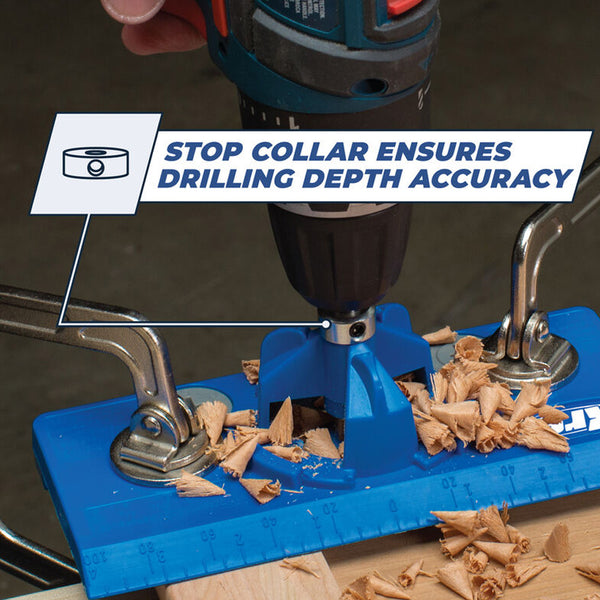

Reliable drilling with bit guide and stop collar

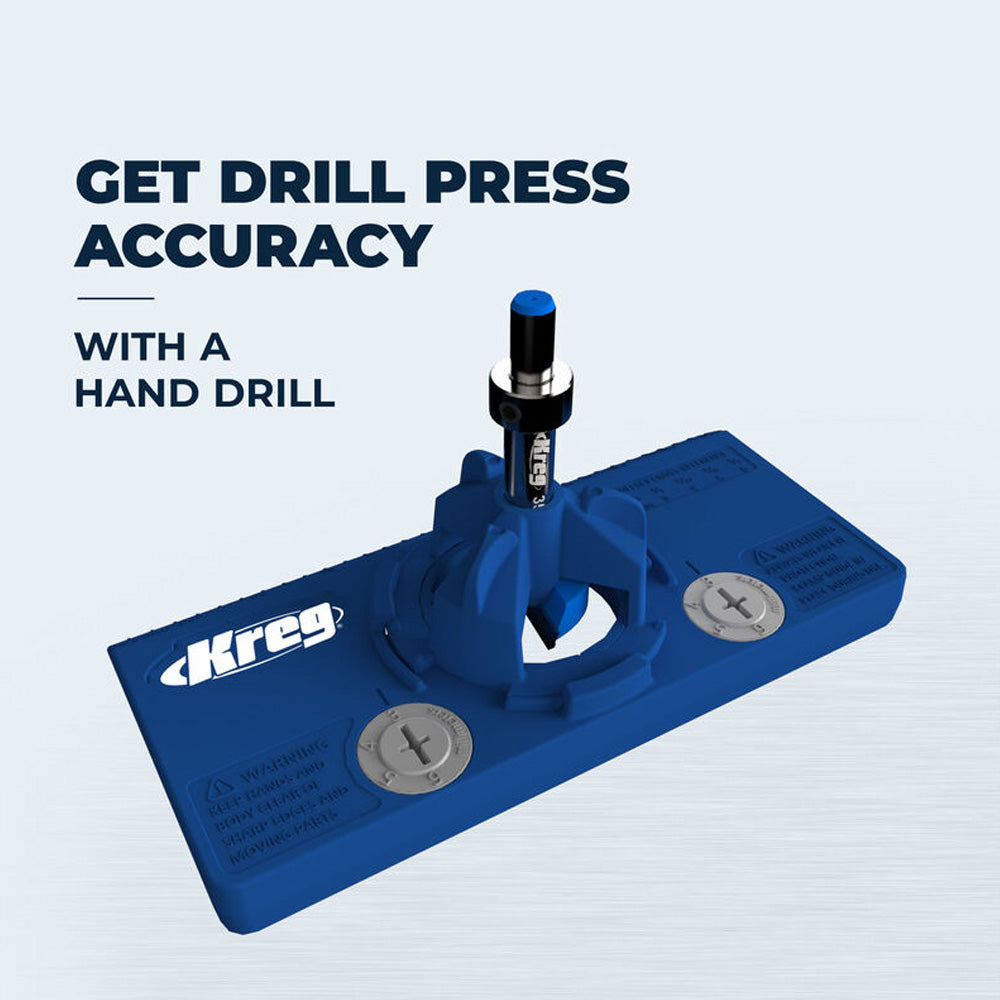

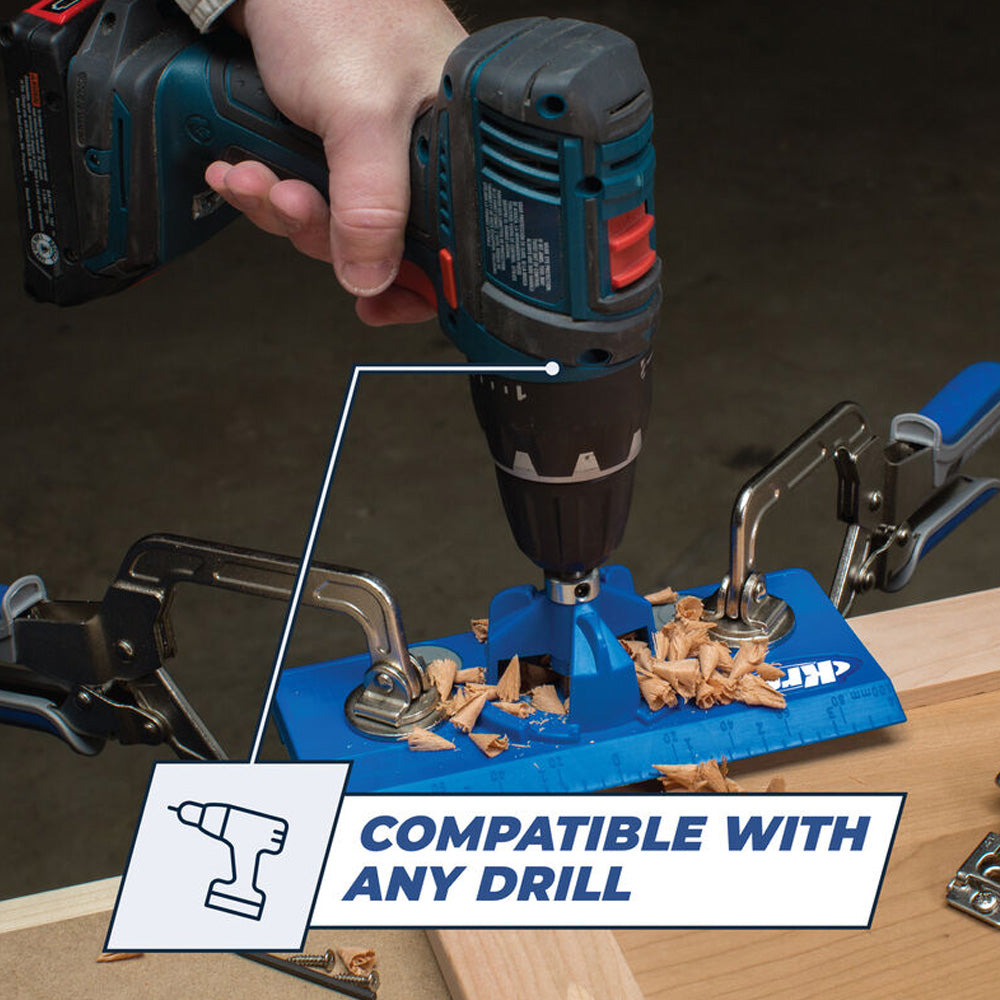

Simple to use with any drill — no special tools needed
Adjustable cams ensure proper hinge offset

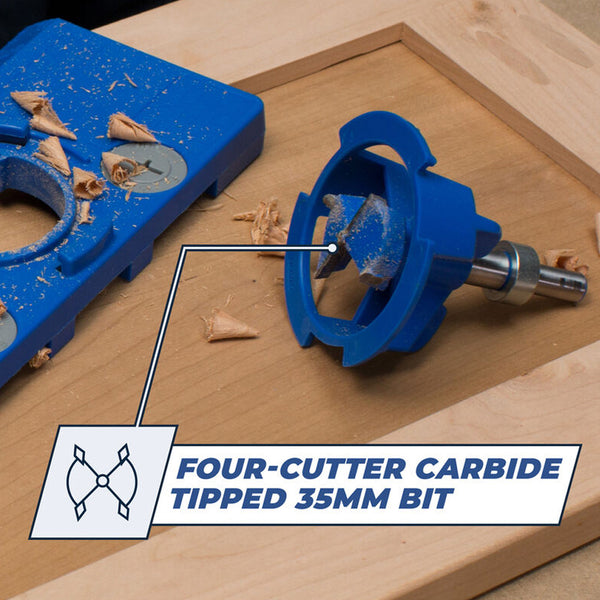

Durable carbide-tipped drill bit included
Strong, lightweight materials for easy handling

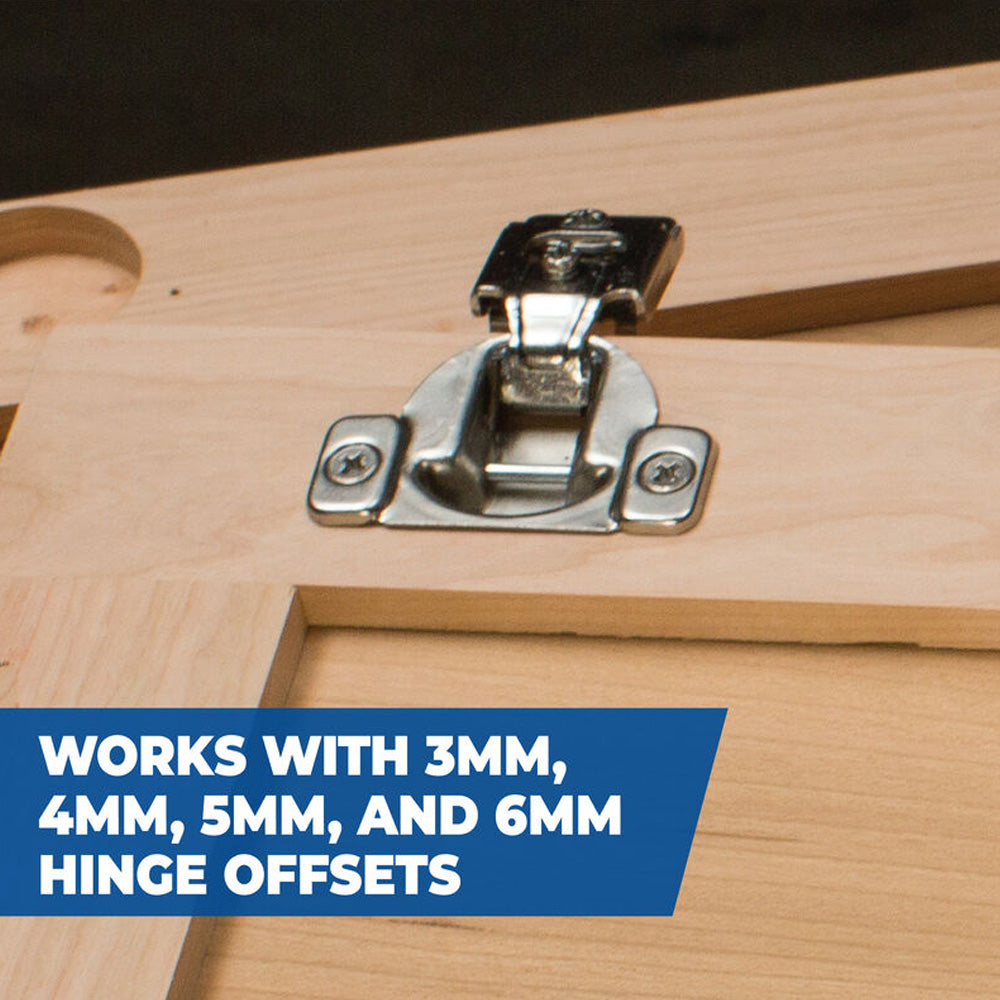

Works with 3 mm, 4 mm, 5 mm, 6 mm hinge offsets
2" (50 mm) to unlimited hinge positioning from door end
