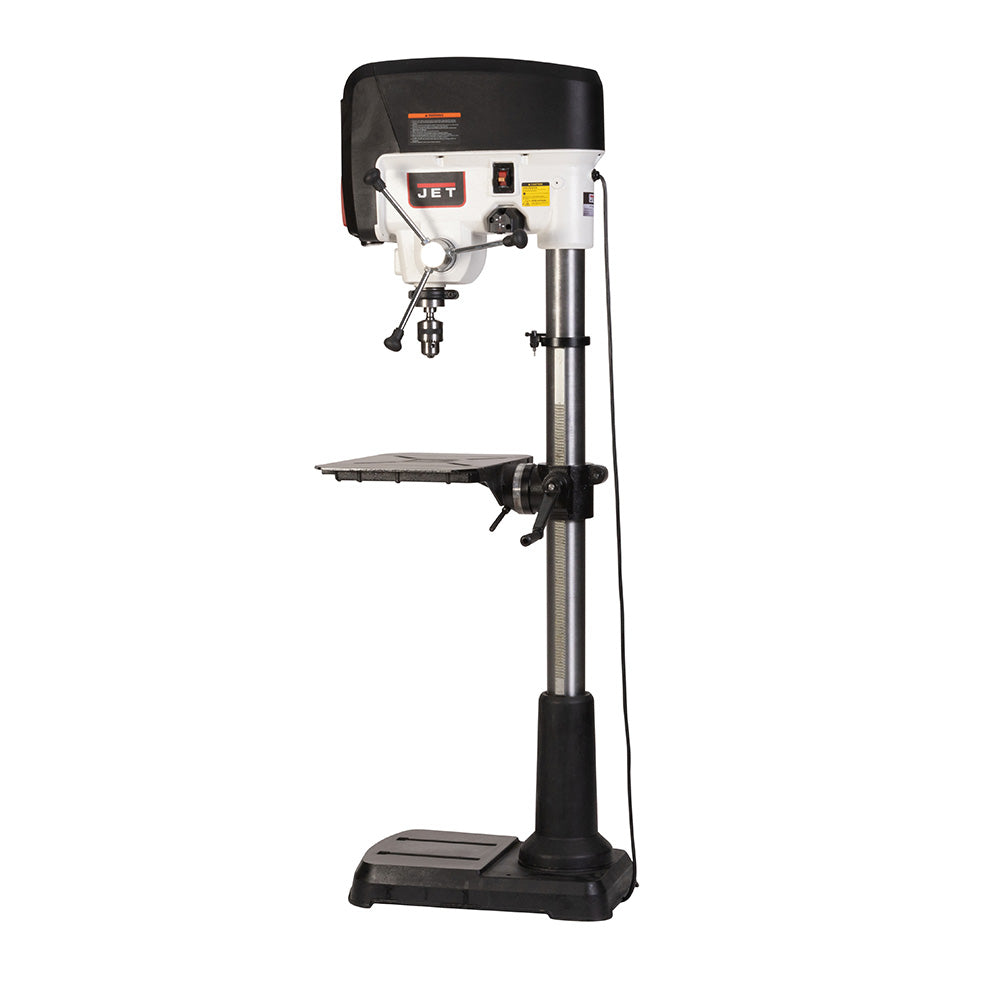

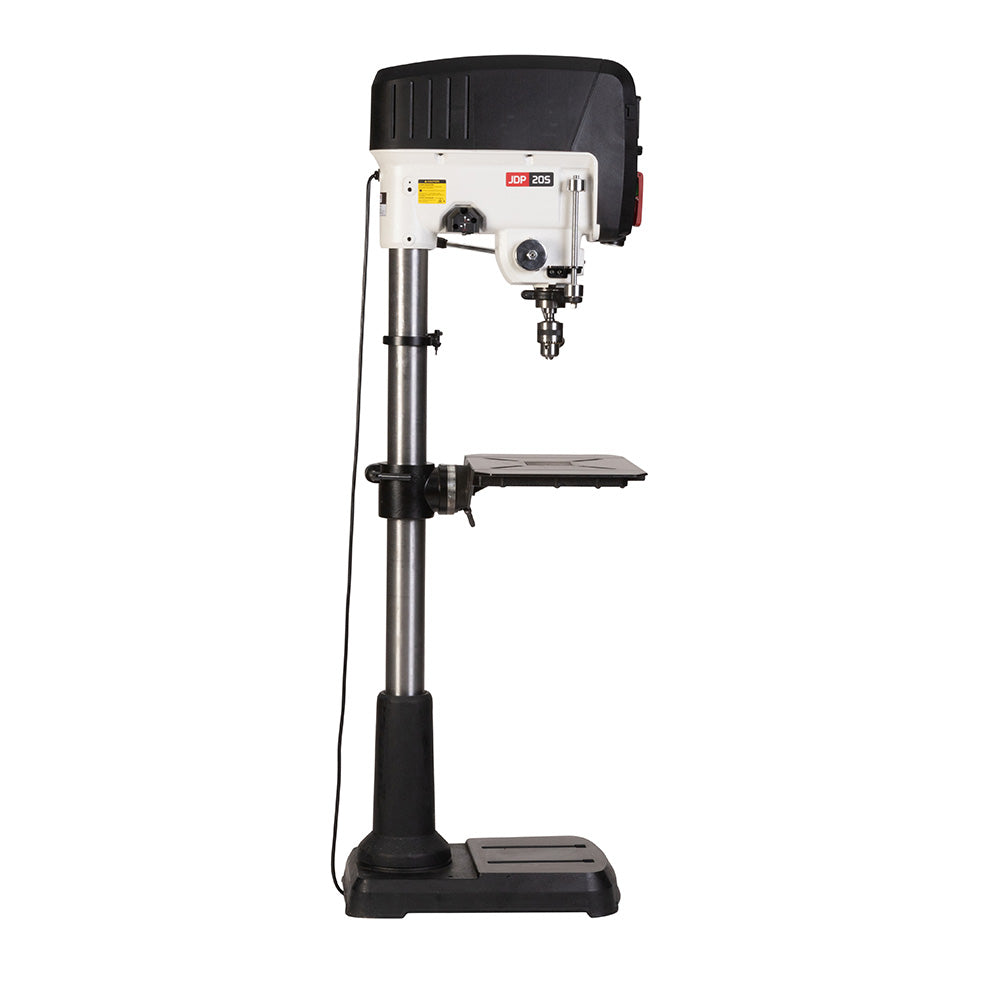

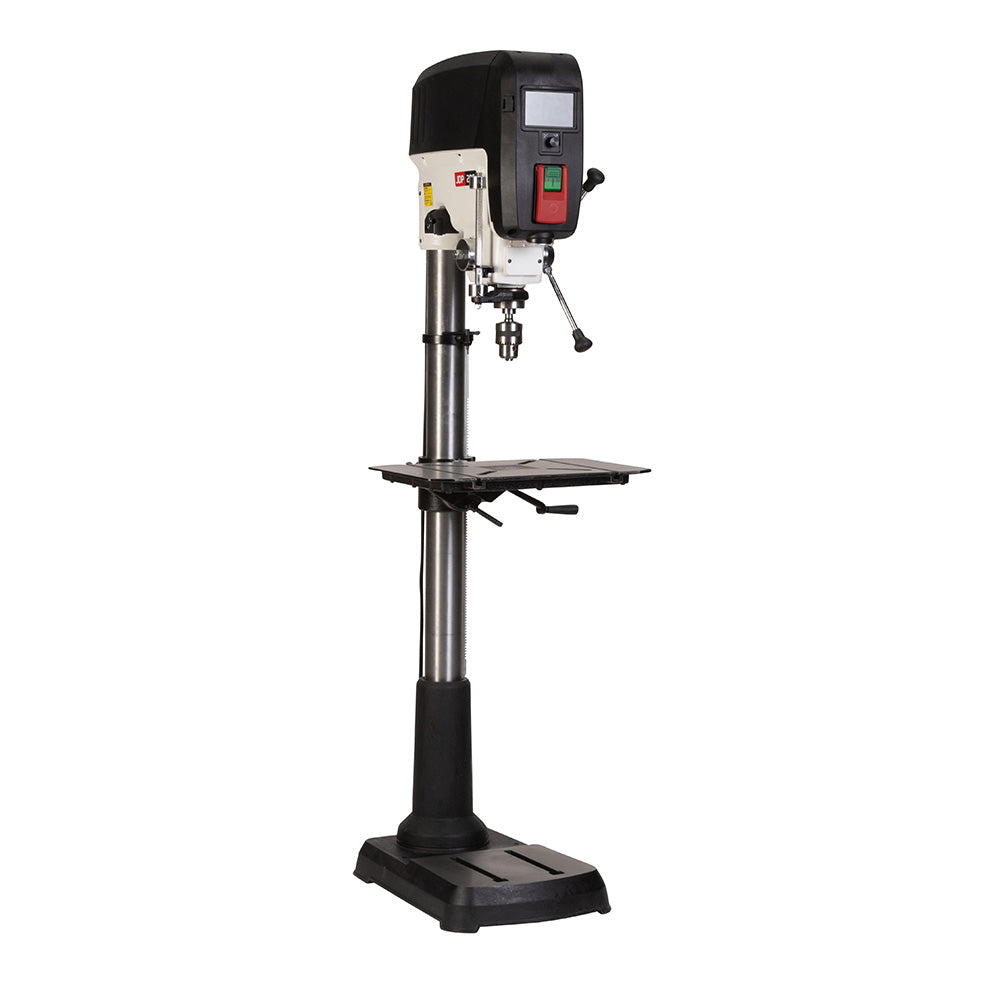

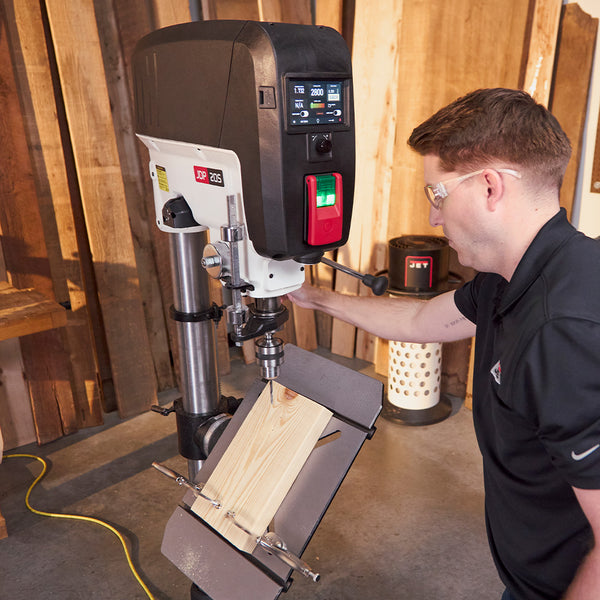

Meet the JDP-20S — the first Smart Drill Press in the JET lineup, built to redefine precision, power, and ease of use in woodworking. This floor-standing machine combines advanced digital intelligence with industrial-grade performance, unlocking new capabilities for pros, tradespeople, and serious DIYers.

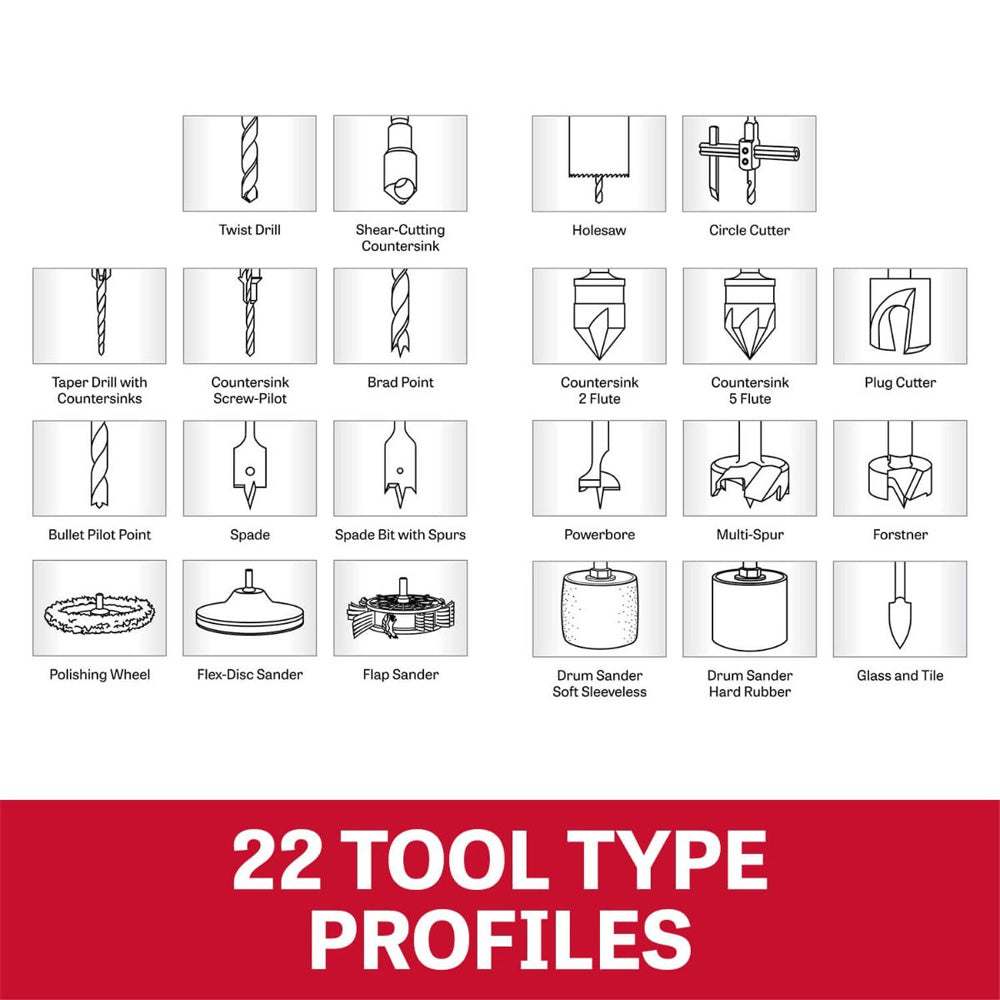

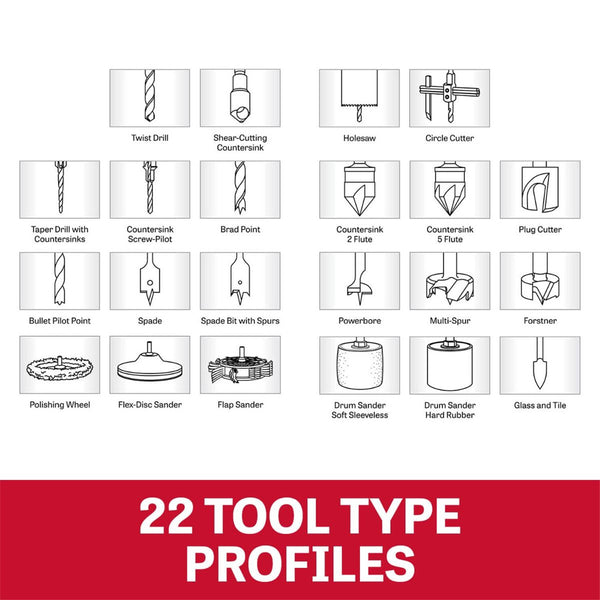

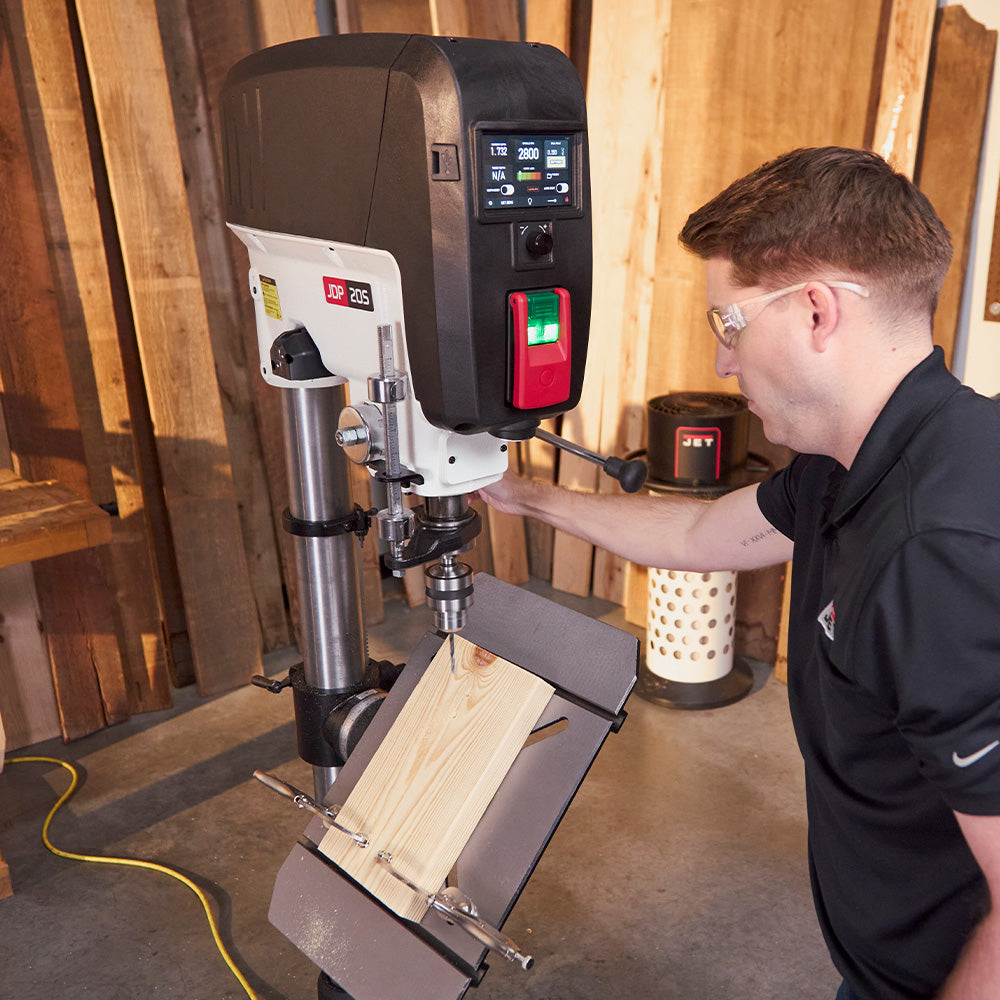

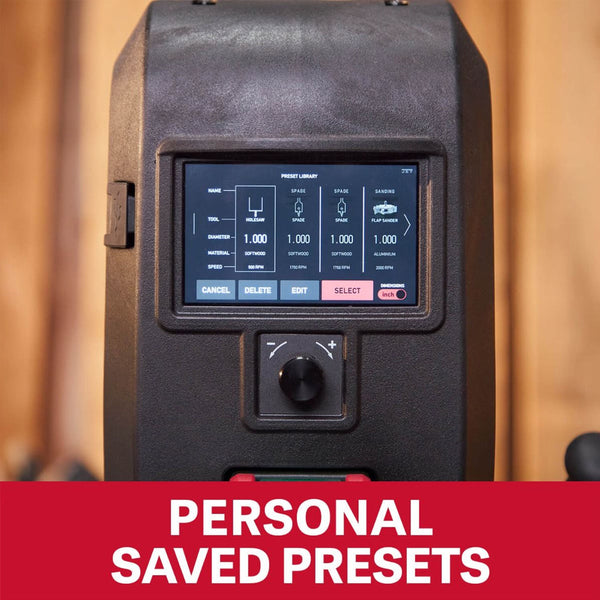

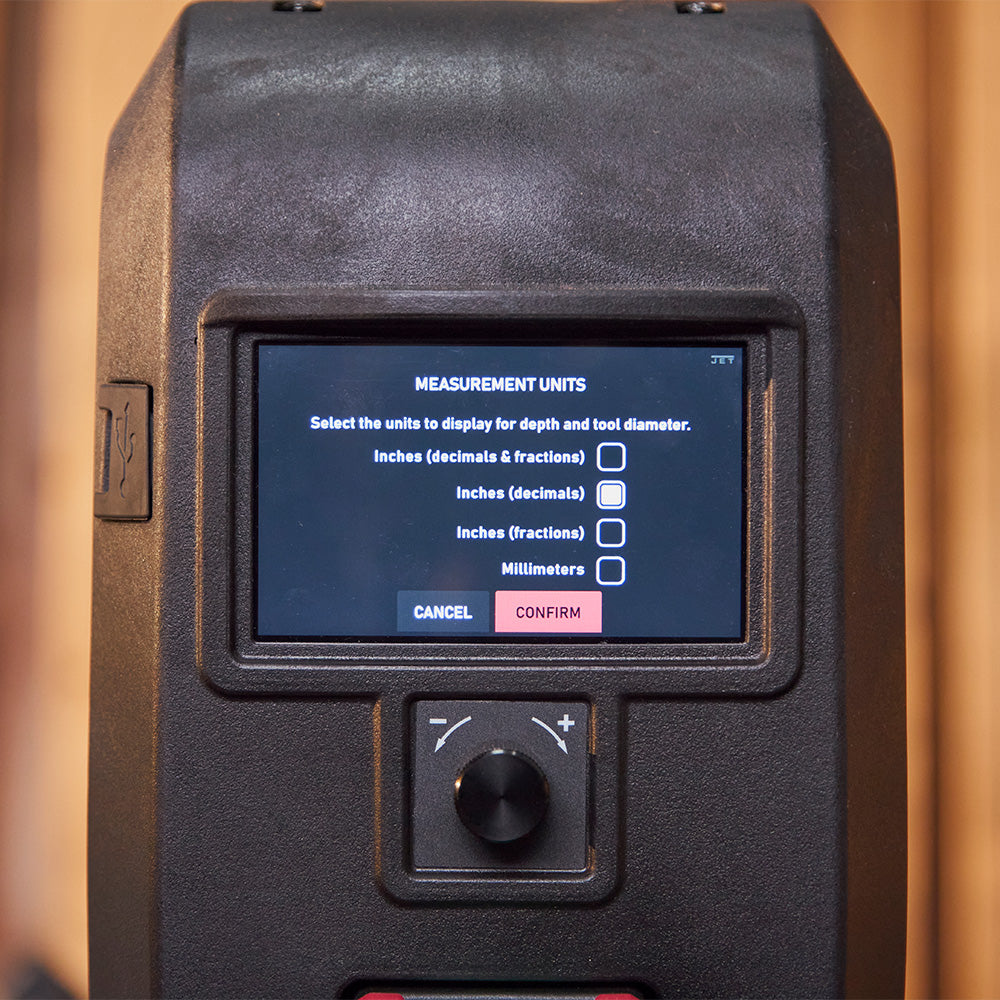

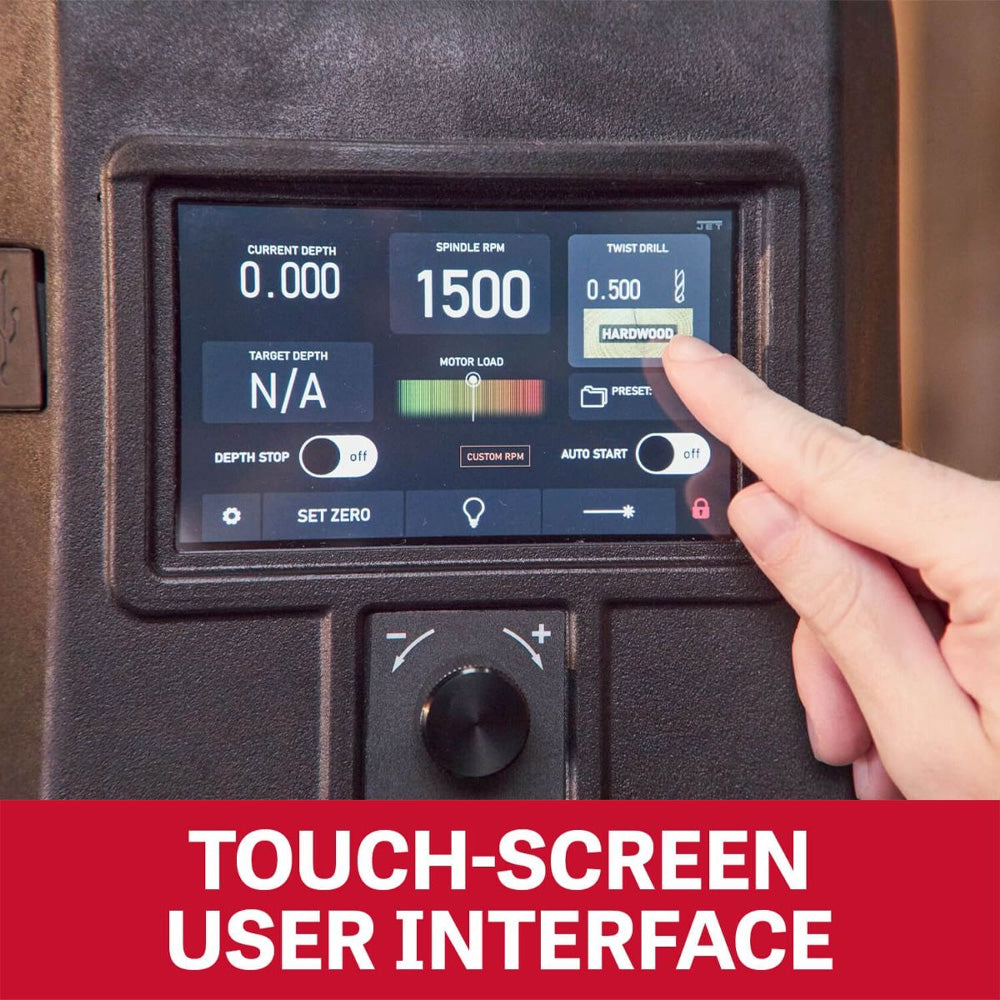

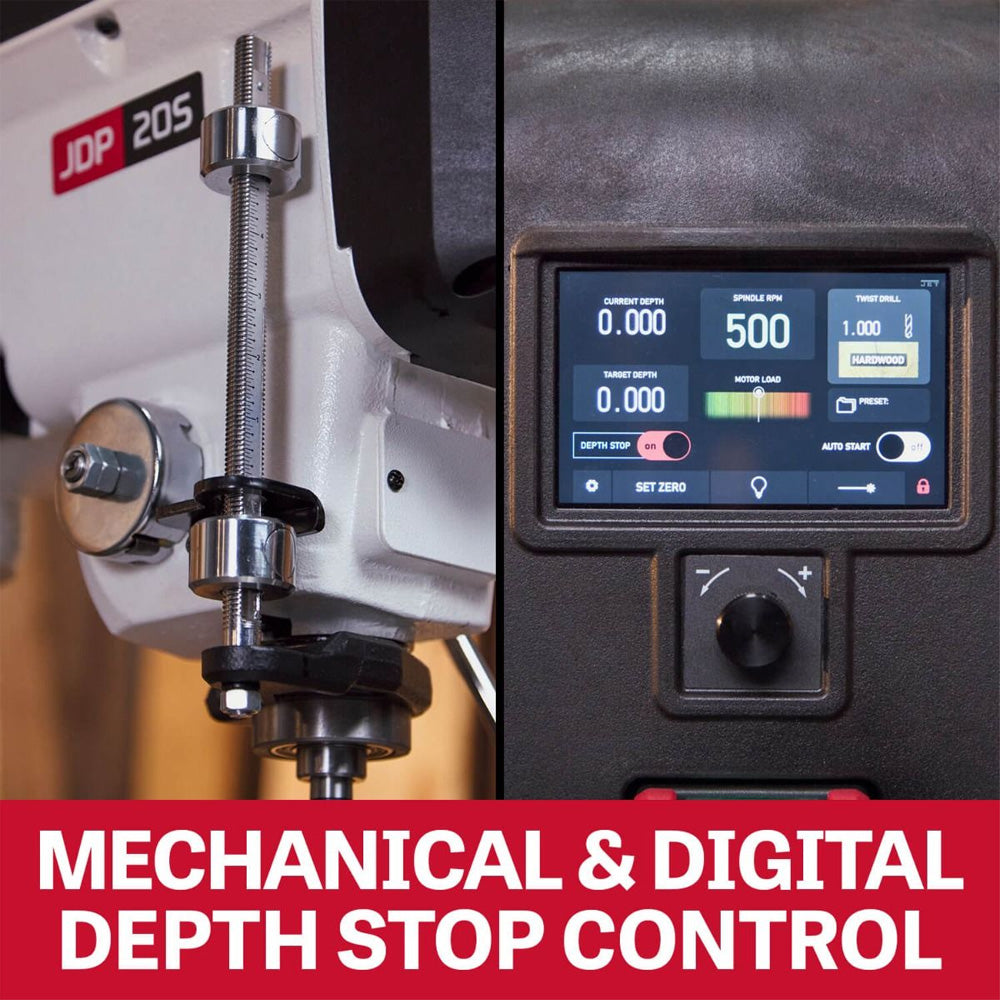

On the DPS-20S, you will experience control at your fingertips with a vibrant 5" touchscreen user interface. This interface allows you to choose between 22 tool types, 15 customizable user presets, and RPM recommendations based on your bit and material. Users can lock settings with password protection to prevent unauthorized users or setting changes.

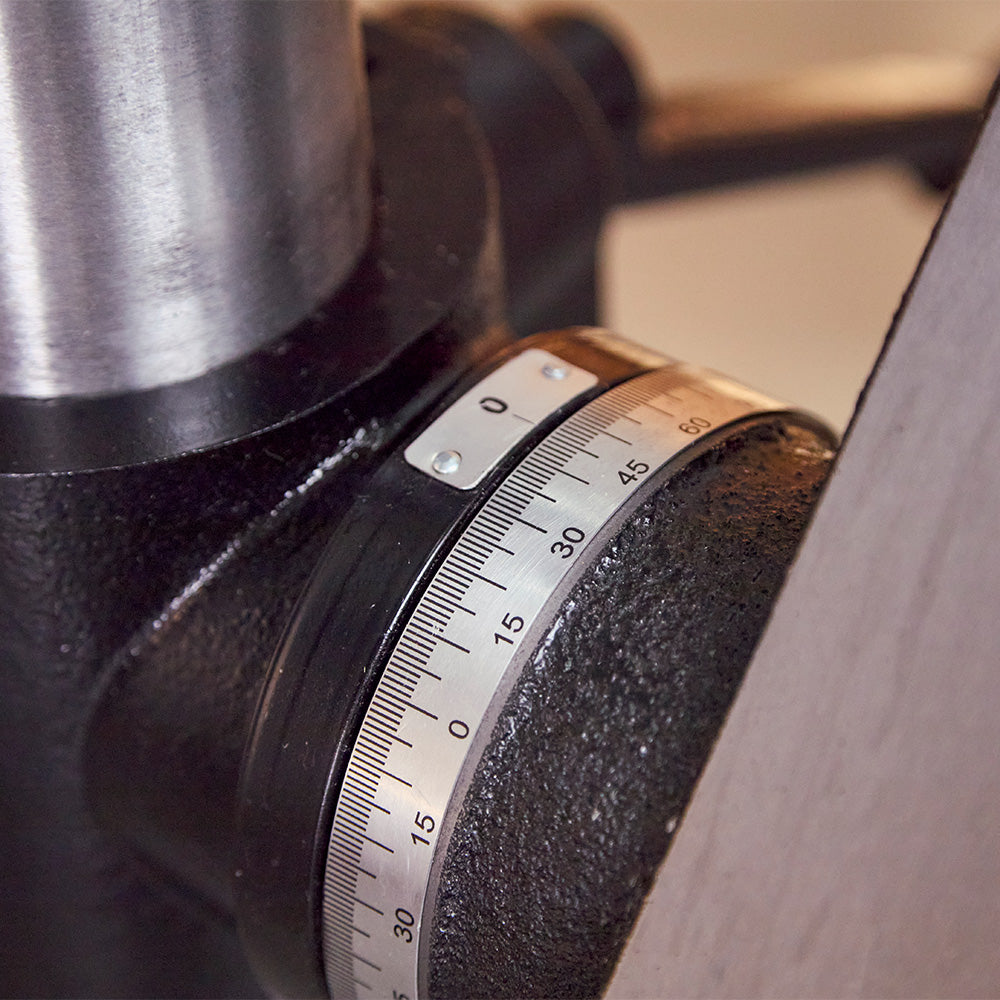

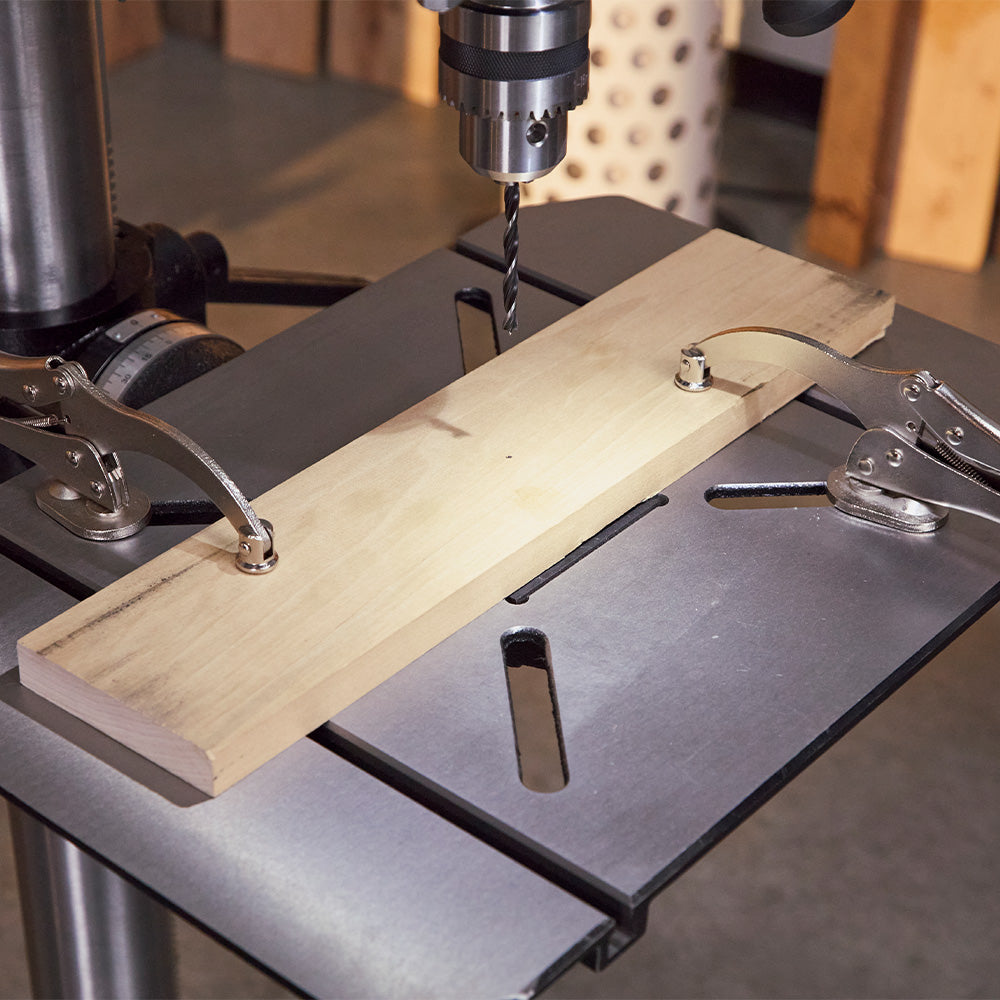

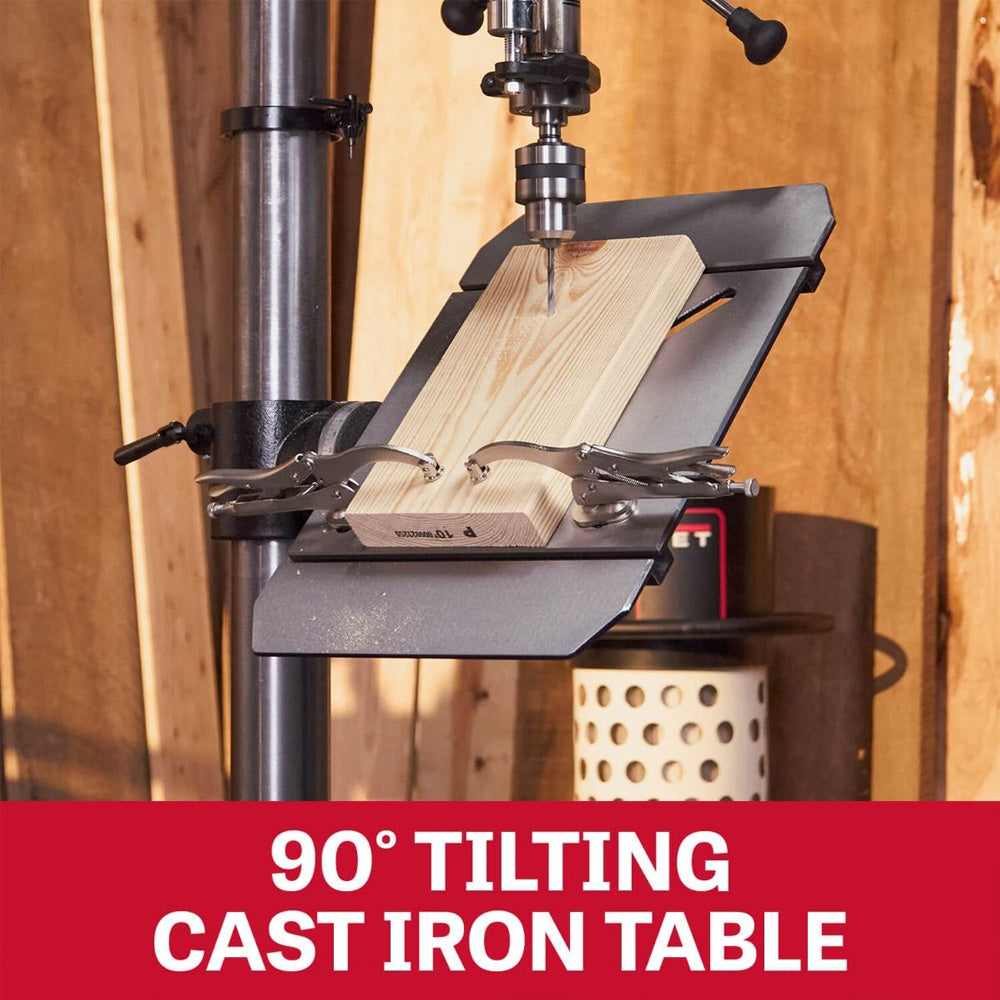

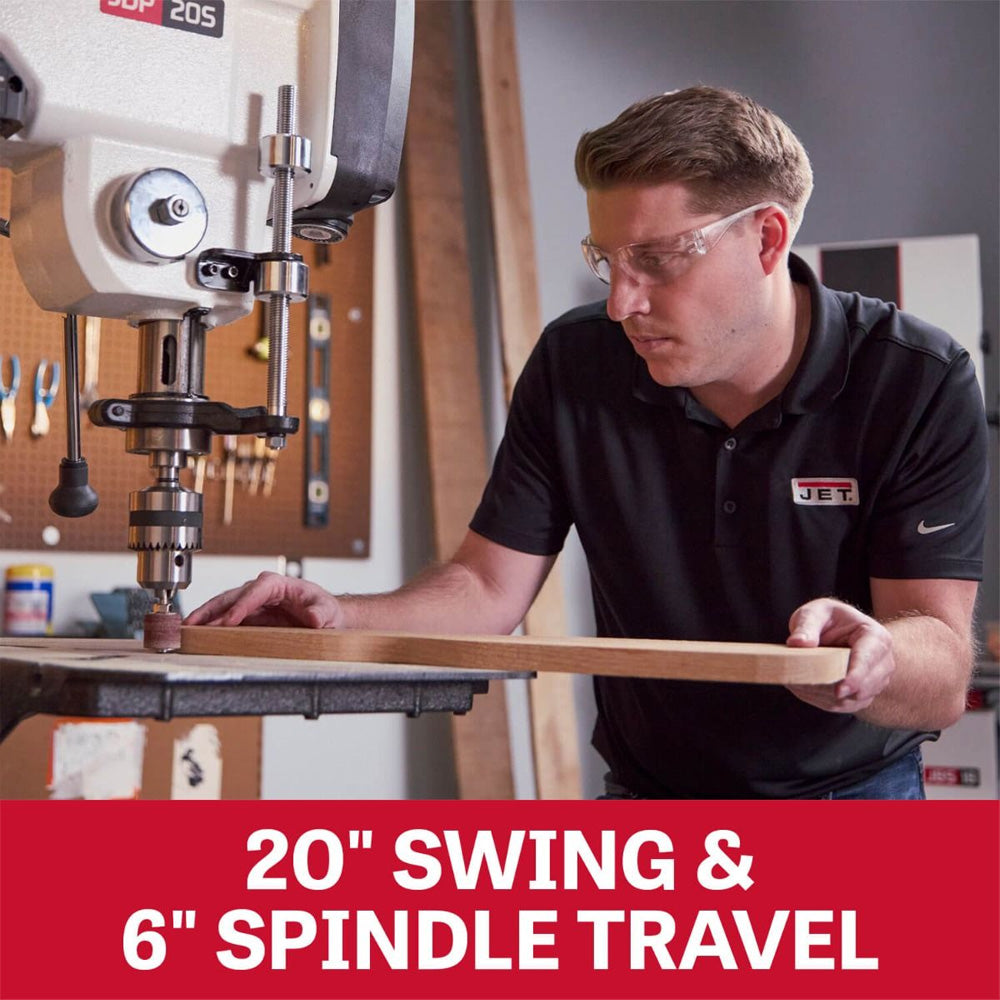

This 20" drill press features built-in load monitoring that protects tools and ensures consistent performance. It also features preset memory and a guided interface that save setup time on repeat projects. The 20" swing handles larger workpieces with ease, and the 6" spindle travel delivers deeper drilling capacity. The versatile 90° tilting cast iron table allows for drilling at any angle.

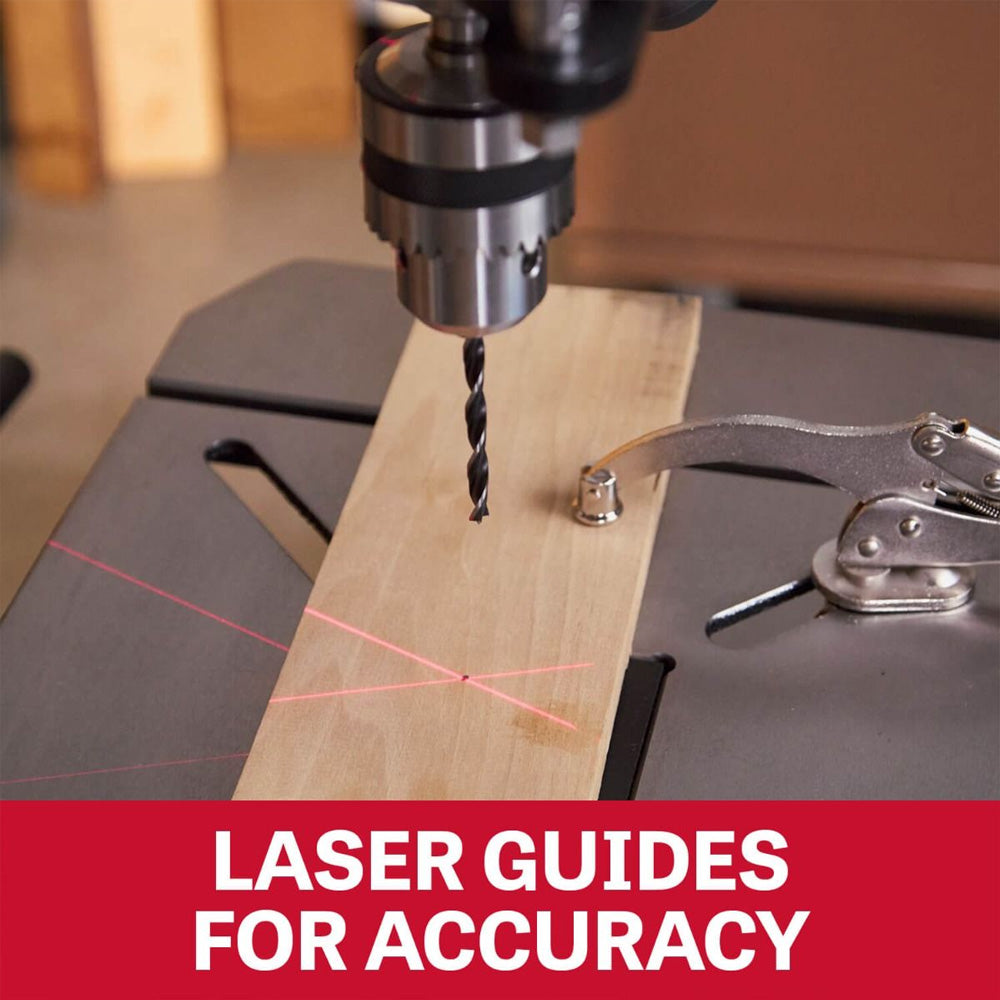

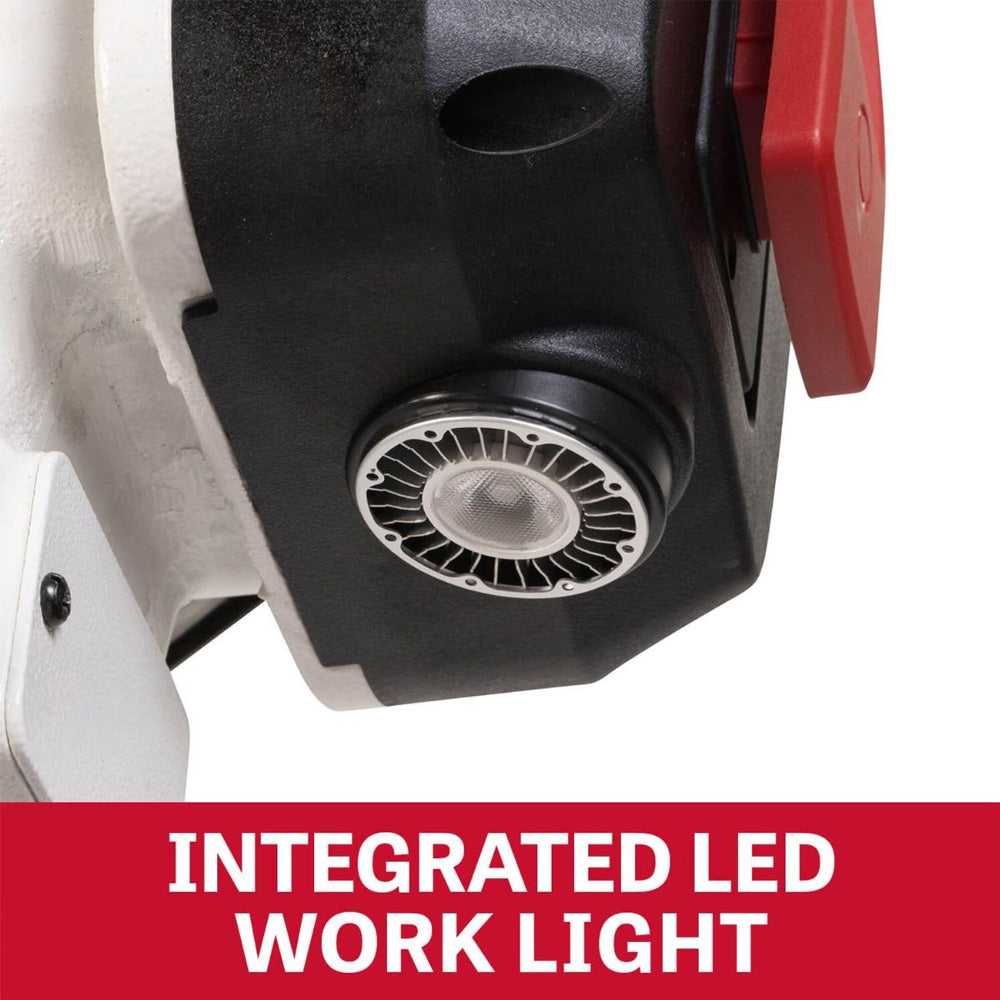

A 1.5HP brushless motor delivers smooth, consistent power for demanding jobs, with better reliability, less wear, and quieter operation than belt-driven systems. The integrated LED light and laser guide illuminate your work and ensure precise bit alignment for fewer mistakes.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Download the Quick Start Guide >
Motor power: 1.5hp
Motor voltage: 115/230V
Cycle: 60Hz
Chuck shank capacity: 5/8" (16mm)
Swing: 20" (508mm)
Spindle travel: 6" (152mm)
Speed range: 150 to 3,000 RPM
Max. spindle to table distance: 27.63" (702mm)
Max. chuck to table distance: 1.5" (35mm)

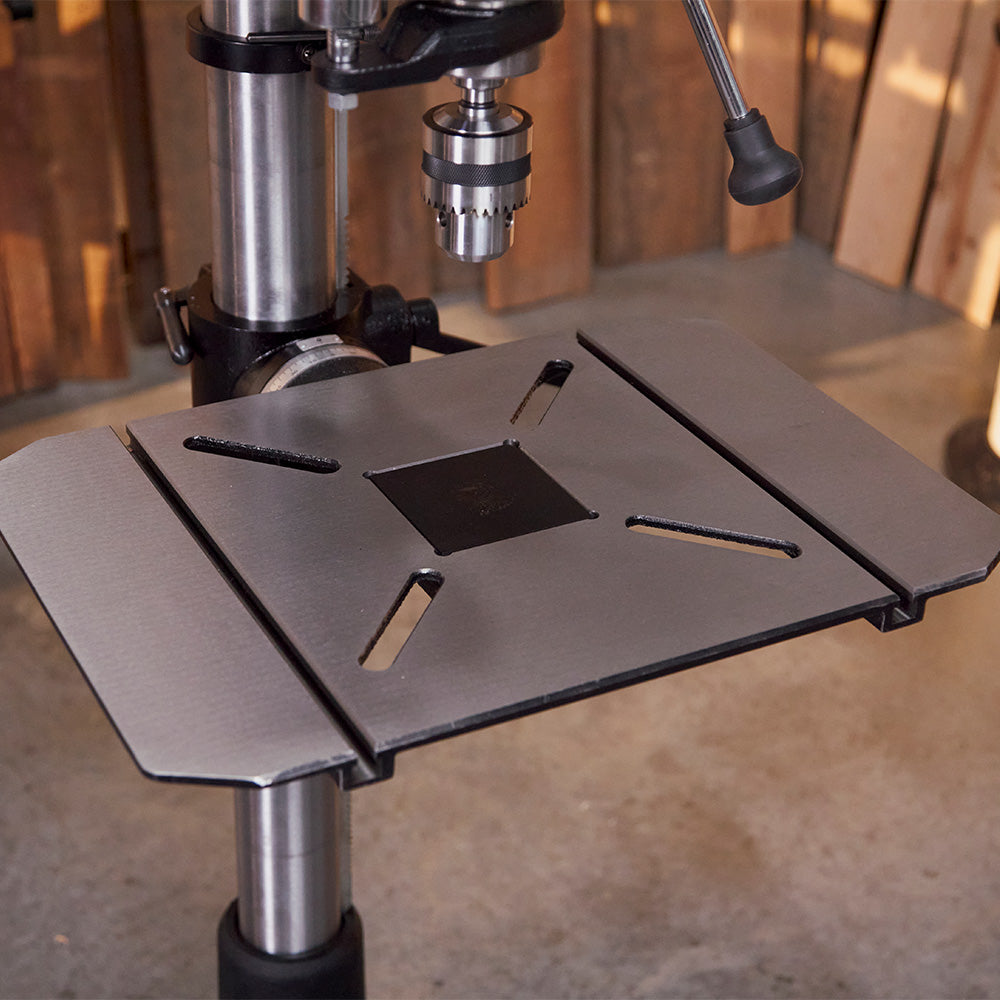

Table size (L x W): 20.24" x 13.94" (514 x 354mm)
Table slots x4 (L x W): 3-1/8" x 5/8" (79 x 15mm)
Table T-slots x2 (W x D): 3/8" x 5/8" (9 x 15mm)
Distance between T-slots (centers): 8-7/16" (317mm)
Table tilt: 90° left & right
Table rotation around column: 360°
Max. weight on table: 66 lbs. (30 kg)
Base size (L x W): 23.8" x 15.9" (604 x 404mm)
Base working surface (L x W): 11.42" x 12.6" (290 x 320mm)
Base slots x2 (W x L): 5/8" x 7-7/8" (15 x 200mm)
Column diameter: 3.35" (85mm)
Shipping dimensions (L x W x H): 58.7" x 30.3" x 17.7" (1,490 x 770 x 450mm)
Overall dimensions (L x W x H): 24" x 25.5" x 71.5" (602 x 646 x 1,804mm)
Shipping weight: 275 lbs. (125 kg)
Net weight: 218.5 lbs. (99.3 kg)
