$ 1,399

Have questions? Give us a call at 260-637-0054.

This high-quality 1.5HP table saw is ideal for hobbyists who need a powerful, reliable machine without breaking the bank. The Laguna Fusion line was developed for demanding woodworkers, and the F1 delivers. It features a TEFC motor that provides strong torque and longer life, a quality rip fence, and a true riving knife that assures no kick back.

Designed around quality components, the F1 features a steel bodied 30" rip fence. There's also on-board tool storage for the fence, miter gauge, and push stick. Dust collection through both the saw guard and the 4" cabinet port keep your work area clean for a better, more precise cut. Permanently lubricated bearings & Acme screws are part of the internal DNA.

All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.

Make your saw mobile with the optional Wheel System.

Compare Models >

Features

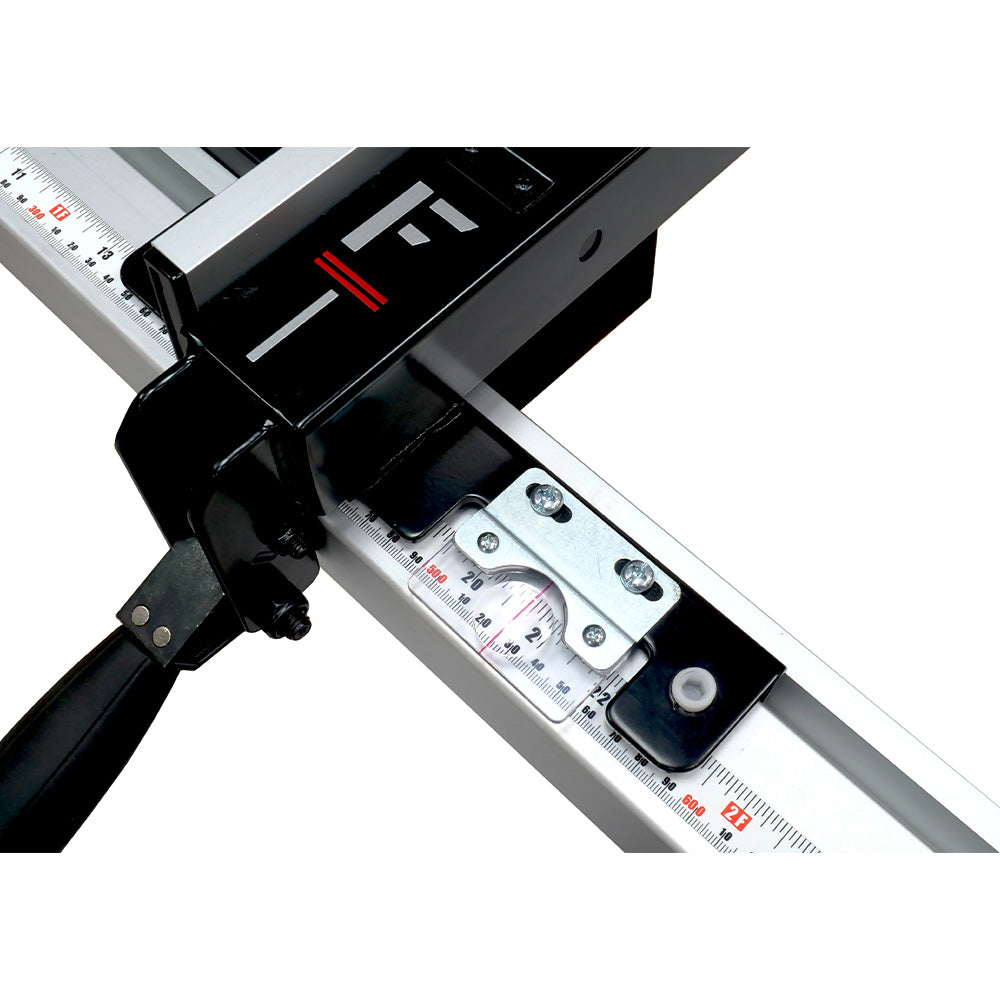

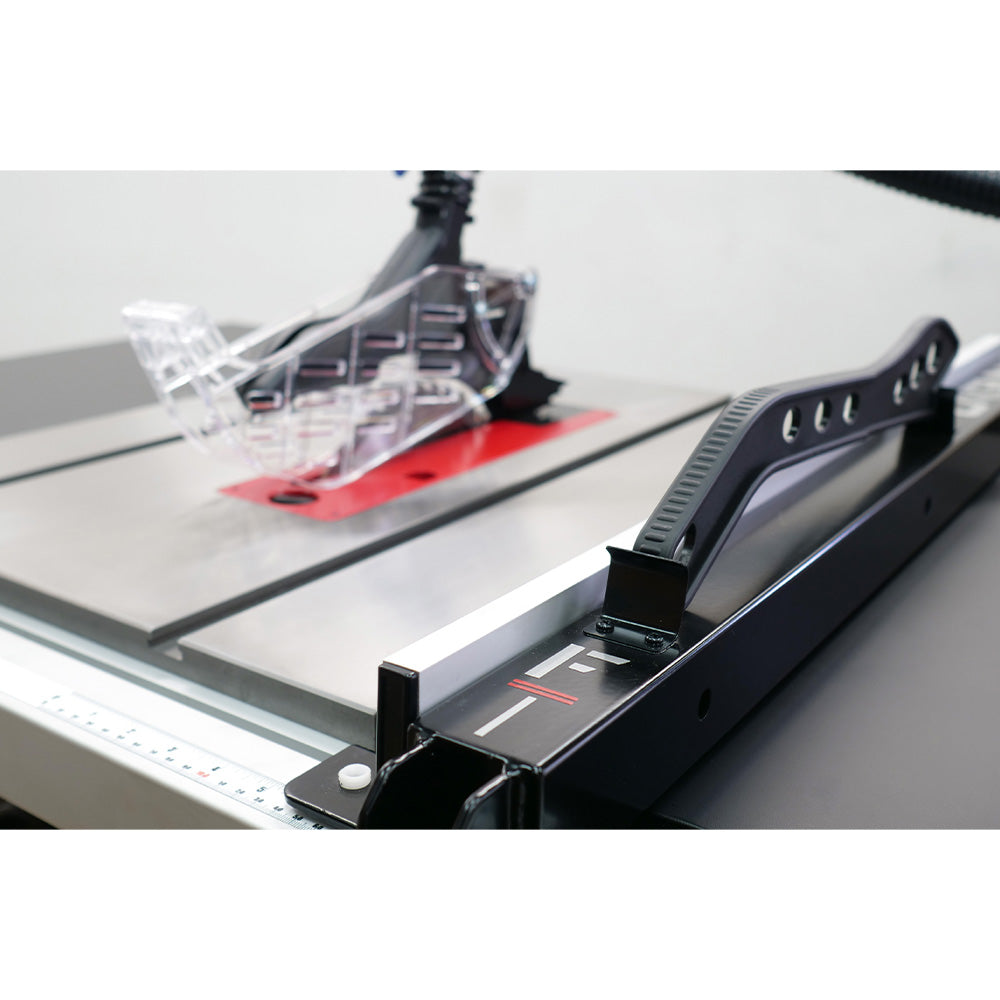

  • 30” Rip fence is steel bodied and features a detachable integrated push stick for your convenience

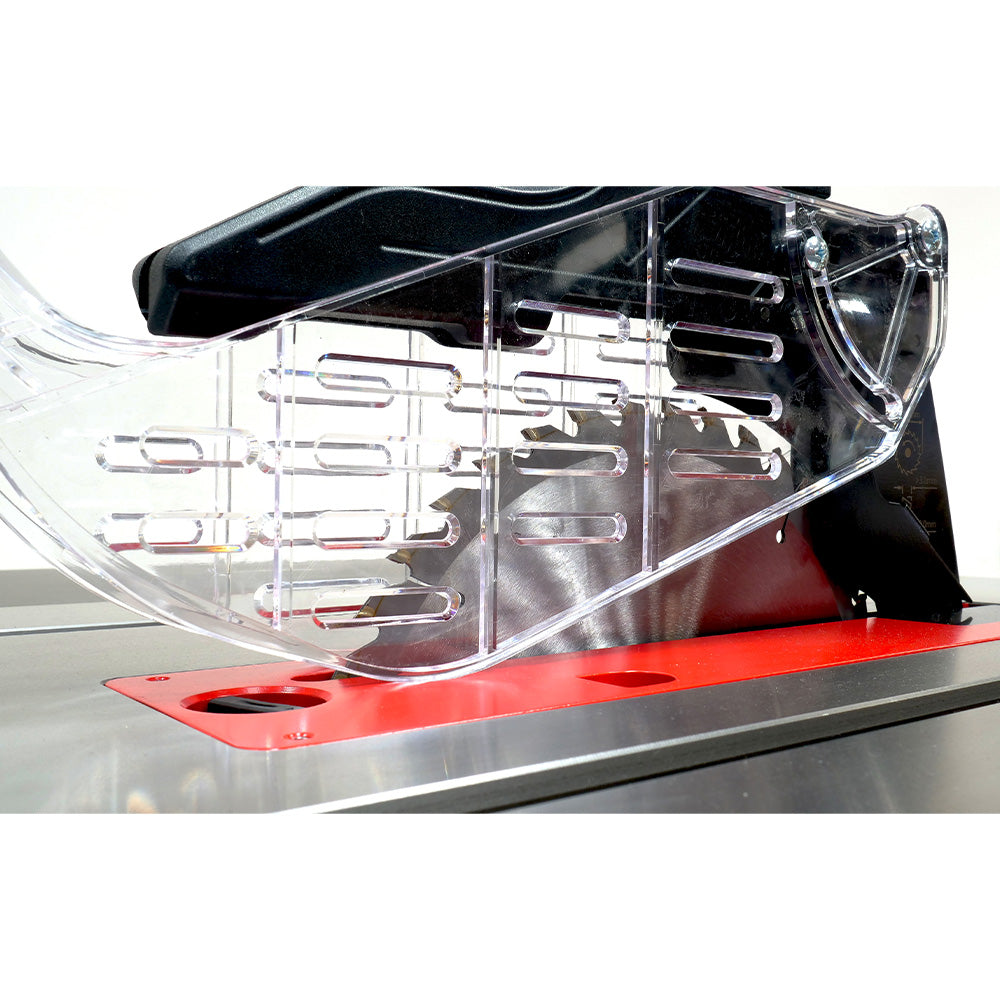

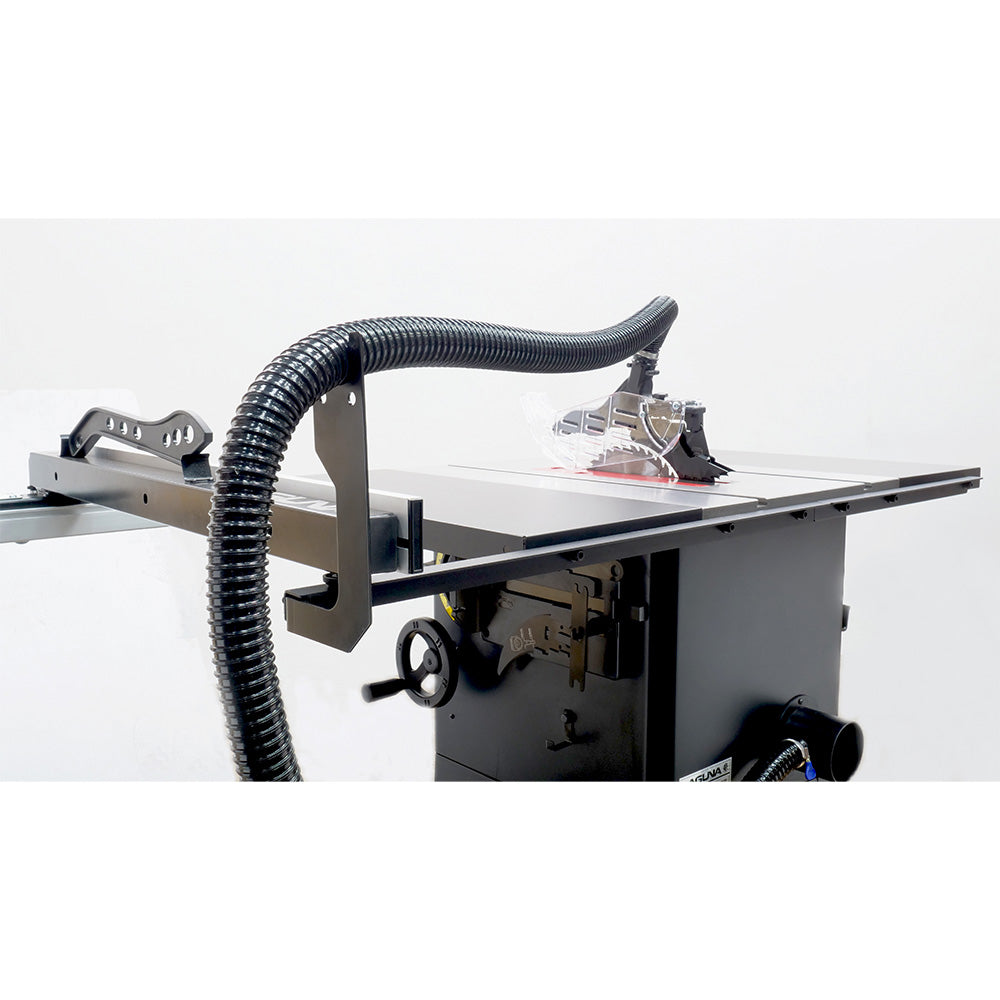

  • Dust collection through the saw guard provides a clean work area for precise cutting
  • Sealed bottom for improved dust collection
  • On-board tool storage for accessibility
  • Fusion Hi-Lo Dust Collection
  • Fusion Over-Under Trunnions
  • Polished Cast Iron Table
  • Reset Switch
  • Quick-Release Blade Guard and Spreader
  • Premium Handles
  • Premium Arbor and Motor Bearings
Specs

Electrical
Power Requirements: 110V-1PH-60HZ
Amperage (FLA): 12 AMP
Motor Power: 1.5hp
Motor Speed: 3,450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V - 20 AMP
Receptacle Req.: 5-15

Table Saw
Rip Capacity: 30"
Blade Size: 10"
Max. depth of cut @ 90°: 3-1/8”
Max. depth of cut @ 45°: 2-1/8"
Tilt: 0-45° Left
Min. Kerf: 3 mm ~1/8" (actual: 0.1875")
Max. Width of Dado: 3/4"
Arbor Speed: 4,000 RPM
Arbor Diameter: 5/8"
Miter Slot: 3/4" to 1" T
Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment
Fence: Single Rail Cam Action

Dimensions
Overall Size (L x W x H): 39-3/4" x 65-1/2" x 38"
Base (L x W): 19" x 20"
Floor to To Table (Height): 34-3/4"
Table (L x W): 27" x 20"
Extension Wing (L x W): 27" x 12" (x2)
Throat Plate (L x W x th): 14-5/8" x 4-1/16" x 1/2"

General
Certification: CSA C/US 175370
Net Weight: 200 lbs.
Shipping Weight: 280 lbs.
Shipping Dimensions (L x W x H): 30" x 40" x 30"
Overall Size (L x W x H): 39-3/4" x 59-5/8" x 38"

Dust Collection
Dust Port Outer Diameter: 3-7/8"
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8"

Materials
Table: Cast Iron
Table Wing: Sheet Steel
Cabinet: Sheet Steel
Throat Plate: Die Cast Iron
Arbor Wheels: Die Cast
Fence: Aluminum Rail, Steel Body
Upper Trunnion: Cast Aluminum Alloy
Lower Trunnion: Cast Aluminum Alloy

Included
  • 10” x 40T Carbide-Tipped Blade
  • Riving Knife
  • Push Stick
  • Miter Gauge
  • Blade Changing Tool
  • Integrated Tool
  • Dust Collection Guard
Video

SKU: MTSF132110150-0130
