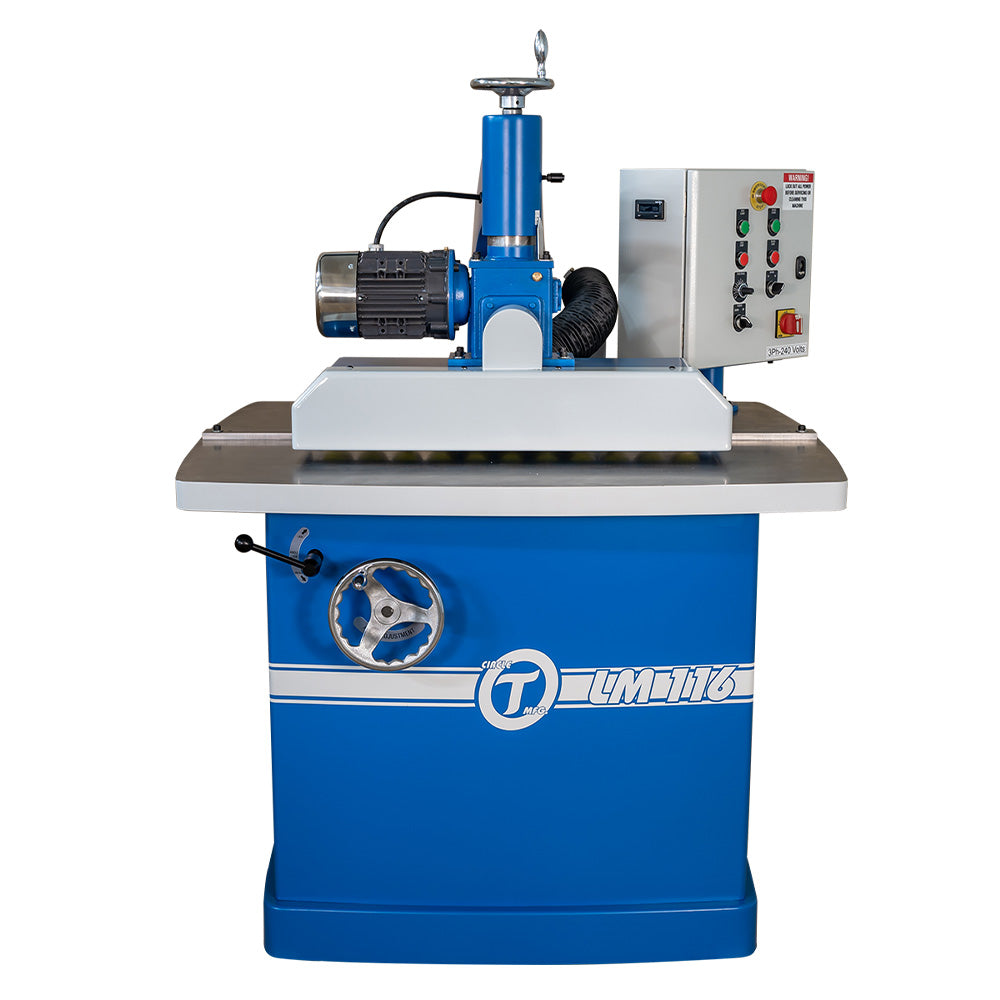

Easy Lock Miter Machine

MODEL LM116
Easy Controls + Easy Setup + Easy Changes = Easy Lock Miter Joints!

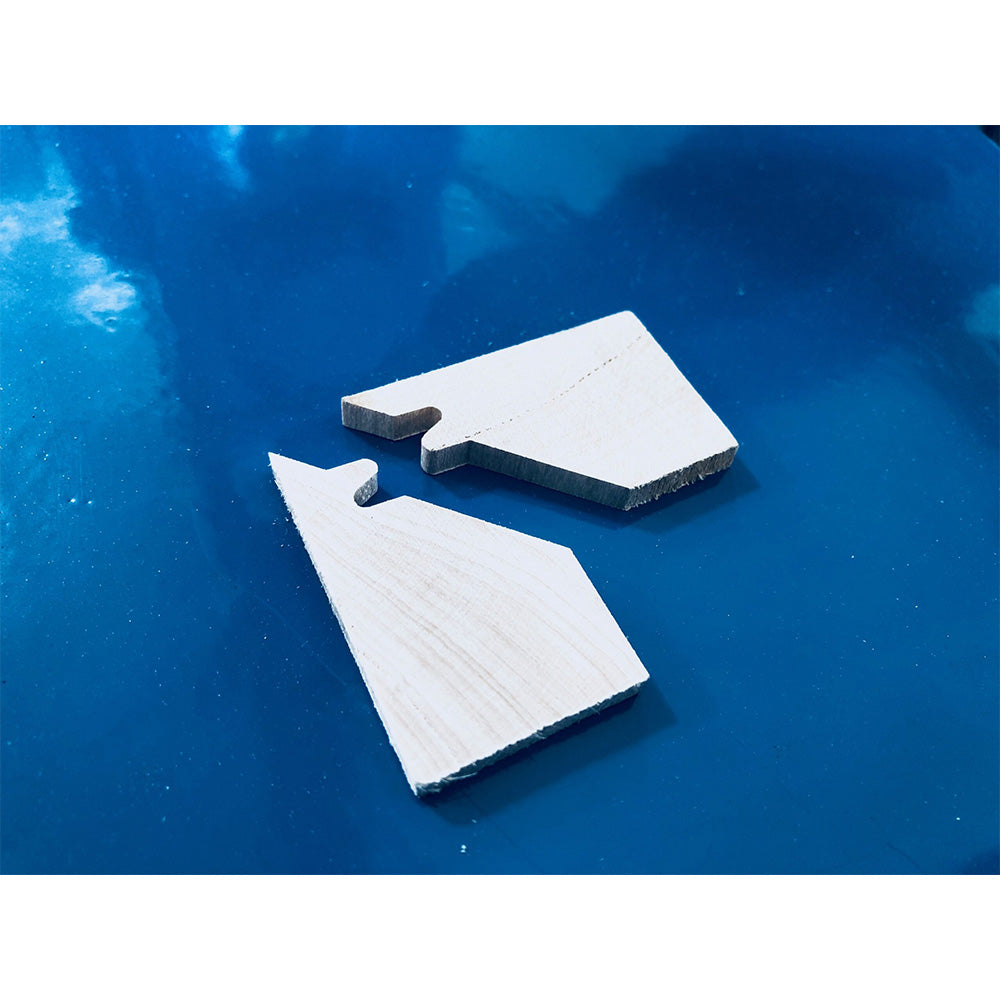

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Our best customers use our machines for cabinetry and pillar wraps.

​

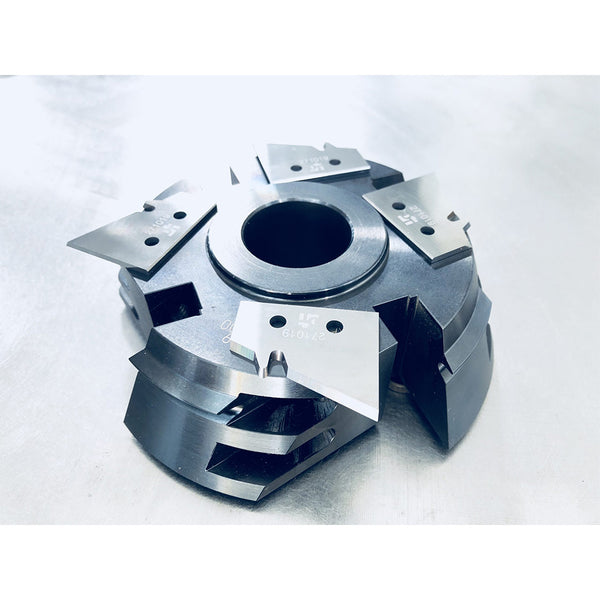

A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!

No more downtime with your old shaper!!!

Upgrade to our EASY LOCK MITER LM116!!!



APPLICATION SPECIFICATIONS:

Maximum Material Thickness: 1"

Minimum Material Thickness: 1/2"

Minimum Material Width: 1-1/4"

Minimum Material Length: 12"

Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)

​

DRIVE PACKAGE SPECIFICATIONS:

Spindle Motor: 5 HP, 230/460v, 3ph

Feed Motor: 0.5 HP

Spindle Diameter: 1-1/4"

Spindle Speed: 7,600 RPM

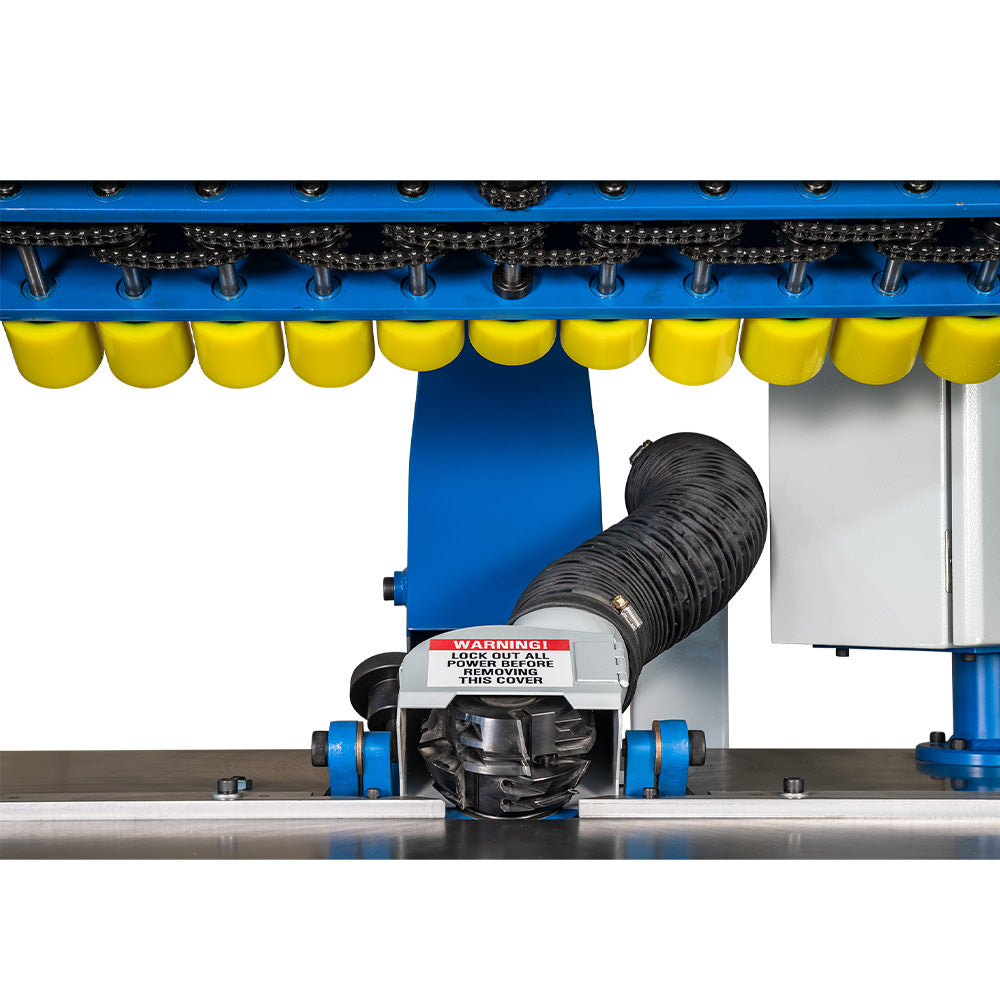

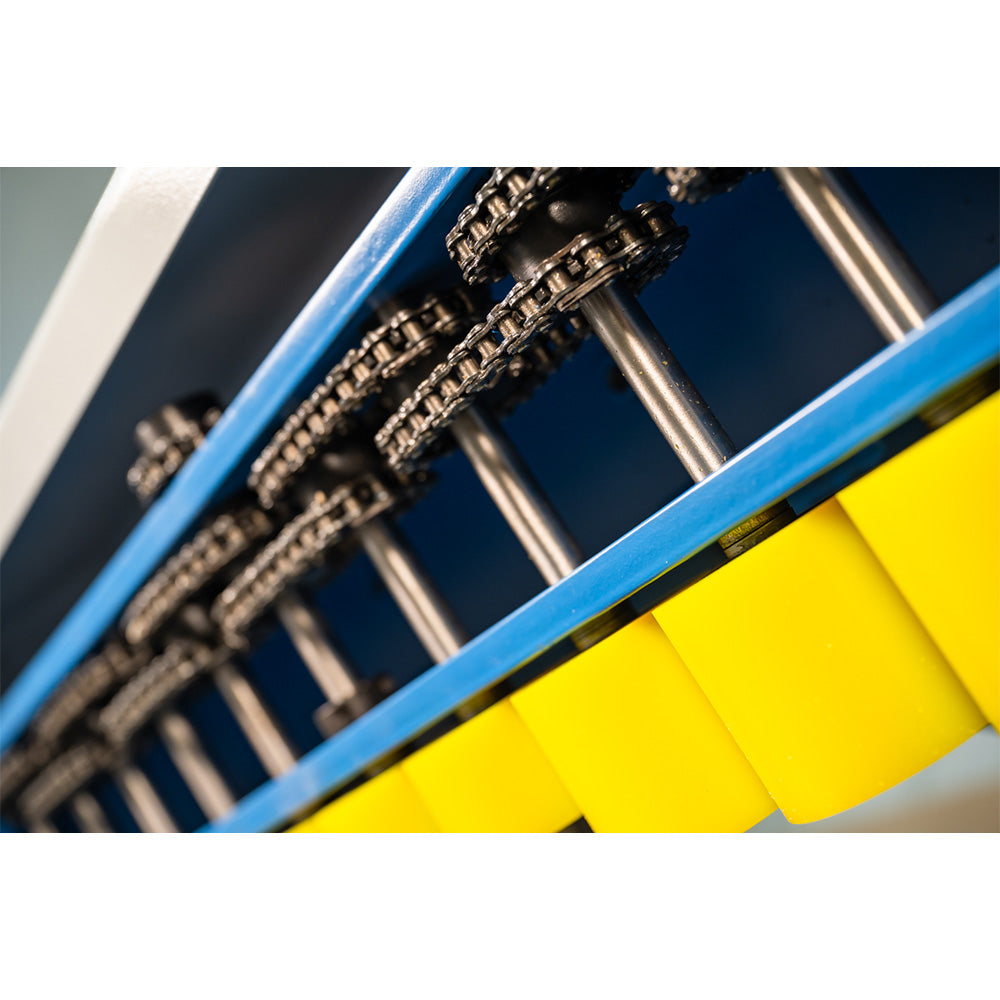

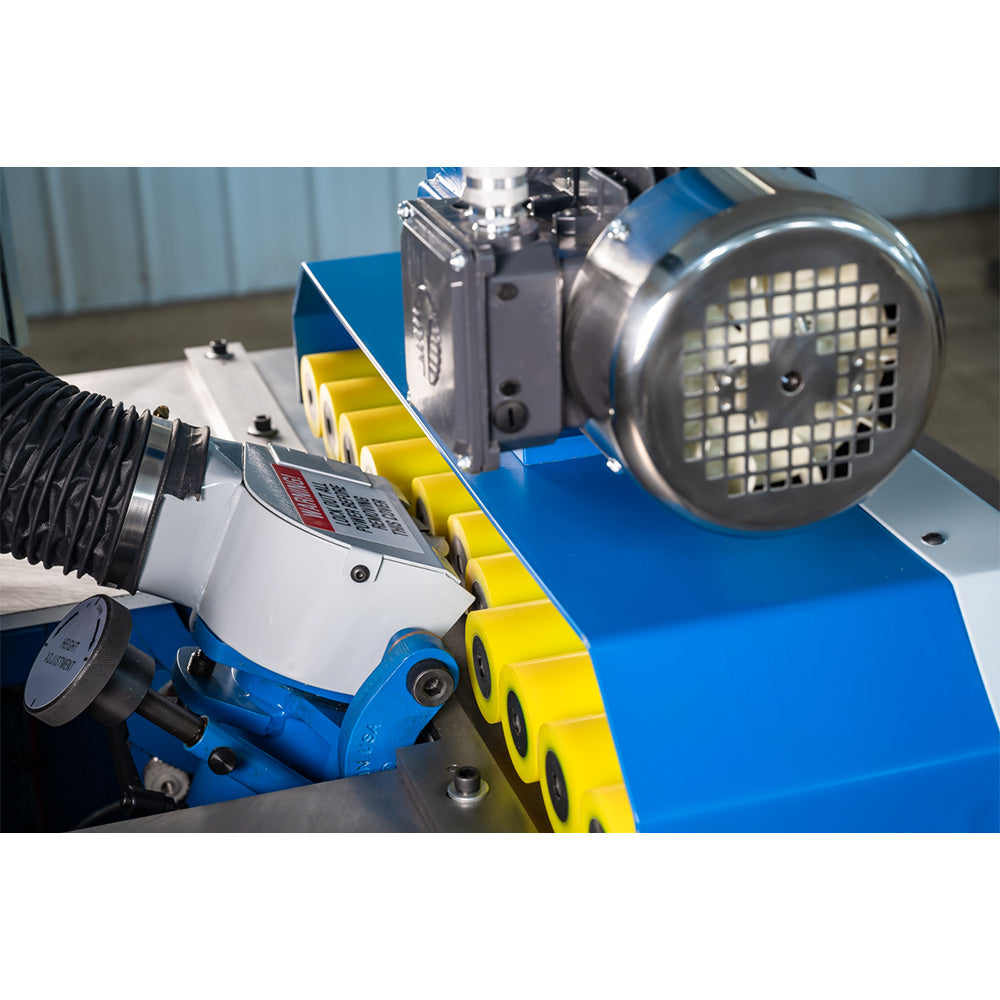

Variable Speed 11-Roll Positive Grip Feeder

​

UTILITY REQUIREMENTS

Dust Collection Requirements: 670 CFM, 4" Outlet

Pneumatic Requirements: 100 PSI .5 CFM

20 AMP Disconnect at 480V 3phase

​

DIMESION SPECIFICATIONS:

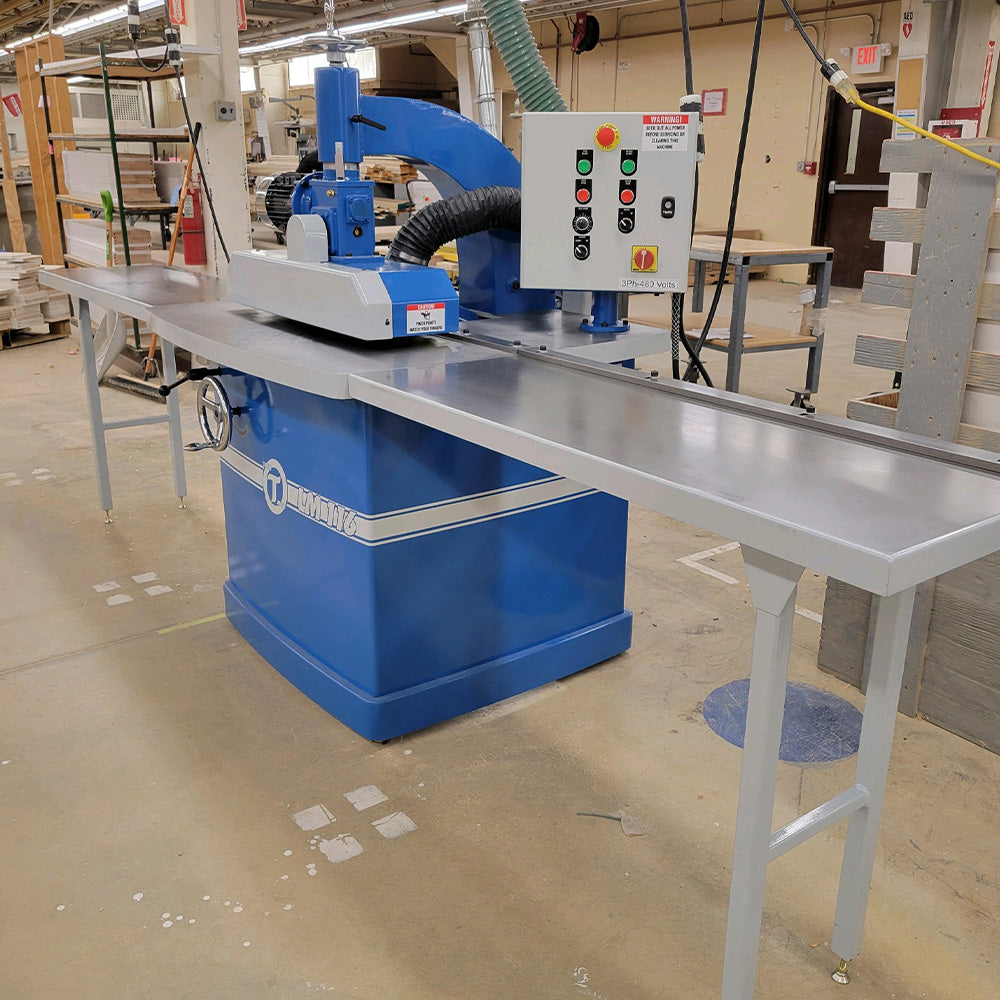

Table Size: 40" x 47"

Footprint: 54"W x 42"L x 60"H

Shipping Dimensions 49"W x 66"L x 66"H

​

SHIPPING WEIGHT: 1600lbs

NET WEIGHT: 1200lbs
