SCM Formula S 640P 25" Band Saw 9hp, 3PH, 220V
- Price
- $ 9,195
Have questions? Give us a call at 260-637-0054.
- Freight included in price*
- Next available January 2025
The Formula S 640P is the beast of the Professional Series Bandsaws. This bandsaw comes in either single-phase or 3-phase depending on your electrical specs and production needs. With single-phase power, you get the proven 4.8hp motor. If you are higher production or primarily do resawing, you can get yourself the 3-phase version with a whopping 9hp! With such robust power, you can easily resaw 24” logs while still having the ability to do fine intricate detail and contour work. Whatever your project needs are, the S 640P delivers!
The Europeans-style guides provide quick and easy adjustments without the need for tools. They can be adjusted up or down to accommodate the tilting of the table. When you are not tilting the table, you can raise the guides all the way up to the lower table surface to decrease the distance between your guides, maintaining maximum stability through your cut.
This machine boasts plenty of features. Thick cast iron wheels are perfectly balanced to reduce vibration and produce a fly wheel effect to aid in the processing of your pieces. Heavy-duty steel frames are the most rigid in their class and are designed to withstand the tension required for a carbide tipped blade.
The Formula S 640P also has vulcanized tires that not only bonds the rubber tires to the wheel, but fuses them so they become like one, which means greater transfer of power. This also makes it nearly impossible to shred them if a blade breaks, and there is less wear and maintenance over their lifetime.
Two dust ports are included on this band saw, not just one like most others. This helps ensure that you will capture more debris, more efficiently.
Also available with a 4.8hp, single phase motor.
Features
- Steel frame
- Cast-iron work table
- Cast-iron rip fence
- Saw-blade tensioning indicator
- Rack and pinion lifting system

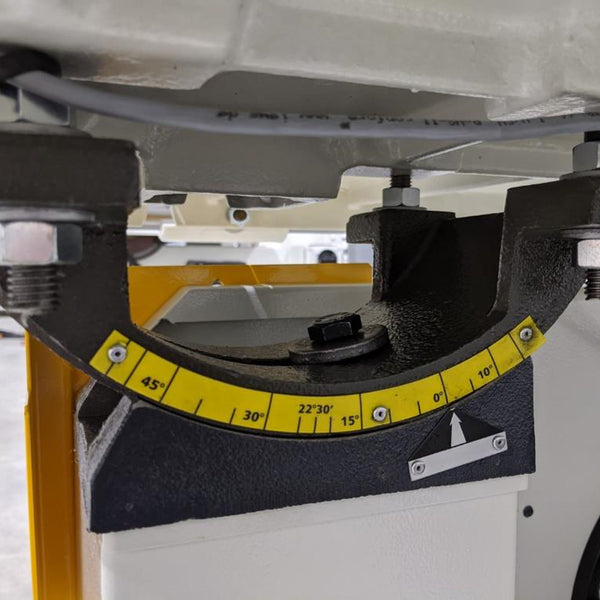

- Quick-tilting table with single-handle adjust feature
- Disc-type cast-iron flywheels running on sealed ball bearings
- Thick, vulcanized tires
- American miter slot (3/8" deep x 3/4" wide)
- Band saw lower footbrake
- Overload motor protection
- Emergency push/stop button
- Top-bottom European-style roller guides with ball bearings
- Cleaning brush on bottom wheel
- Safety micro switches
- Two lower exhaust port outlets for dust extraction
- Tool set and owner's manual
Specs
Motor: 3-phase, 220V
Horsepower: 9hp
Flywheel Diameter: 25.2” (640 mm)
Table Size: 23.6” x 34.84” (600 x 885 mm)
Table Tilt: 0° - 45°
Cutting Height/Depth: 23.6” (600 mm)
Cutting Width: 24.4” (620 mm)
Min. Blade Length: 203.15” (5,160 mm)
Max. Blade Length: 205.5” (5,220 mm)
Min Blade Width: .25” (6 mm)
Max Blade Width: 1.5” (40 mm)
Overall Dimensions (Used Upright/Vertically): 29” x 47.6” x 94” (74 x 121 x 239 cm)
Net Weight: 750 lbs. (340 kg)
Total Dust Extraction Ports: 2 Total
Dust Extraction Ports Diameter: 4.7” (120 mm)
Includes
- Mobility kit
- Tool set
- Owner's manual
