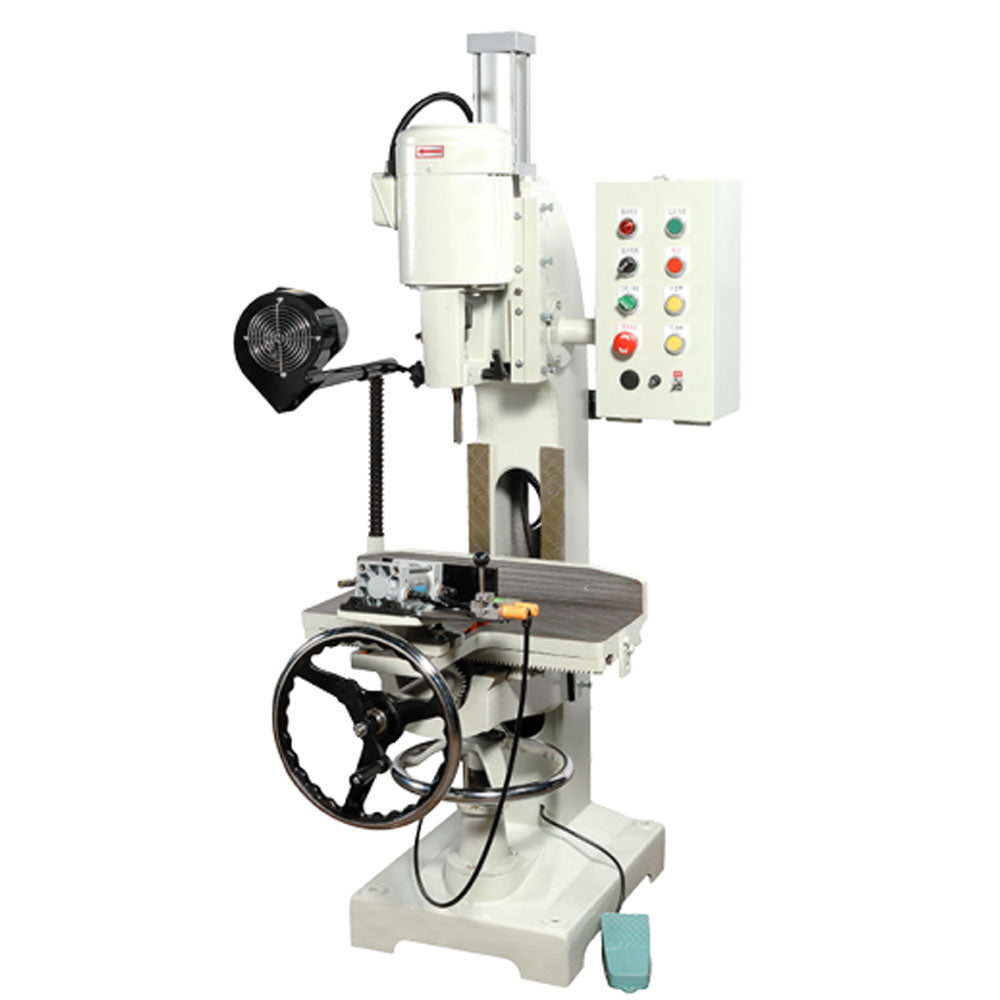

PCM-120 Pneumatic Hollow Chisel Mortiser
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No tax outside of Indiana or Washington State
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California
[TABS]
Features
- Power stroke of head permits easy, fast and accurate successive cuts.
- Separate fan blower to keep work clean and free from dust and chips.
- Manual adjustable table height and lateral position
- Heavy duty cast iron construction.
- Convenient centralized control panel
- Foot pedal actuated cycle.
- Pneumatic workpiece clamping by lever
Specs
Chisel range: 1/4″~3/4″
Motor: 2HP
Spindle speed: 3400 RPM
Table: 16-3/4″ x 21-1/4″
Table tilts: 30o
Air pressure: 8KG
Clamping cylinder: 2.5” (63mm)
Head traveling cylinder: 3.15” (80mm)
Table cross travel: 5”
Table longitudinal travel: 18”
Table vertical travel: 12”
Max. stock width: 12”
Max. mortising depth: 4”
Machine weight: 572 lbs
Shipping weight: 726 lbs
Shipping dimension: 35” x 38” x 70” (880x960x1780mm)
[/TABS]
