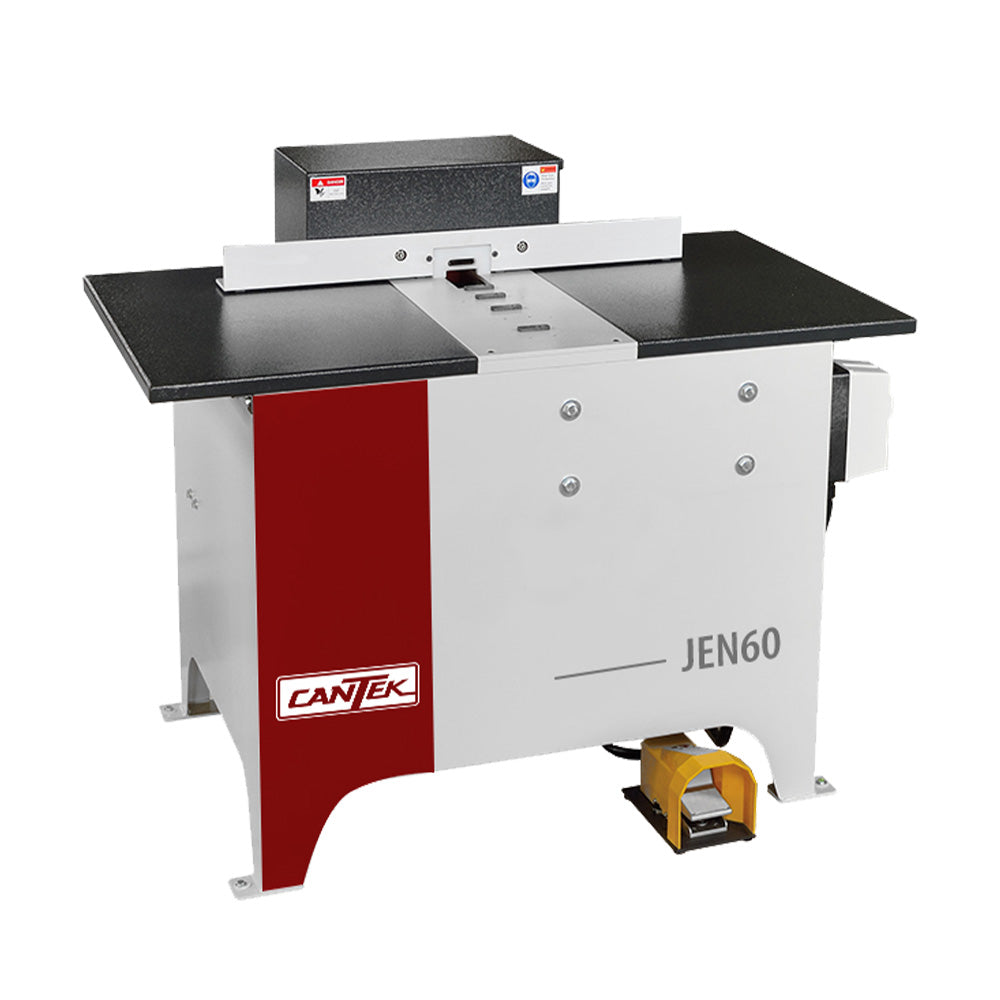

Cantek JEN-60 Drawer Notcher Machine

Price
$ 11,025

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

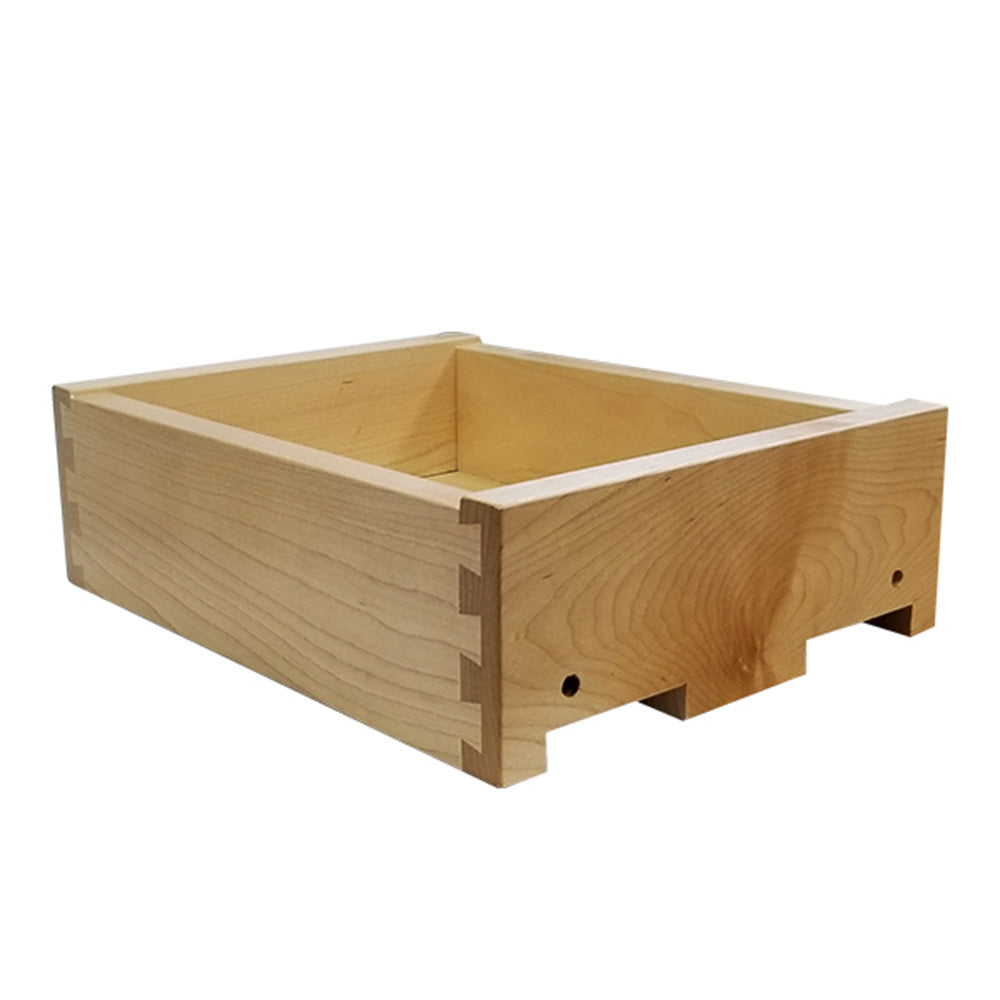

The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching.  With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.

*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com

Note: Cannot ship to Pennsylvania or California.

Features
  • High production capacity of up to 220 drawers machined per hour.
  • 57mm (2 ¼”) wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.

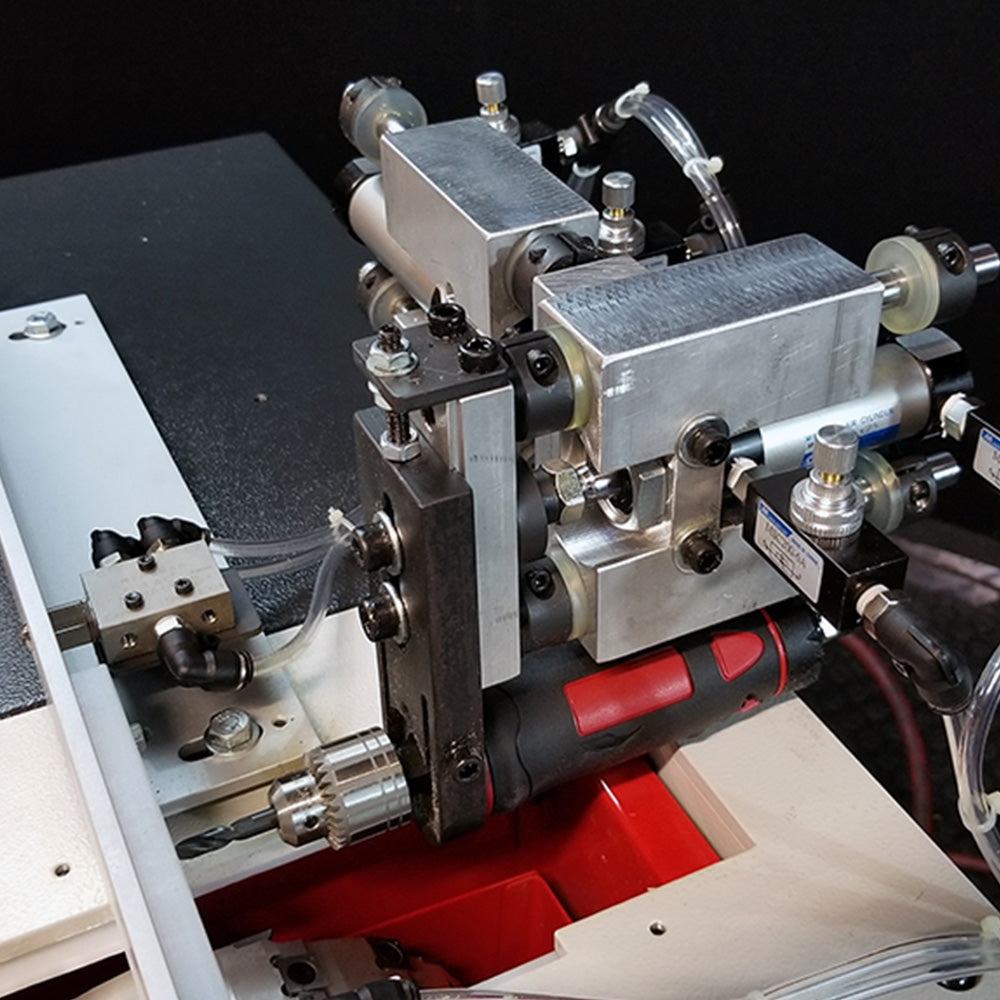

  • Self-indexing drill unit for left or right drawer notching.

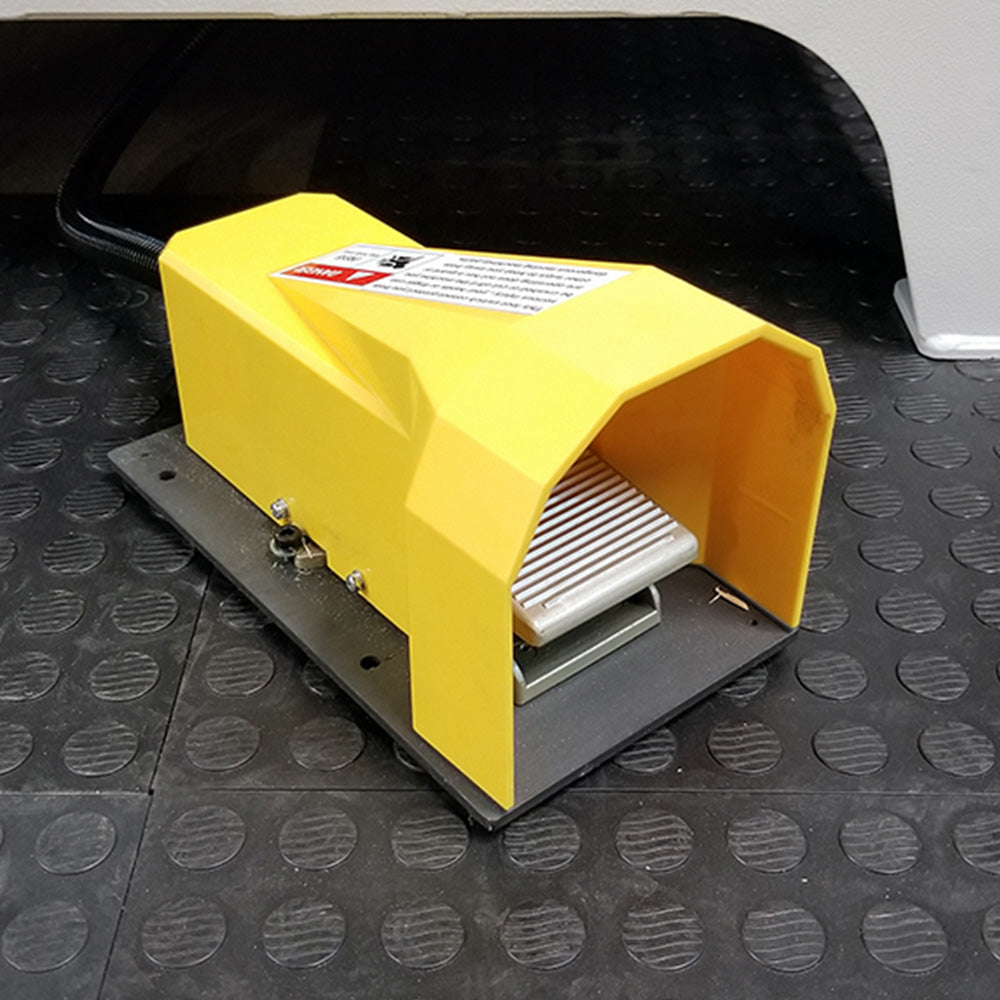

  • Convenient foot pedal operation lets operator efficiently load and unload drawers for higher output.
  • Pneumatic cutter & drill stroke by foot pedal operation.
  • Cutter stroke and drill speed are adjustable for optimum finish results
  • Drill will automatically position for both left and right drawer notches by activating a switch in the fence
  • Machine will not cycle unless a drawer is up against the switch for safe operation

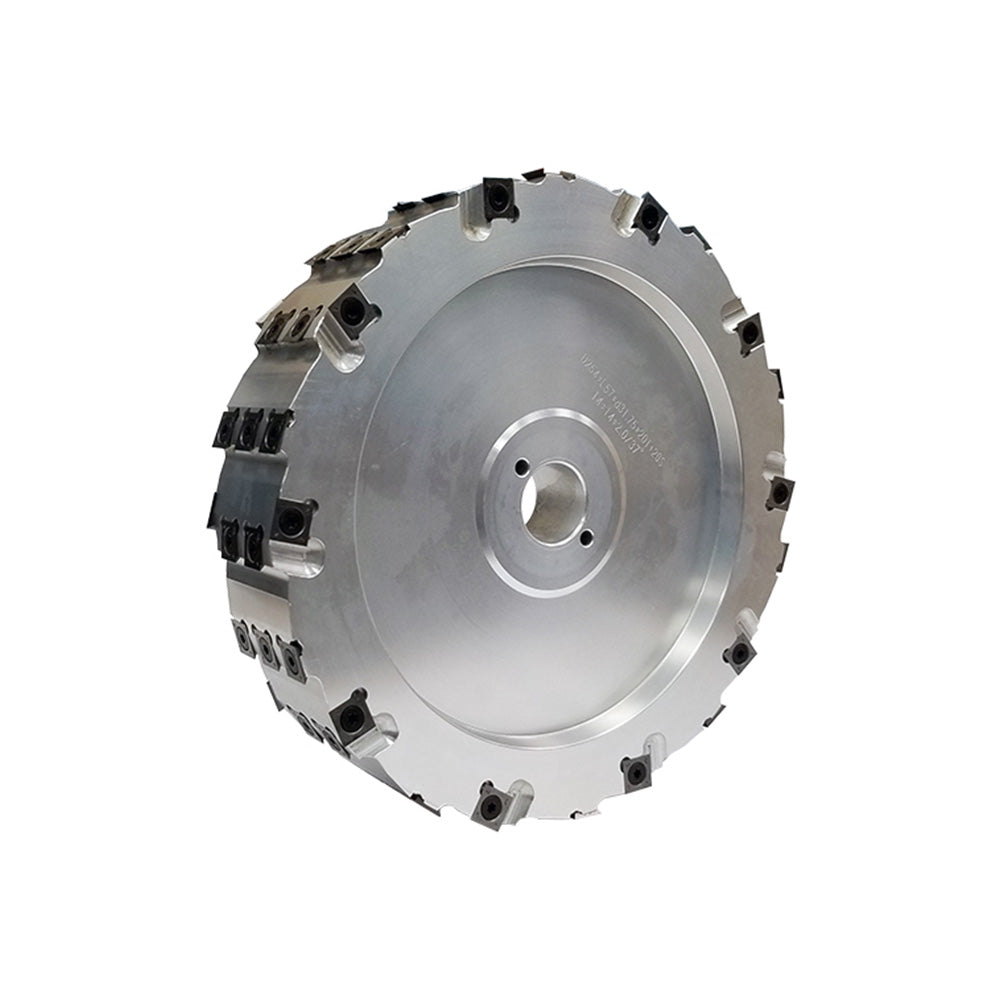

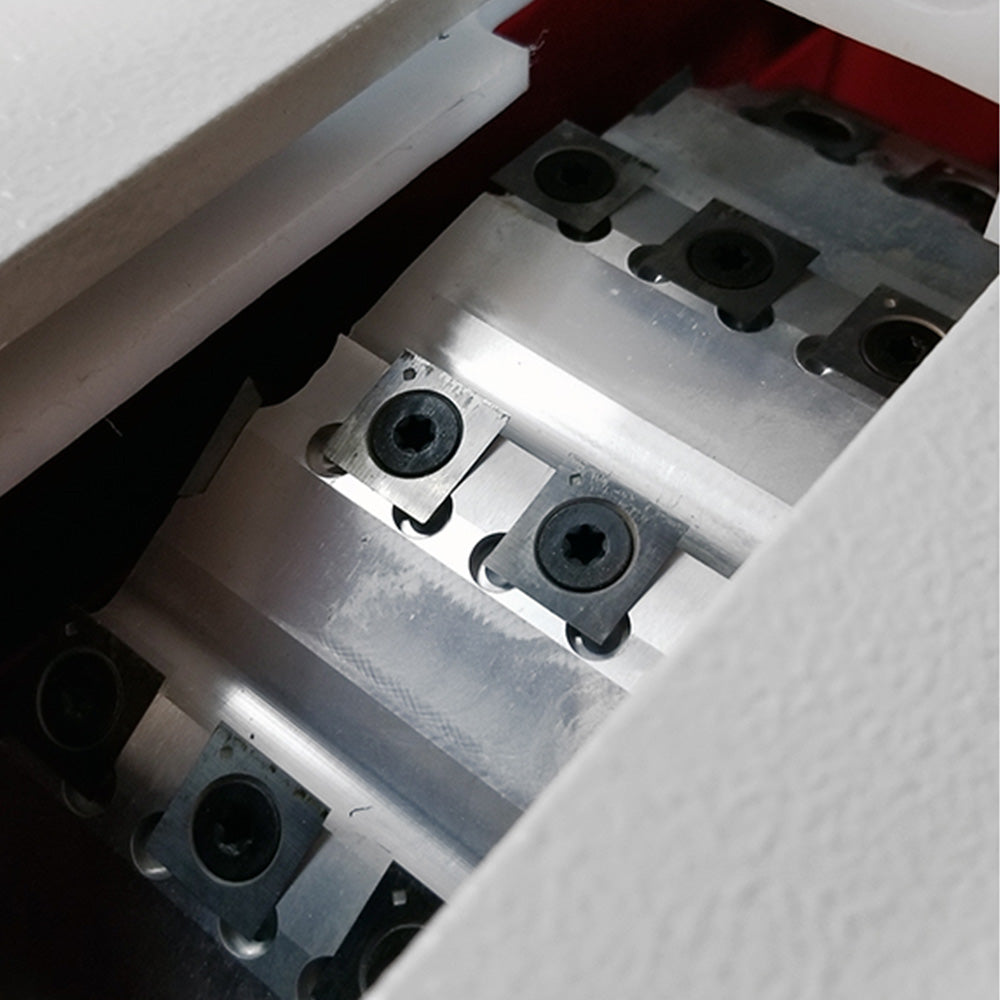

  • Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
  • 2-1/4” (57mm) wide cutter allows for a wide range of undermount slides
  • Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
  • Capable of notching up to 220 drawer boxes (both left and right) per hour.
Specs

Main cutter motor: 3 HP
Notch dimensions: 2-1/4" (57mm) x 0.5" high
Cutter diameter: 10"
Drill diameter: 1/4"
Table size: 49" x 22"
Table height from floor: 32"
Dust port: 4" (670 CFM requirement)
Compressed air required: 90 – 100 PSI
Machine dimensions: 48” x 37-3/4" x 39-3/4"
Machine weight: 506 lbs.
