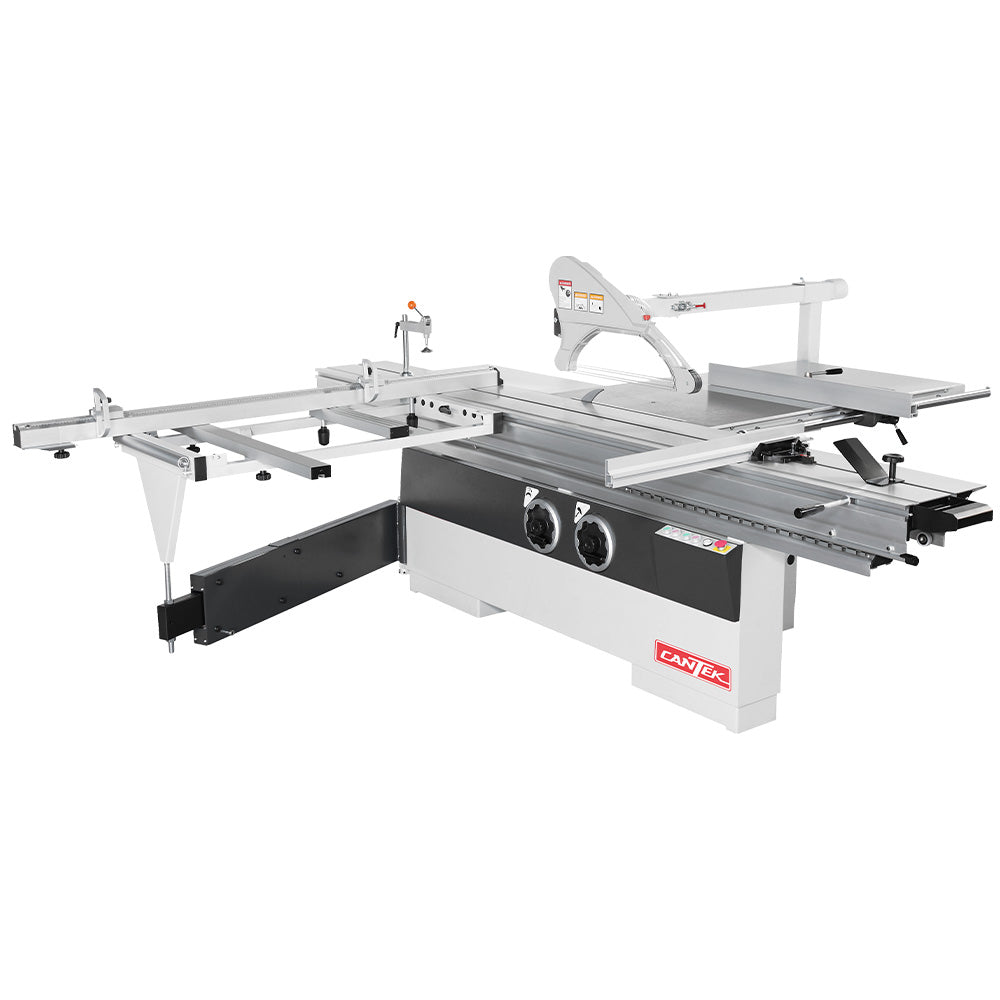

The Cantek D405M-10 10′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but only require manual adjustments. The D405M-10 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results
Our Easy Purchase Guarantee:
No hassle pricing— always sold at the manufacturers lowest price!
No quote needed.
No tax outside of Indiana.
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email firstname.lastname@example.org [TABS]

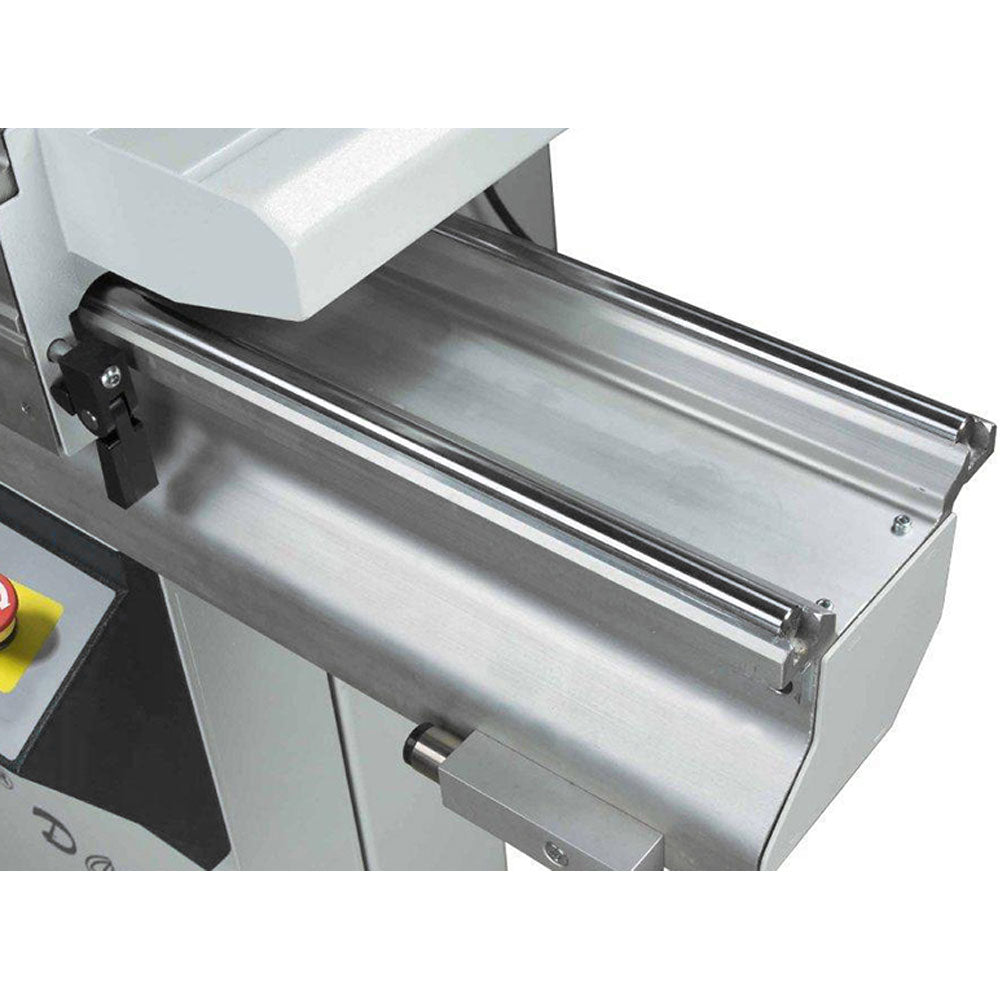

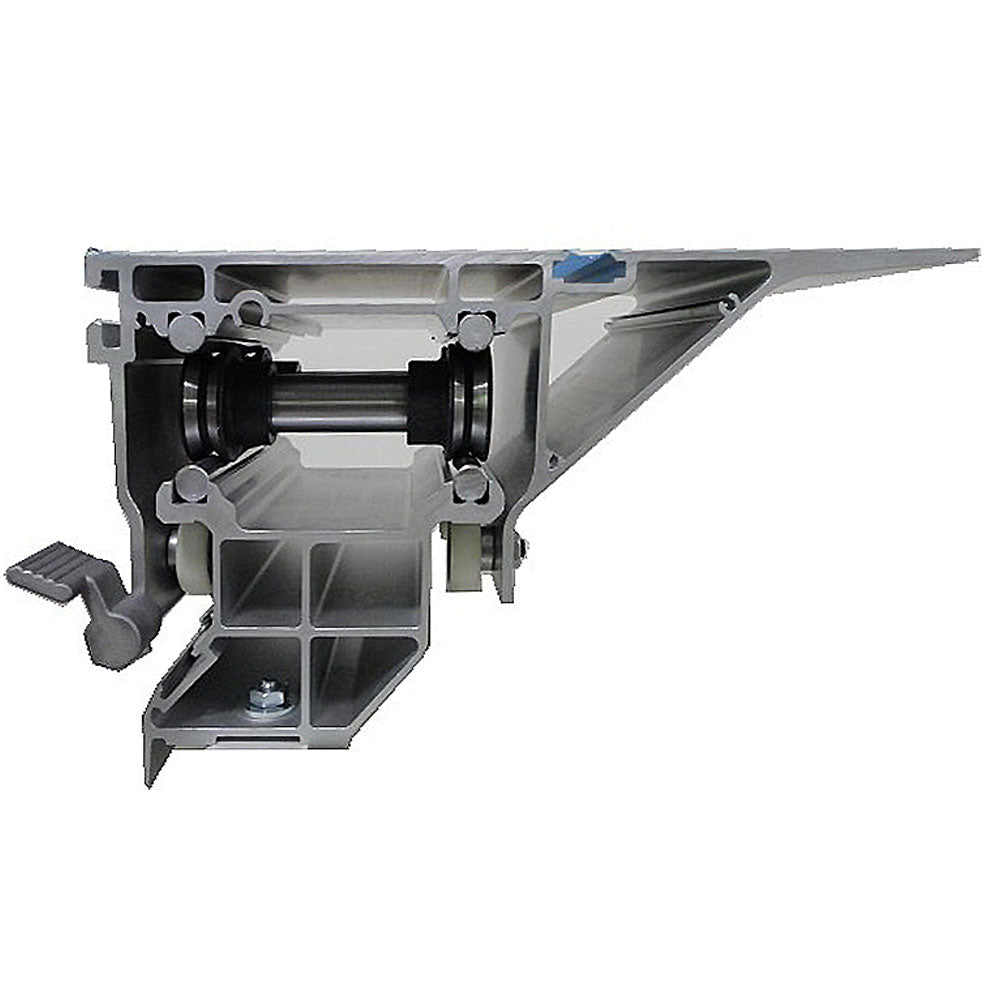

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement

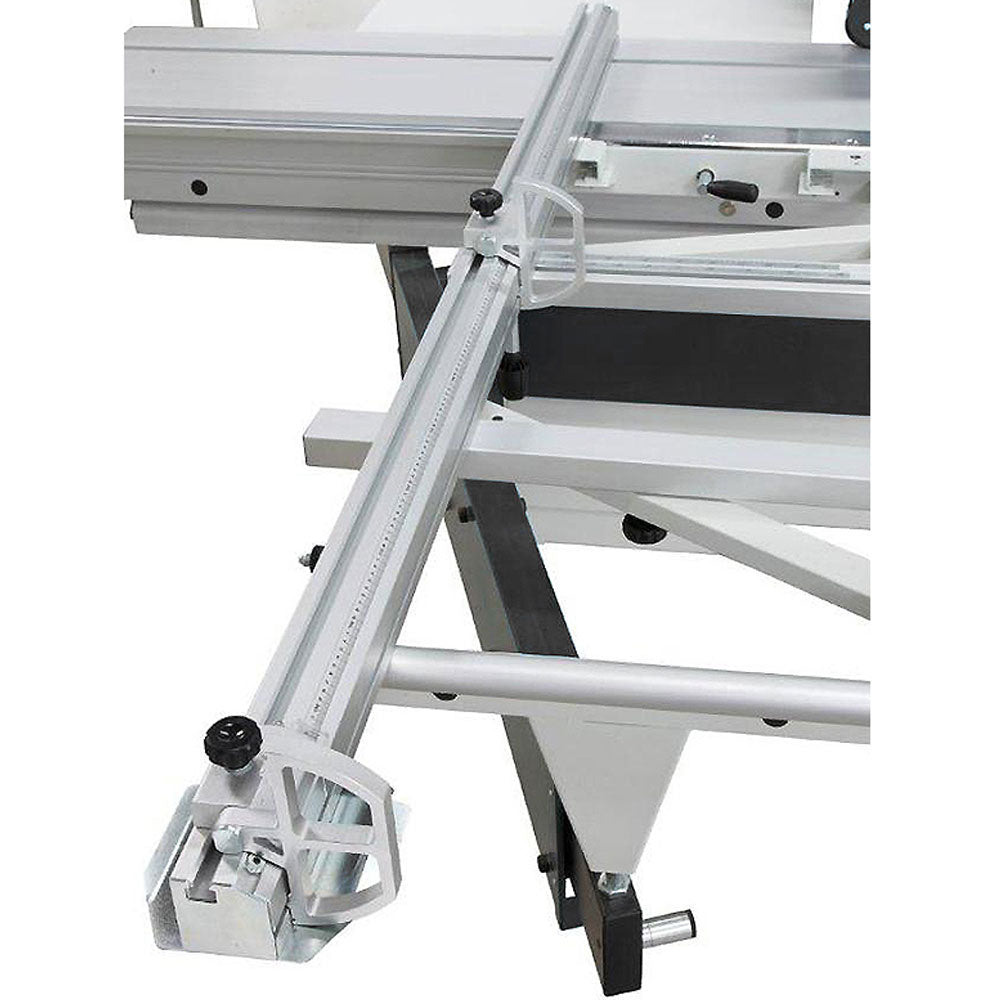

Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
Manual blade rise, fall, and tilting with convenient pointer for blade angle display
Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob

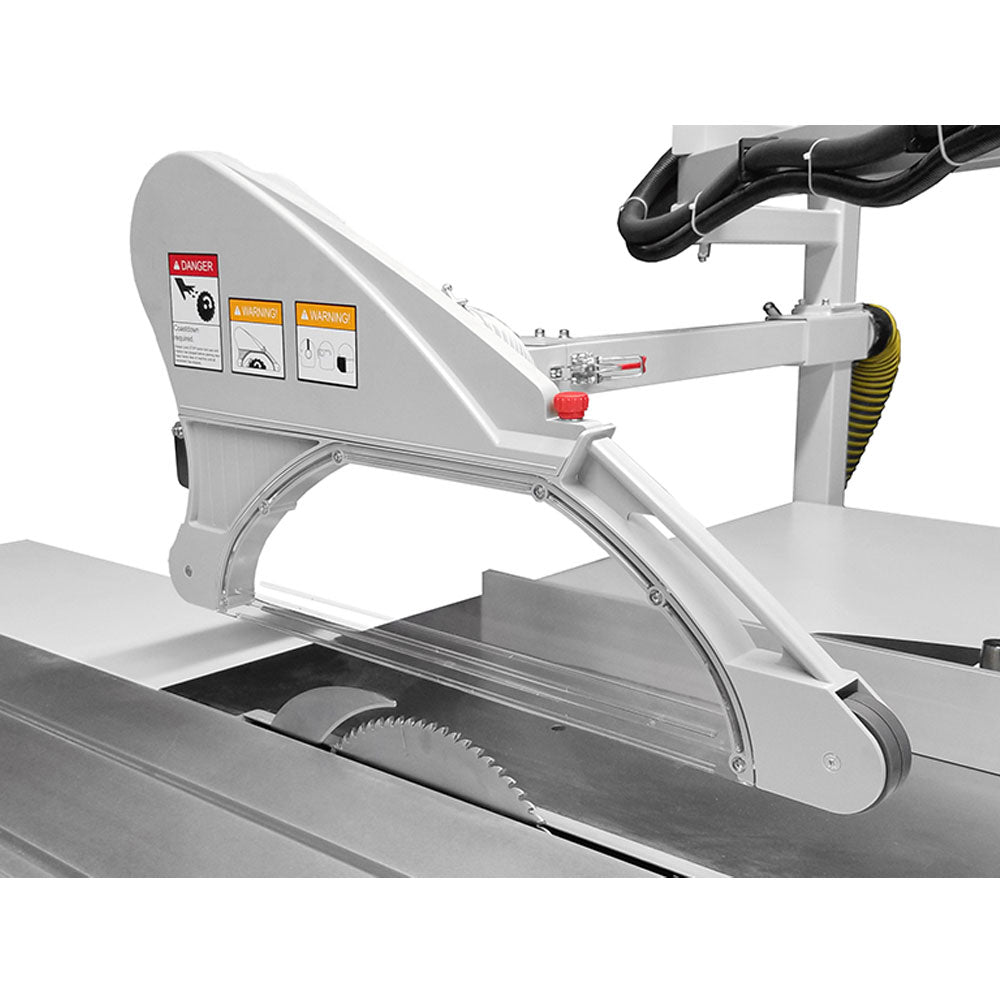

Overarm safety guard with quick change system for changing between straight and bevel cutting guards
Powerful 7 ½ HP main motor for 3 Phase or 5HP main motor for Single Phase, with separate 1HP scoring motor

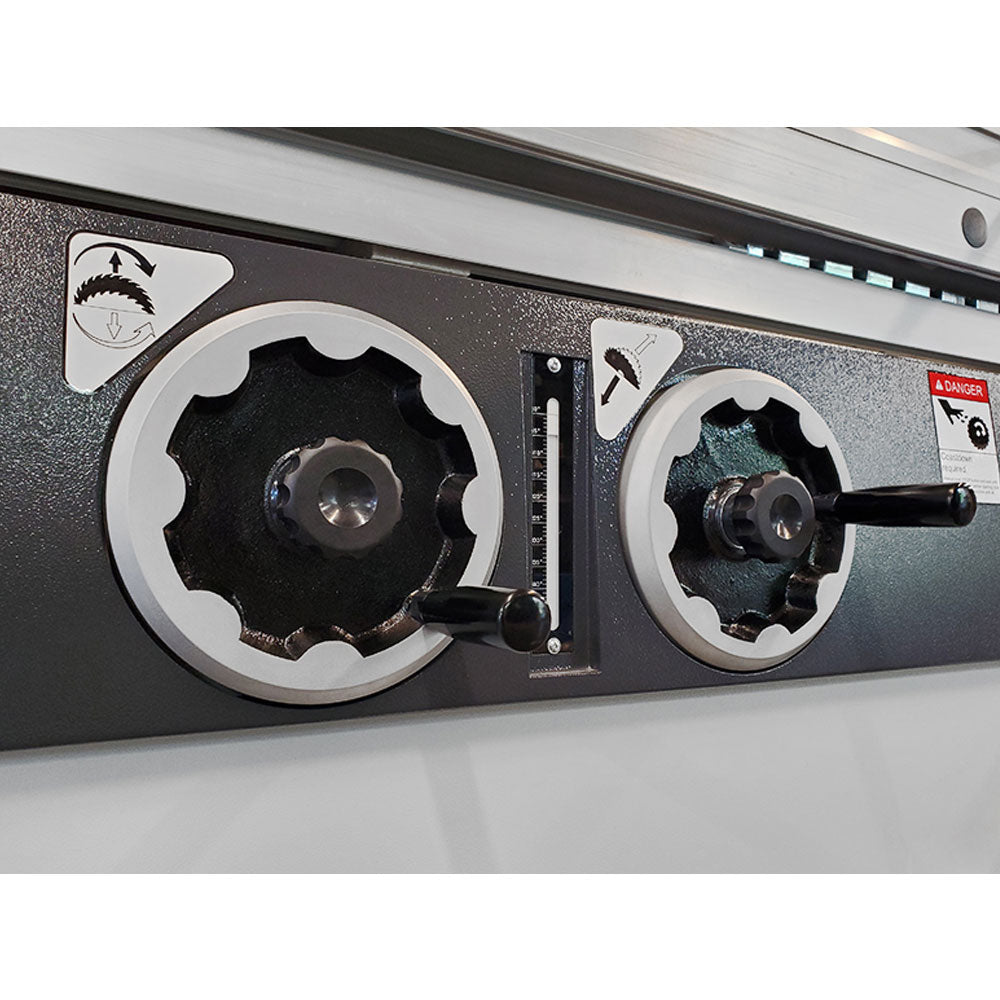

Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
Heavy-duty outrigger for strong support of workpiece during cutting operations
Dual inch and metric scales for both rip and crosscut fences

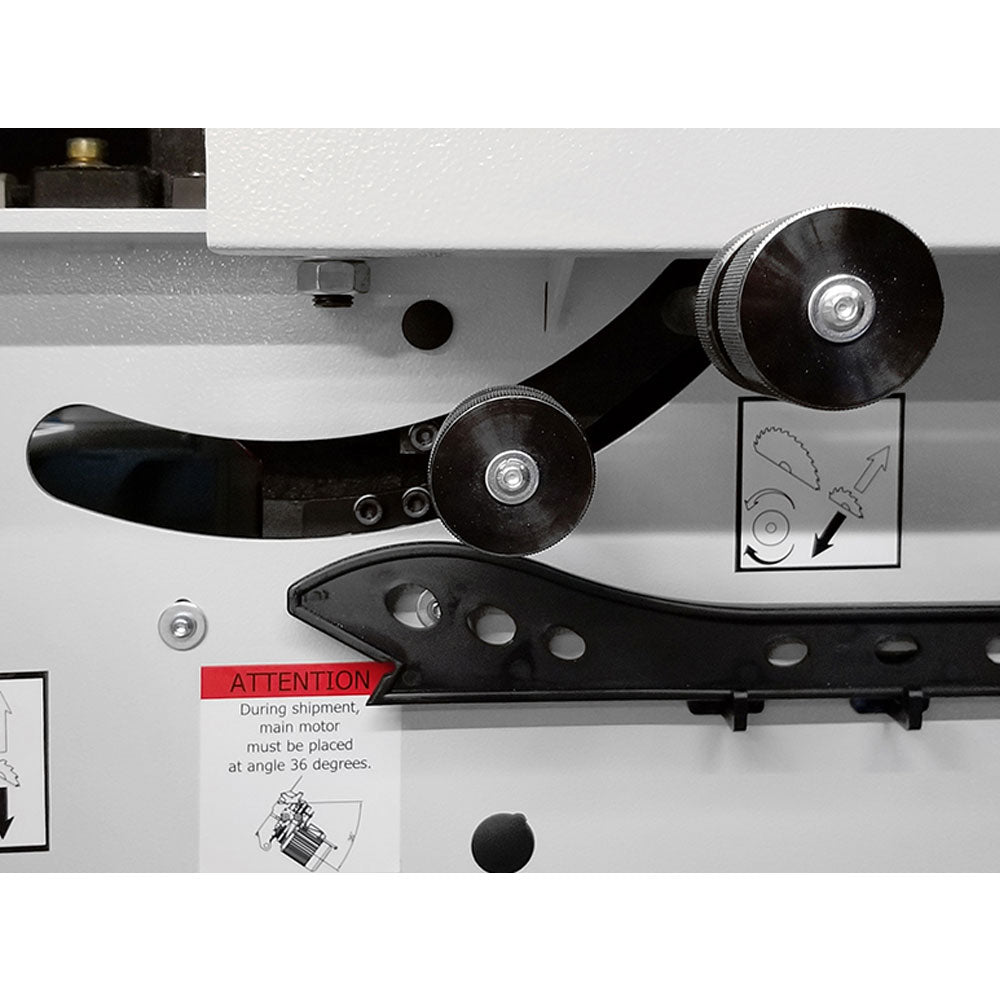

Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience

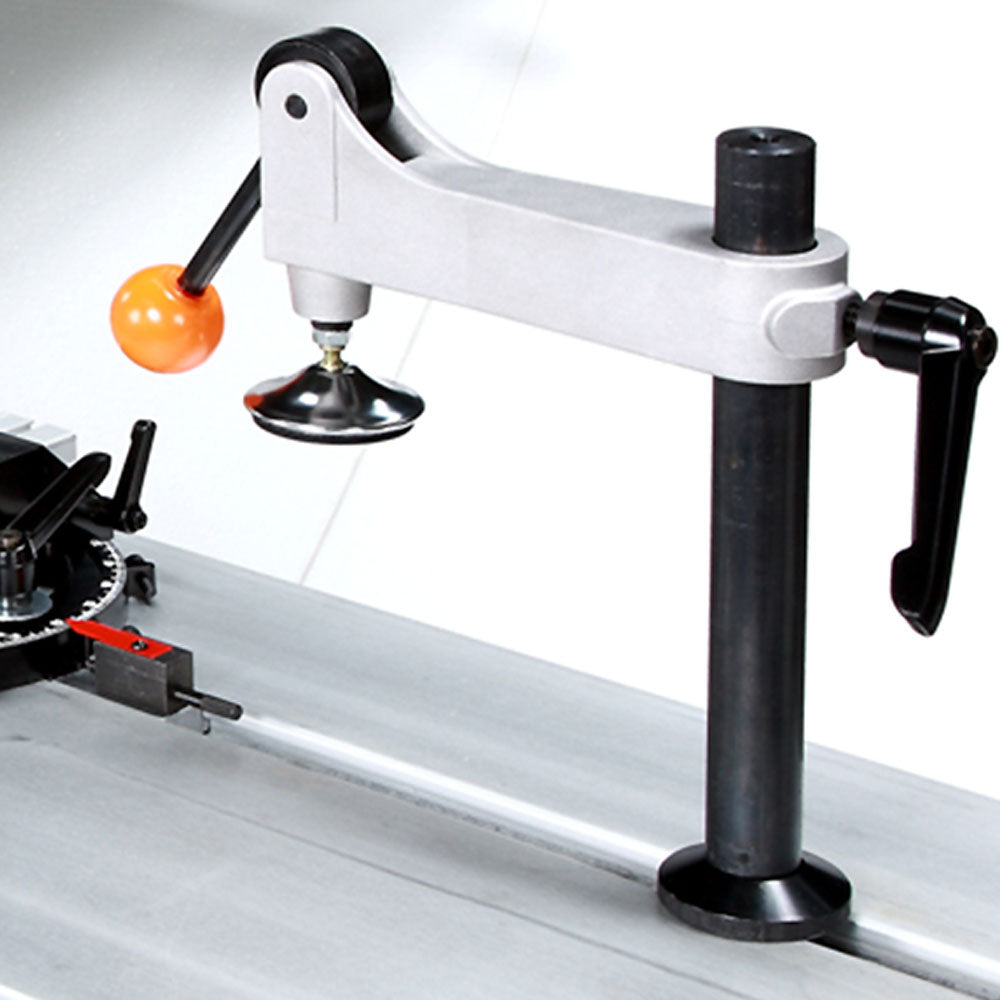

Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included

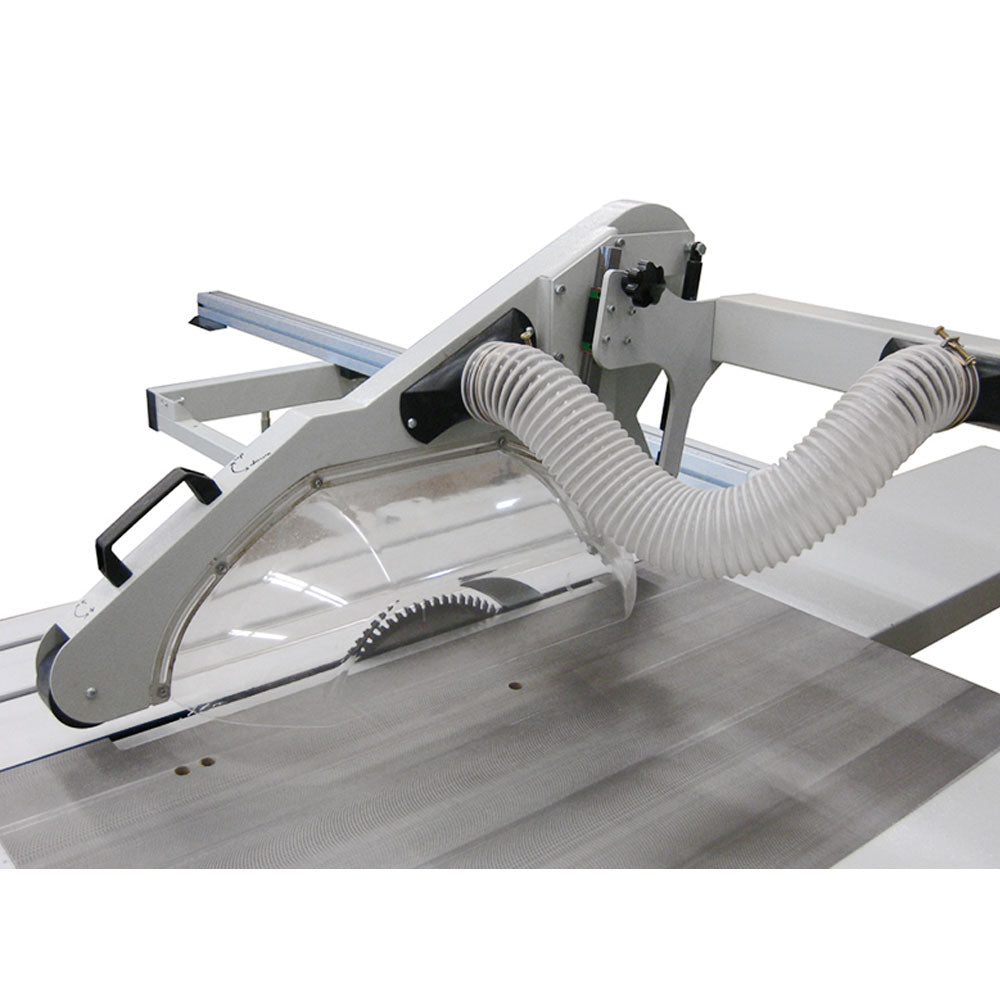

Overhead saw blade guard with built in dust port included (CE-type)
Sliding table dimension: 126″ x 14.9″ (3200 x 378 mm) Cast iron table: 21.6″ x 35.3″ (548 x 896 mm) Extension table (rear): 37.5″ x 35.3″ (952 x 896 mm) Extension table (front): 12.6″ x 32.7″ (320x 830 mm) Table size: 59″ x 68″ (1500 x 1726 mm) Round rail: 1.97″ (50mm) Maximum main saw blade dia.: 16″ (400 mm (16″)) Main saw bore: 30mm Max. cutting height at 90° (355mm): 4.13″ (105 mm) Max. cutting height at 45° (355mm): 2.76″ (70mm) Main motor power: 7.5 HP (3ph) / 5HP (1ph) (5.5 kW (3ph) /3.7 kW (1ph)) Main blade speed (3): 3000/4000/5000 RPM Scoring saw blade: 120 mm Scoring saw blade bore: 20mm Scoring blade motor power: 1 HP (0.75 kW) Scoring blade speed: 8000 RPM Cutting width: 51.2″ (1300 mm) Cutting width adjustment: Manual Main saw blade tilting adjustment: Manual (0°~45°) Main saw height adjustment: Manual Scoring saw adjustment: Manual Dust ports (machine / guard): 4.72″ / 2.5″ (120mm / 64 mm) Machine total weight: 1612 lbs. (733 kgs) Machine shipping details: 1428 lbs (83″x46″x44″) (649 kgs (2110x1150x1120mm)) Sliding table shipping details: 380 lbs (137″x20″x15″) (173 kgs (3480x490x370mm)) Overhead guard shipping details: 80 lbs (40″x36″x6″) (36 kgs (1000x900x140mm)) Electrics: 230/3/60 = 26.2 Full Load Electrics: 230/1/60 = 36 Full Load Amps
