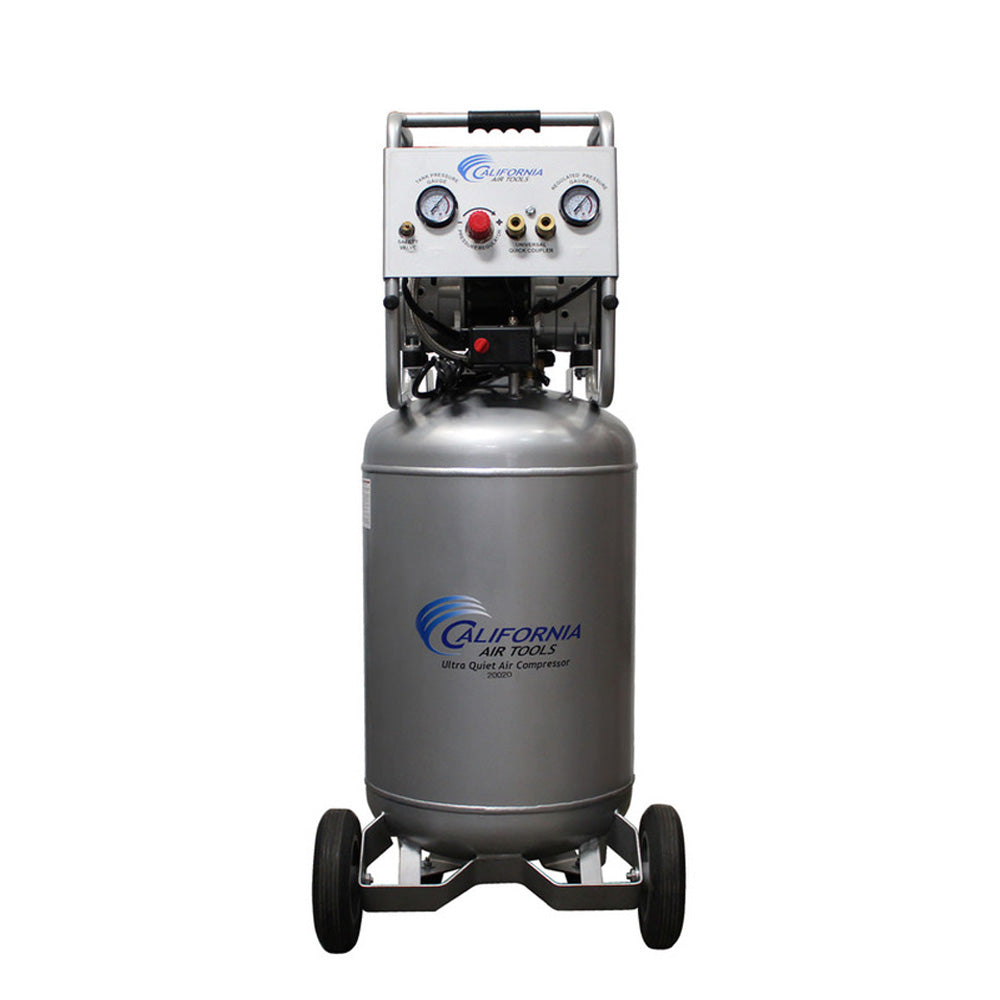

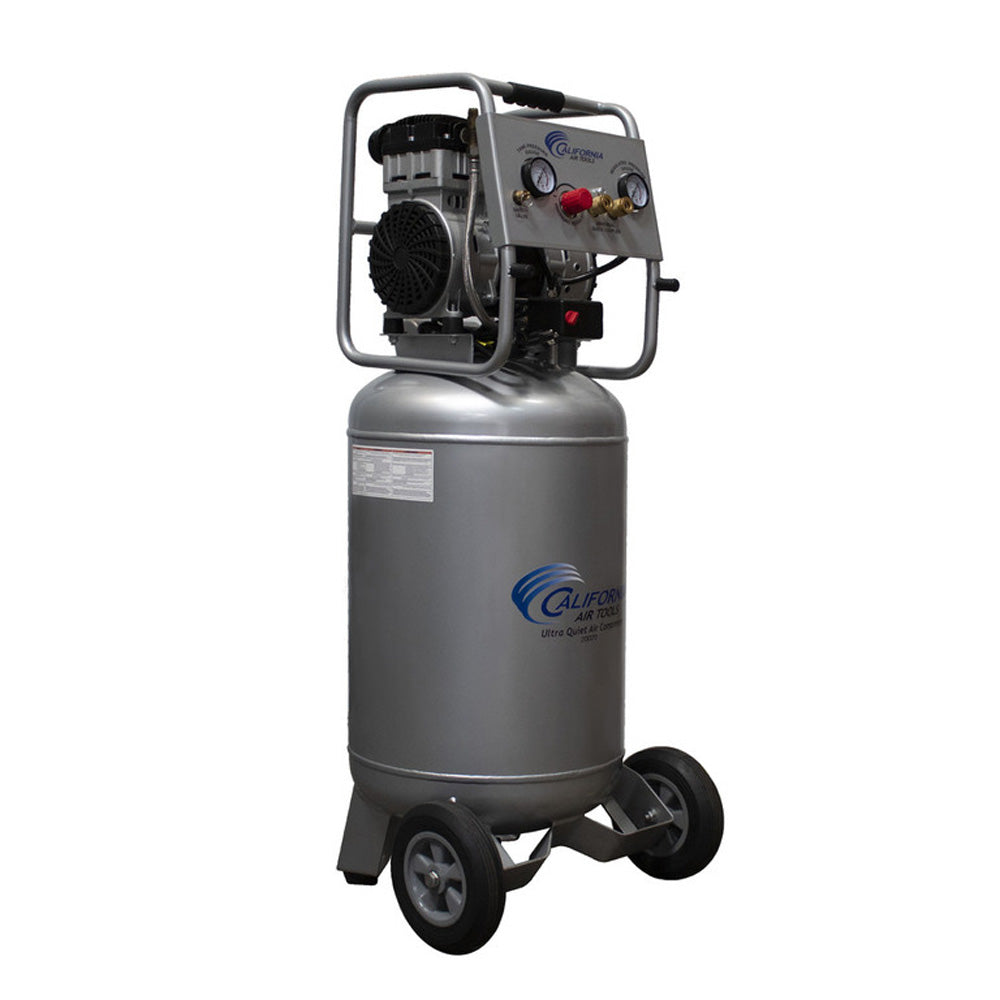

California Air Tools 20020 Air Compressor 2hp (20 Gal. Steel Tank)

$ 619

Have questions? Give us a call at 260-637-0054.

The California Air Tools 20020 Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2hp air compressors in the industry having only 70 decibels of sound. The powerful 2hp (SP-9421) motor operates at only 1,680 RPM, creating less noise and less wear.

The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times (i.e. may run continuously at 2.1 cfm @90 PSI, or up to 30-40 minutes at a time, at 5.3 cfm @90 PSI).

One of the most notable features on the 20020 is the oil-free dual piston pump. This pump is designed to have a life cycle of 3,000+ hours before wear compared to other air compressors of its kind with life cycles of 500 hours or less. It allows for use in a variety of temperatures and uneven terrains. No changing, disposing, or refilling oil, and no oil in the air to damage sensitive items!

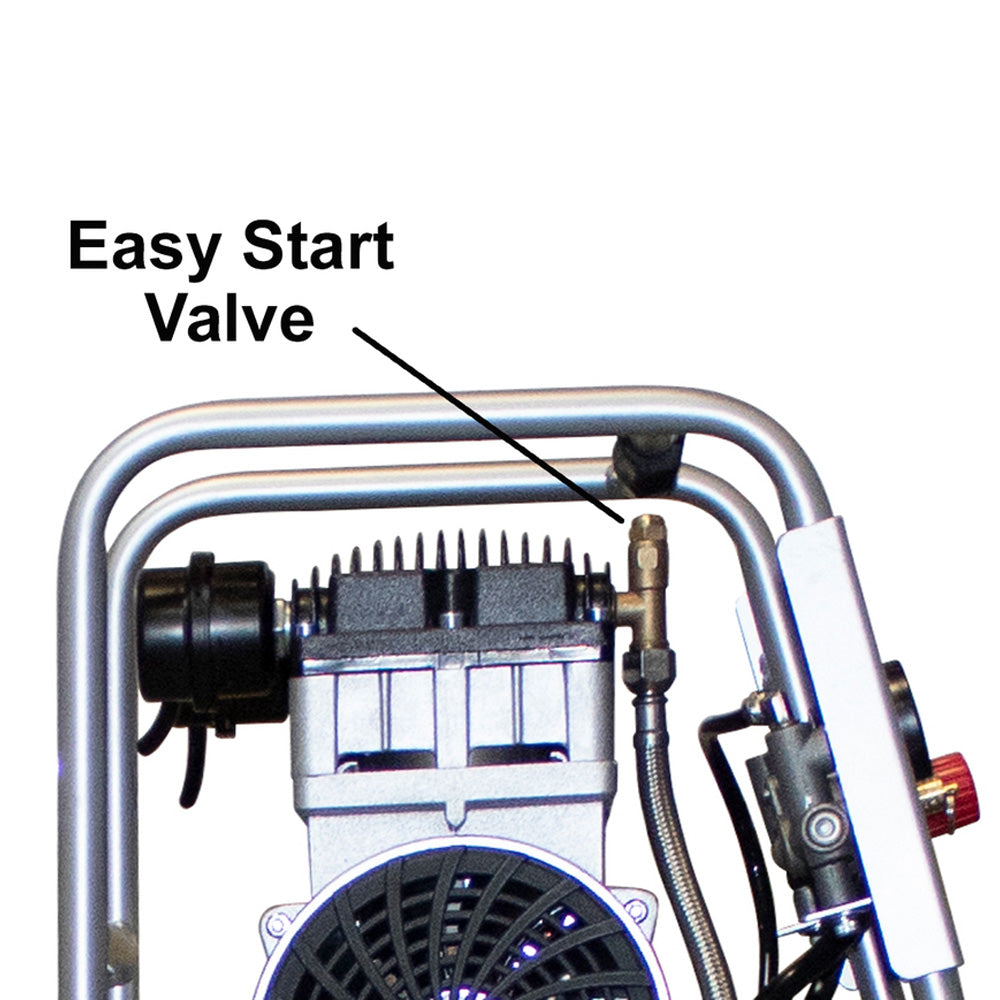

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.

The 20020 features a 4 pole induction motor. This brushless motor operates only at 1,680 RPM, which creates less vibration and less noise. The large 20 Gallon Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders. Perfect for the shop or garage. The 2 wheels and handle make moving this air compressor very easy.

Need an air hose? Check out the California Air Tools 14 Piece Accessory Kit.

Compare Air Compressor Models >

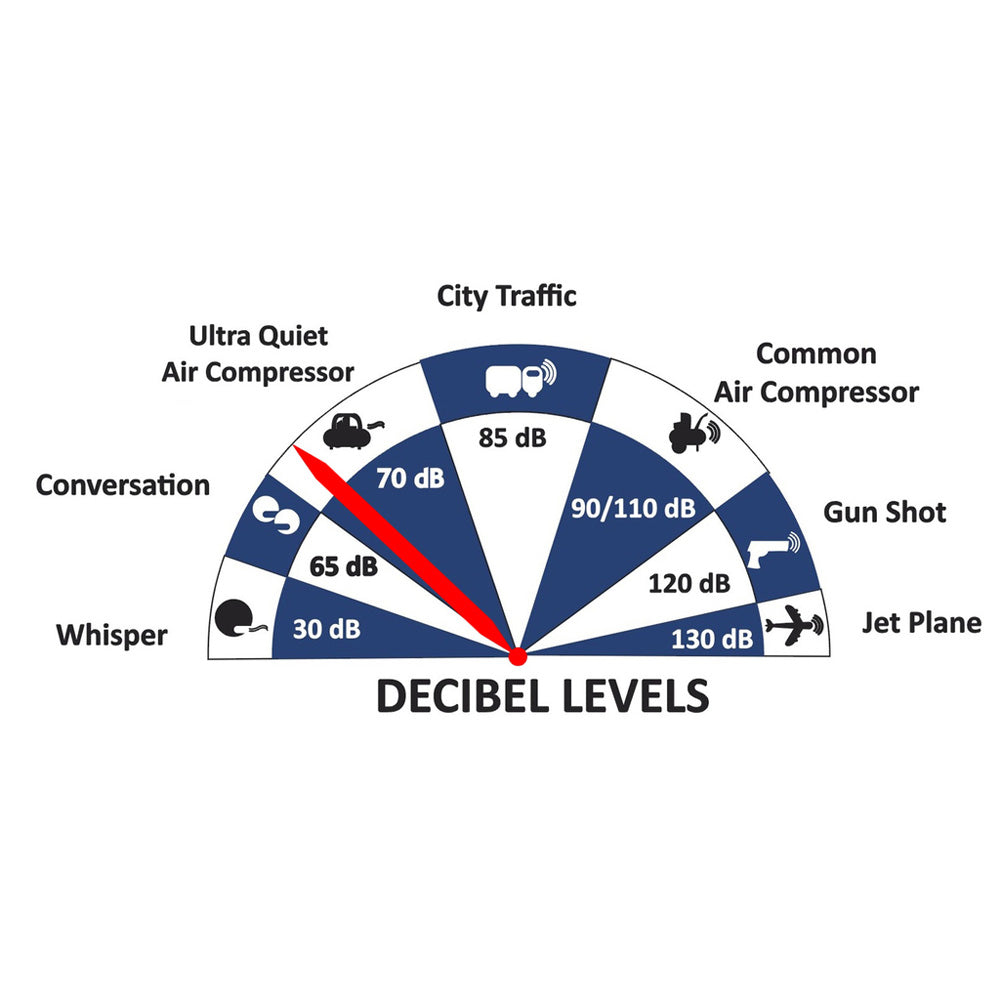

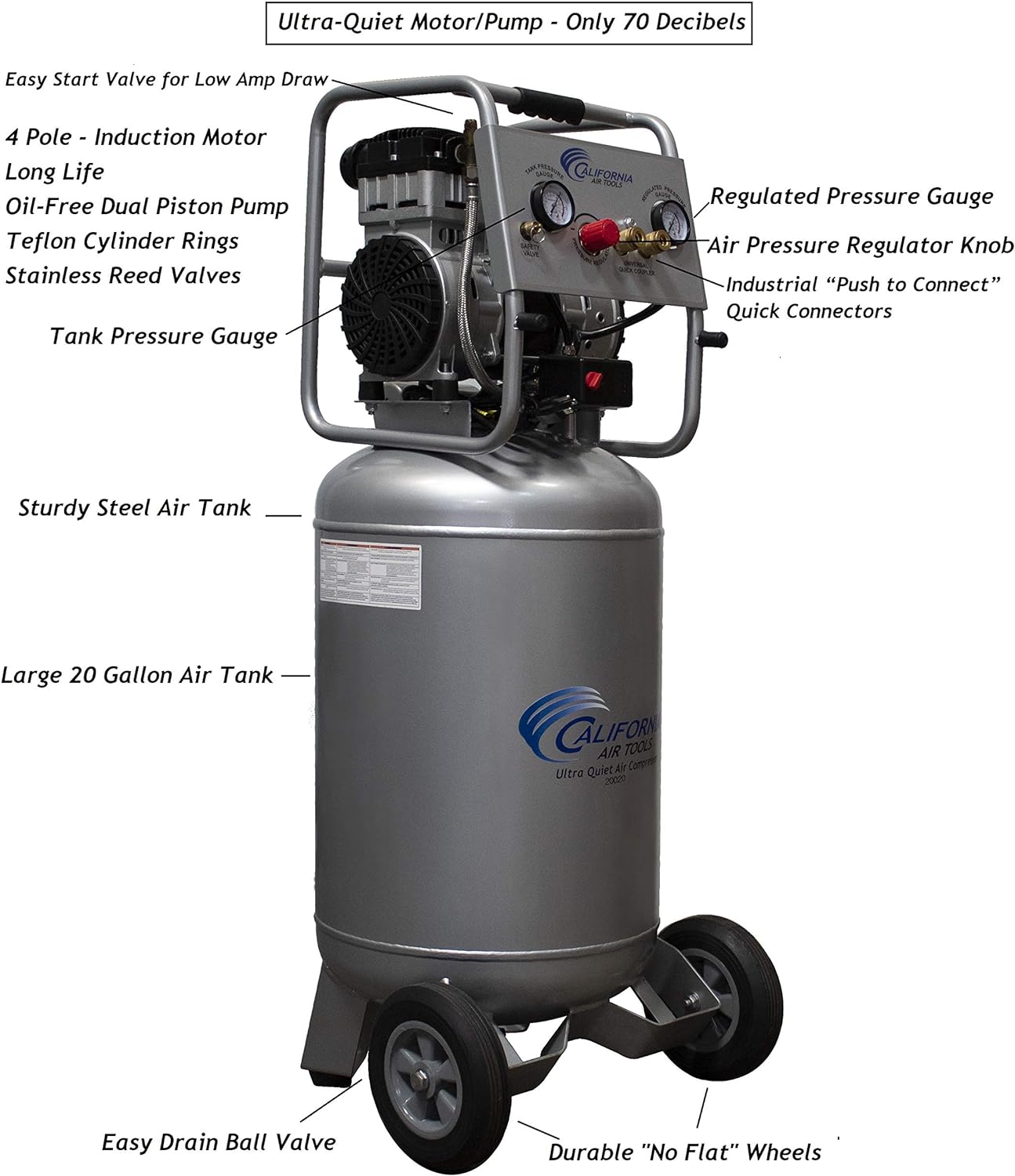

  • Ultra quiet at only 70 decibels - noise level comparable to an air conditioner
  • Large 20 gallon steel tank
  • Oil-free pump allows for better tool operation and less maintenance
  • "Push In" quick connectors for one-handed connection
  • Easy start valve for less starting amperage
  • Low Amp draw allows for easier starts since less electricity is needed

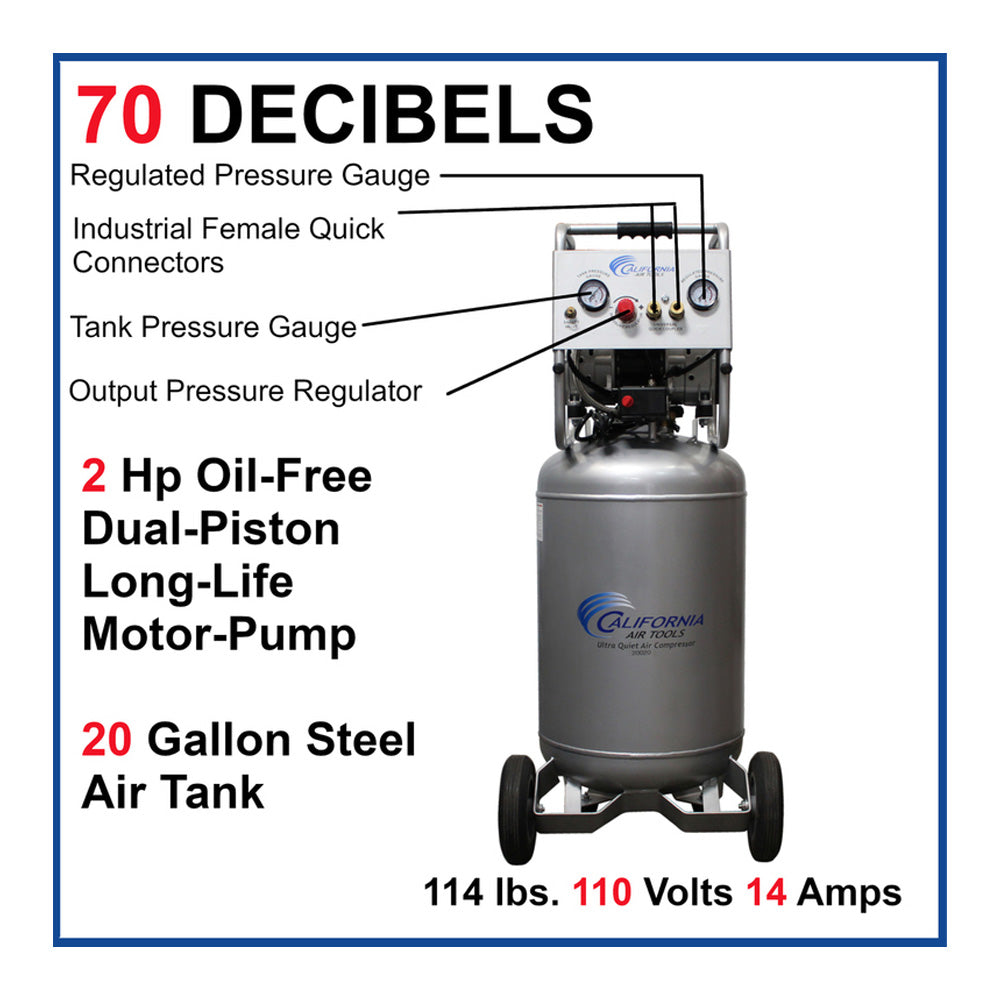

  • Two pressure control gauges
  • Thermal overload protector reduces motor damage
  • Tank drains with a simple turn of the drain ball valve

Noise level: 70 dB
Max. motor power: 2hp
Voltage: 110V
Output @ 40 PSI: 6.4 CFM
Output @ 90 PSI: 5.3 CFM
Max. pressure: 125 PSI
Low Amp draw: 14 Amps
Time to fill tank from empty to full: 4 minutes
Recovery time from 95 PSI to 125 PSI: 1 minute
Max. continuous running time: 30-60 minutes (depends on PSI & CFM)
Capacity: 20 gallons
Weight: 114 lbs.
Dimensions (L x W x H): 20" x 20" x 45"

  • Wheel kit
  • (2) Air filters

SKU: CAT-20020
