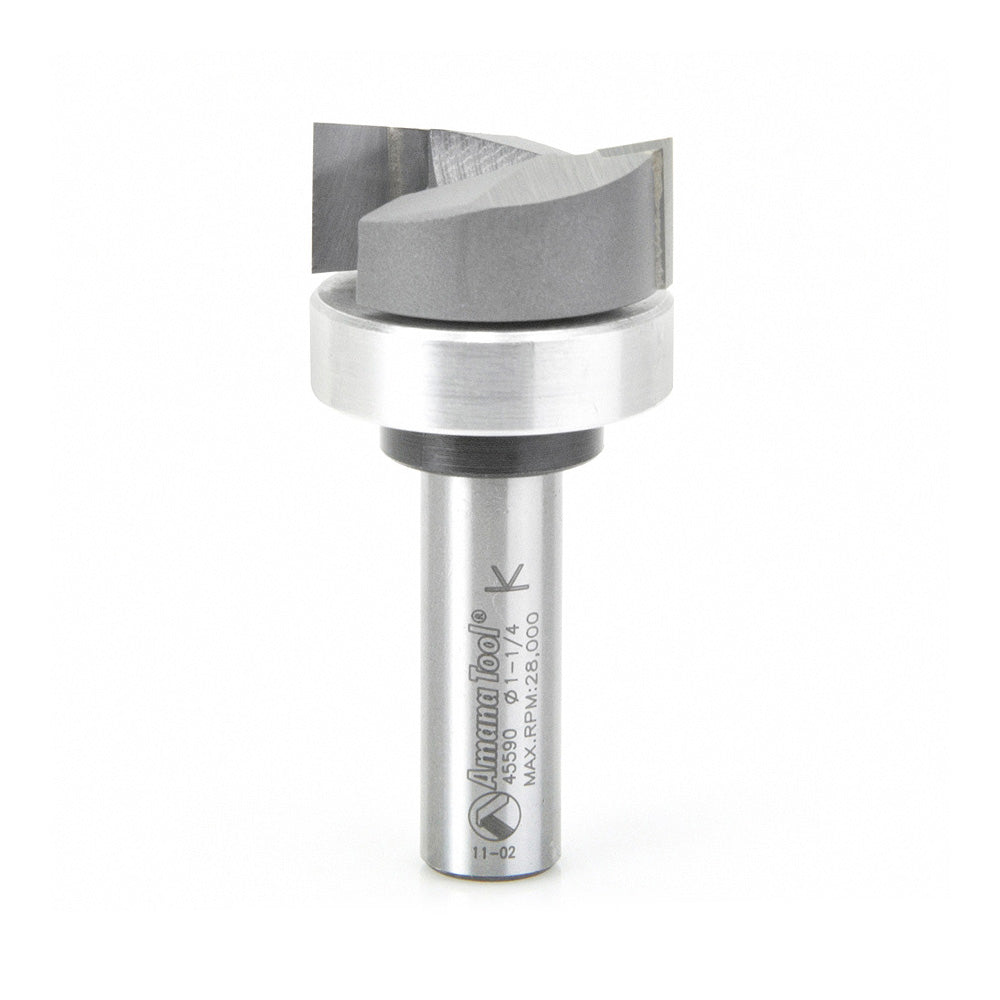

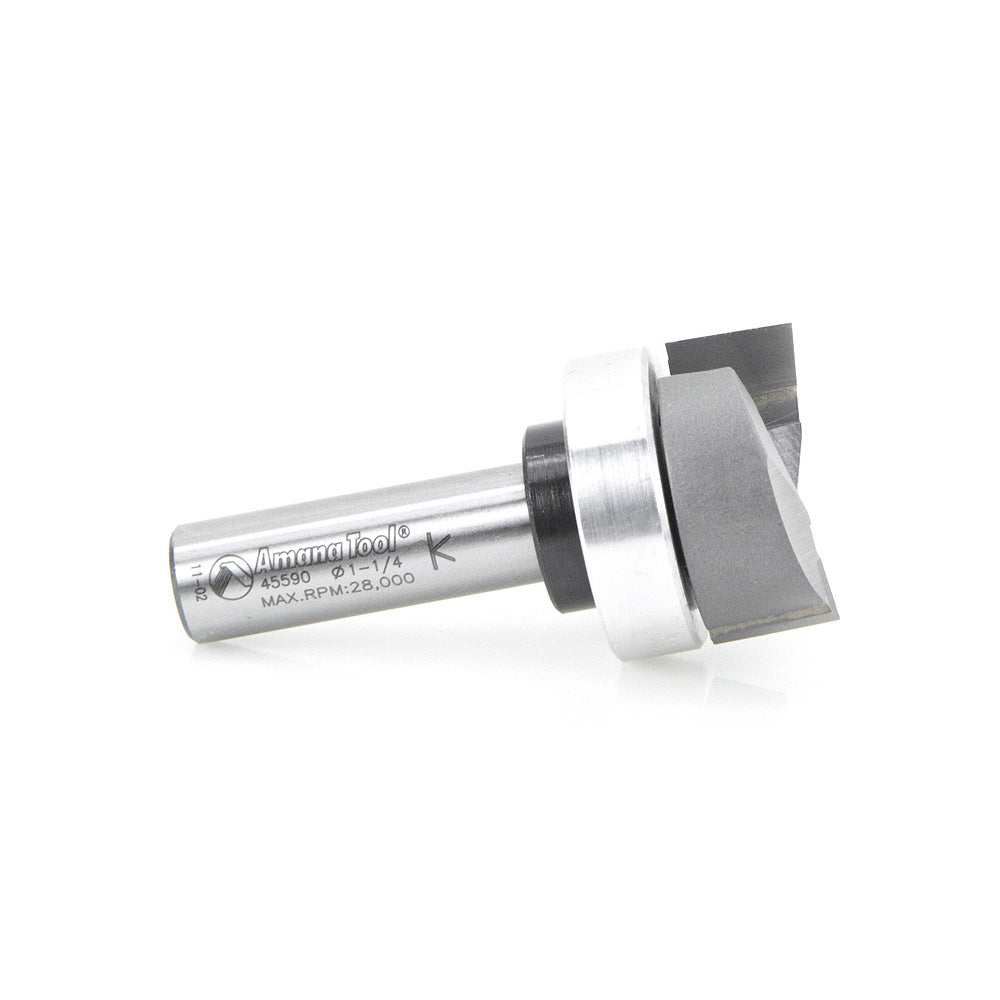

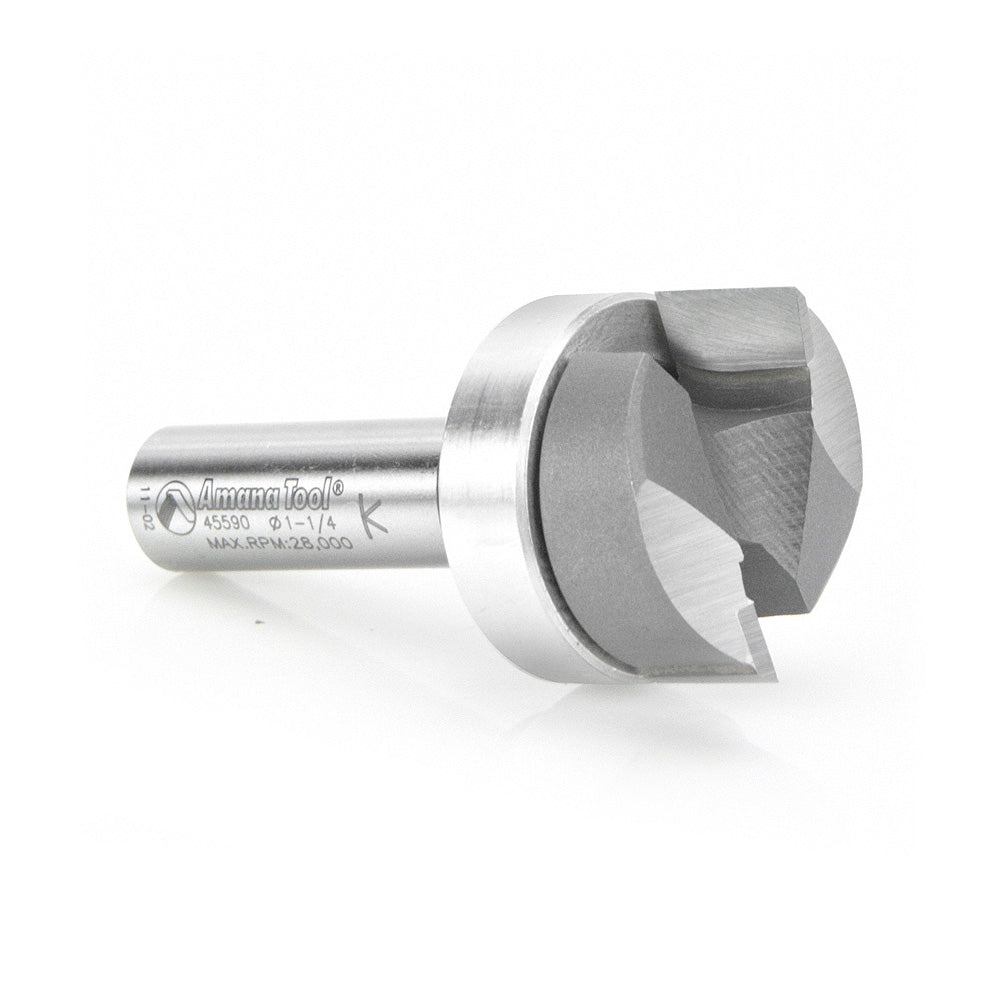

Amana Carbide Tipped Mortising Bit with Upper BB 1/2" SH, 1-1/4" D, 1/2" CL*

*Final sale.

There is no faster method for producing multiple mortises than with a template, and the accuracy achieved with a template is unparallel. This mortise bit is specially designed for use with templates, both linear and curved.

If you've ever used a bushing with template work, then you'll appreciate these bearing-guided bits. There's no need to calculate offset. Instead, the mortise is sized exactly to the template. And, unlike a bushing on the router sub-base, the guide bearing is always concentric to the cutting circle of the bit. This ensures precise cuts each and every time.

Overall dia.: 1-1/4"
Cutting length: 1/2"
Shank: 1/2"
Overall length: 2-5/8"
Flutes: 2
