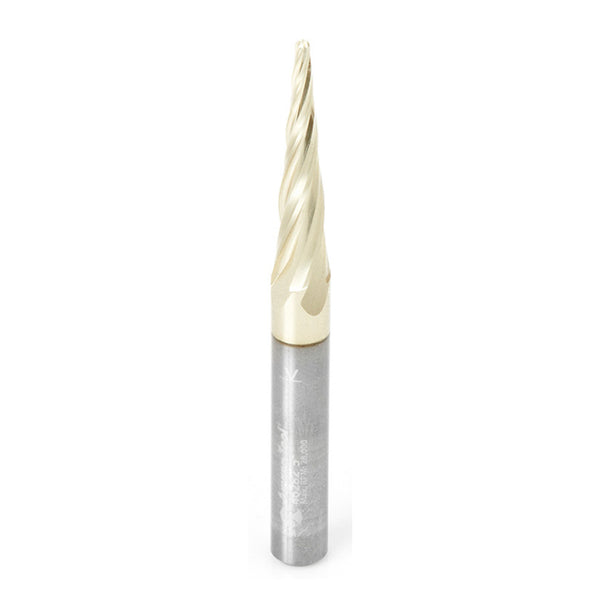

Amana 3D Carving Ball Nose 1/16" Dia., 5.4° ZrN Coated Router Bit

$ 46.50

Have questions? Give us a call at 260-637-0054.

Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup.

Some of Amana Tool carving tools have a very small diameter; therefore, any material chip-loads need to reflect that small size. It can, however, withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.


  • A perfect bit for 3D carving
  • Precision 2D and 3D large scale carving
  • Great for deep profiling
  • Dimensional signage
  • 3D millwork
  • 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
  • Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials


Diameter: 1/16"
Radius: 1/32"
Angle: 5.4°
Cutting Height: 1"
Shank: 1/4"
Overall Length: 3"
Type: Ball Nose, ZrN
Flutes: 4

SKU: 46282
