Amana 108* 'V' Groove

Price
$ 39.83

Have questions? Give us a call at 260-637-0054.

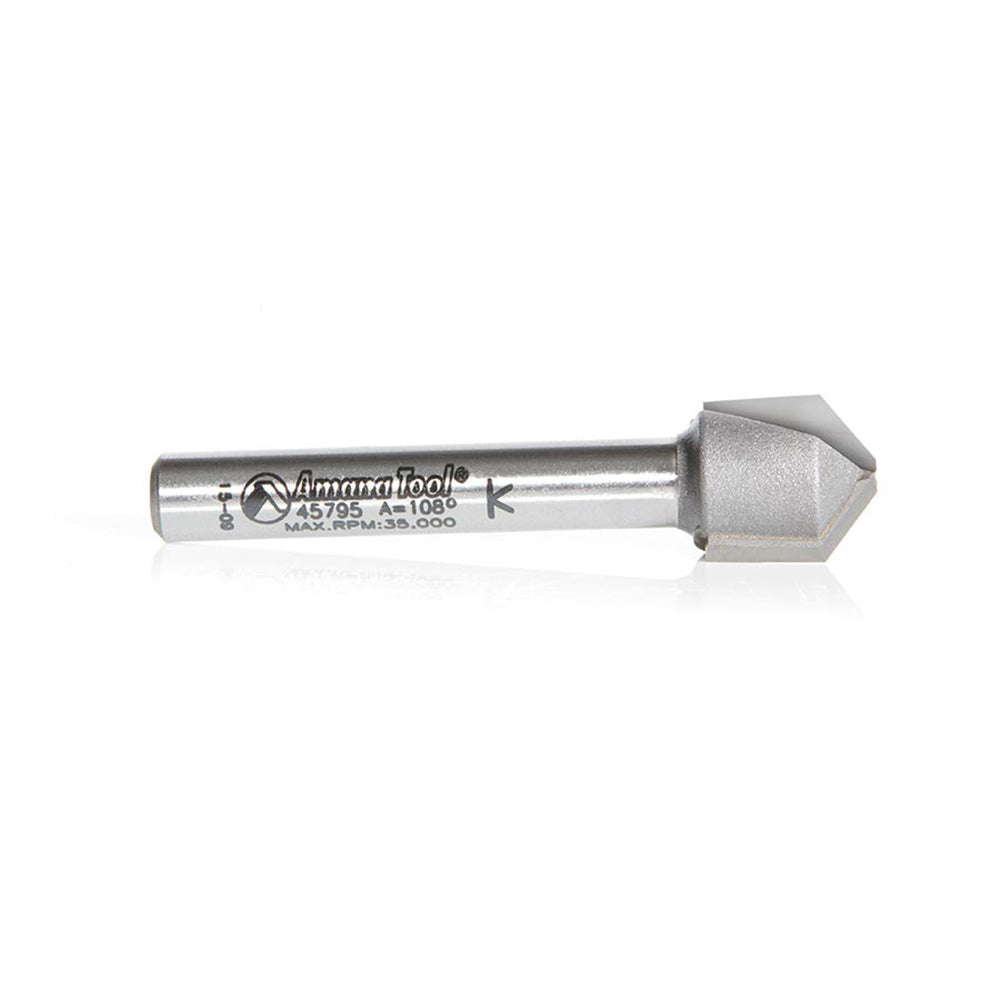

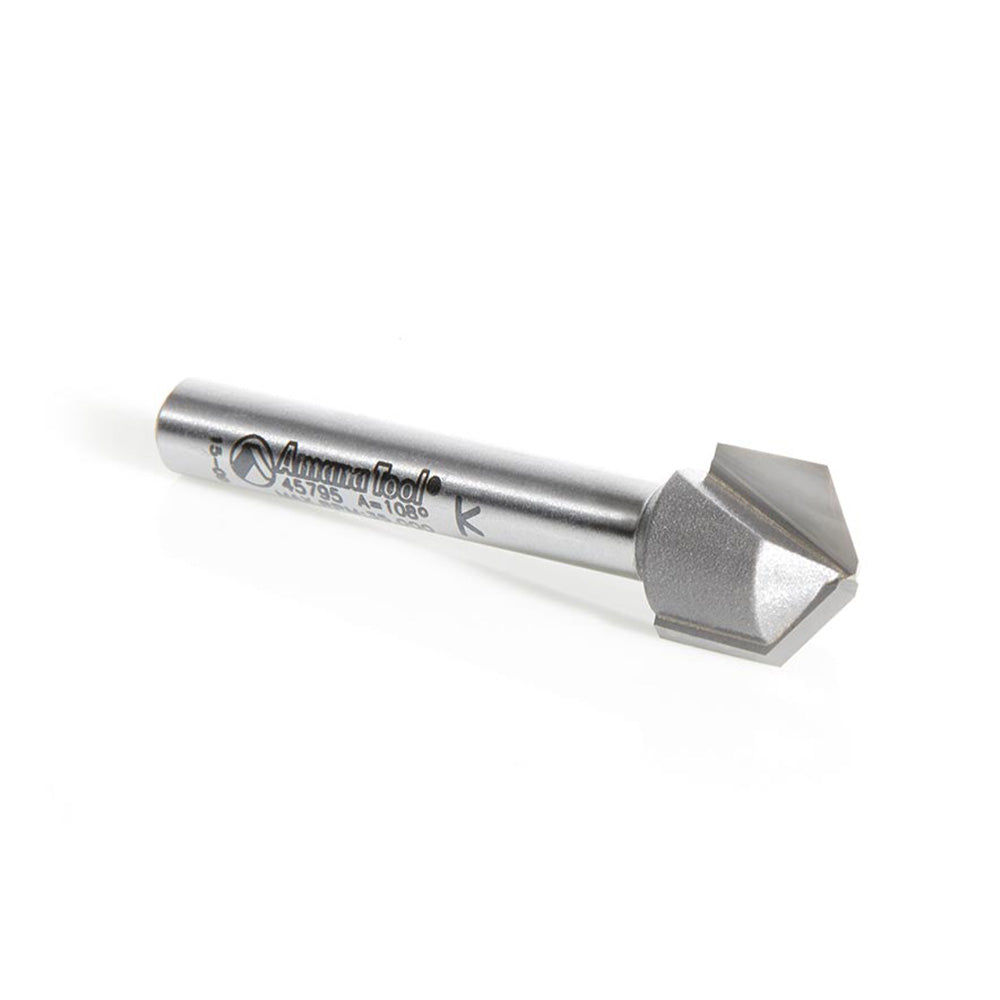

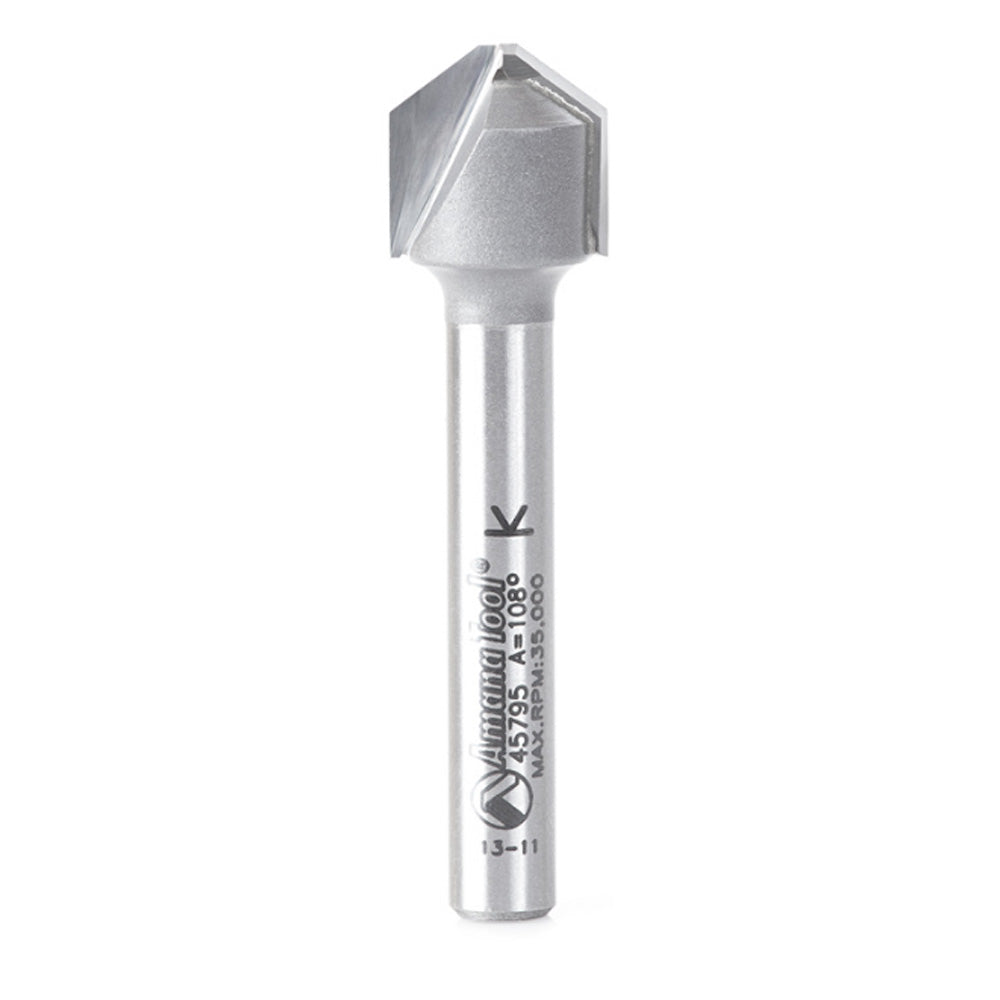

Amana 108* 'V' Groove bit for Folding Aluminum Composite Material (ACM) Panels 0.090" Tip Width x 3/8" Cut Length x 1/2" Cut Diameter x 1/4" Shank. This bit routs a 'V' groove with a flat bottom in order to more easily form/ fold the ACM panels by hand. This bit is ideal for wall panel fabrication.

Features

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials

Specs

Diameter: 1/2
Angle: 108°
Cutting Height: 3/8
Shank: 1/4
Overall Length: 2
B1: 5/32
Type: Carbide Tipped V-Groove
Max: RPM 35,000
Flutes: 2
D1: 0.090"
a1°: 36°

SKU: 45795
