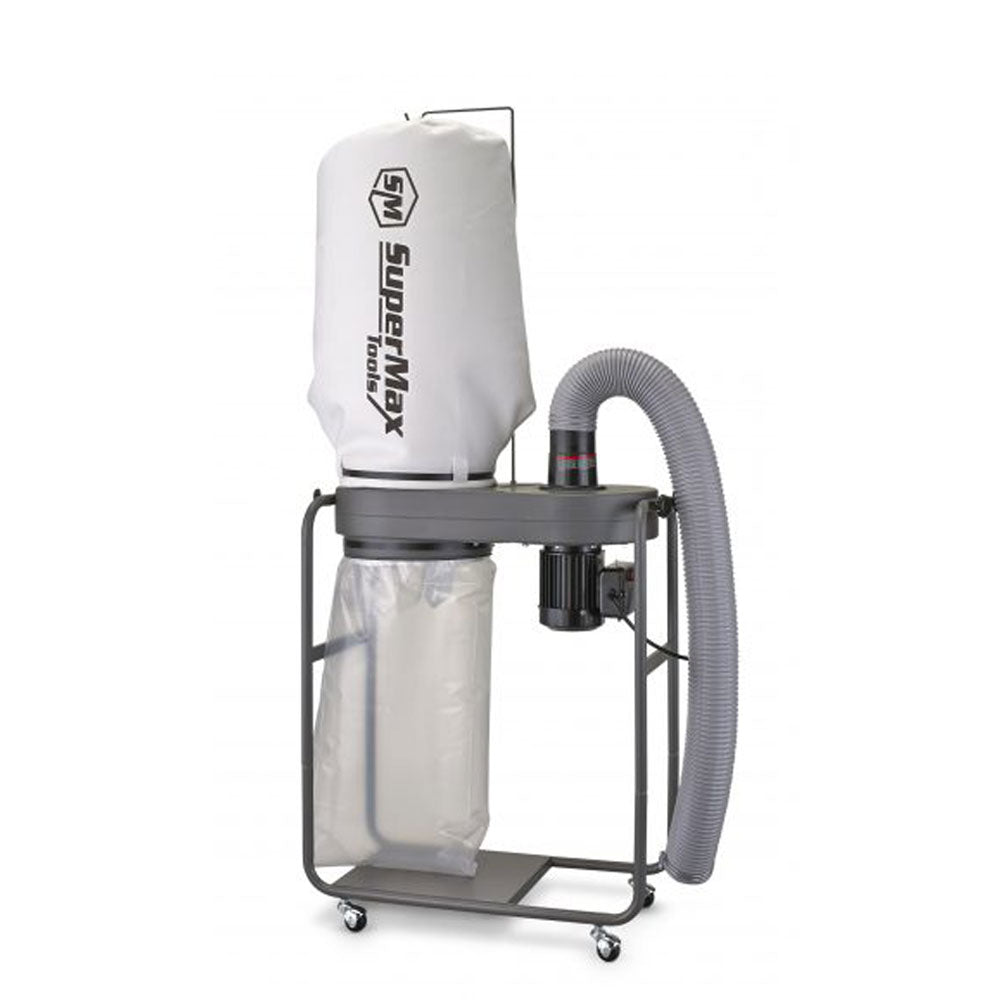

The 1HP Dust Collector is designed to eliminate clean-up after using your wood sanding machine. It has a TEFC induction motor for long-lasting, smooth performance along with a reversible motor assembly to complement the machine you are working with. The unit includes a 1HP, 8 amp, 3400 RPM service for up to 680 CFM.
The 1-micron bag can collect up to 99% of particles as small as 5 microns and 90% of particles as small as 1 micron in size. In other words, you’ll have a clean shop.
[TABS]
Features
- 1 HP TEFC induction motor for long-lasting, smooth performance
- Reversible motor mounting capability to better direct air flow (suction up/down)
- Finned aluminum motor housing keeps the motor running cool during long periods of use
- Curved 10.5" steel impeller produces maximum air velocity for efficient dust collection
- Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing
- out of the way
- Maximum 680 CFM
- 1 micron top and plastic bottom collection bags provide large dust collection capability
Specs
Air Flow: 680CFM
Static Pressure: 7.6" of water
Bag Diameter (In.): 14"
Top Filter Bag Length: 1 Micron Cloth – 32"
Bottom Collection Bag Length: Plastic (3 included) – 38"
Space Occupied: 30"x15"x73"
Packing Size: 31"x17"x16"
Gross/Net Weight: 84/79lbs
Impeller: 10.5" Steel
1-Hose Connection Diameter (In.): 4"
Motor Power (HP): 1 TEFC 3400 RPM
Motor Phase (PH): 1
Motor Voltage (V.): 115/230
Prewired Voltage (V.): 115
Motor Amps: 8/4
CSA Approved: YES
Warranty: 2 years
Decibels Output: 75 dB
