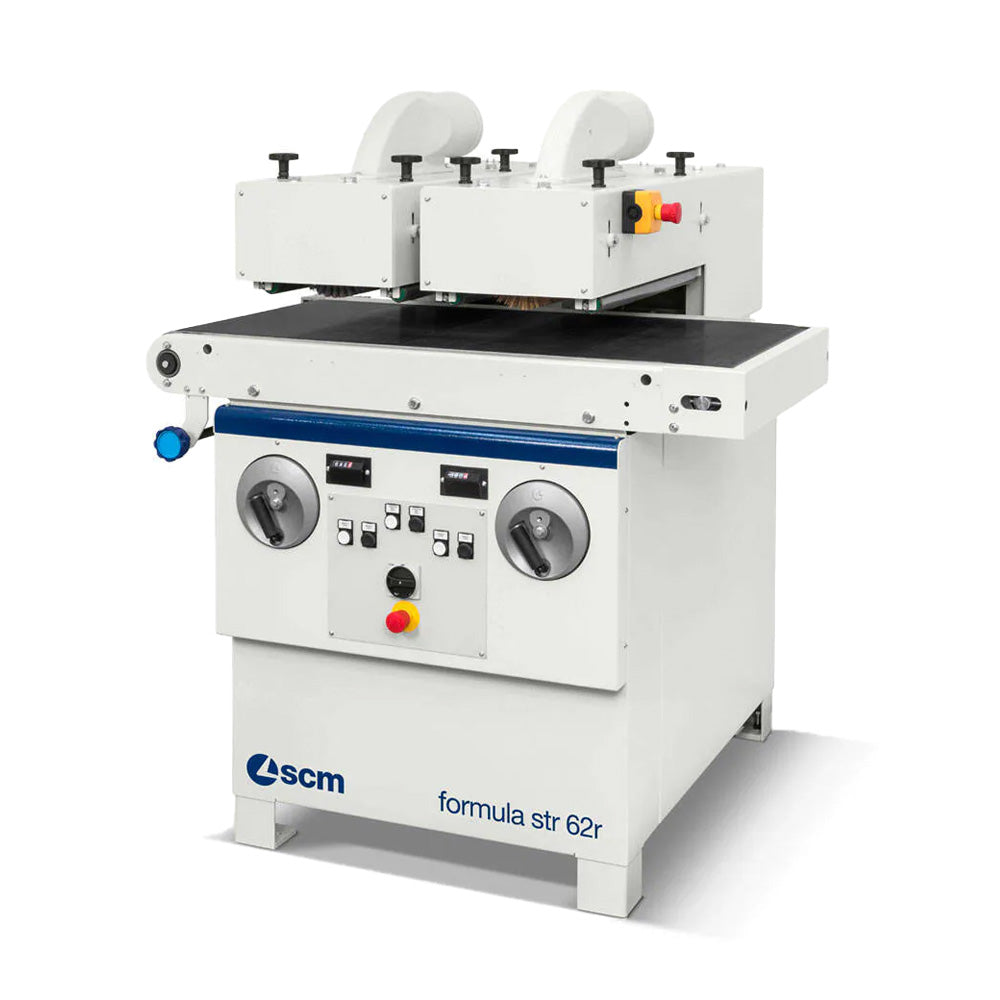

SCM Formula STR 62R Structuring Machine

$ 20,285

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available August 2024

For a wide range of products such as floor, decking, doors or furniture elements, manufacturers are seeking to emphasize the natural grain of wood in order to obtain an antique or textured finish.

The STR 62R’s brush filaments abrade the softer wood fiber more than the harder ones, revealing the grain of the wood and leaving a surface in relief that can then be stained or filled for ceruse or a vast array of unique finishes. With a working width of 600 mm, a variable feed speed and working height of up to 300mm the STR 62R is the machine for you.

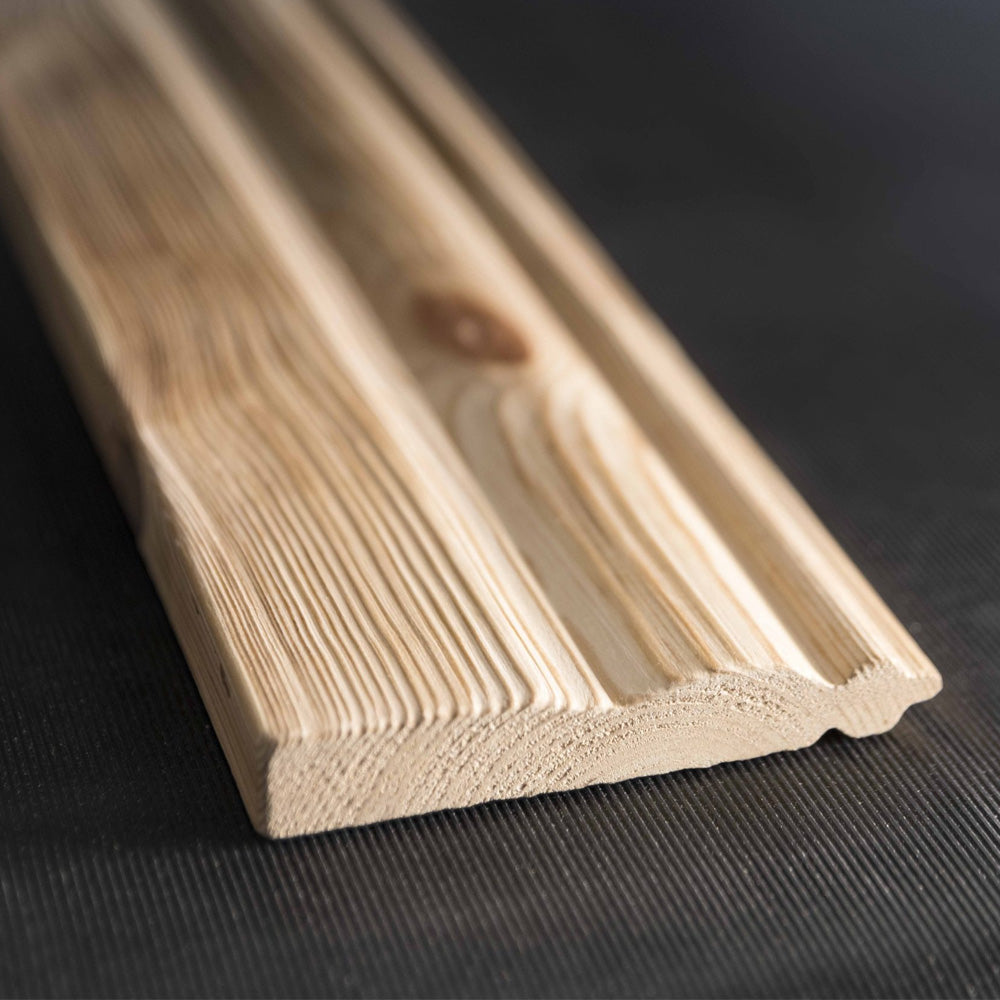

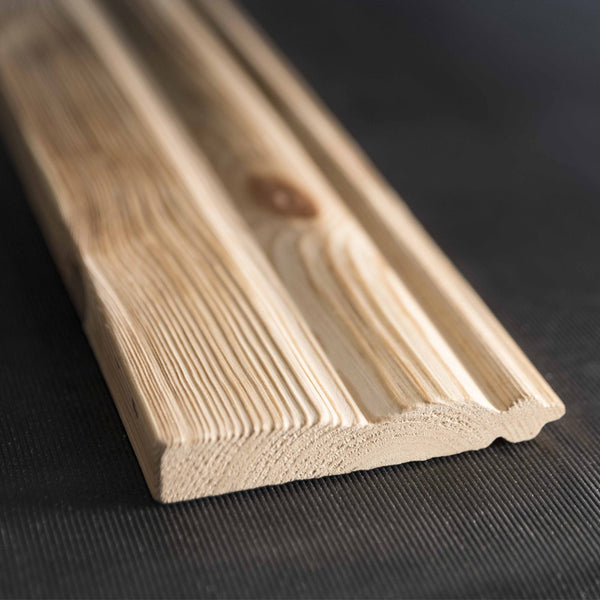

Structuring refers to surface modification where harder wood grain is raised while softer grains recede. This creates the impression that the wood is weathered, antique, vintage, or repurposed with a look that emphasizes the natural beauty of the wood.

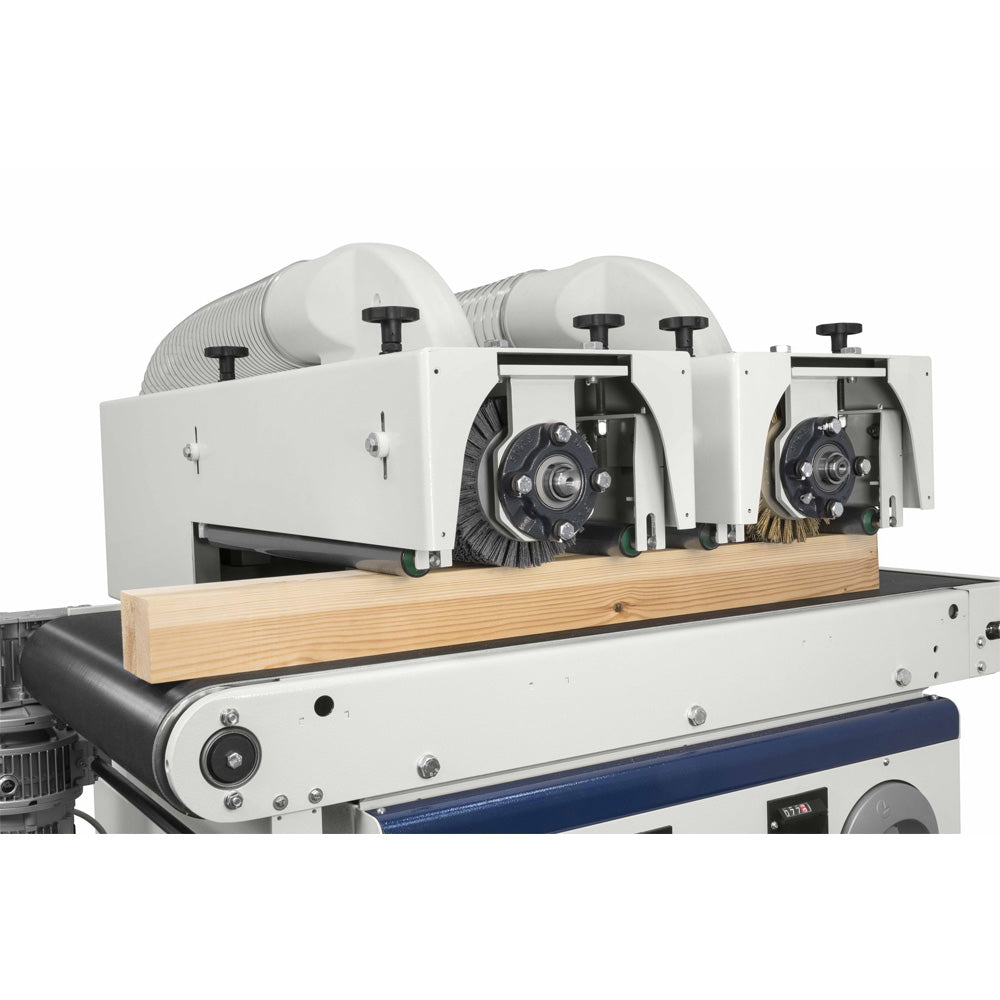

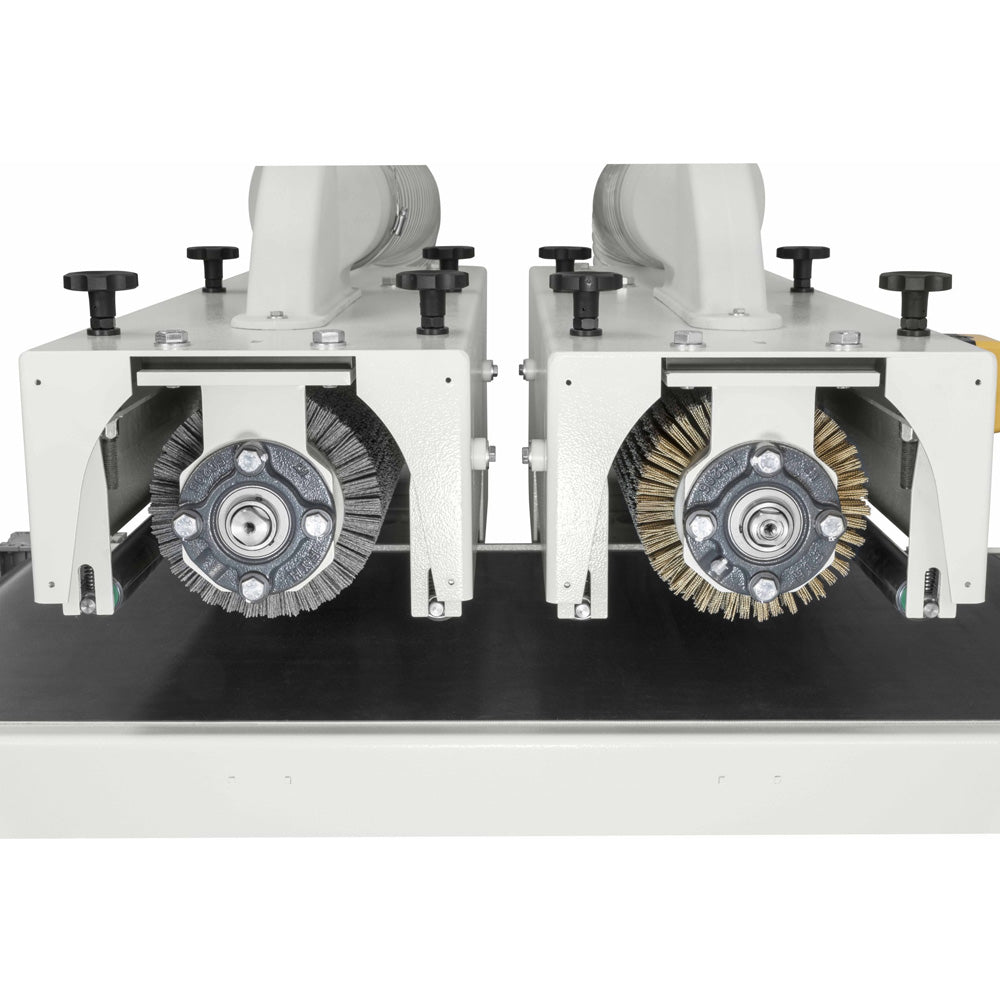

This machine consists of two independent brushing units; the first unit (steel brush) is for roughing, while the second unit (tynex brush) is for finishing. Brushing with metal bristles roughens the wood zones while the secondary brushing with the tynex brush smooths the transitions and thereby gives the structure a softer, vintage appearance.

The degree of structuring can be changed by setting the working depth. Different degrees of finishes may also be obtained by changing out the type of brushes. Easily achieve an even structuring and pressure with the adjustable contact rollers at both ends of each brush.

  • High resistance rubber belt
  • Steel brush (0.2 mm wire)
  • Tynex brush (60 grit)
  • Fixed speed brush motors

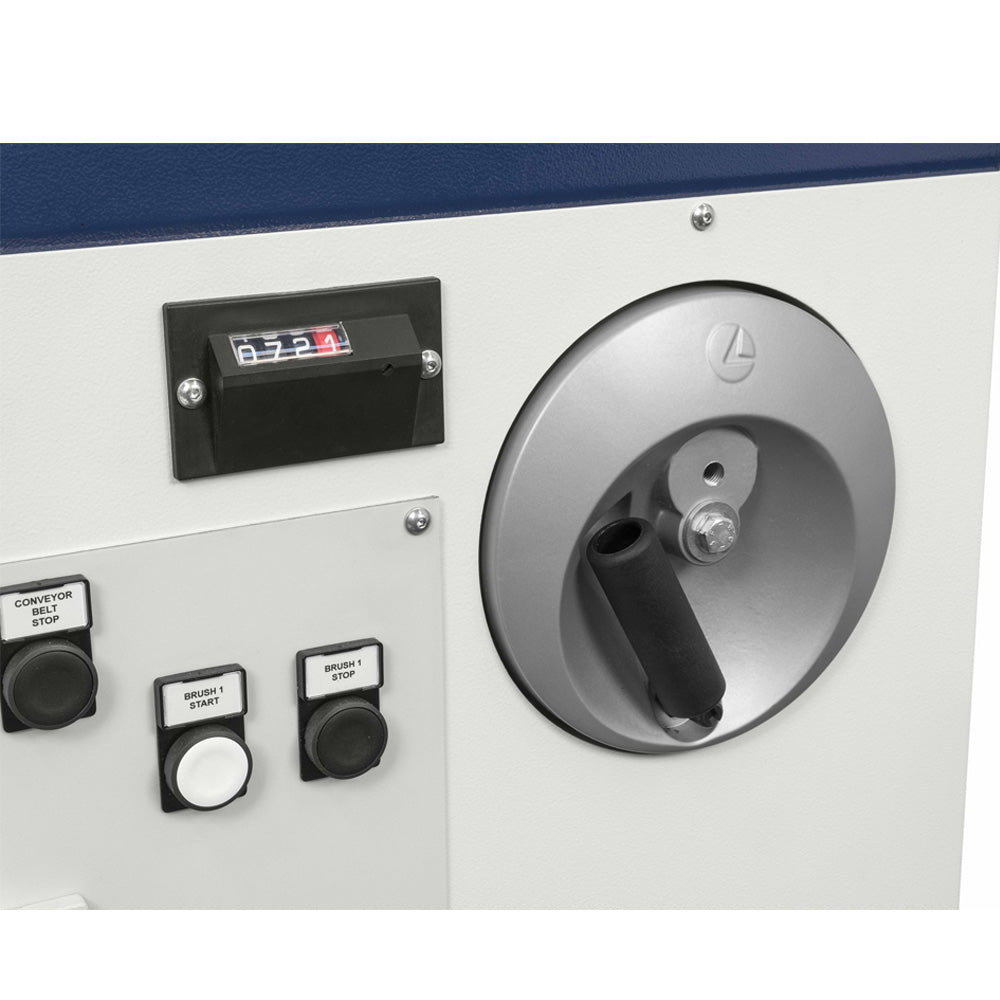

  • Manual lifting of operating units by means of front handwheels
  • Use and maintenance manual

Working units: 2
Working width: 23.6” (600 mm)
Max working height: 11.8” (300 mm)
Brush motors: 3-phase, 220V
Horsepower: 5.5 Hp each
Feed belt motor: 0.5 Hp

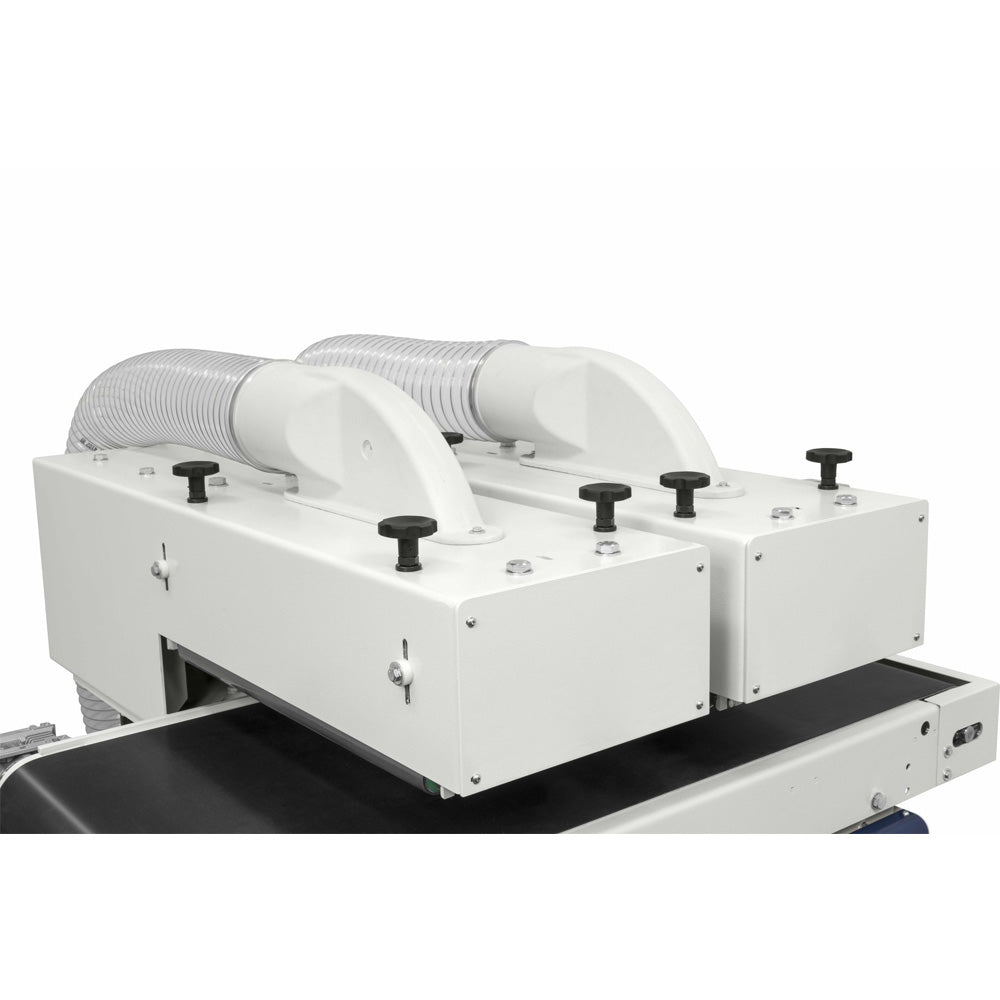

Dust extraction hoods: 2 x 140 mm (2 x 5.5”)
Brush speed: 1,500 RPM
Feed speed: 3 – 20 m/min
Brush diameter: 7.5” (190 mm)
Inner shaft diameter: 2” (50 mm)
Net weight: 1,653 lbs.
Dimensions (L x W x H): 51.2” x 35.4” x 51.2” (1,300 x 900 x 1,300 mm)
