Attention: Please call for availability: 260-637-0054. Due to high demand and global manufacturer supply shortages, this item may be on backorder. You may still place an order to reserve your place in line. As we receive inventory, orders will be fulfilled in the order they are received.

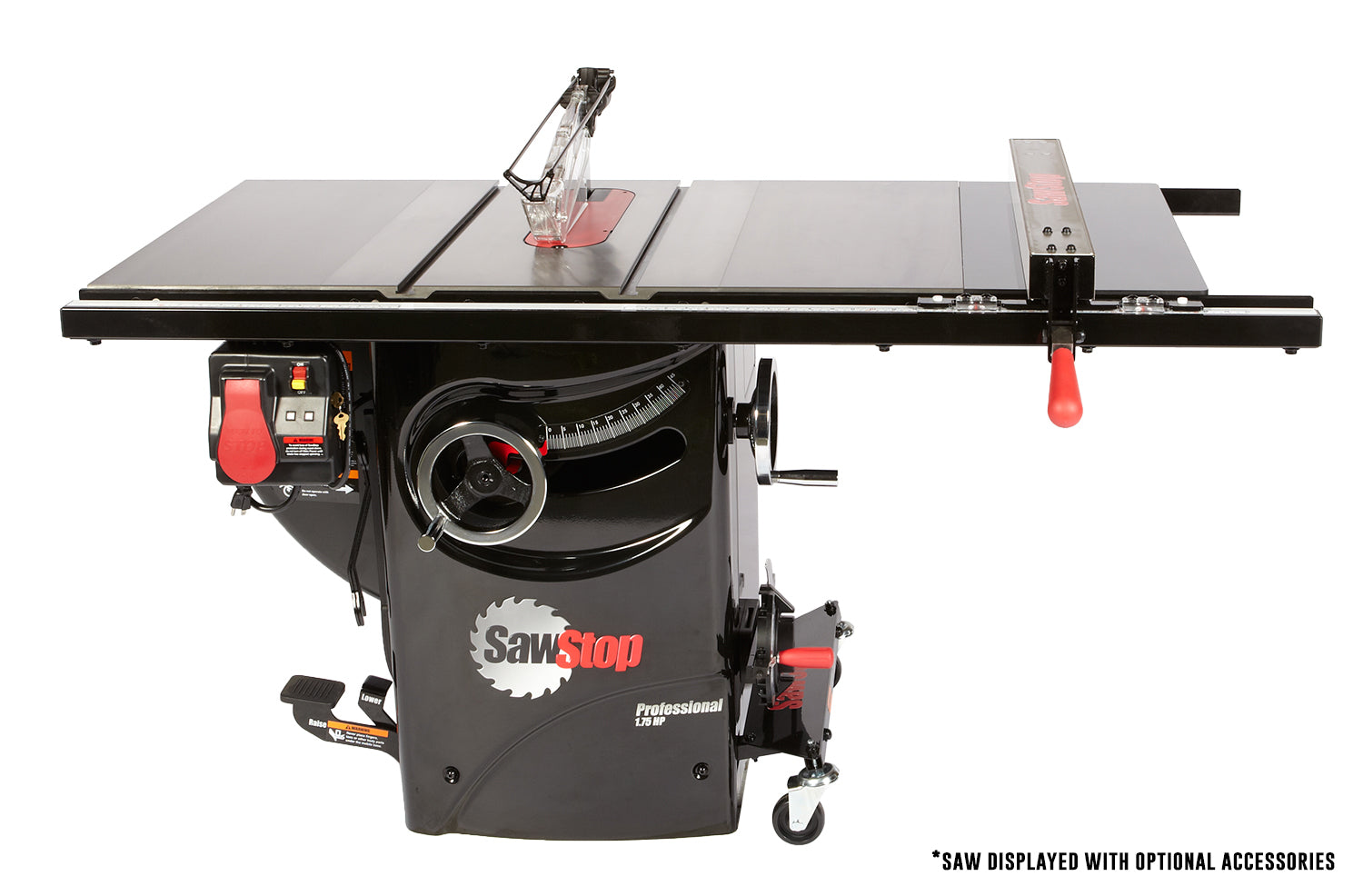

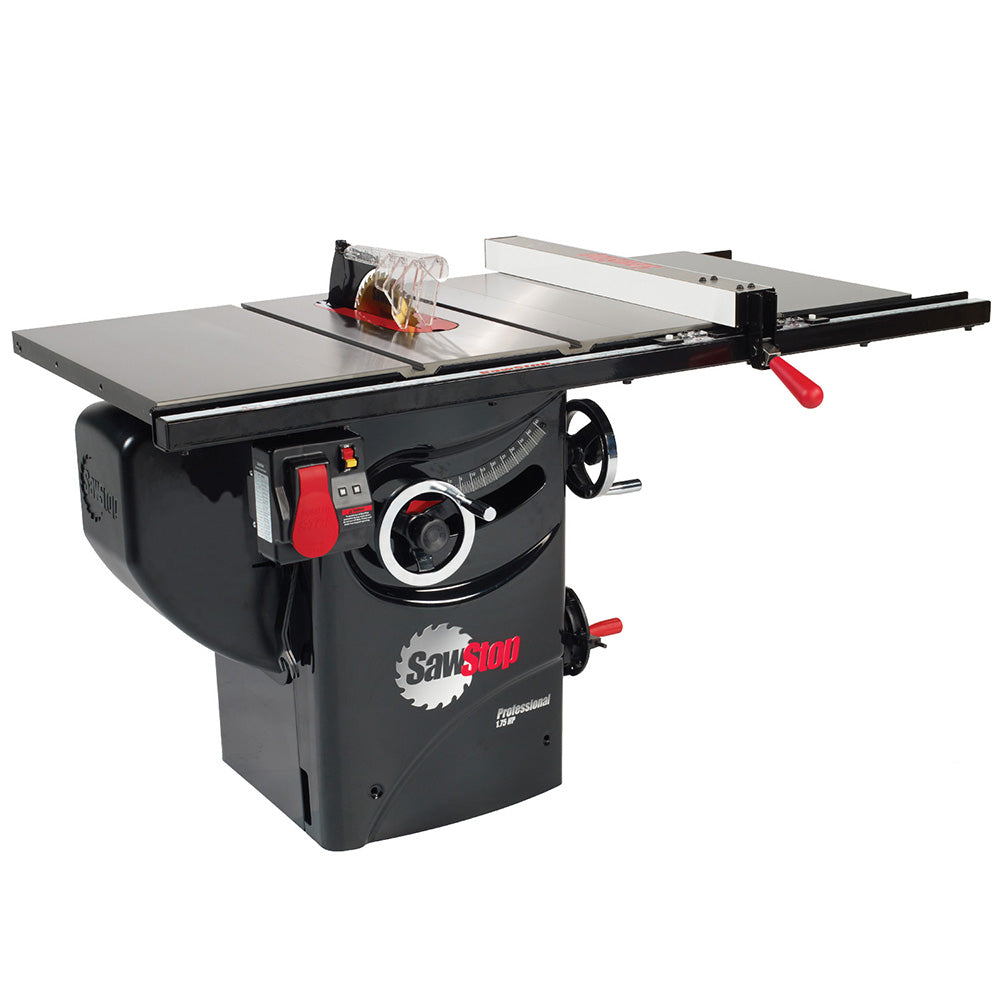

The SawStop® 1.75HP Professional Cabinet Saw with 30" Premium Fence System offers versatility and safety. It delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.
Unmatched fit and finish with a keen attention to detail.
SawStop Safety System stops on contact with skin (within 5 milliseconds!).
30" Premium Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
Only ships to continental 48 states - Not available for express or overnight shipping
Motor: 60Hz, TEFC, 1.75HP, 120v, 14A (user config. to 220v w/optional kit available for purchase) Overall saw dimensions: 61-3/4" W x 31-1/8" D x 34" H Cabinet footprint: 19-3/8"W x 19-3/8"D Cast iron table: 20"W x 27"D Extension wings: 12"W x 27"D each Cast iron table (w/ extension wings): 44" W x 27" D Extension table:12" W x 27" D Assembled Weight: 367 lbs Weight - table saw only: 317 lbs
Blade:40-tooth, prof. grade, 5/8″ arbor Blade diameter:10" Blade tilt:Left Blade kerf: 0.118" (3 mm) Blade plate thickness: 0.078" (2 mm) Max. depth of cut, blade at 0º:3-1/8" Max depth of cut, blade at 45º:2-1/4" Max. rip, right of blade:30" (w/ 30" rails) Max. rip, left of blade:12" Dado diameter:8" (requires 8R2 brake, dado insert) Dado max. width:13/16" Arbor diameter at blade:5/8" Main bearing size:62 mm OD x 30 mm ID Second bearing size:52 mm OD x 25 mm ID Table in front of blade (max. elevation):10-1/4" Table behind blade (max. elevation):7-1/2" Arbor runout:0.001" maximum allowable runout Table flatness measured diagonally:0.010" maximum gap Blade alignment with miter slot:0.010" maximum displacement Deviation of miter gauge indexing stops from actual:+/- 0.25 degrees Alignment between splitter and blade:0.010" maximum difference Miter slots T-Shaped: 3/4" at top, 1" at bottom, 3/8" deep Miter slots center:11-1/8" center-to-center Miter Slots info:5-1/2" (arbor flange to center of right slot) Dust collection port diameter: 4" Riving knife / splitter thickness:0.090" (2.3 mm) Blade guard (dust collection) port diameter:1-1/2" Outside, 1-1/4" Inside Micro blade guard: polycarbonate, extends 1" right of blade Insert:zero clearance, phenolic core, melamine surfaces Hand wheels:7" diameter, cast iron w/ chrome handle Belts:2 V-ribbed belts - arbor b. static dissipative Warranty:2 years
