$ 615

Have questions? Give us a call at 260-637-0054.

The SawStop Floating Overarm Dust Collection System captures dust directly at the source with a transparent blade guard that rides on top of the workpiece, providing effective above-table dust collection without obstructing visibility. Unlike traditional overarm guards, its independent floating design allows it to be used for both through-cuts and non-through cuts such as dados and rabbets.

Built with heavy-duty steel and aluminum construction, the system swings out of the way when needed and delivers high-volume airflow for cleaner, safer cutting.

Compatible with ICS, PCS, and CNS SawStop Saws.

Note: Not compatible with saws with 30" fences.

Features
  • Above Table Dust Collection: The large tube allows for high air volume and above-table dust collection keeping harmful dust out of your shop. A dedicated 4" port increases dust collection while only requiring a minimum of 400 CFM.

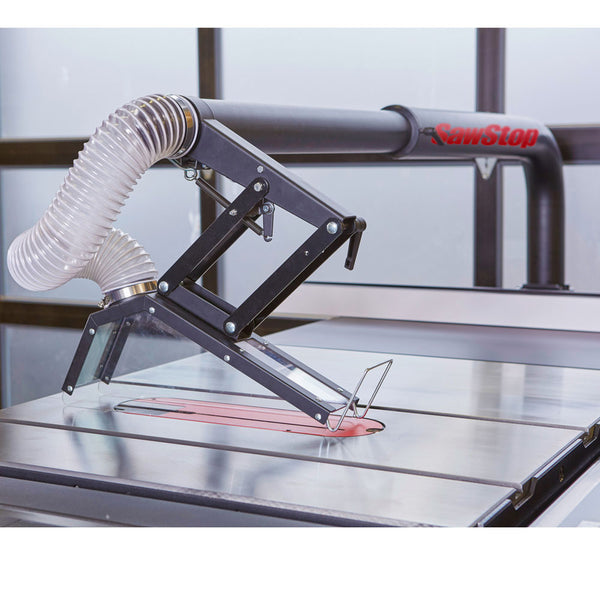

  • Adjustable Blade Guard: The blade guard provides the operator protection while making standard and non-through cuts, and the transparent cover increases visibility when making narrow cuts. The guard lifts easily for quick blade access and locks in place using the lock handle when not in use.
  • Versatility: The dust collection tube can be easily adjusted to accommodate different SawStop cast iron saw configurations. It can be moved out of position by releasing the dust tube lock knob, or removed and stored when not in use.
  • Rugged Durability: The Floating Dust Collection is constructed from heavy-duty powder coated aluminum. The support legs connect underneath the extension table and ensure the rigidity of the large dust tube and blade guard.
Specs

Blade Guard Dimensions: 3-1/2” x 18-1/2”
Distance between blade and end of extension table: 35-3/4” to 68”
Product Dimensions(L x W x H): 79" x 19" x 17"
Inner Dust Tube Diameter: 3”
Outer Dust Tube Diameter: 4”
Outer Dust Tube height above table: 13-1/2”
Outer Dust Tube height above floor: 33-1/2” to 50"
Weight: 58 lbs.
Compatible with: ICS, PCS, CNS
Warranty: 1 year

SKU: TSG-FDC
