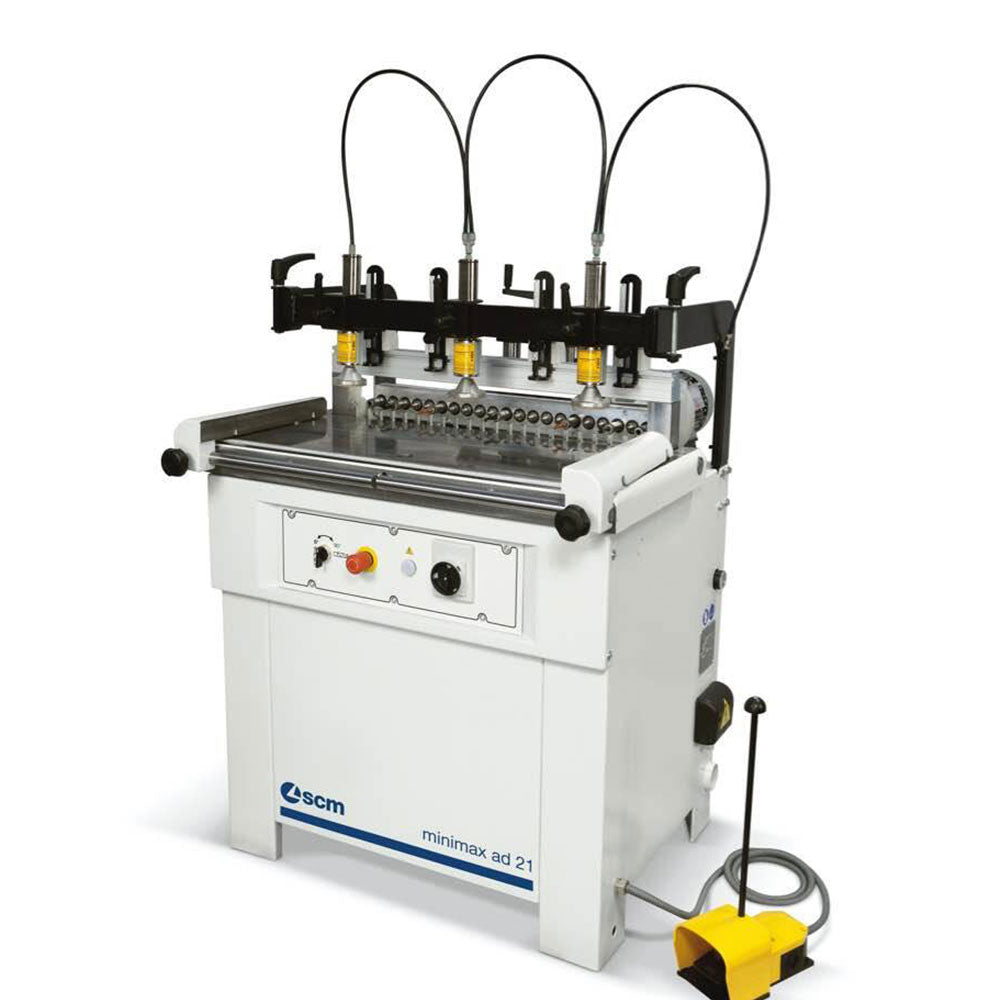

The Minimax AD 21 is a single head multiple boring machine with 21 spindles ideal for craftsmen and professional workshops. The head, made by Morbidelli, will bore vertically or horizontally with a positive stop at 45°. This machine is the latest in a long line of boring machines manufactured by SCM GROUP. It features 21 total (5 standard + 5 accessory + 11 accessory) quick chuck 10 mm drill bit bushings and is designed around the 32 mm system of cabinet making. It comes standard with a long fence, calibration tools, and two pneumatic clamps.

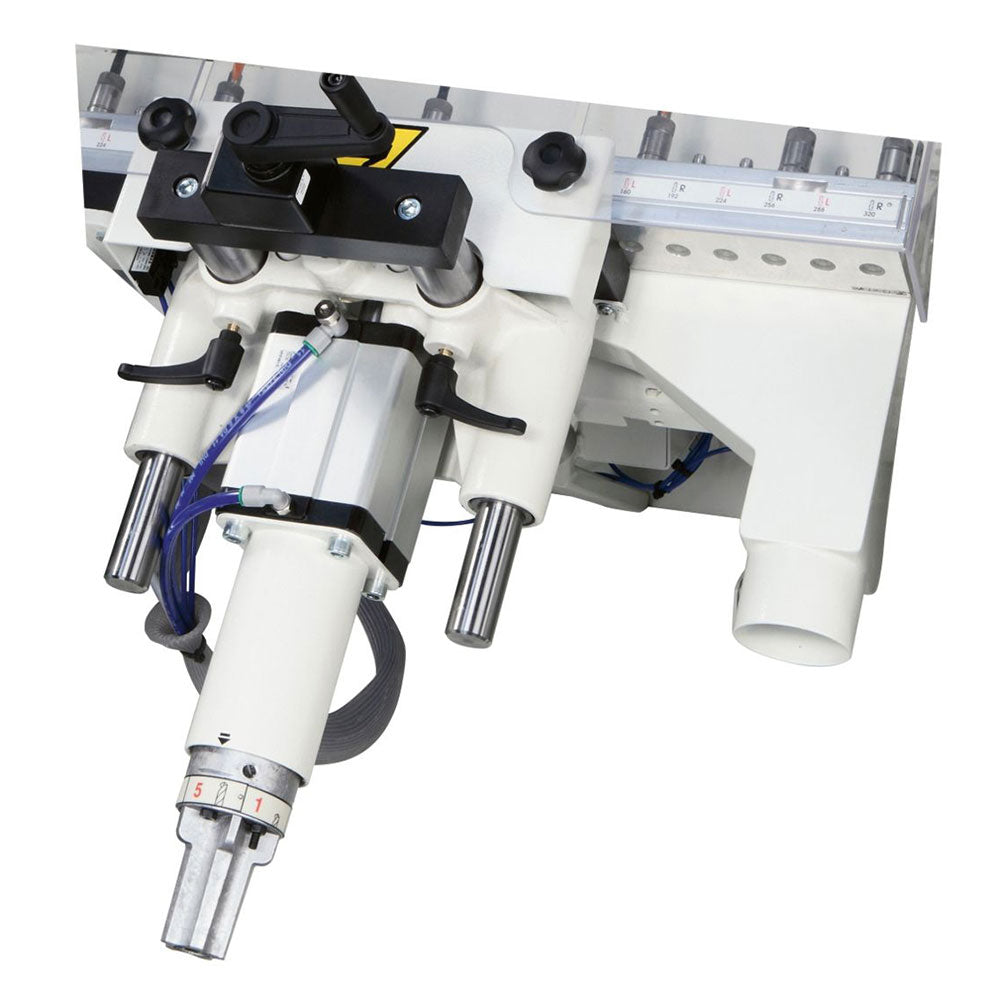

The Minimax AD 21 boring head is made from one single casting. This guarantees the absence of vibration while drilling. The boring unit runs on two cylindrical guides which assures stability, and guarantees precision. The machine is equipped with a mechanical revolver with five different boring depth adjustments. The efficient extraction design minimizes dust build up.
All the controls for the Minimax AD 21 are ergonomically positioned on the front of the machine. This includes the switch which sets the boring head at a 45° angle, allowing for an immediate changeover between operations. For boring larger panels, the Minimax AD 21 has a 118” long fence with a scale and retractable stops. The fence is mounted and removed very easily.
The mechanical calibration gauge guarantees fast and precise positioning of the lateral, cast-iron fences that are standard on the Minimax AD 21. The Minimax AD 21 can drill vertically (line), horizontally (Construction), and also has a positive stop at 45° making it a more versatile machine overall.
[TABS]
Features
Perfect vertical, horizontal, and at 45° drilling operation
Drilling head made from single-piece aluminum casting, to guarantee the absence of vibrations
Two rectified cylindrical guides
Equipped with a mechanical revolver with 5 different boring depth adjustments
Mechanical gauge guarantees fast and precise positioning of the lateral fences

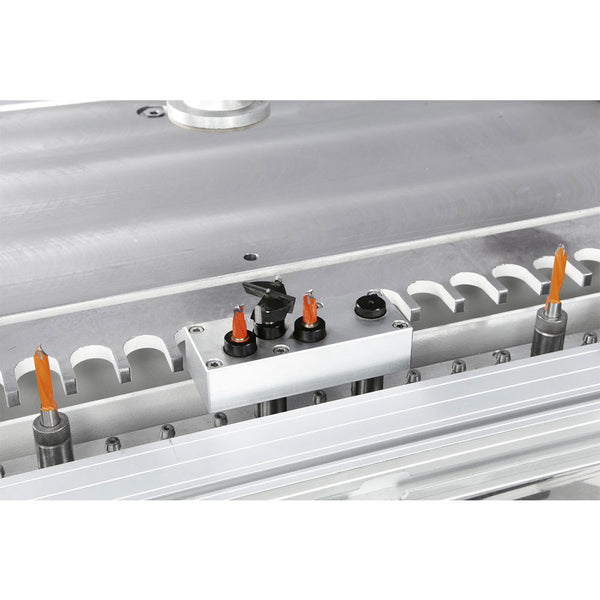

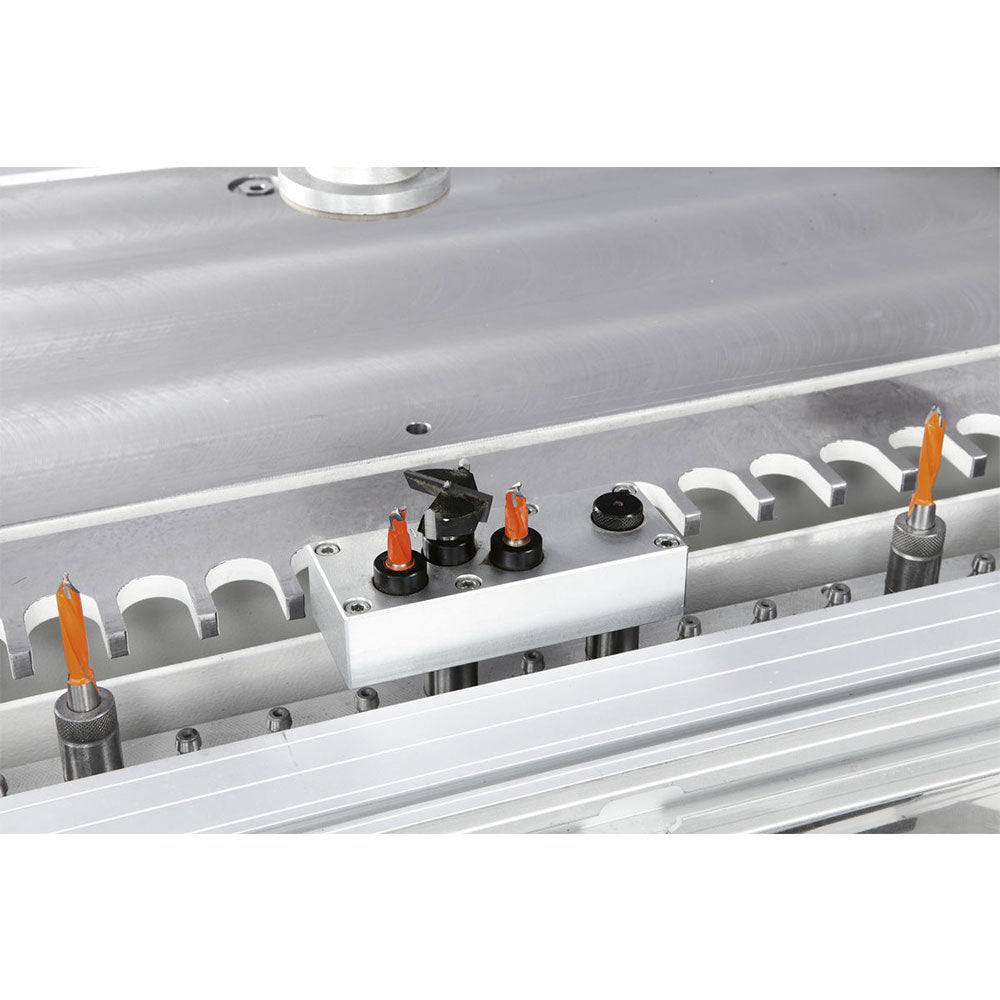

The quick-change chucks can be fitted with various types of bits for different operations like boring hinges locations
All controls are ergonomically positioned on the front of the machine
Long 3000 mm fence with a scale and retractable stops
Fence is quickly mounted and removed easily

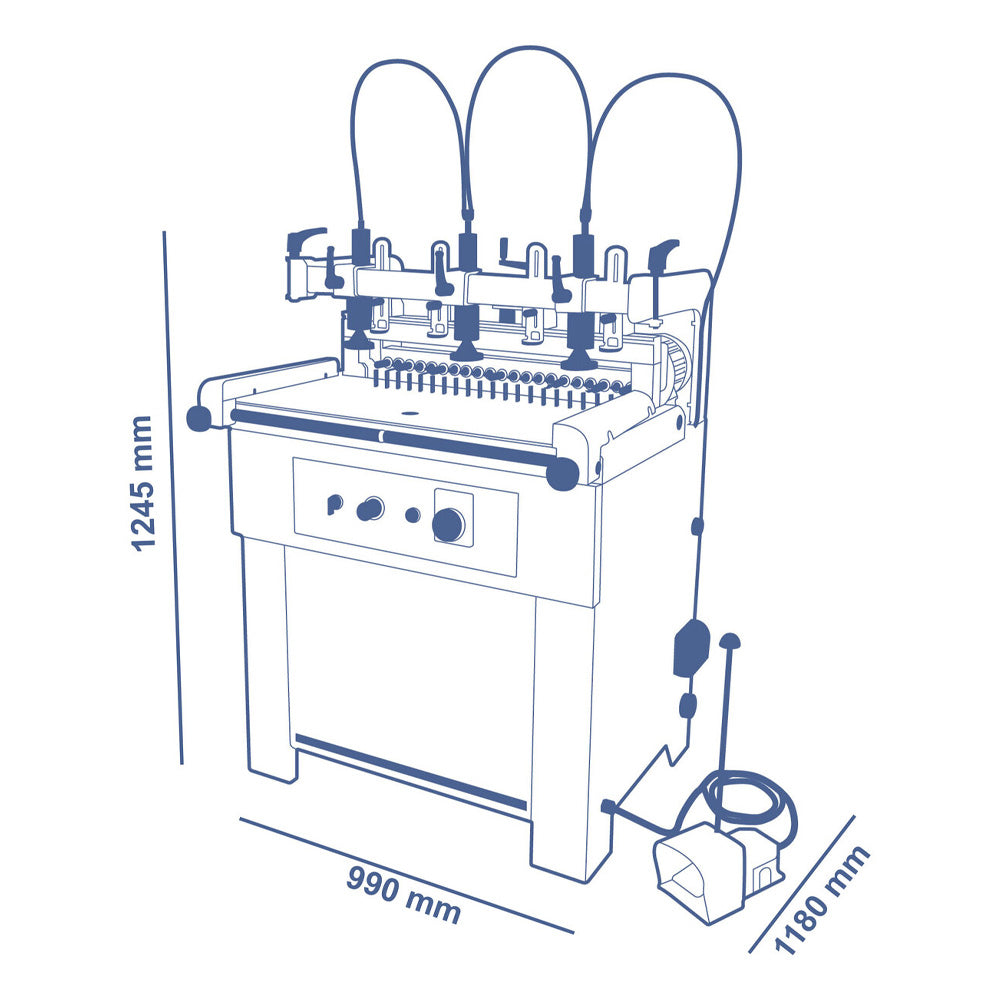

Specs
Max. panel width: 32.75" (833 mm) Panel thickness: 0.4" - 3.4" (10 mm - 86 mm) Worktable dimensions: 35.6" x 14.6" (905 mm x 372 mm) Worktable height: 35.5" (900 mm) Max. tool diameter: 1.57" (40 mm) Min. - max. panel height: .375" - 3.25" (10 mm - 85 mm) Max. bore (center-to-center): 25.2" (640 mm) Max. boring depth: 2.4" (60 mm) Motor power: Single-phase (2Hp) Voltage: 230 V Frequency: 60hz Spindle speed: 2,800 RPM # of spindles: 21 Spindle spacing (center-to-center): 1.3" (32 mm) Net weight: 618 lbs.
Includes
Aluminum metric fence with reversible stops
45° Miter fence
(2) Pneumatic hold down clamps
21 total (5 standard + 5 accessory + 11 accessory) quick chuck 10mm drill bit bushings
45° Positive lock on boring unit
Rear stops for maximum horizontal and vertical boring precision
Adjustable lateral stops
Mechanical jig for lateral fence positioning
Dust extraction system integrated into the boring head
