MicroJig ZEROPLAY 360 Sled Kit

$ 29

Have questions? Give us a call at 260-637-0054.

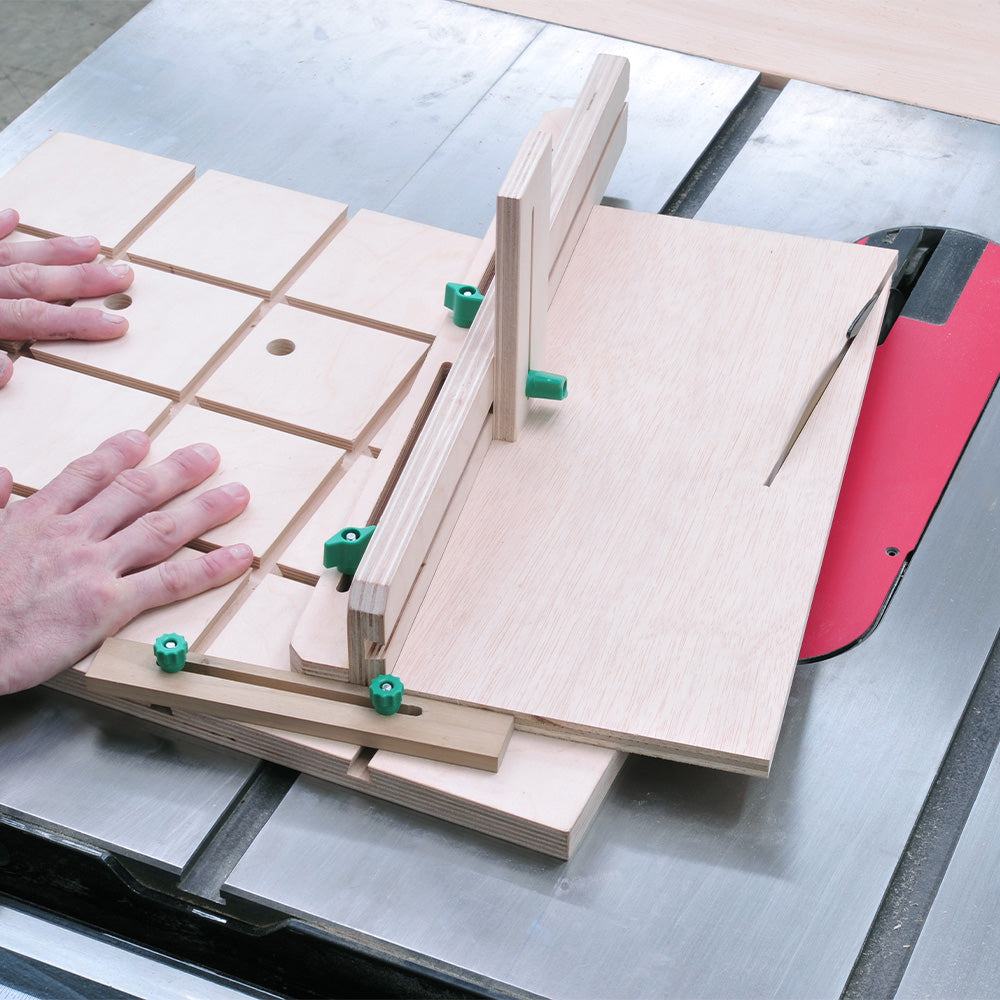

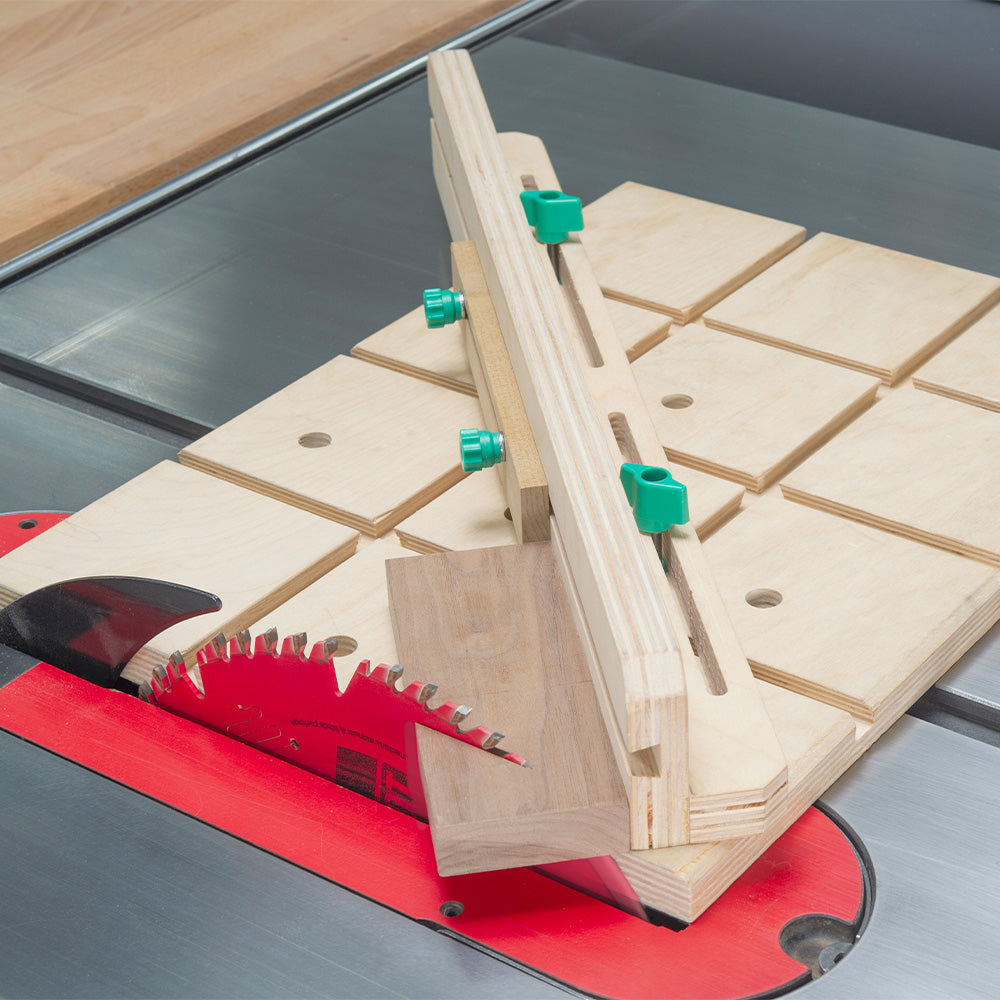

Build the most versatile sled in your shop, FAST. Many table saw sleds have only one function, and factory miter gauges have a limited range of angles. With its unique grid layout of dovetail grooves, this sled is fully adjustable to cut any size stock at any angle. MicroJig has combined the ease and accuracy of the ZEROPLAY Miter Bar system with the versatility of the all-new MATCHFIT Dovetail Hardware. Everything you need to build the most versatile sled in your shop, fast.

Using the ZEROPLAY Miter Bar’s one-touch calibration, you instantly fill the full width of the miter slot for no side-to-side play. Its top-down installation allows you to square your sled to the blade in a snap. The unique grid layout of dovetail grooves allows you to set your fence at any angle, and lock it in place with the included MATCHFIT Dovetail Hardware. No matter the angle of your cut, the ZEROPLAY Miter Bar keeps the sled running parallel to the blade at all times.

This sled is incredibly easy to build. All you need is some plywood, a 1/2” 14° dovetail router bit, and about an hour. The package includes detailed and easy to follow plans that will help you build the most versatile sled in your workshop.

ZeroPlay Miter Bars will fit any standard (3/4” x 3/8”) miter slot that measures between 0.73" and 0.79" wide and is at least 5/16" deep.

Compatible miter tracks include but not exclusive to ShopSmith, SawStop, Bosch 4100, Delta Unisaw, Powermatic, Rigid, Dewalt, and General 350 Tracks.

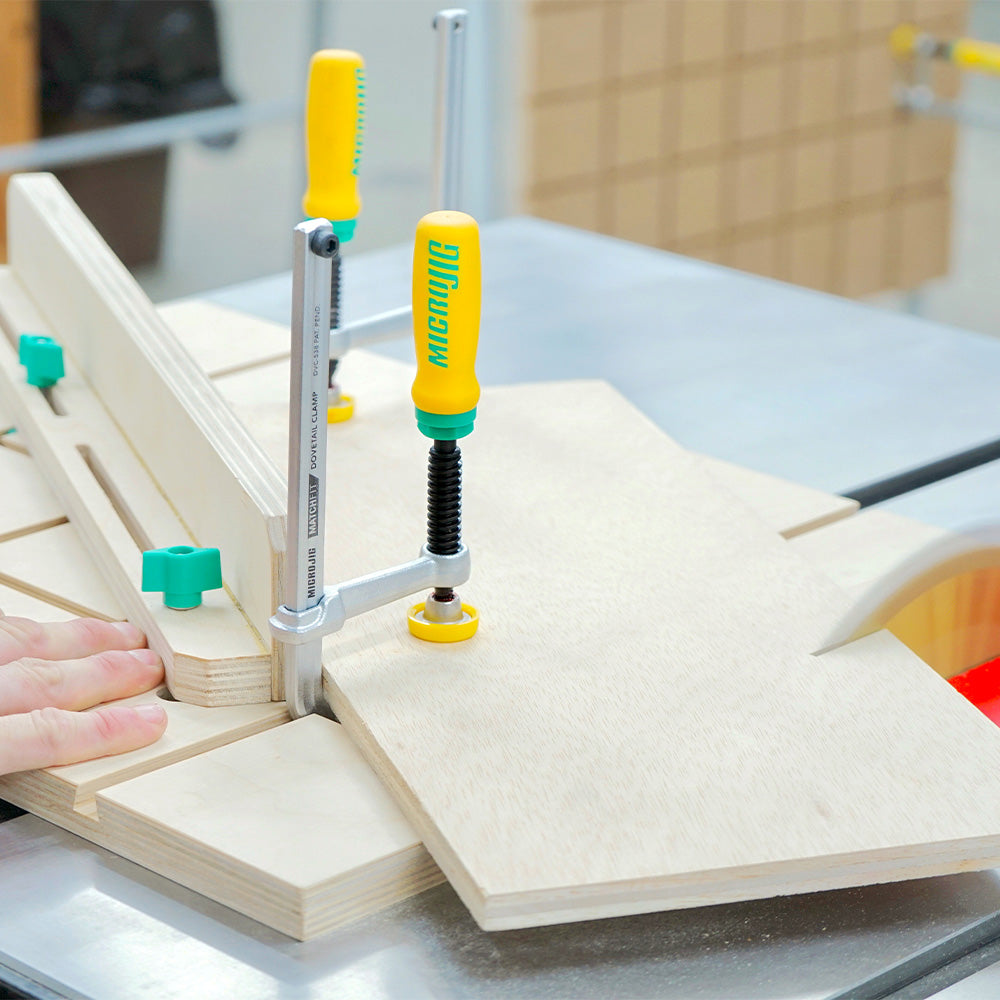

  • Compatible with MATCHFIT Dovetail Clamps
  • Calibrate and adjust bar thickness while attached to the sled
  • Includes project plans and drill template for mounting

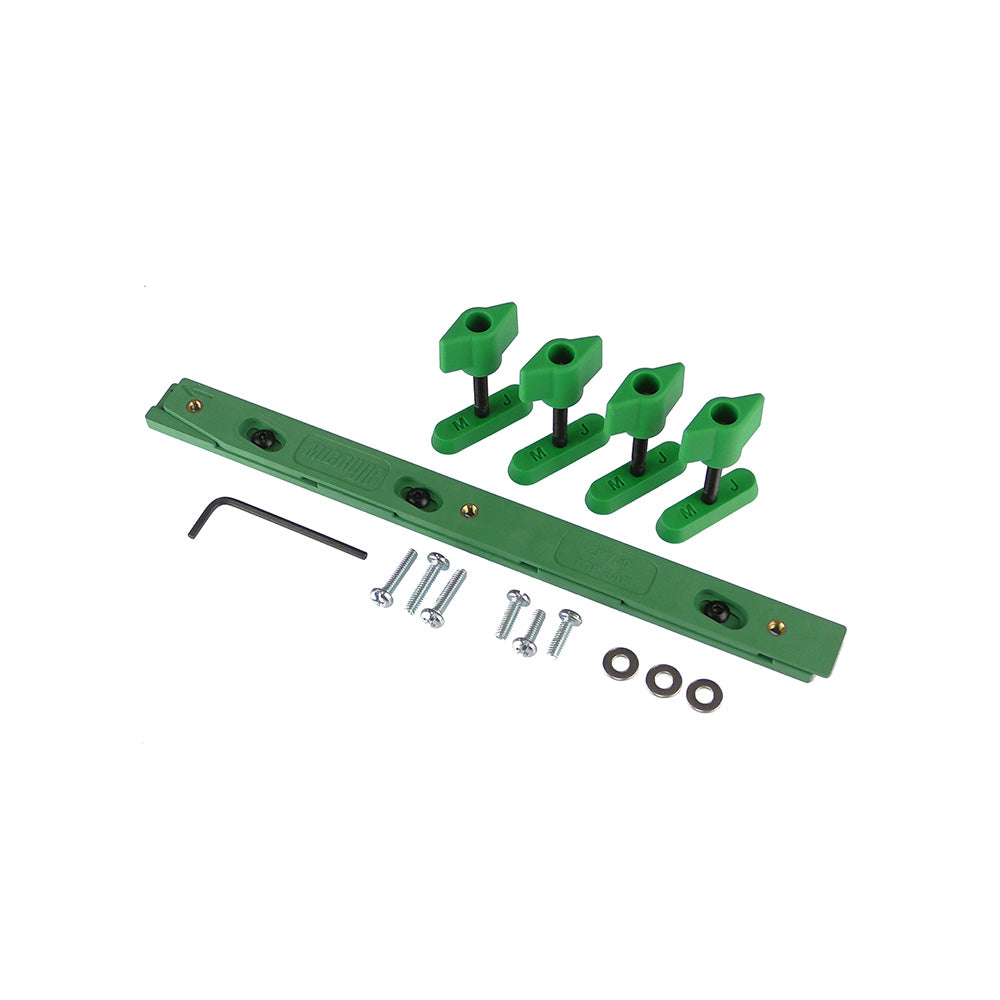

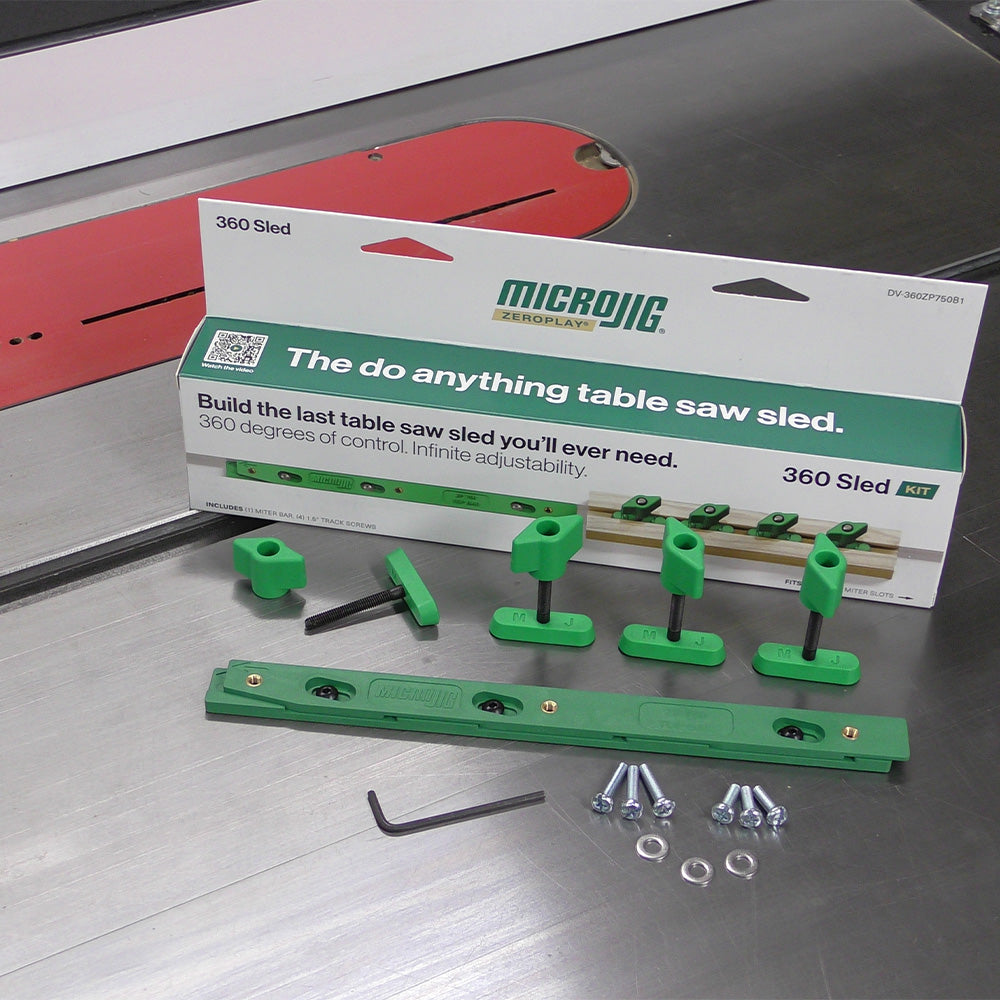

  • (1) ZeroPlay Miter Bars
  • (1) 3/32 Hex Wrench
  • (3) 8-32 x 1/2" Pan Head Machine Screws
  • (3) #10 Flat Washers
  • (3) #8-32 x 3/16" Button Head Screws
  • (4) 1.5" Dovetail Hardware Track Screws
  • (4) 10-32 Thumb Screws
  • (1) 360 Sled Project Plans

SKU: DV-360ZP750B1
