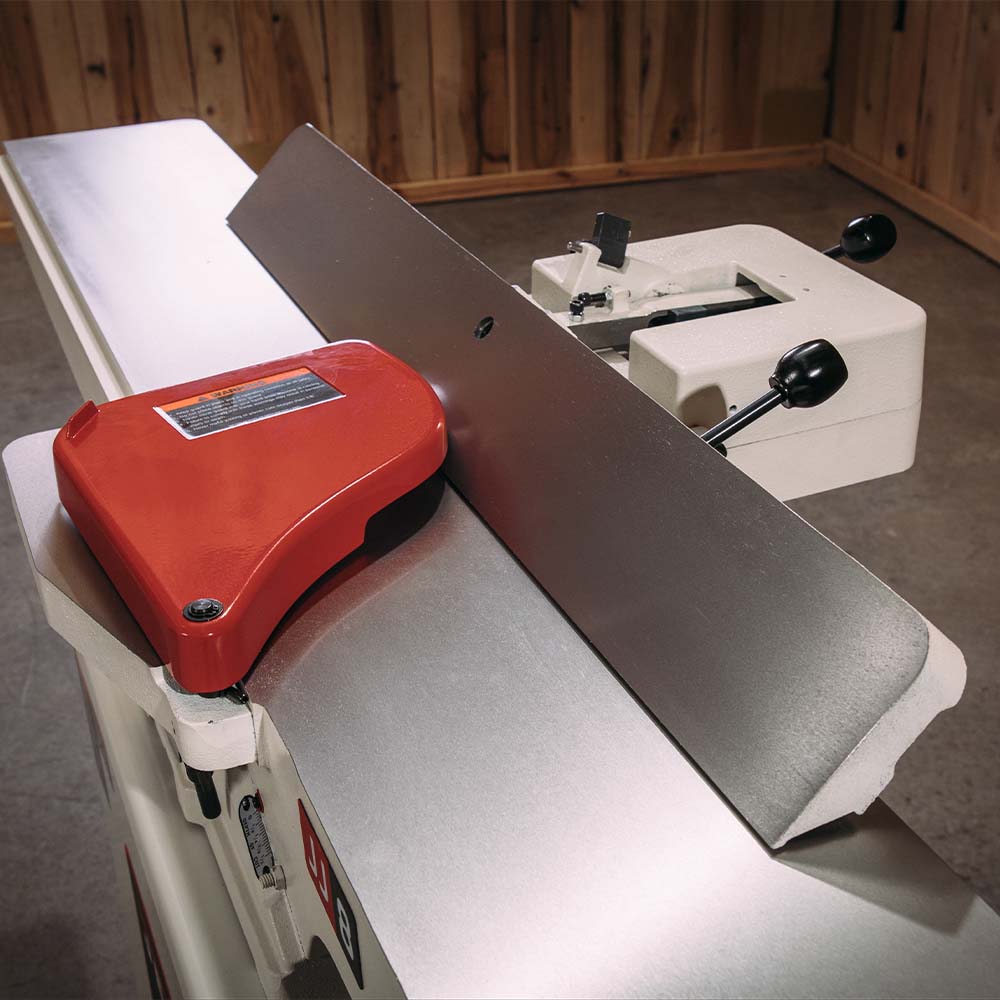

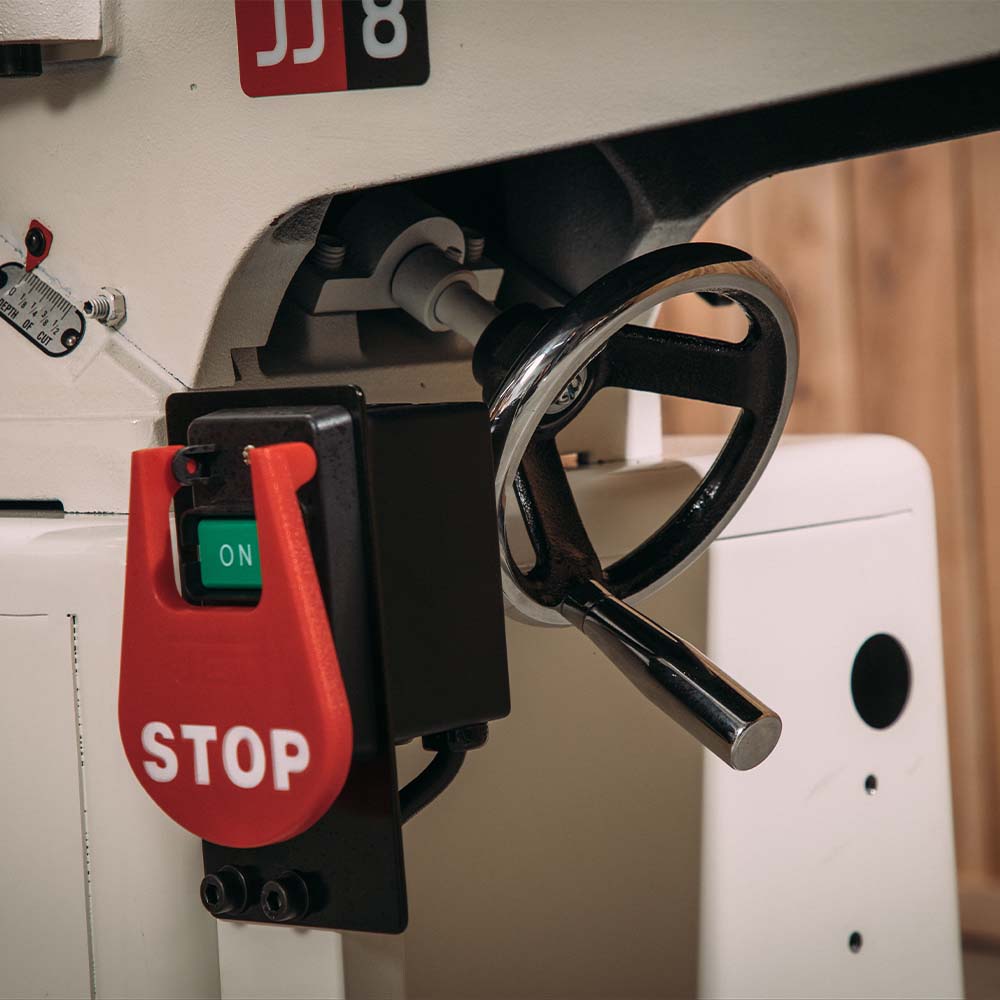

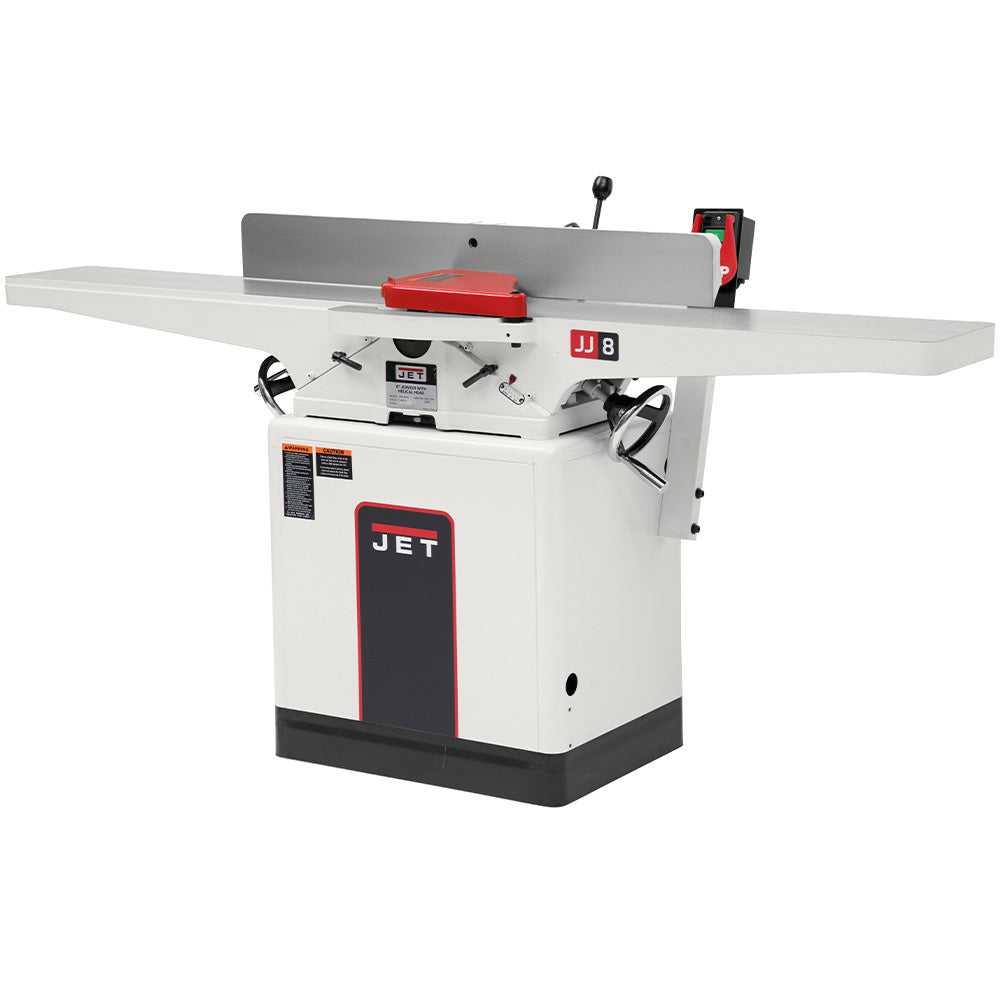

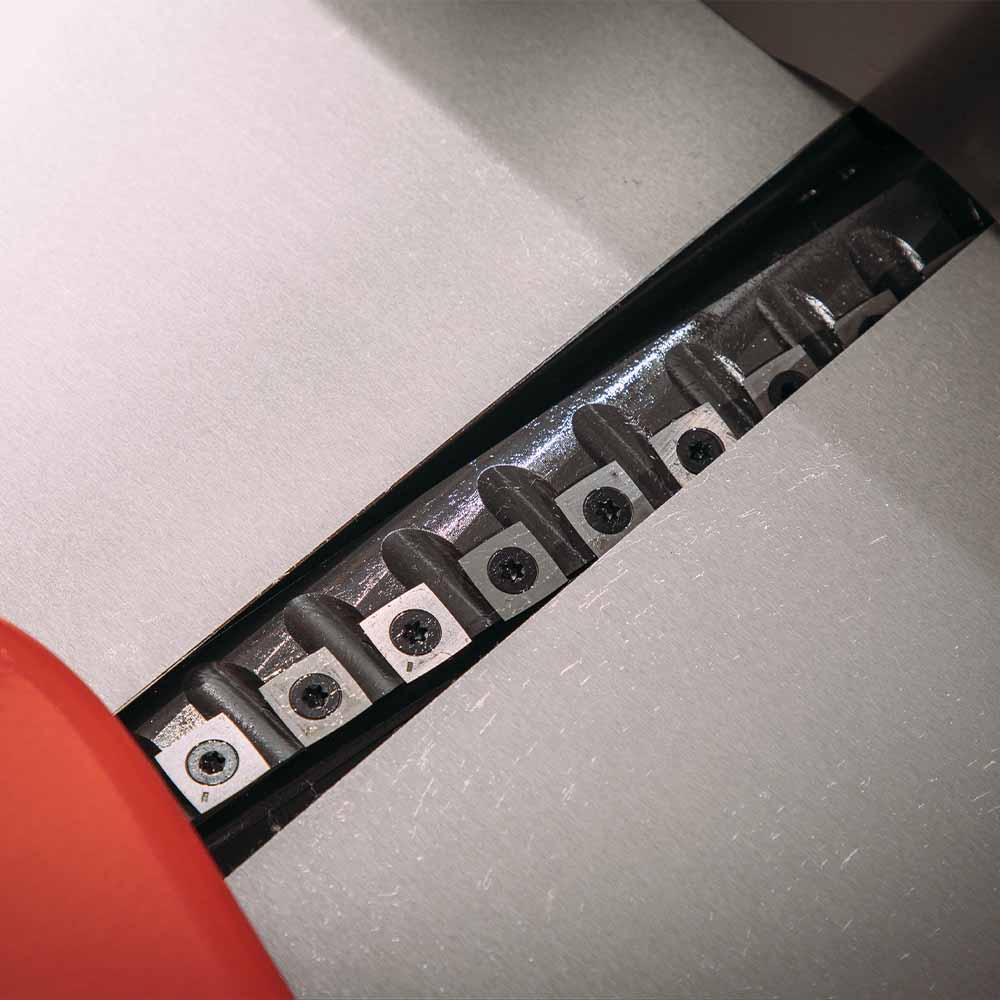

It’s time to skip the hand tools and graduate to the JET JWJ-8HH 8” long bed jointer. This beast boasts a helical insert cutterhead with staggered carbide inserts, yet its 2HP motor runs quietly and smoothly. Its front-mounted table adjustment handwheels make quick, easy and accurate corrections. The two-way tilting fence with positive stops at 45° and 90° makes bevel operations smooth. Extra-long heavy-duty cast iron infeed and outfeed tables with precision-machined finish allow jointing of longer boards without tipping. Best of all, it comes by JET's industry-leading 5-year warranty.
| NUMBER OF KNIVES |
36 |
| HELICAL KNIFE SIZE (L X W X T) (IN.) |
15 X 15 X 2.5 |
|
|
|
| CUTTERHEAD SPEED (RPM) |
5500 |
| CUTTING CAPACITY (W X D) (IN.) |
8 X 1/2 |
| TABLE SIZE (L X W) (IN.) |
72 X 9 |
| TABLE HEIGHT FROM FLOOR (IN.) |
31-1/4 |
|
|
| RABBETING CAPACITY (IN.) |
N/A |
|
| FENCE SIZE (L X H) (IN.) |
38-1/2 X 4-3/4 |
| FENCE TILT (DEG.) |
45 L, 45 R |
| FENCE POSITIVE STOPS (DEG.) |
45 L, 90, 45 R |

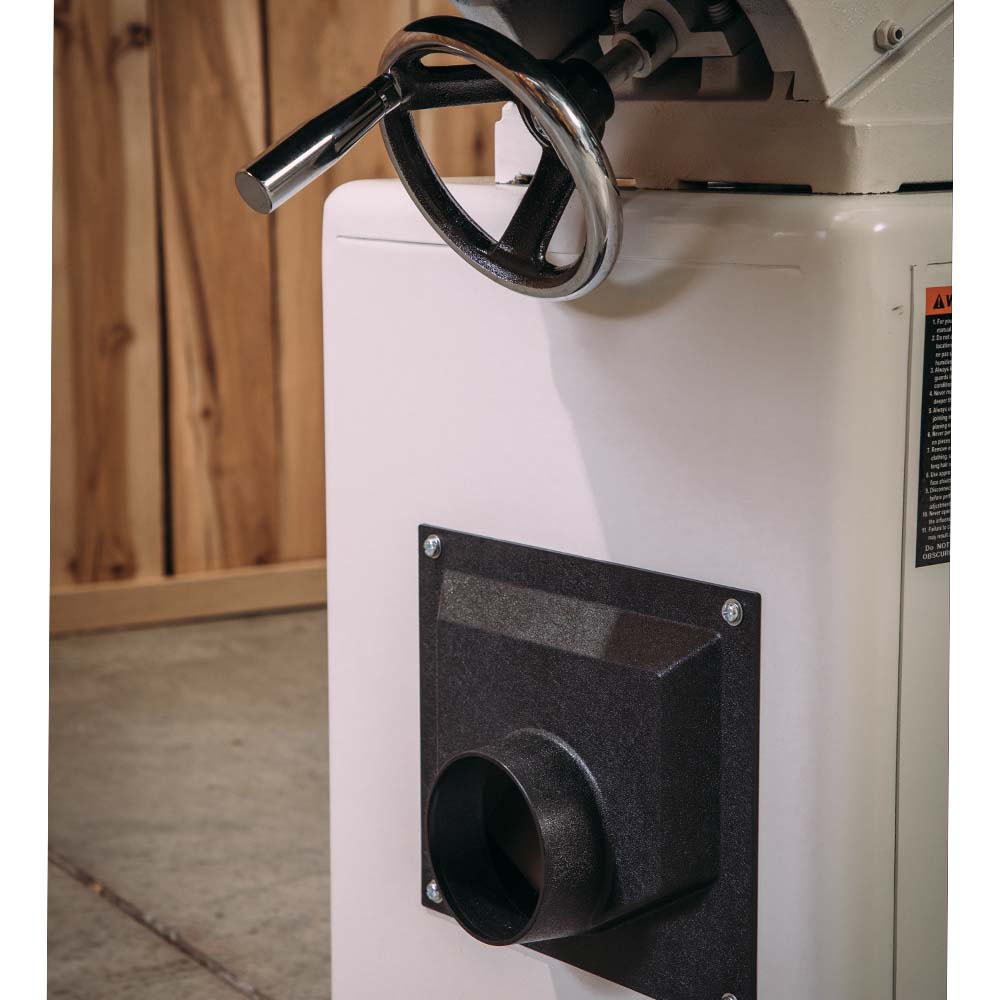

| DUST COLLECTION MINIMUM CFM REQUIRED (CFM) |
350 |
| DUST PORT OUTSIDE DIAMETER (IN.) |
4 |
| MOTOR POWER (HP) |
2 |
| MOTOR VOLTAGE (V) |
230 |
|
| PREWIRED VOLTAGE (V) |
230 |
| MOTOR PHASE (PH) |
1 |
|
| MOTOR AMPS |
12 |
| RECOMMENDED CIRCUIT SIZE (AMPS.) |
20 |
