JET JWP-208HH-1 20" Helical Head Planer
JET JWP-208HH-1 20" Helical Head Planer
JET JWP-208HH-1 20" Helical Head Planer
Click image to open expanded view
JET JWP-208HH-1 20" Helical Head Planer
JET JWP-208HH-1 20" Helical Head Planer
JET JWP-208HH-1 20" Helical Head Planer

JET JWP-208HH-1 20" Helical Head Planer

$ 4,319.99
$ 4,799.99

Have questions? Give us a call at 260-637-0054.

The JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments.

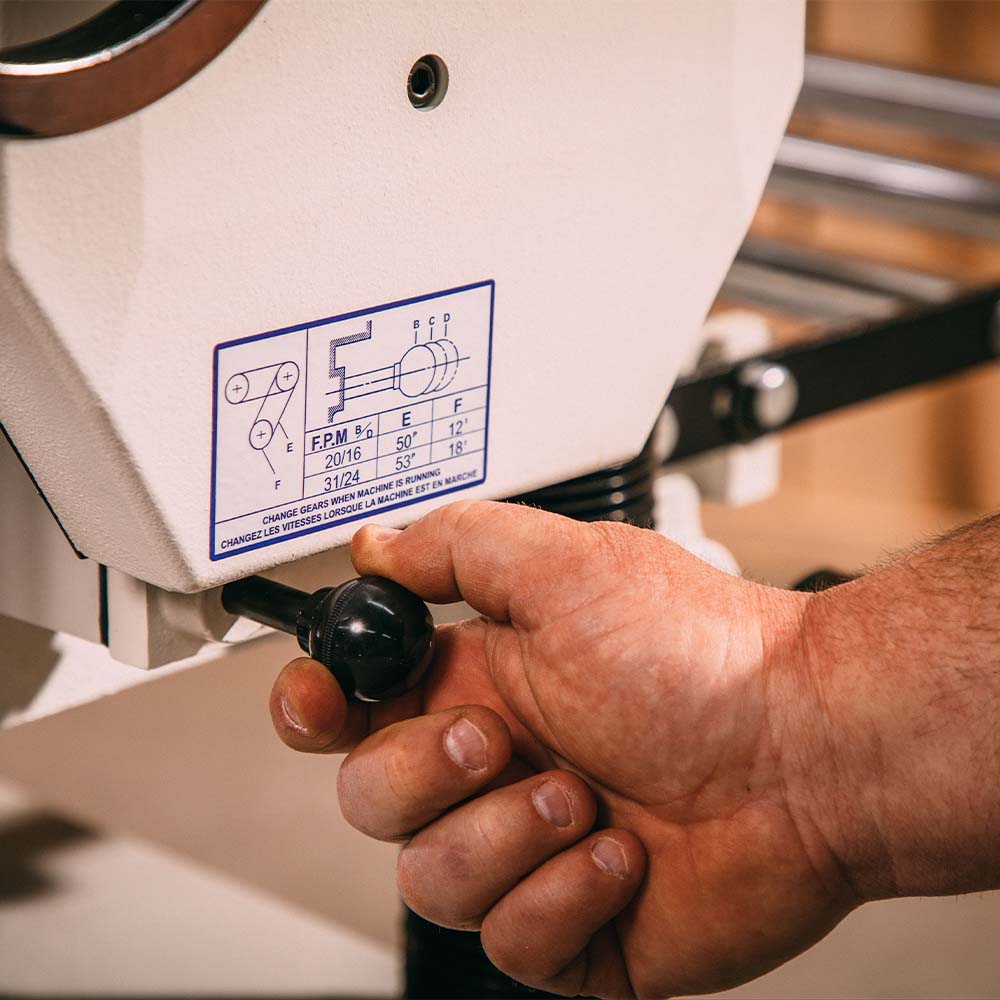

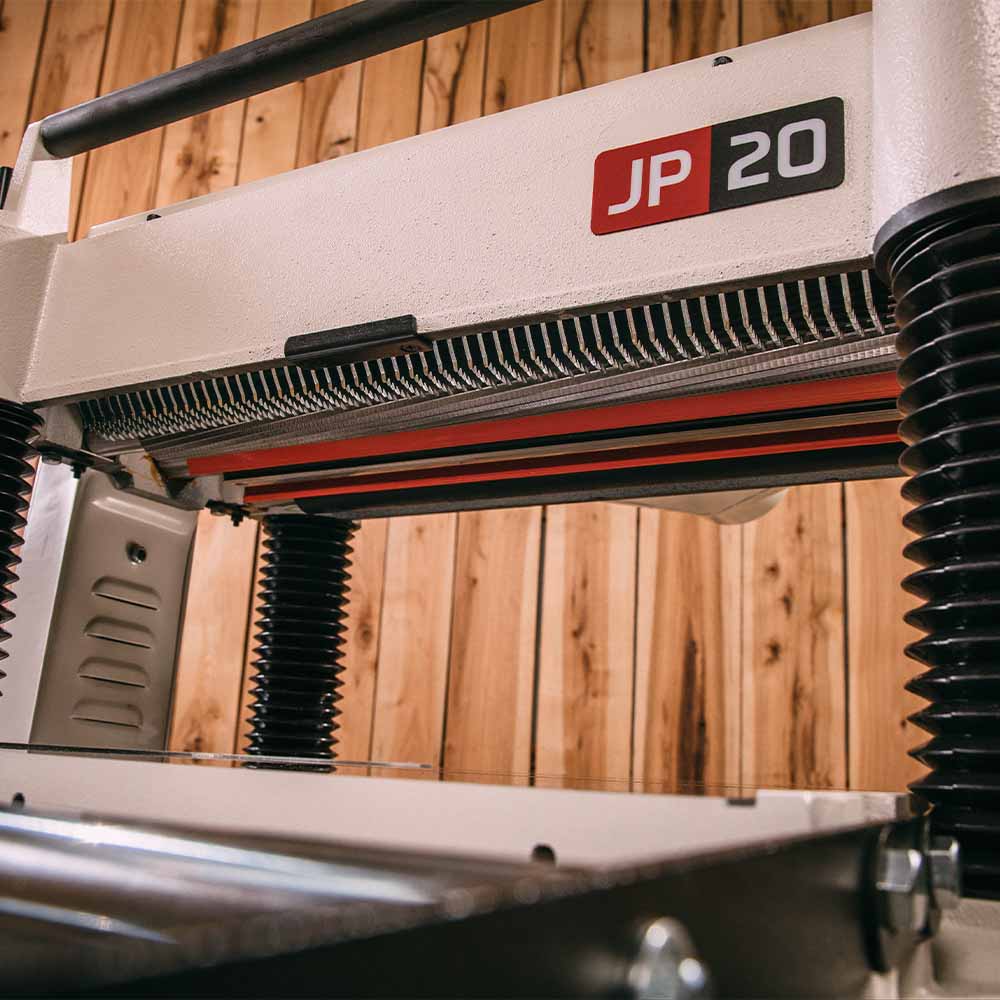

This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop.

Features
  • 1/16" Increment height scale lets you make the most precise adjustments for fine cuts
  • Cast iron infeed and outfeed tables come with the machine
  • Large handwheel with positive gear drive allows for quick and accurately table adjustments
  • Magnetic controls provide long life and reliability
  • One-piece welded steel base offers solid support and stability
  • Positive gear drive moves table quickly and accurately
Specs

Cutterhead Diameter: 3-3/16"
Cutterhead Speed (RPM): 5,000
Dust Collection Minimum CFM Required (CFM): 400
Dust Port Outside Diameter: 5"
Knife Size (L x W x T): 15" x 15" x 2.5"
Maximum Full Width Depth of Cut: 3/32"
Maximum Planing Thickness: 8"
Maximum Planing Width: 20"
Minimum Planing Length: 6-3/4"
Motor Amps: 27
Motor Power (HP): 5
Motor Voltage (V.): 230
Number of Speeds: 2
Prewired Voltage (V.): 230
Style (Type): Floor standing Model
Table Size (L x W): 25-3/4" x 20"

SKU: 708544
