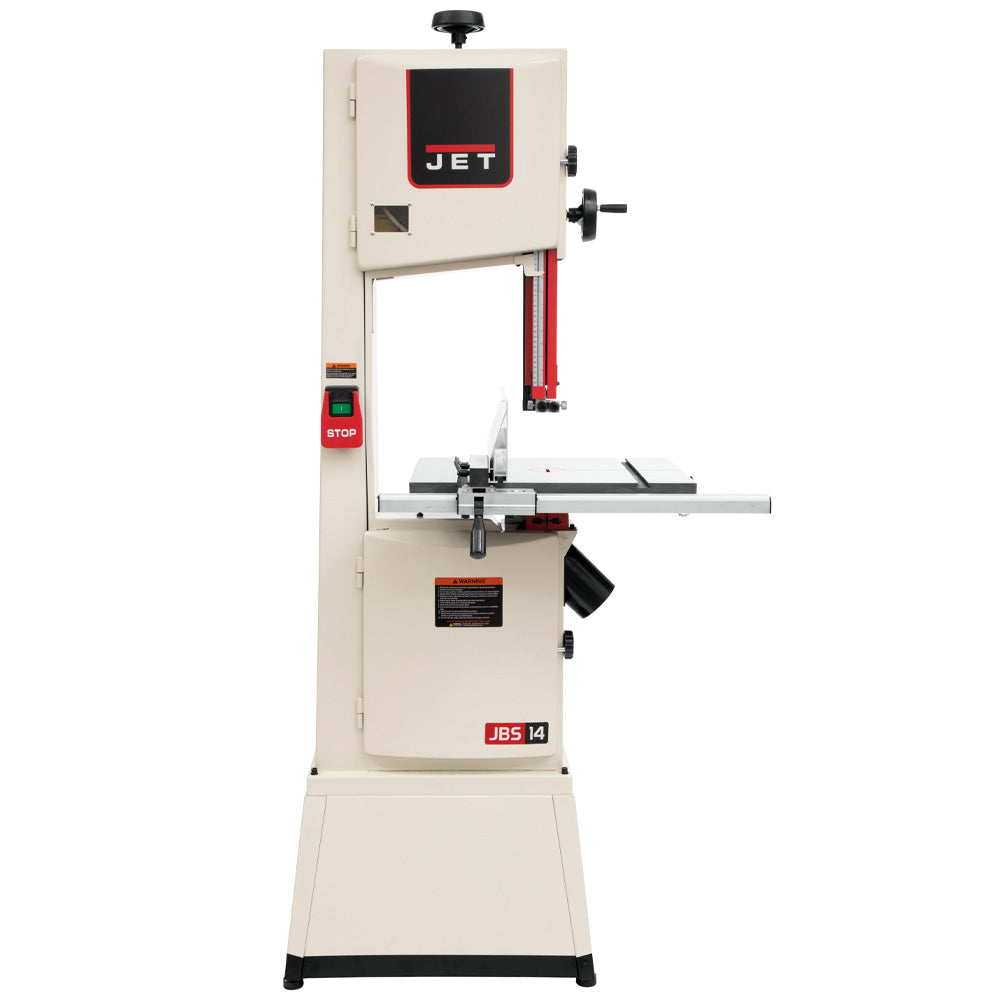

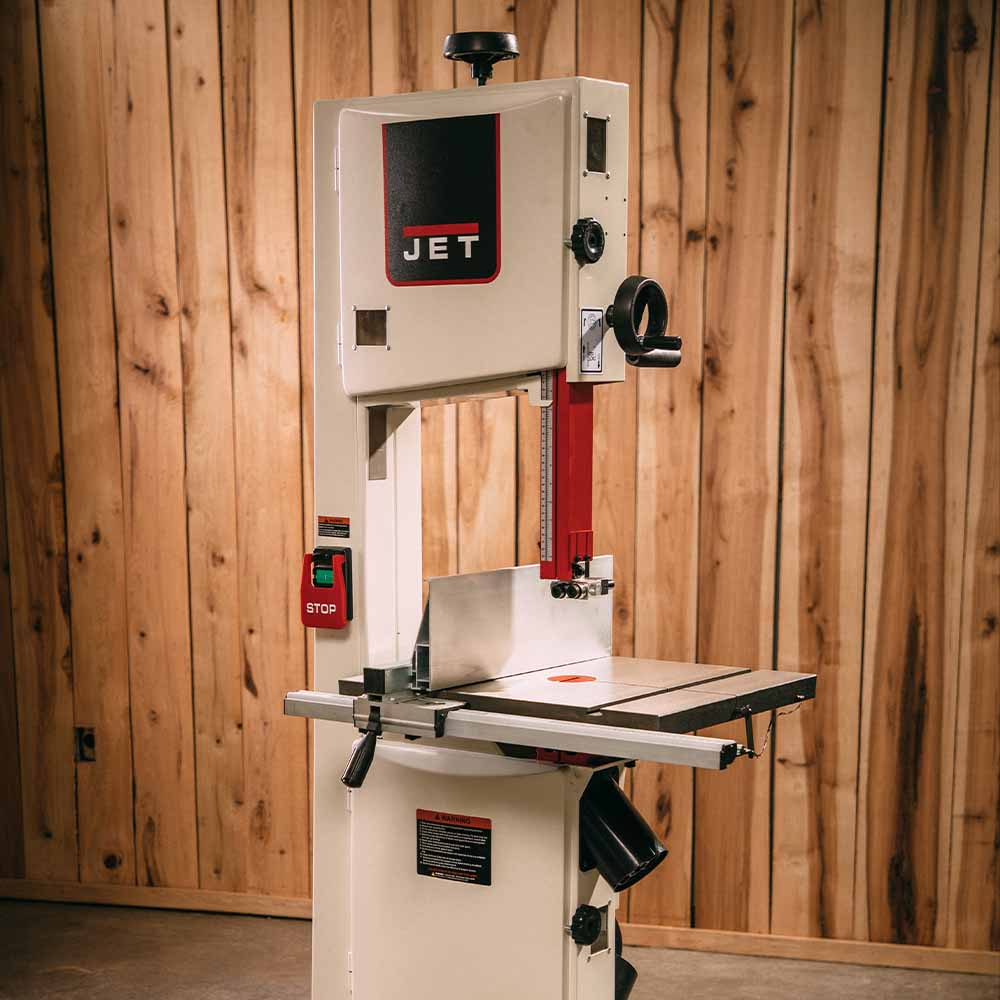

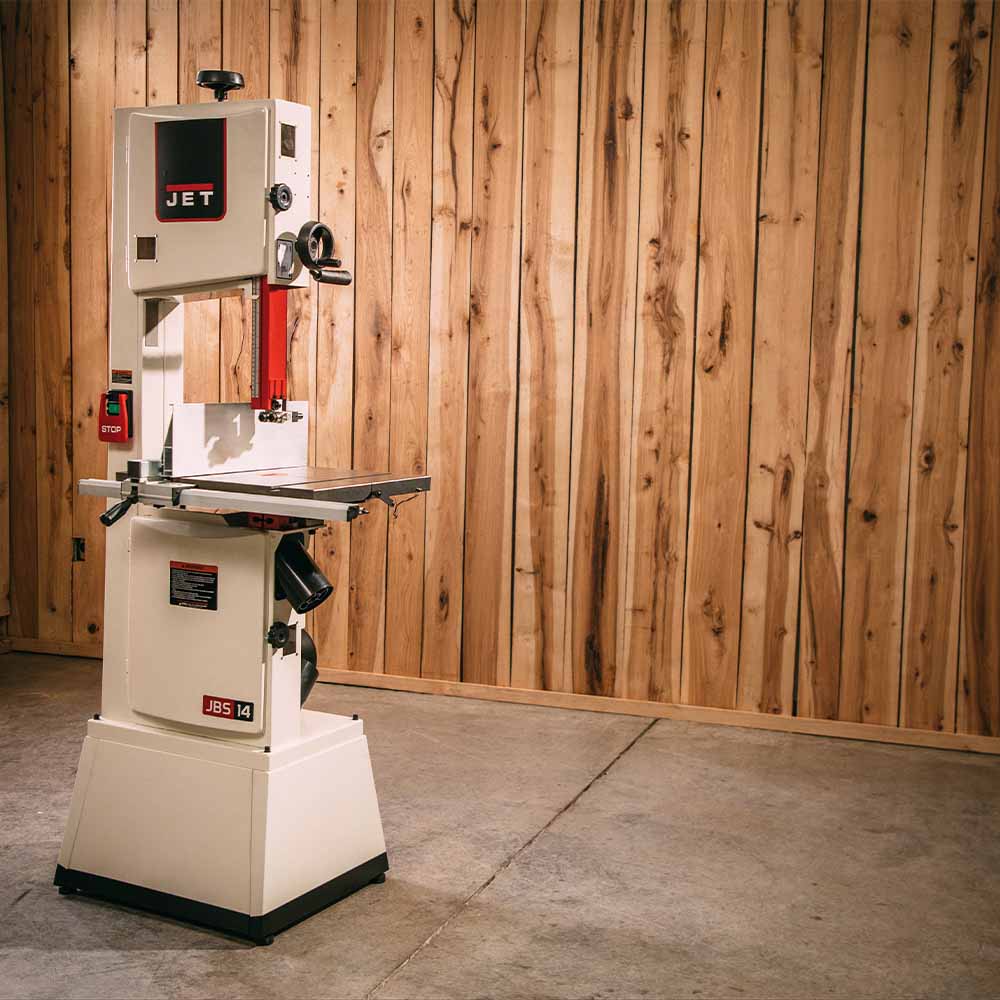

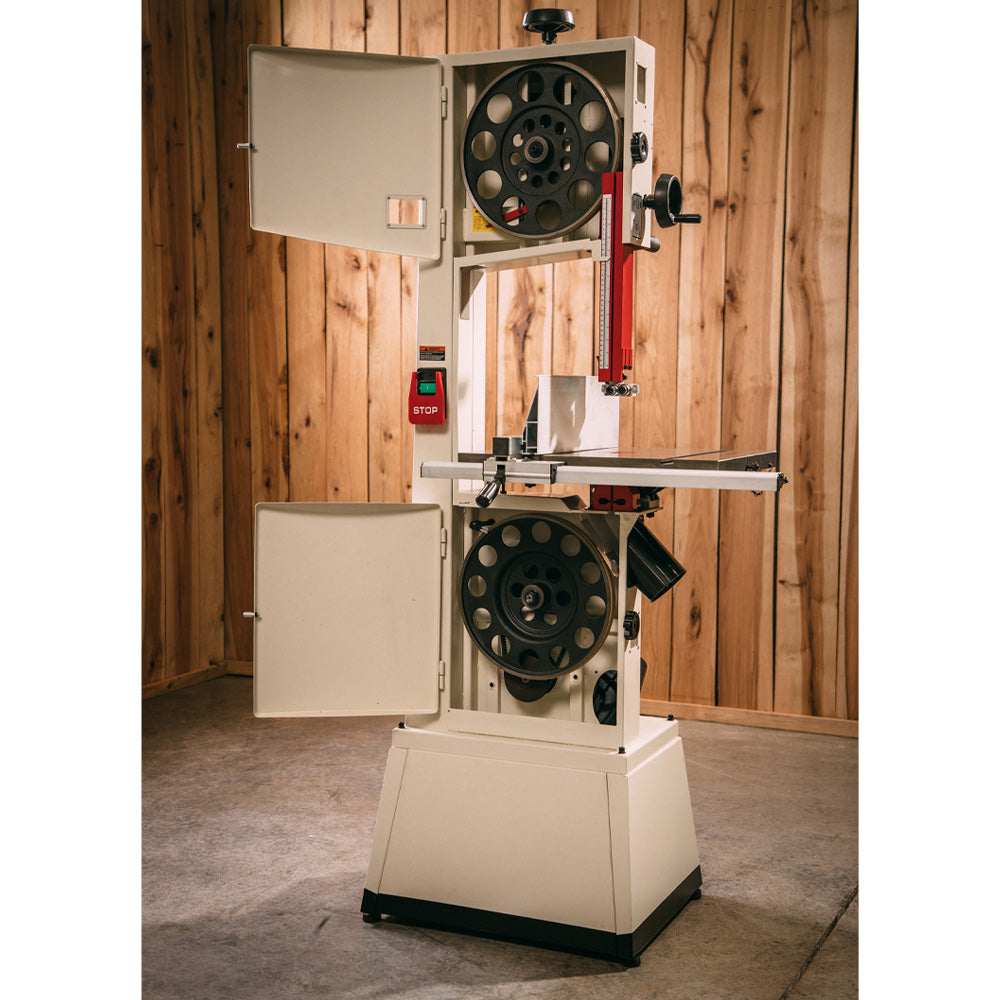

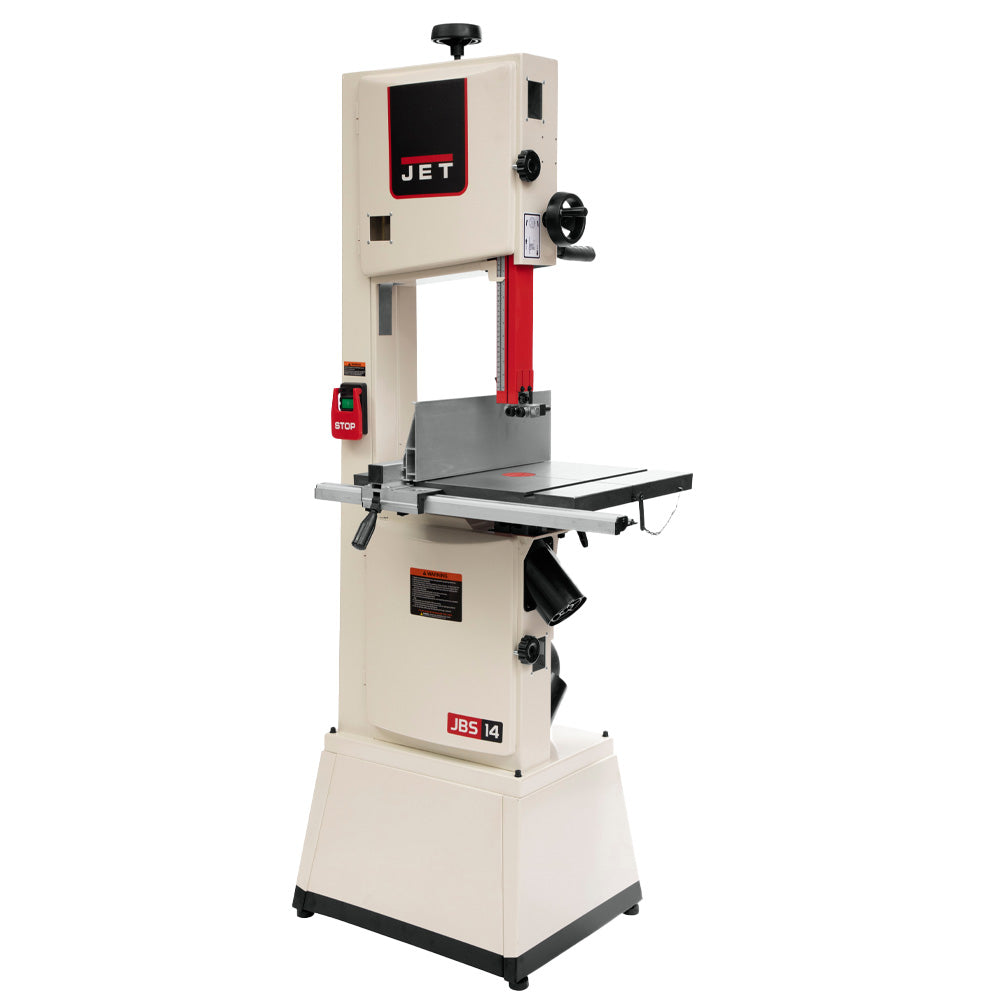

The JET 14" SFX Steel Frame Bandsaw redefines the line between functionality and affordability. The large, cast iron table features 360 sq. in. of work surface for greater work piece support when making deep cuts. The machined aluminum fence system features easily visible measurements for the most accurate cutting. This saw is equipped with JET’s easily adjustable tool-less blade guide system, making adjustments quick and simple.
The JET 14" bandsaw also features over 13" of Resaw capacity, and dual 4-inch dust ports for maximum dust collection efficiency. Heavy duty tubular steel welded construction with a total weight of over 300 lbs, robust stamped steel doors with welded steel pin hinges, and one piece heavy duty base, allows for stability and durability when sawing large work pieces. It provides the woodworker all the premium features of a higher end saw with superior performance to complete any project.
[TABS]
Features
Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
Over 13” resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels
Heavy duty tubular steel welded construction
Dual 4” dust ports for maximum dust collection efficiency
Independently adjustable, upper and lower ball bearing blade guides
Convenient 115V AC outlet location for optional accessories

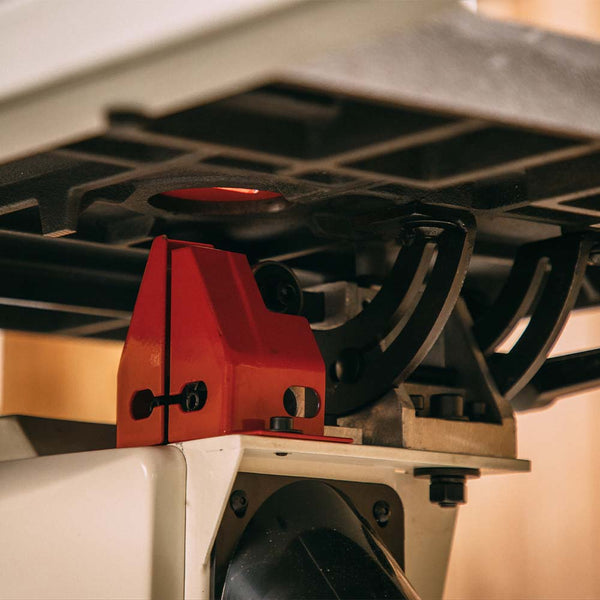

Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table
Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
Robust stamped steel doors with welded steel pin hinges for greater product durability
Blade tensioning wheel located on top of the saw for better work piece clearance when cutting
Oversized lower bearing bolt pattern for maximum strength and rigidity
Heavy duty base for maximum stability when sawing large work pieces
Specs
Band Saw Size/Wheel Diameter (In.): 14 Cutting Capacity Width (In.): 13-1/2 Cutting Capacity Height (In.): 13 Blade Length (In.): 116 Blade Speed (SFPM): 3000 Table Size (L x W) (In.): 21 x 17 Maximum Saw Blade Width (In.): 3/4 Minimum Saw Blade Width (In.): 1/8 Table Tilt (Deg.): 45 Right Table Height from Floor (In.): 40 Table T-Slot (In.): 3/4 (x2) Dust Collection Minimum CFM Required (CFM): 350 Dust Port Outside Diameter (In.): 2 x 4 Motor Power (HP): 1.75 Stand Type: Closed Motor Phase (PH): 1 Motor Voltage (V): 115/230 Prewired Voltage (V): 115 Motor (amps): 15/7.5 Recommended Circuit Size (Amps.): 20
