- Thin Kerf Double Sided Laminate/Melamine
Thin Kerf Double Sided Laminate/Melamine
- $ 64.95
Have questions? Give us a call at 260-637-0054.
Laminates and melamines
The LU96R is a thin kerf blade that is designed to give long life and excellent finish on the top and bottom of laminates, melamine & veneered plywood. The laser-cut anti-vibration design yields the plate acoustically dead. This reduces the sideways movement of the cutting edge to prevent chipping in manmade materials such as laminates. This dramatically extends cutting life and finish. No scoring blades needed with this blade!
- Premium TiCo™ HI-Density Carbide Laminate Blend for Maximum Performance
- Triple Chip Grind (TCG) Tooth Design with a positive hook angle for long life in production applications
- Thin Kerf requires less power and allows for faster feed rate
- Perma-Shield™ Non-Stick Coating reduces blade drag, protects the blade from corrosion and pitch build-up.
Ideal For: Double-sided laminates, melamine & veneered plywood. Depth of cut (1/4" min to 1-5/8" max)
Machine Use: Track Saw,Miter Saw,Table Saw,Radial Arm Saw,Panel Saw
Materials: Laminates, Chip Board, Melamine, Veneered Plywood and Other Manmade Materials
Item Number: LU96R006M20
160mm x 48T mm Thin Kerf Double Sided Laminate/Melamine
-
Diameter: 160mm
-
Teeth: 48
-
Grind: TCG
-
Arbor: 20mm
-
Hook Angle: -3°
-
Kerf: .087"
-
Plate: .063"

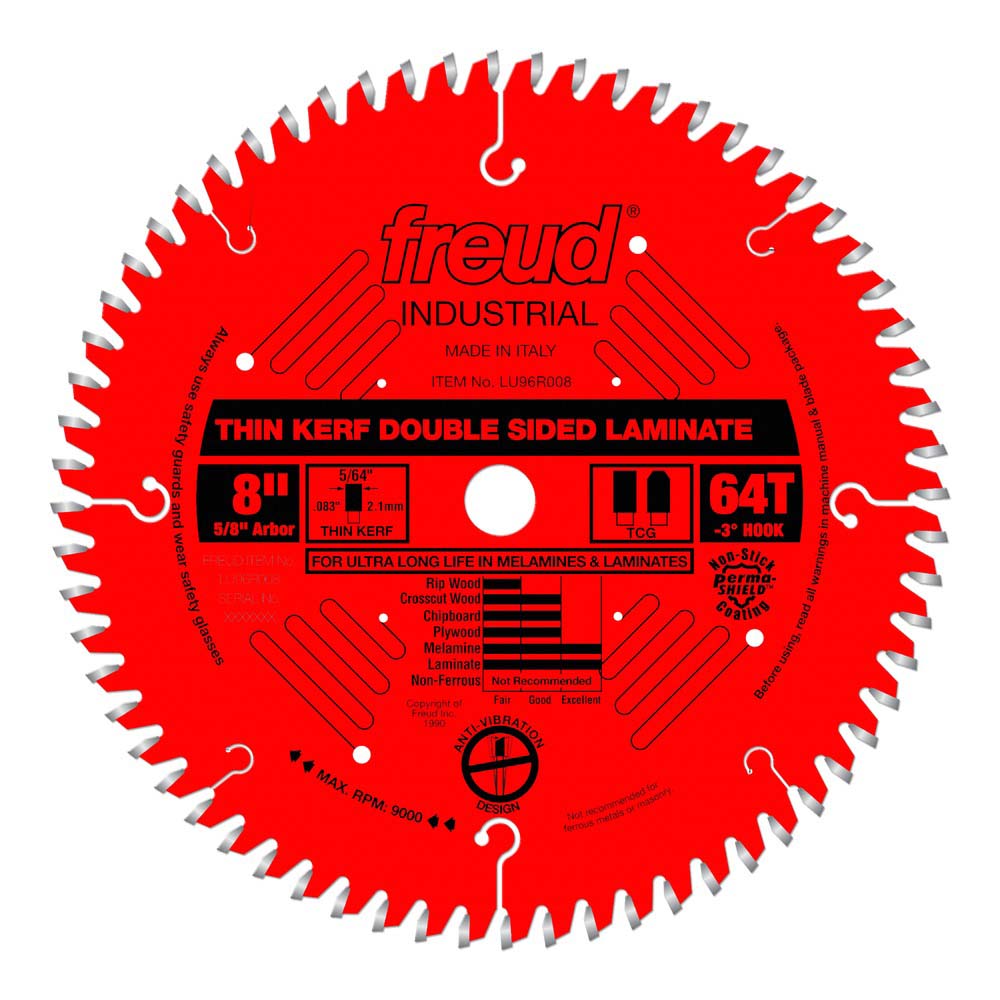

Item Number: LU96R008
8" x 64T Thin Kerf Double Sided Laminate/Melamine
-
Diameter: 8"
-
Teeth: 64
-
Grind: TCG
-
Arbor: 5/8"
-
Hook Angle: -3°
-
Kerf: .083"
-
Plate: .063"
Item Number: LU96R010
10" x 80T Thin Kerf Double Sided Laminate/Melamine
-
Diameter: 10"
-
Teeth: 80
-
Grind: TCG
-
Arbor: 5/8"
-
Hook Angle: -3°
-
Kerf: .091"
-
Plate: .071"
Item Number: LU96R012
12" x 96T Thin Kerf Double Sided Laminate/Melamine
-
Diameter: 12"
-
Teeth: 96
-
Grind: TCG
-
Arbor: 1"
-
Hook Angle: -3°
-
Kerf: .091"
-
Plate: .071"
