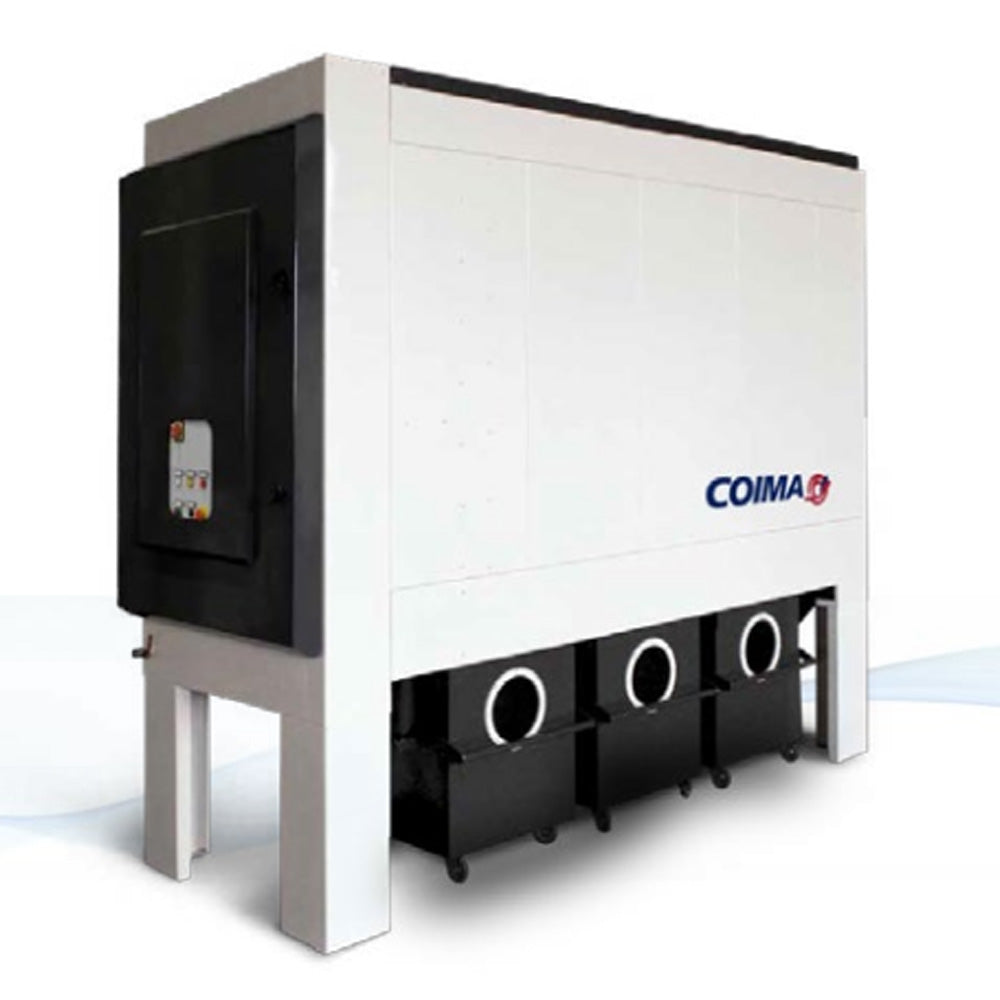

The F-Series Compact Enclosed Dust Collectors are designed for efficient filtration in smaller spaces than a traditional baghouse or cyclone collectors. Their compact profile makes these units suitable for use inside workshops and factory production areas. Thanks to COIMA’s advanced engineering they are reliable, quiet, and easy to use.
[TABS]
Features
The F-Series dust collector is suitable for the extraction of various dust and chips, and feature durable construction with 14 GA galvanized steel sheet panels over a 12 GA frame. The needle felt bag (F250 & F320) or cartridge (F380 & F450) filters are automatically cleaned by a programmable pulse-jet cleaning system.
The F-Series also includes an emergency flooding system for interconnection with spark detection and extinguishment systems (ideal for NFPA compliance). The high efficiency backward inclined centrifugal fan includes noise reduction insulation and is located inside the dust collector housing. This configuration allows for higher negative pressures as compared to similar collection systems.
The dust and chips are collected in faired metal bins which have glass sight windows for checking dust levels. These bins feature casters and a tow handle which doubles as the locking mechanism when attached to the collector.
Specs
F250 - Airflow(CFM): 2650 Static Pressure: 11" Fan: 7.5HP Filters: 40 Filter Area: 215 sqft Footprint: 103″x46″ x96″ Bins: (2) 80gal Filter Size: Ø5”/ L51” Filter Type: Sleeve Noise(DBA): 75
F320 - Airflow(CFM): 3650 Static Pressure: 11" Fan: 10HP Filters: 60 Filter Area: 320 sqft Footprint: 142″x46″ x96″ Bins: (2) 80gal Filter Size: Ø5”/ L51” Filter Type: Sleeve Noise(DBA): 75
F380 - Airflow(CFM): 4710 Static Pressure: 14.8" Fan: 15HP Filters: 28 Filter Area: 1355 sqft Footprint: 142″x46″ x96″ Bins: (3) 80gal Filter Size: Ø6”/ L47” Filter Type: Cartridge Noise(DBA): 80
F450 - Airflow(CFM): 6950 Static Pressure: 11" Fan: 20HP Filters: 36 Filter Area: 1745 sqft Footprint: 142″x46″ x96″ Bins: (3) 80gal Filter Size: Ø6”/ L47” Filter Type: Cartridge Noise(DBA): 80
