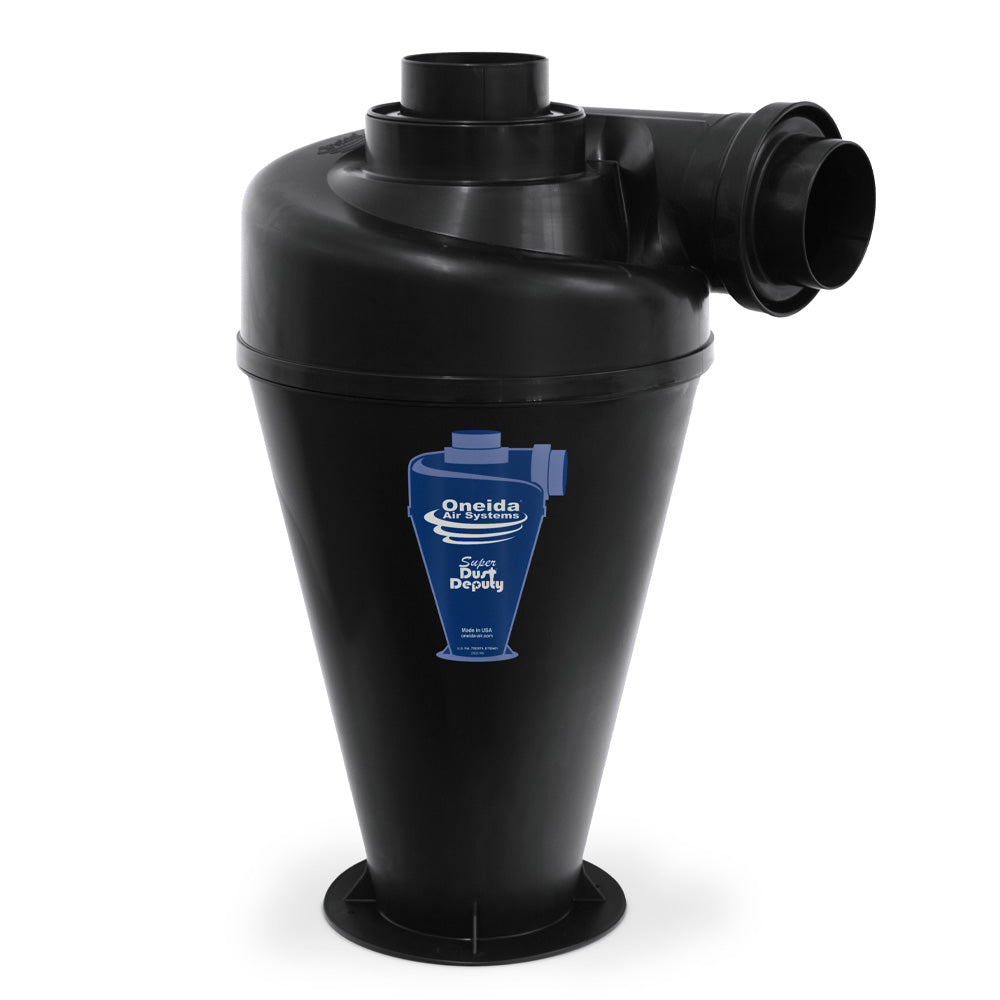

Oneida Super Dust Deputy 4/5 Cyclone

$ 179.95

Have questions? Give us a call at 260-637-0054.

For use with 1-3HP single stage dust collectors, this DIY cyclone eliminates filter clogging, suction loss, and messy dust bags by removing over 99% of fine dust and debris from the airstream, containing it safely in a customer supplied container. Ready out of the box to connect to your dust collector with either a 4” or 6” hose, and to your tools with either a 4” or 5” hose.

Single-stage dust collectors are great for small, hobbyist shops but they come with a cost - fine dust quickly clogs the filter, reducing suction and leaving dust at your tools! Worse still, there's nothing to protect your dust collector from being damaged should you accidentally suck up large wood chunks, bolts, etc.

Oneida Air Systems' patented Super Dust Deputy Cyclone separates over 99% of dust and debris from the incoming airstream, virtually eliminating filter clogging, suction loss, and significantly prolonging the lifespan of your filter.

  • Prevents both fine dust and large debris from reaching your dust collector
  • Prolongs the lifespan of the filter while reducing the need for cleanings
  • 4/5 Cyclone with included adapters offers 4" or 5" OD inlet (connects to your tools) and 4" or 6" OD outlet (connects to your collector)
  • Ultra-high efficiency with integrated air ramp and neutral-vane inlet
  • Lightweight and compact design for fast and simple installations
  • Compatible with almost any 0.5-3HP dust collector
  • Static dissipative construction safely conveys static charge build-up to the electrical ground, preventing harmful discharges

Horsepower rating: 0.5HP-3HP
Airflow rating: Minimum 350 CFM
Inlet size w/ adapters: 5” O.D., 4-3/4” I.D.
Inlet size w/o adapters: 4" O.D., 3-3/4" I.D.
Outlet size w/ adapters: 6” O.D., 5-3/4” I.D.
Outlet size w/o adapters: 4" O.D., 3-3/4" I.D.
Width: 14-1/4"
Depth: 13-1/4"
Height: 23"


SKU: AXD002045
