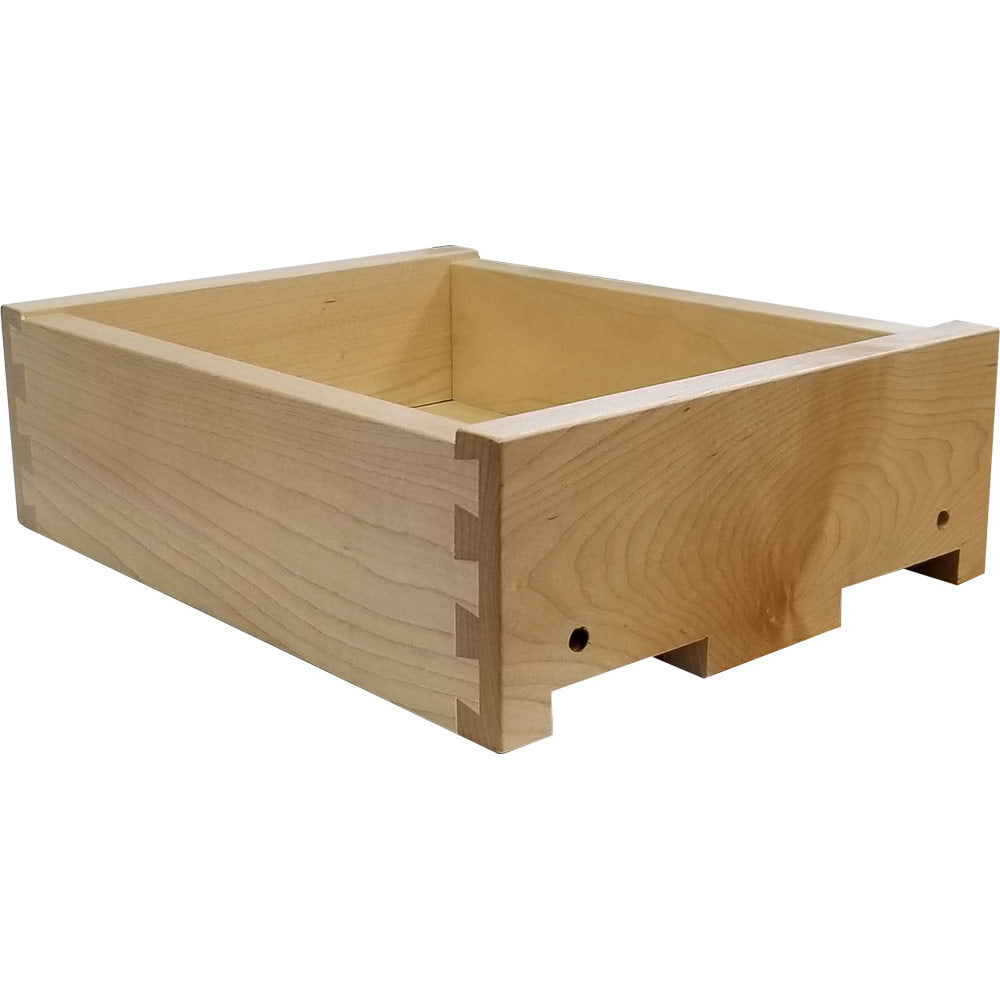

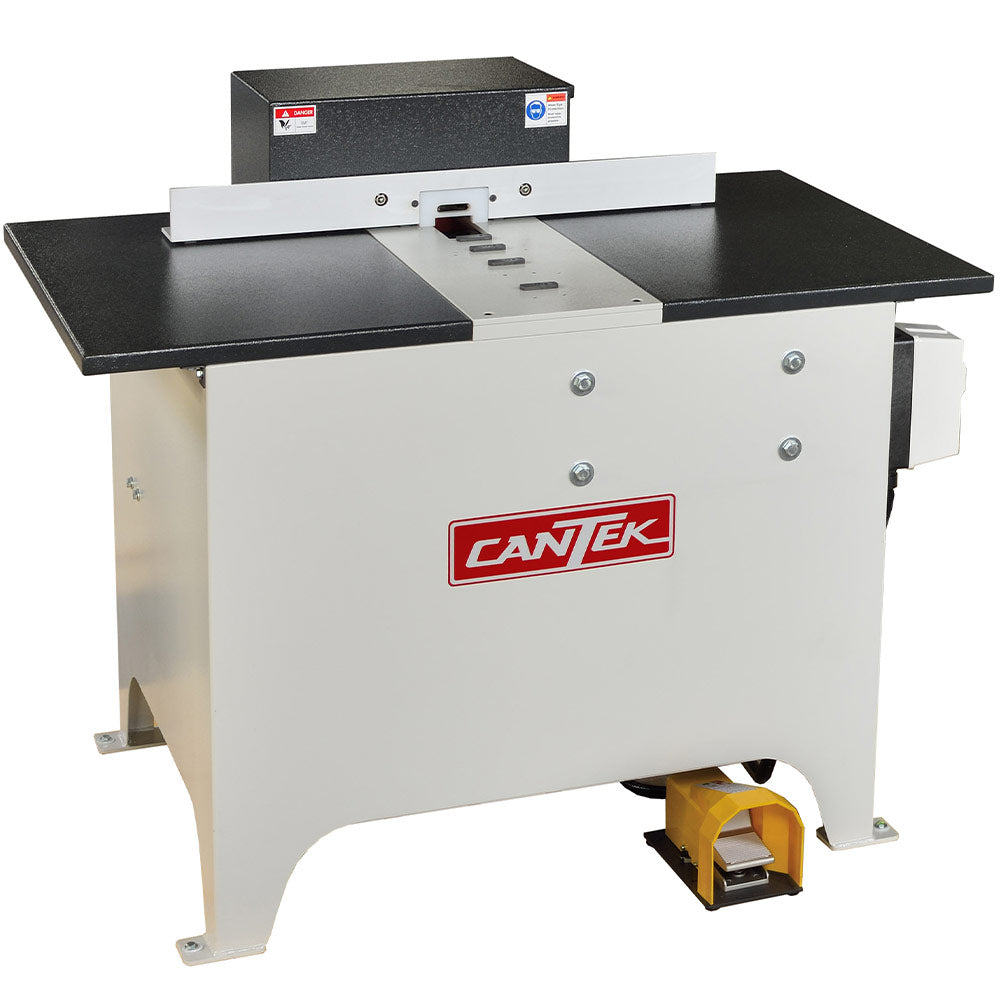

The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.
Our Easy Purchase Guarantee:
No hassle pricing — always sold at the manufacturers lowest price!
No tax outside of Indiana or Washington State
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email firstname.lastname@example.org
Note: Cannot ship to Pennsylvania or California
High production capacity of up to 220 drawers machined per hour.
57mm (2 ¼”) wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.
Self-indexing drill unit for left or right drawer notching.
Convenient foot pedal operation lets operator efficiently load and unload drawers for higher output.
Pneumatic cutter & drill stroke by foot pedal operation.
Cutter stroke and drill speed are adjustable for optimum finish results
Drill will automatically position for both left and right drawer notches by activating a switch in the fence
Machine will not cycle unless a drawer is up against the switch for safe operation

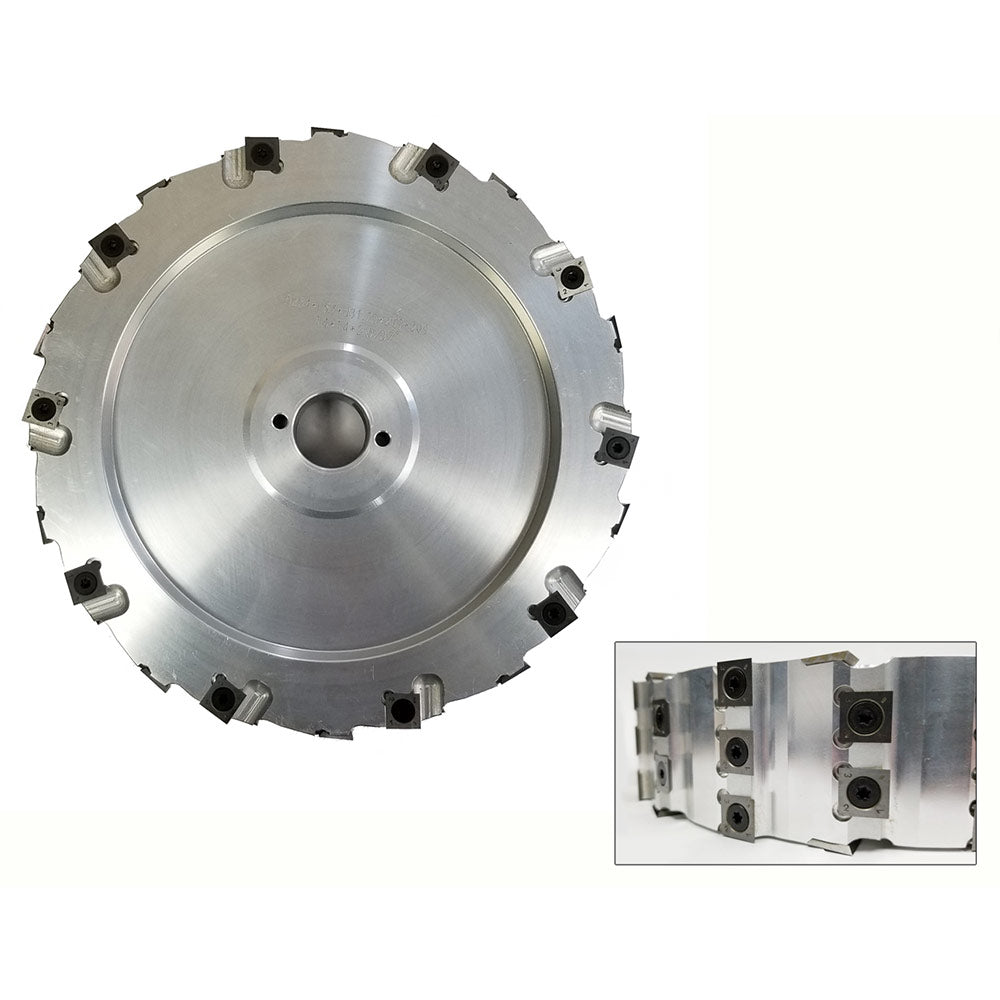

Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
2-1/4” (57mm) wide cutter allows for a wide range of undermount slides
Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
Capable of notching up to 220 drawer boxes (both left and right) per hour.
Main cutter motor: 3 HP Notch dimensions: 2-1/4" (57mm) x 0.5" high Cutter diameter: 10" Drill diameter: 1/4" Table size: 49" x 22" Table height from floor: 32" Dust port: 4" (670 CFM requirement) Compressed air required: 90 – 100 PSI Machine dimensions: 48” x 37-3/4" x 39-3/4" Machine weight: 506 lbs.
