SCM L'invincibile S 7 - Tersa 24" Planer

$ 26,275

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available January 2024

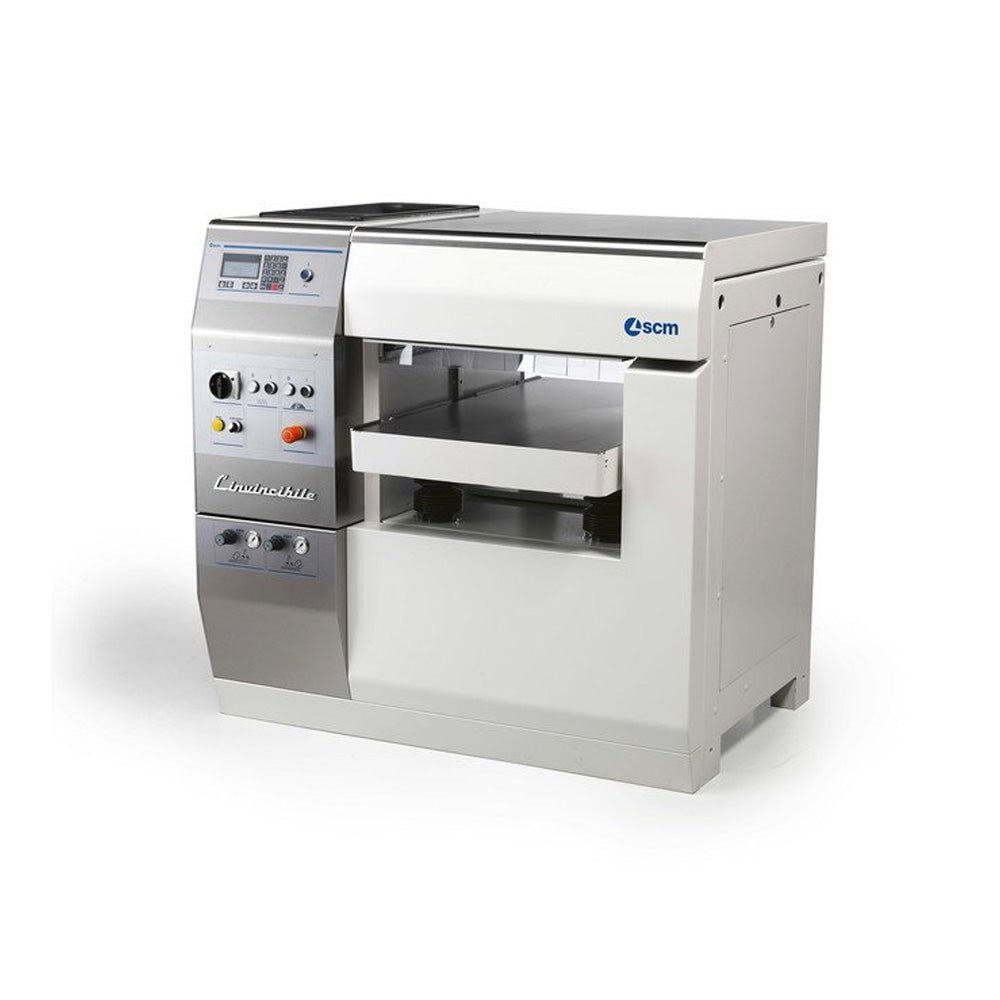

The L’invincibile S 7 is a heavy duty, 24” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers.

Monoblock technology is used in the design and fabrication of this base. The solid, welded base undergoes a treatment called normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point.

The electronic positioner for part thickness ensures maximum precision and reliability for workpiece thickness set-up. Automated movement in jog, semi-auto, and programmed mode allow easy, quick and accurate positioning.

A variable feed system controlled by an electronic inverter is used to perfectly match feed speed with the amount of removal. The inverter additionally monitors the cutting load and automatically reduces feed speed as needed during heavier cuts.

Variable hold down pressure can be applied to the feed system to compensate for workpiece weight, removal, or to minimize markings from the infeed rollers. The first infeed roller steel sectional (also available in rubber).

Used when planing raw, uneven lumber, the work table support rollers allow irregular material to be planed that would not feed on a standard table. When the material has been planed flat on one side, the rollers can be lowered to allow a clean pass on the other side.

The SCM feed system includes a powered sectional steel infeed roller and powered rubber outfeed rollers. This combination helps ensure feeding of parts with variations up to 6mm in thickness. Anti-kickback fingers and a sectional chip breaker are also part of the feed section and provide both safety and a quality finish.

SCM “T” models include the quick change knife heads by "Tersa." This cutterhead eliminates the necessity of gauging the knives each time to ensure proper setting position. The Tersa knives automatically reference into position when the head is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are two-sided, they can be flipped over, reinserted, and used again.

  • 24" Helicoidal Planer with TERSA Head
  • Tersa 4 knife, insert cutterhead
  • Electric powered movement feed table raise and lower (2 speed)
  • Sectional Steel infeed and two rubber outfeed rollers
  • Electronic variable speed feed system
  • Powered bearing-assisted feed rollers
  • Electronic worktable positioner
  • Magnetic starter with overload protection
  • Table lifting by four high precision jack screws
  • Adjustable bed rollers in feed table
  • Course and fine thickness adjustment
  • Tool set
  • Dust hood
Motor: 15hp
Working Width: 24-3/4" (630 mm)
Working Height: 1/8" - 11-3/4" (3.5 - 300 mm)
Max. Depth of Cut: 5/16" (8 mm)
Min. Length of Stock: 10-1/4" (260 mm)
Cutterhead Diameter: 4-3/4" (120 mm)
RPM: 4,500
No. of Knives: 4
Knife Dimensions: 25-1/4" x 1-1/4" x 1/8" (640 mm x 35 mm x 3 mm)
Table Size: 24.75" x 39.4" (630 mm x 1,000 mm)
Feed Speeds: 16 - 62 FPM
Infeed Roller: Sectional Steel, Power Driven
Outfeed Roller: Rubber, Power Driven
Dust Hood Diameter: 6" (150 mm)
Electrical Requirements: 45 amps @ 230v
Dust Extraction: 980 CFM

    Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

    SKU: S7
