$ 9,500

Have questions? Give us a call at 260-637-0054.
VF filters are designed to allow for effective suction and filtration within a relatively small package! Their slim and compact design makes them ideal for any work environment. These filters work in negative pressure, ensuring the maximum suction and safety efficiency, together with a significant noise reduction, only allowed by the passage of clean air inside the fan unit chassis itself. The filtering element is composed of 100% antistatic polyester (standard) and ensures a filtration of residual dust up to 0.1 mg/m3.

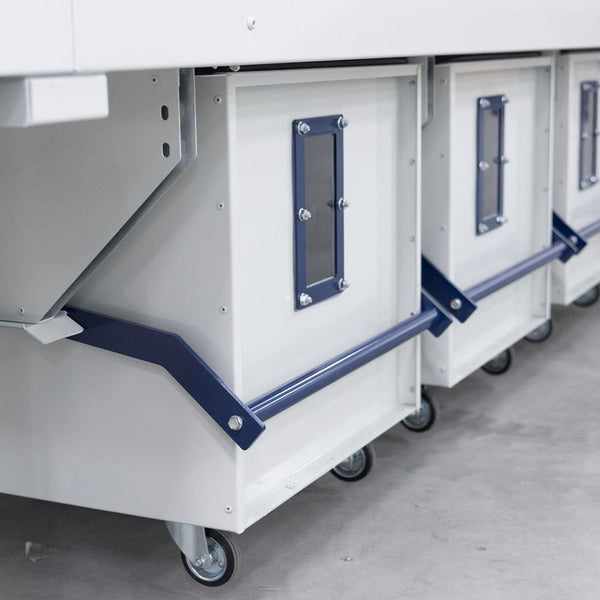

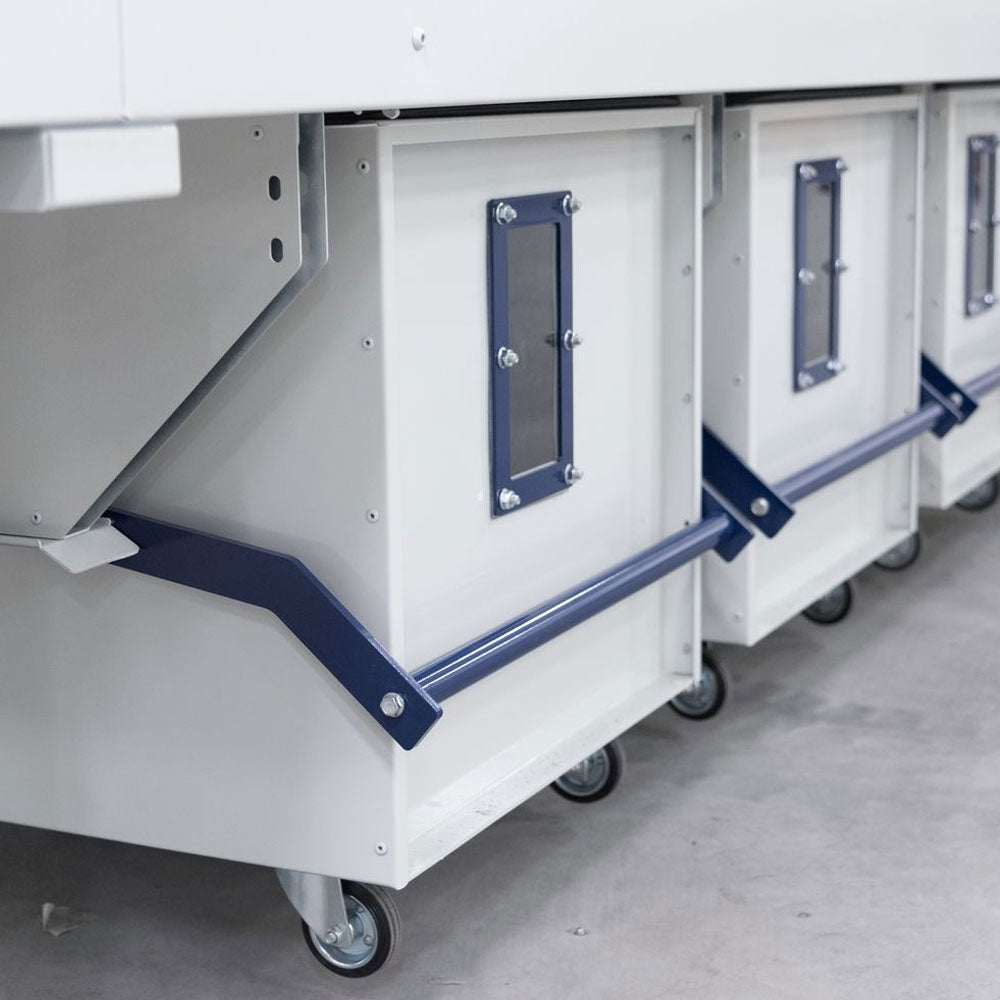

All VF 200 filters come with two dust collection bins that are very easy to maintain. Each container has wheels beneath the bin and easily removable dust bags to assist with disposal operations. The internal sub frame of the bin keeps the bag in position with no risk of it being sucked up by the fan.

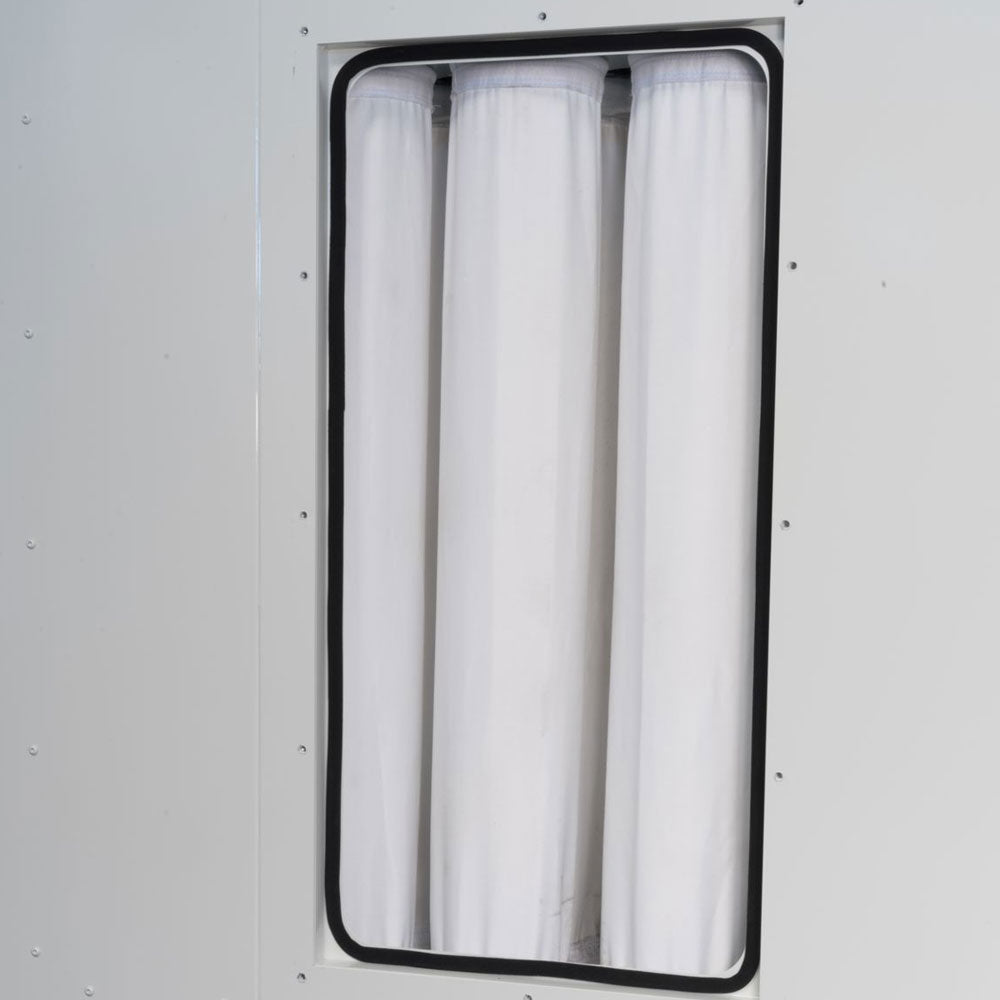

The VF 200 uses sleeve filters in order to improve the filtration capacity and cleaning. Again, these filters come standard with a vibrating cleaning device. The cleaning process takes place with a delayed shaking system which is enabled after all internal pressure is reduced and machine aspiration is complete. At that time the interface allows the operator to utilize the machine mechanical vibration (shaking) system.

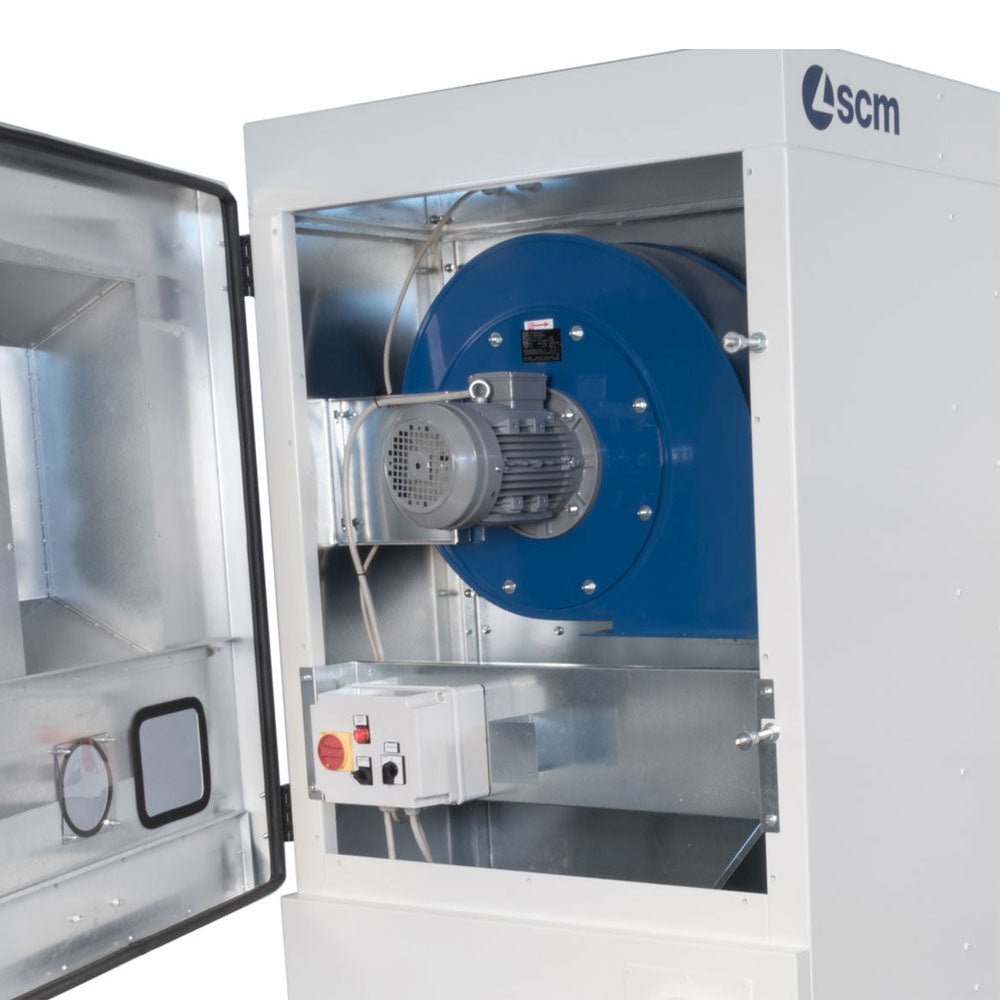

The chassis utilizes unique turbine micro-finned fan which is positioned at the end of the filter, reducing combustion and spark risk while making use of the separate safety wall separating the motor and fan from the collector chassis.

    Features
    • The fan is positioned at the end of the machine, in a specific protect area, far away from the high risk of explosion zone
    • Equipped with cylindric cartridge filters to reduce the overall dimensions, the dust extractors use sleeve filters for the best filtering and cleaning efficiency
    • Easy to move thanks to the wheels below and equipped with devices to prevent the suction of the nylon bag by the fan
    • Antistatic filter
    Specs

    Maximum air flow @ 65 ft/s: 3,700 CFM
    Pressure @ max air flow: 3.2” of water gauge
    Nominal Air Flow Rate @ 65 ft/s: 1,350 CFM
    Nominal Pressure: 9.5” of water gauge
    Filtering surface: 161 sq. ft.
    Air Inlet Diameter: 7.75”
    Residual Dust Level: < 0.1 mg/m³
    Filter Cleaning: Electric
    Storage Volume: 2 x 185 liters / 2 x 49 gal

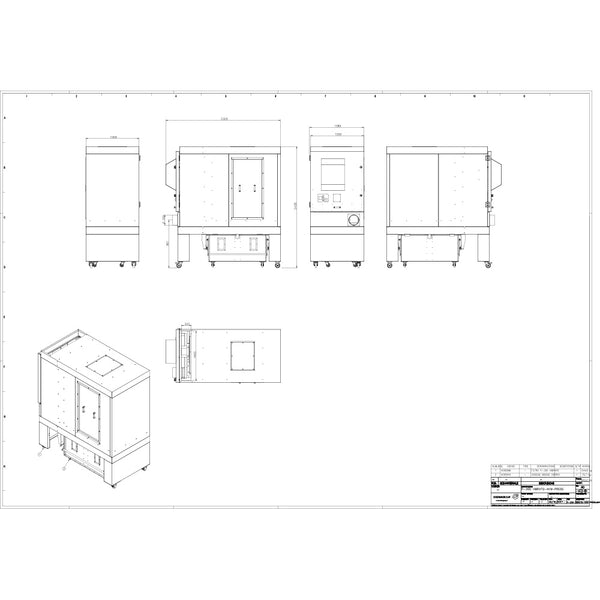

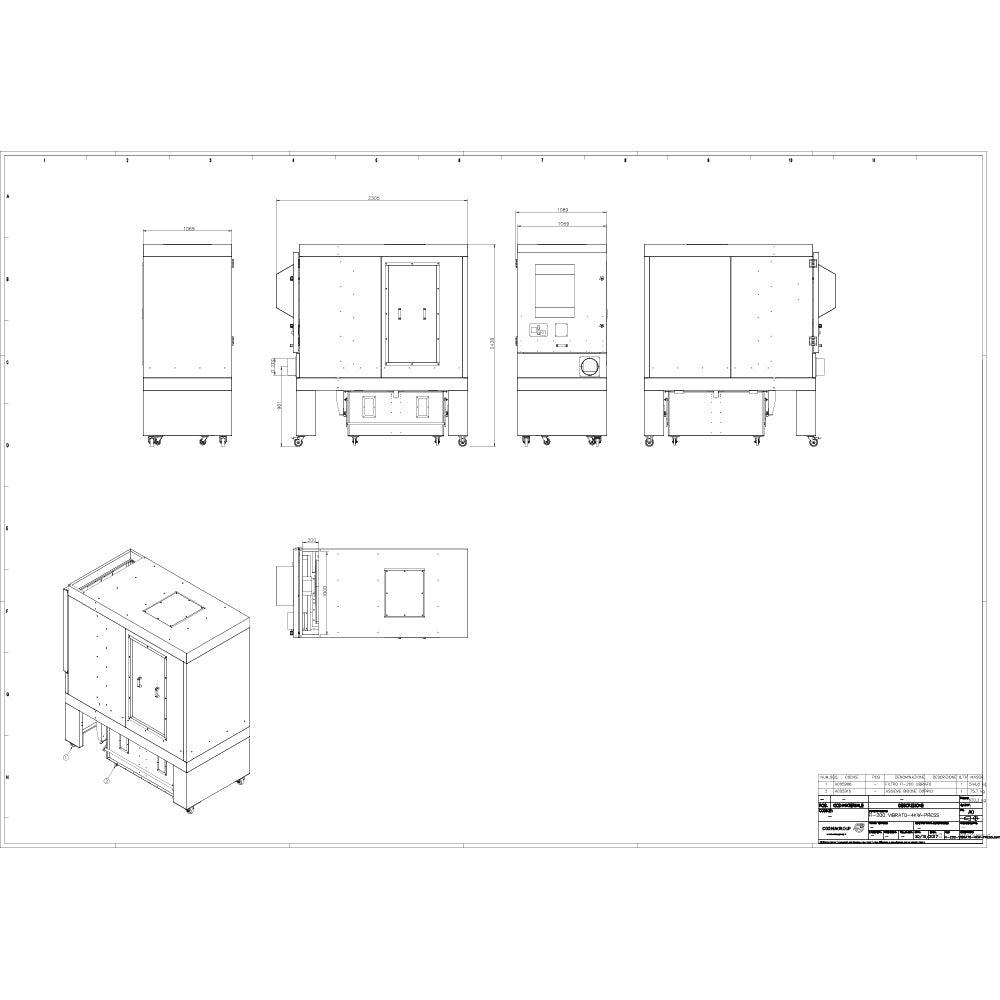

    Dimensions (L x W x H): 7.6ft x 3.5ft x 8ft
    3-phase Motor: 5.4hp
    Decibel Output: 75 db
