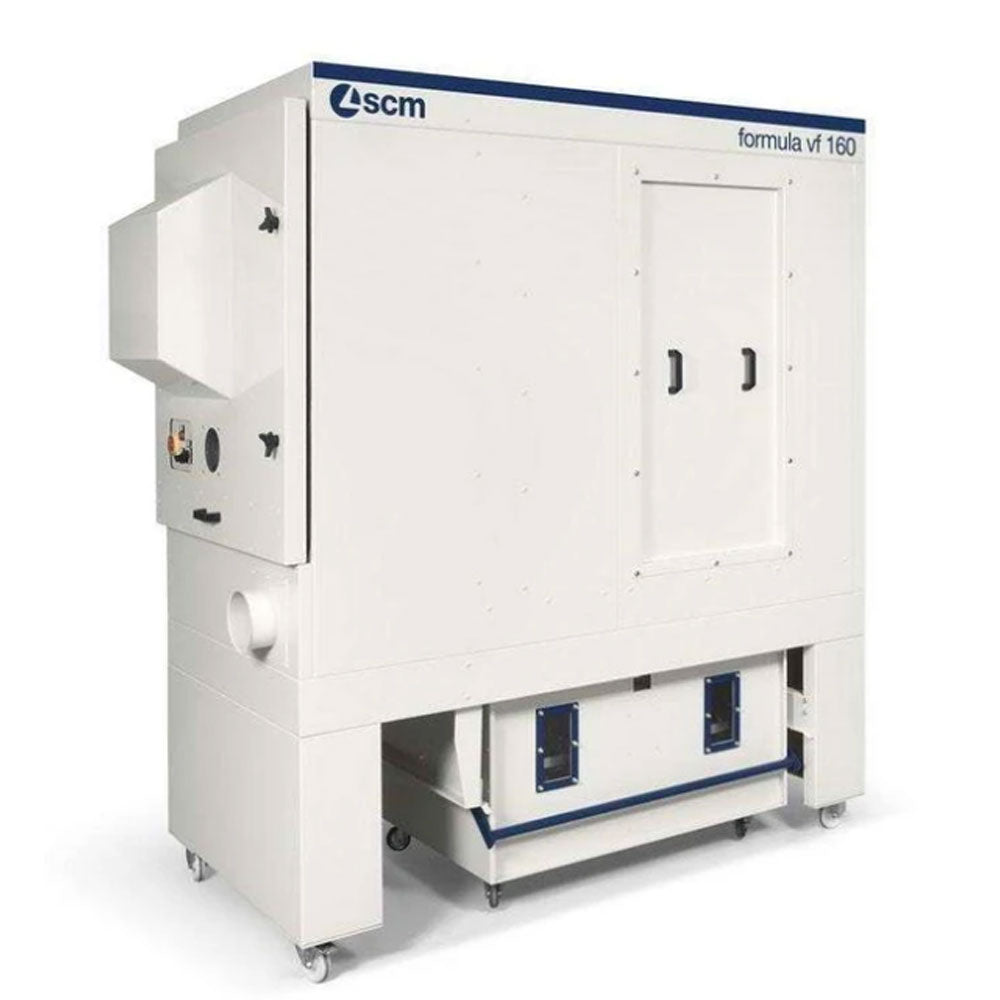

SCM Formula VF 160 Negative Pressure Dust Extractor (3-Phase)

$ 6,995

Have questions? Give us a call at 260-637-0054.

VF filters are designed to allow for effective suction and filtration within a relatively small package! Their slim and compact design makes them ideal for any work environment. These filters work in negative pressure, ensuring the maximum suction and safety efficiency, together with a significant noise reduction, only allowed by the passage of clean air inside the fan unit chassis itself.

The filtering element is composed of 100% antistatic polyester (standard) and ensures a filtration of residual dust up to 0.1 mg/m3. The cleaning process takes place with a delayed shaking system which is enabled after all internal pressure is reduced and machine aspiration is complete. At that time the interface allows the operator to utilize the machine mechanical vibration (shaking) system.

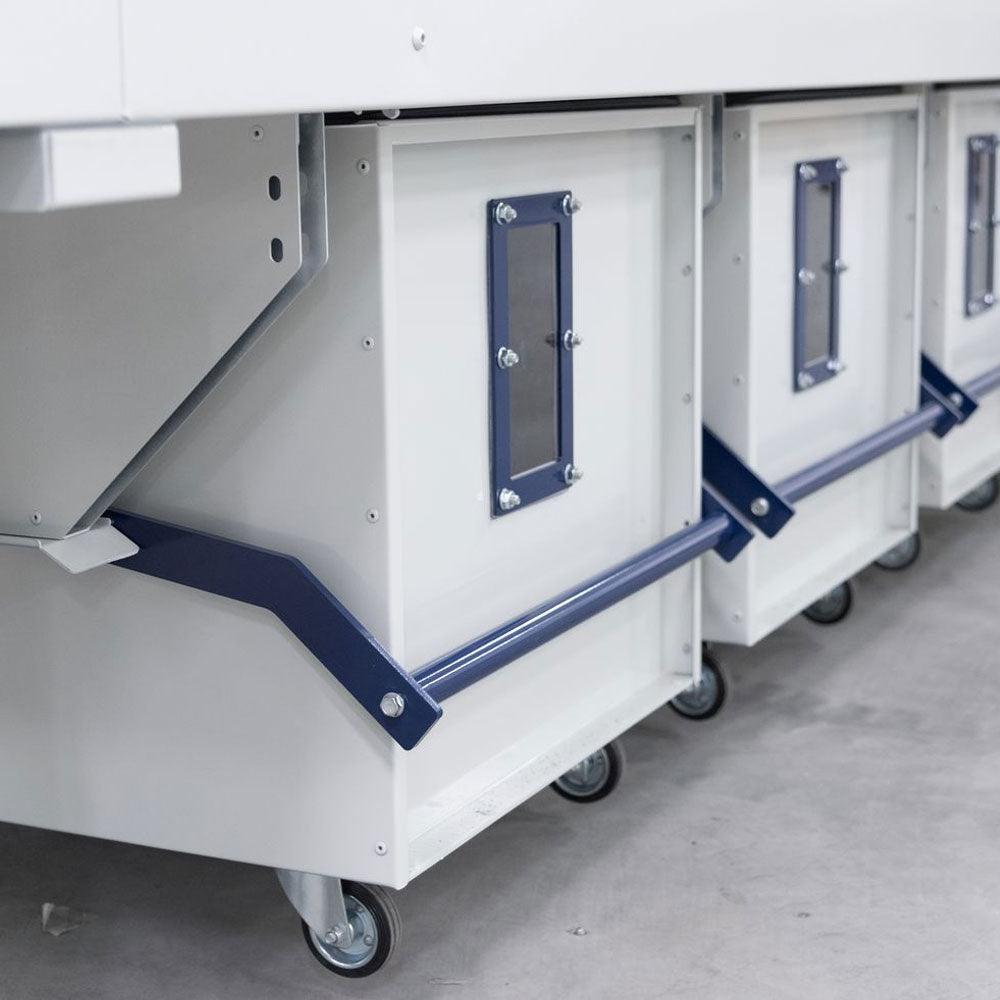

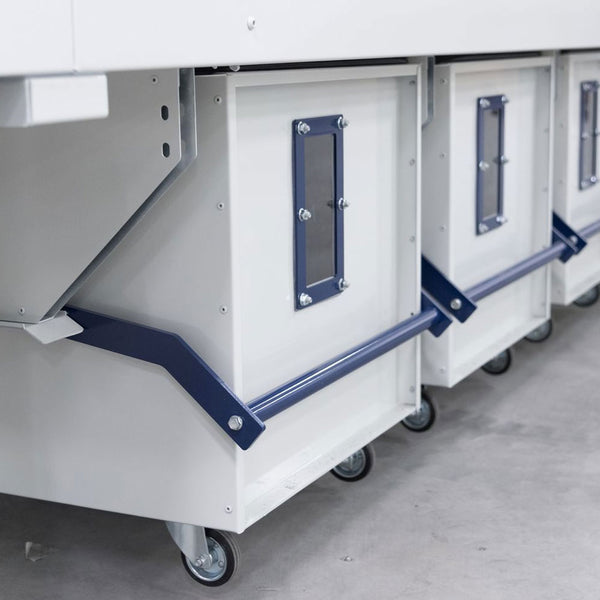

All VF 160 filters come with two dust collection bins that are very easy to maintain. Each container has wheels beneath the bin and easily removable dust bags to assist with disposal operations. The internal sub frame of the bin keeps the bag in position with no risk of it being sucked up by the fan.

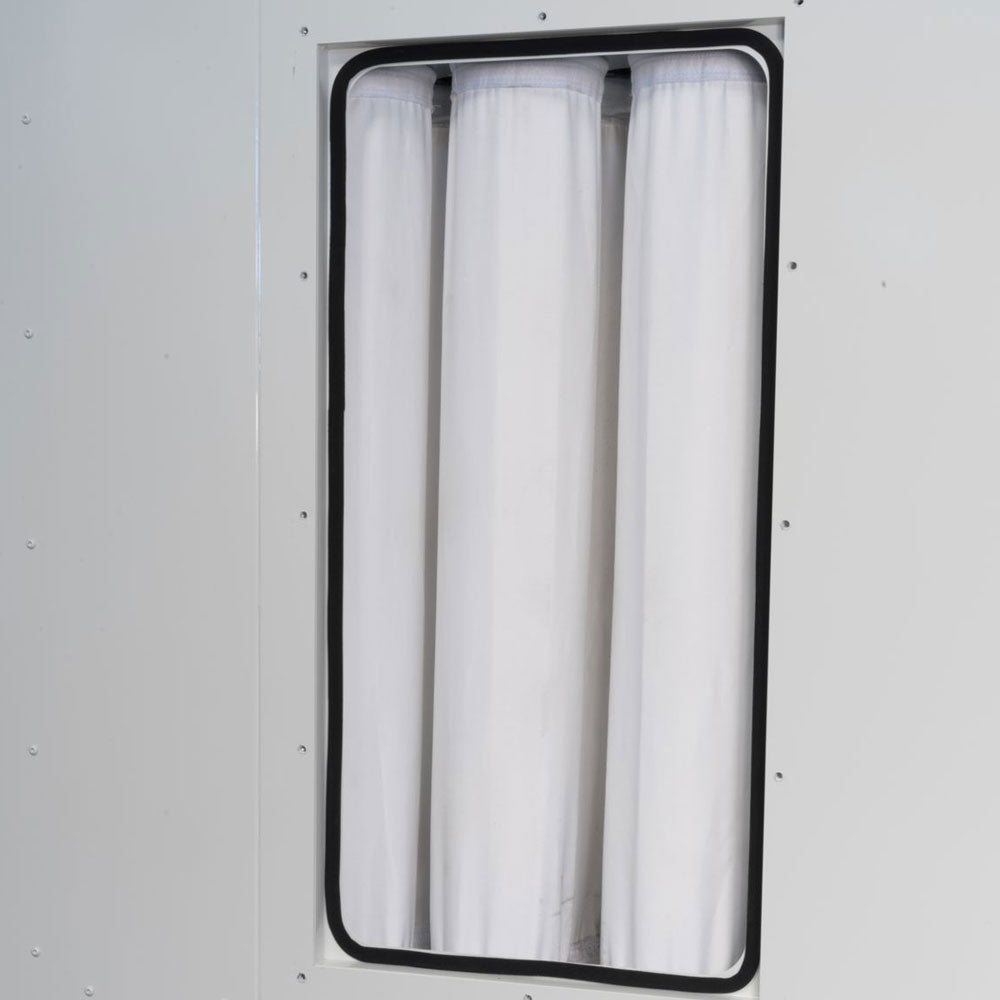

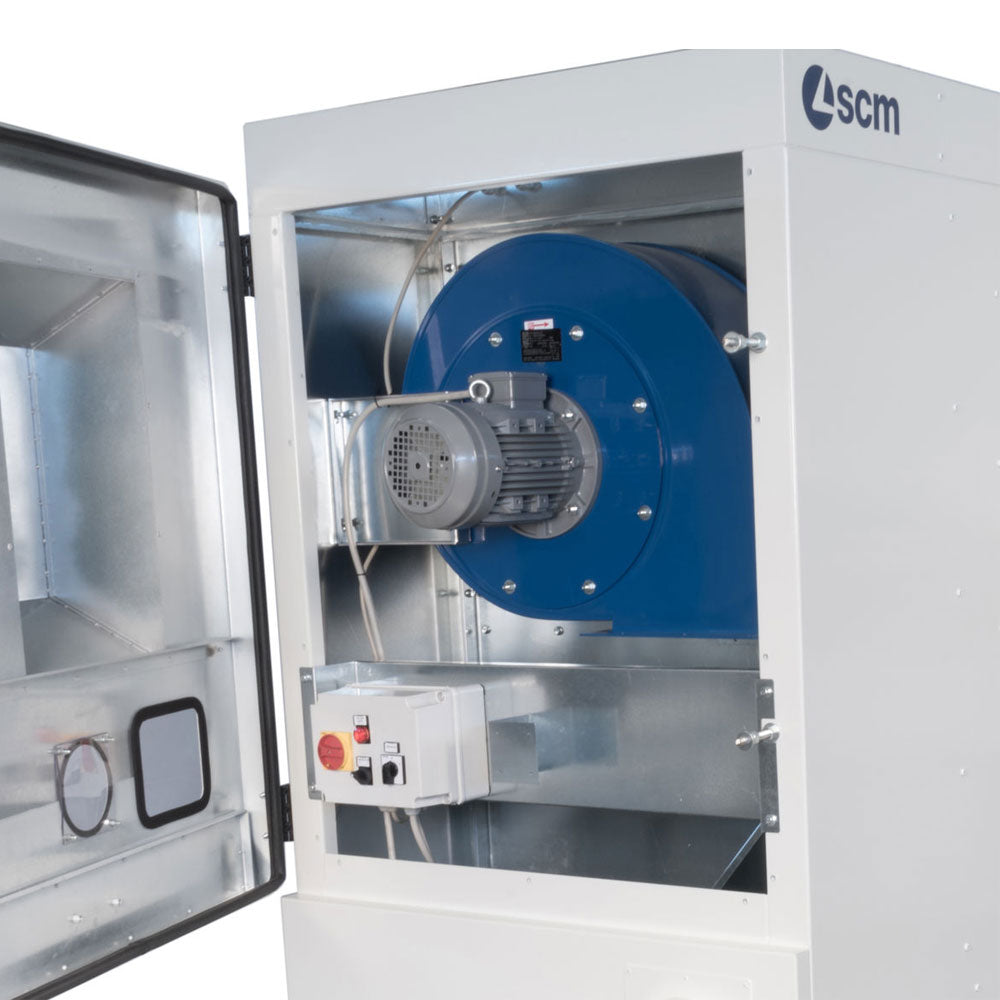

The VF 160 uses sleeve filters in order to improve the filtration capacity and cleaning. Again, these filters come standard with a vibrating cleaning device. The chassis utilizes unique turbine micro-finned fan which is positioned at the end of the filter, reducing combustion and spark risk while making use of the separate safety wall separating the motor and fan from the collector chassis.

  • Impeller is positioned at far end of the filter, away from incoming debris, to greatly lessen the chance of a fire
  • Units are on wheels, making them easy to pull out and remove/replace debris in the collection bags
  • Antistatic sleeve filters
  • Powder coated

Maximum air flow @ 65 ft/s: 3,500 cfm
Pressure @ max air flow: 2.4” of water gauge
Nominal Air Flow Rate @ 65 ft/s: 850 cfm
Nominal Pressure: 9.5” of water gauge
Filtering surface: 129 sq. ft.
Air Inlet Diameter: 6.25”
Residual Dust Level: < 0.1 mg/m³
Filter Cleaning: Electric
Storage Volume: 2 x 185 liters / 2 x 49 gal

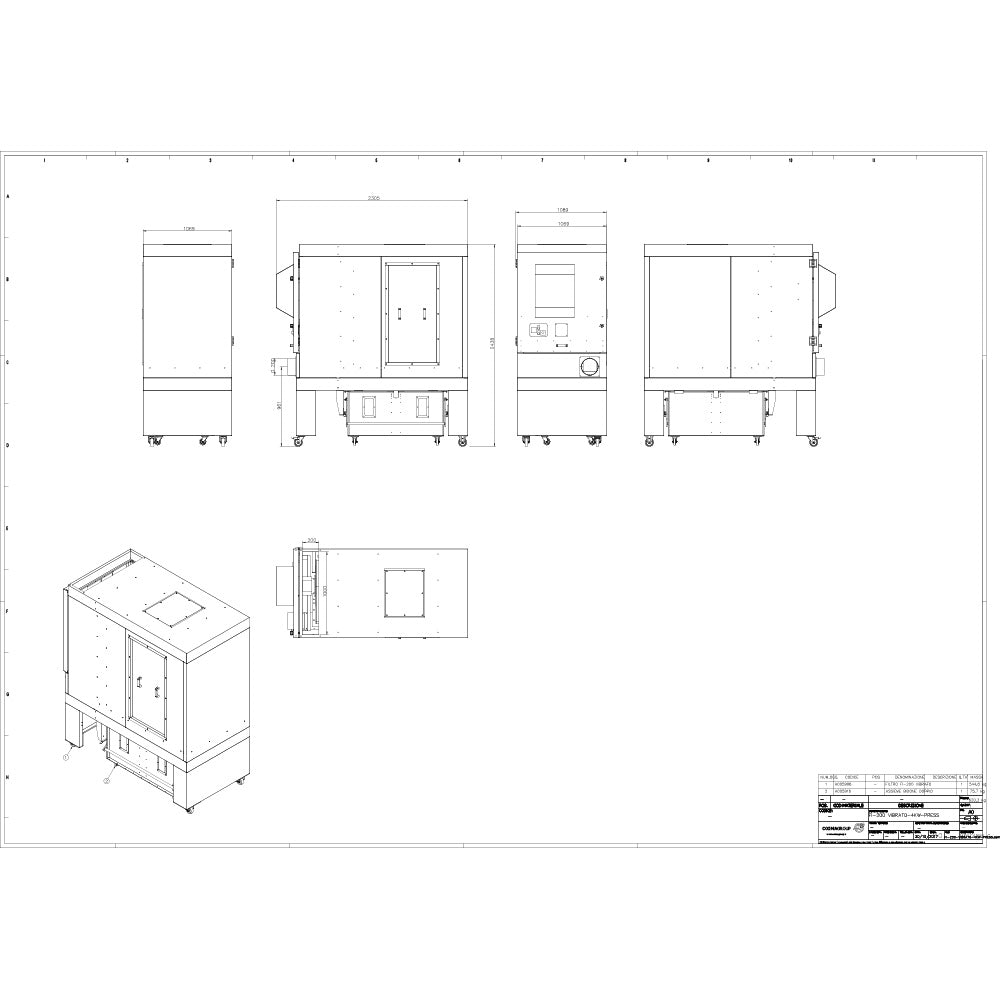

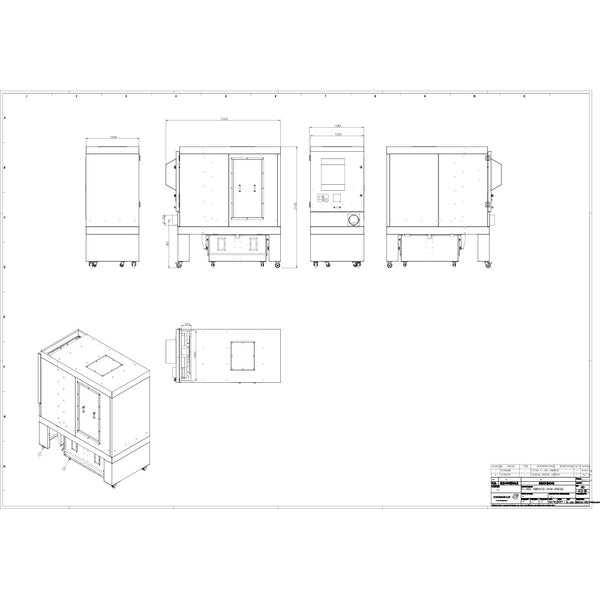

Dimensions (L x W x H): 7.6ft x 3.5ft x 8ft
3-phase Motor: 4hp
Decibel Output: 75 db

SKU: VF 160 3-PH
