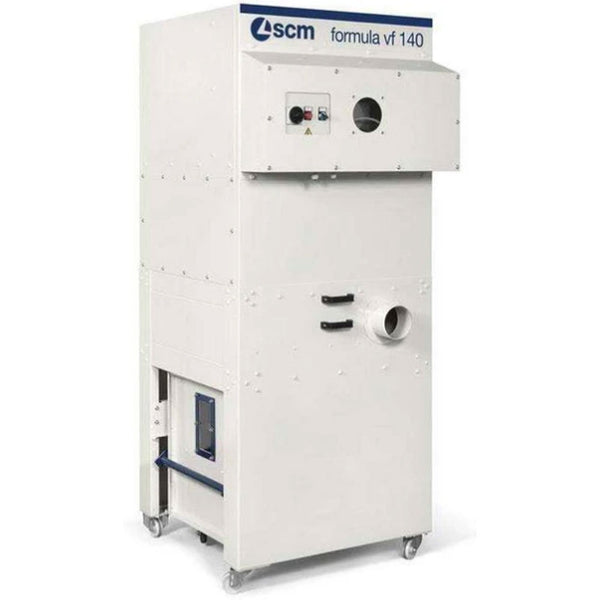

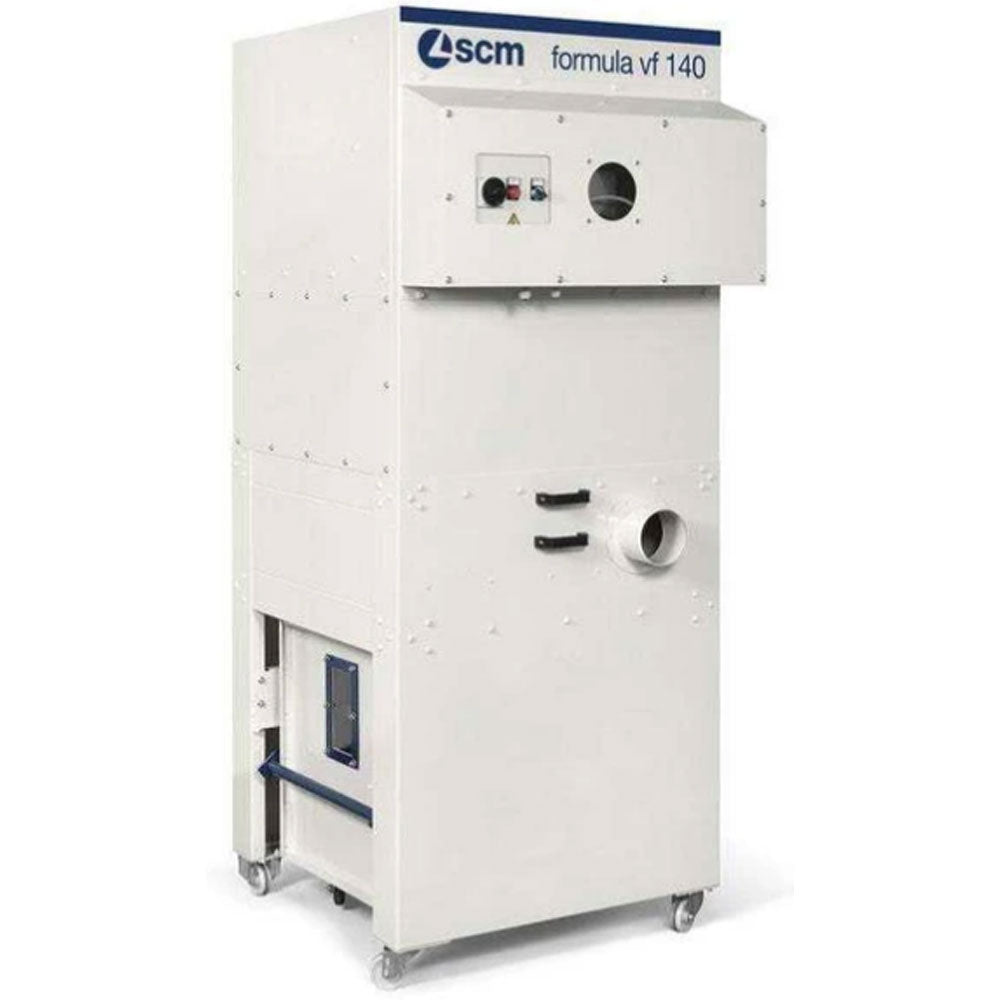

The VF clean air dust extractors are specially designed to work in the woodworking shops, guaranteeing a level of dust emissions lower than 0.1 mg / m3. Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.
Single Phase 3Hp Negative Pressure Dust Extractor
Auto-start for up to five machines
1 bin - 49 gallon capacity
2400 CFM max. air flow

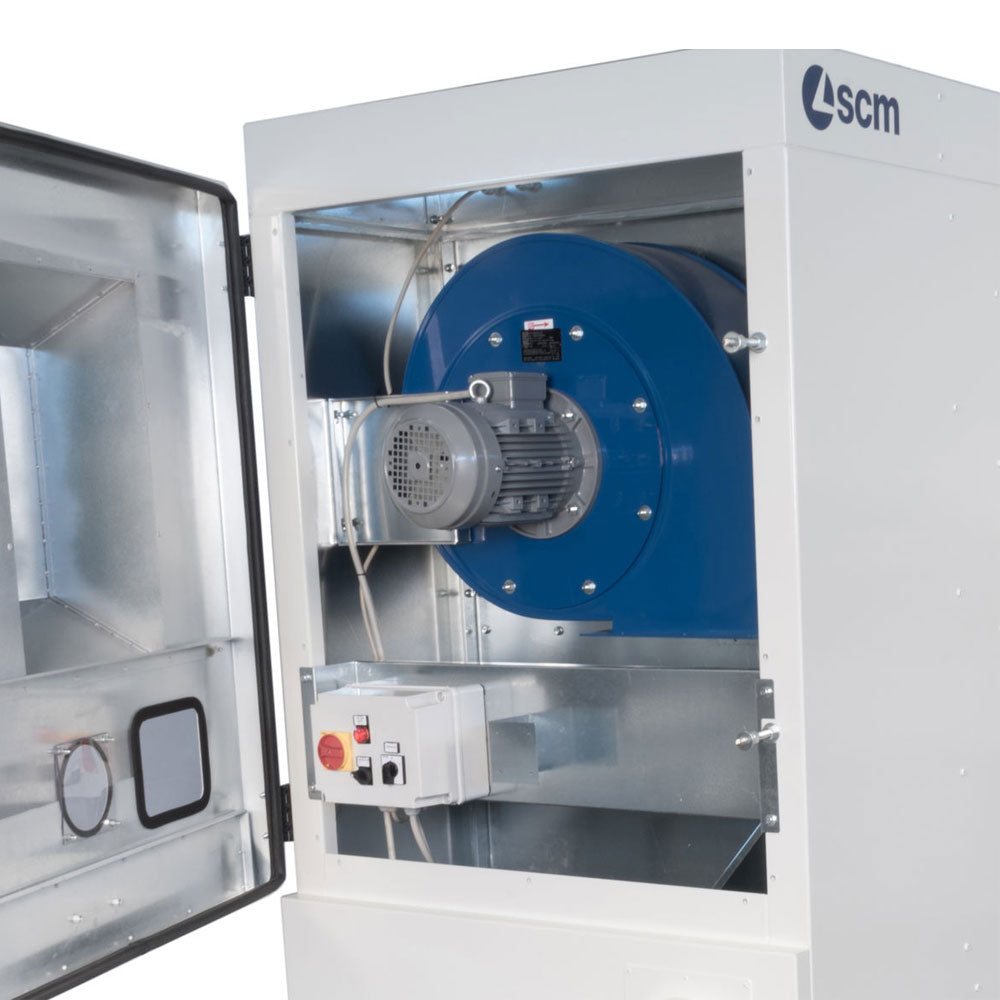

Risk Prevention: The fan is positioned at the end of the machine, in a specific protect area, far away from the high risk of explosion zone. The vf 250 and vf 300 dust extractors are also equipped with an integrated powder fire-protection system.

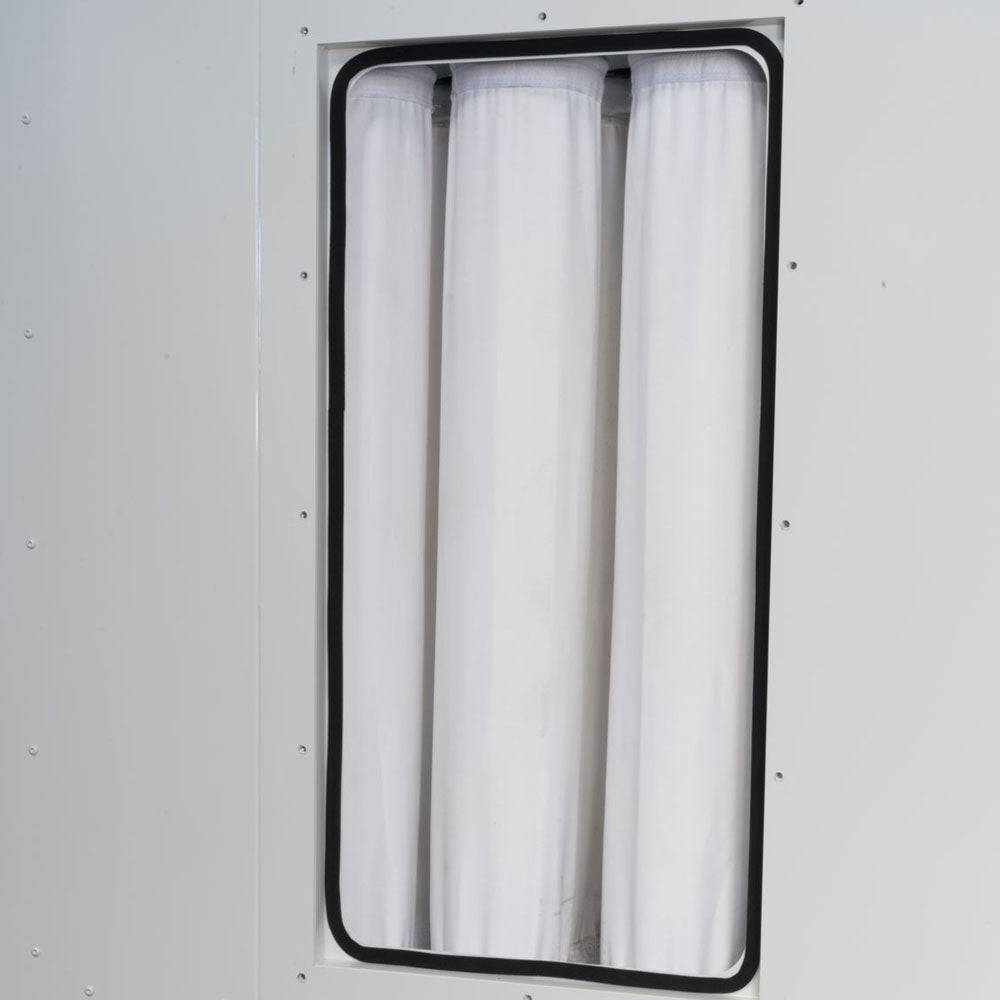

The vf 140 and vf 200c dust extractors are equipped with cylindric cartridge filters to reduce the machine overall dimensions, the vf 250 and vf 300 dust extractors use sleeve filters for the best filtering and cleaning efficiency.

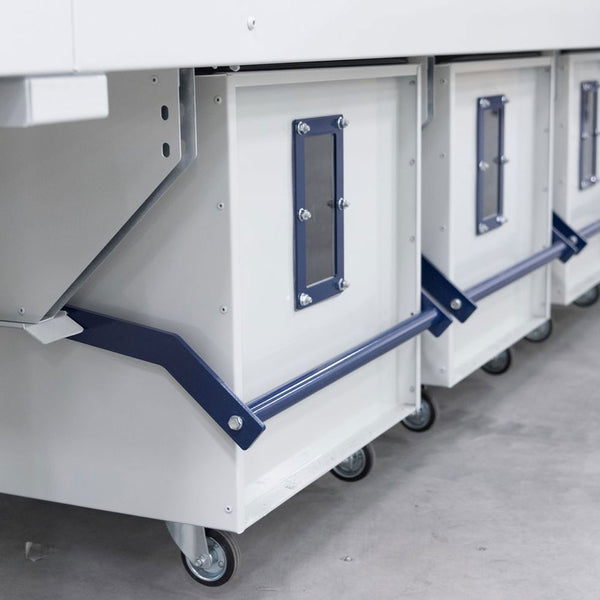

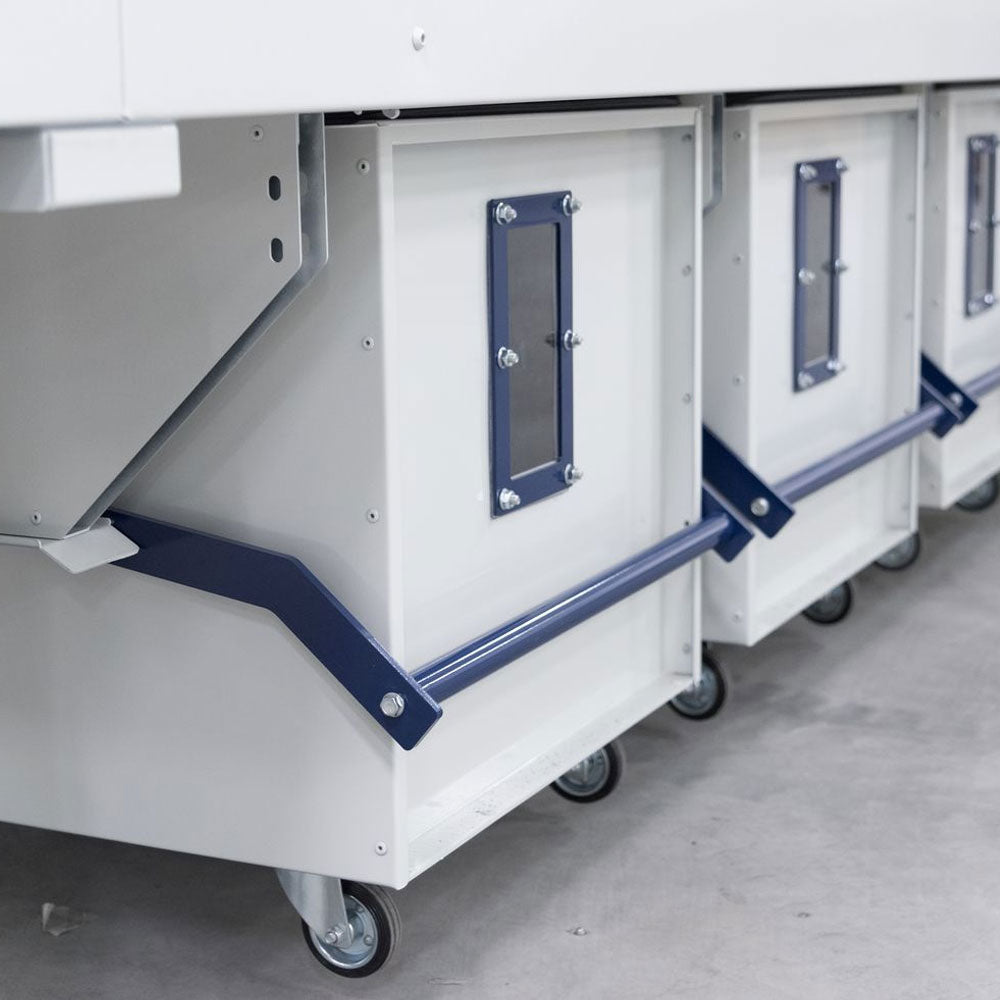

Practicality first: Easy to move thanks to the wheels below and equipped with devices to prevent the suction of the nylon bag by the fan.
Nominal air flow @ 20 m/s: 1100 m³/h (647 CFM)
Max. air flow @ 20 m/s: 3200 m³/h (1883 CFM)
Pressure @ max. air flow:1570 Pa
Exhaust outlet diameter: 140 mm
Filter surface area: 10 m^2
Antistatic filter: ✓
Chip Volume: 115 Liter

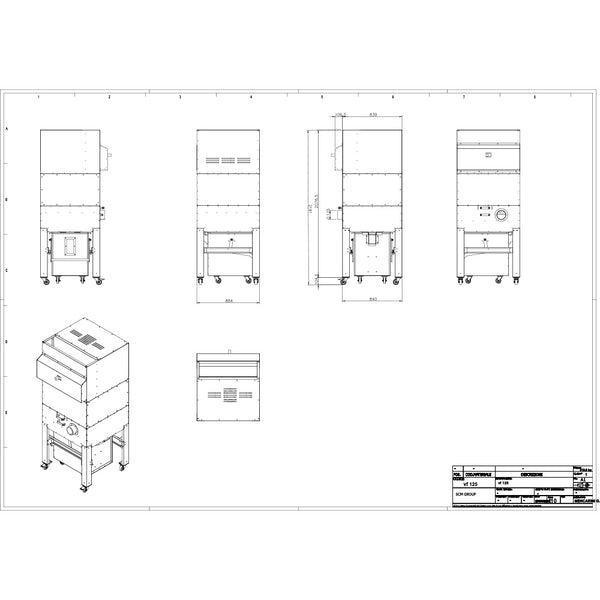

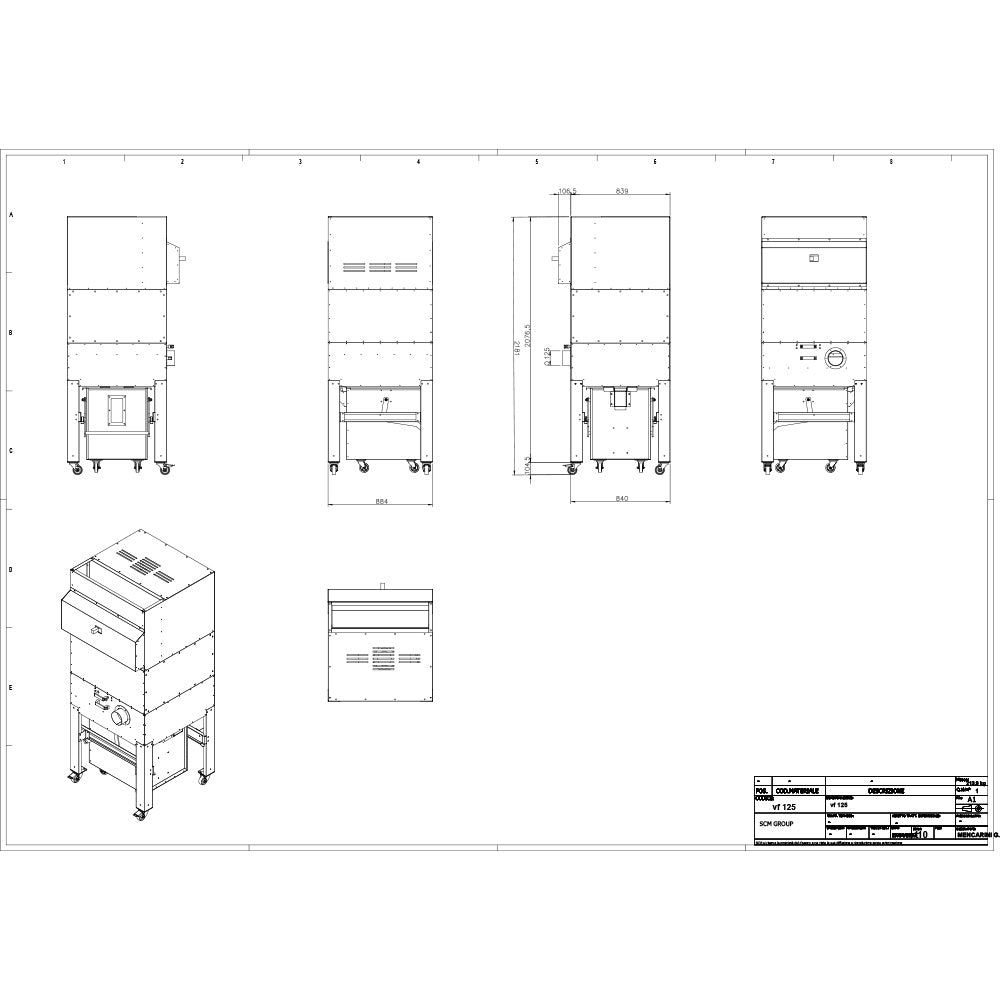

Dimensions: L 1000 x P 995 x H 2150 mm
Three phase motor 50 Hz /60 Hz: 2,2kW (3hp) /2,6 kW (3,5hp)
