In stock as of 6/22/22
Attention: Please call for availability: 260-637-0054. Due to high demand and global manufacturer supply shortages, this item may be on backorder. You may still place an order to reserve your place in line. As we receive inventory, orders will be fulfilled in the order they are received.
Extremely versatile. Extremely precise. Extremely easy to handle: Whether used on the guide rail or off, the OF 1010 R router is the ideal tool for fine routing work. Thanks to its size and low weight, it can be accurately guided along edges, lines or curves. For routing profiles, grooves, rabbets, and dovetail joints – the OF 1010 R impresses with a wide variety of possible applications.
- Torsionally rigid plunging action due to guide columns on both sides
- Routing depth adjustment to 1/256" (1/10 mm)
- Chip extraction system integrated into the router base for hose diameters D 27 and D 36
- Clear view of the routing area
- MMC (Multiple Material Control) electronics for adaptation to the working material and temperature monitoring
- Quick and easy bit changes
- Compact design and light weight
[TABS]
Features

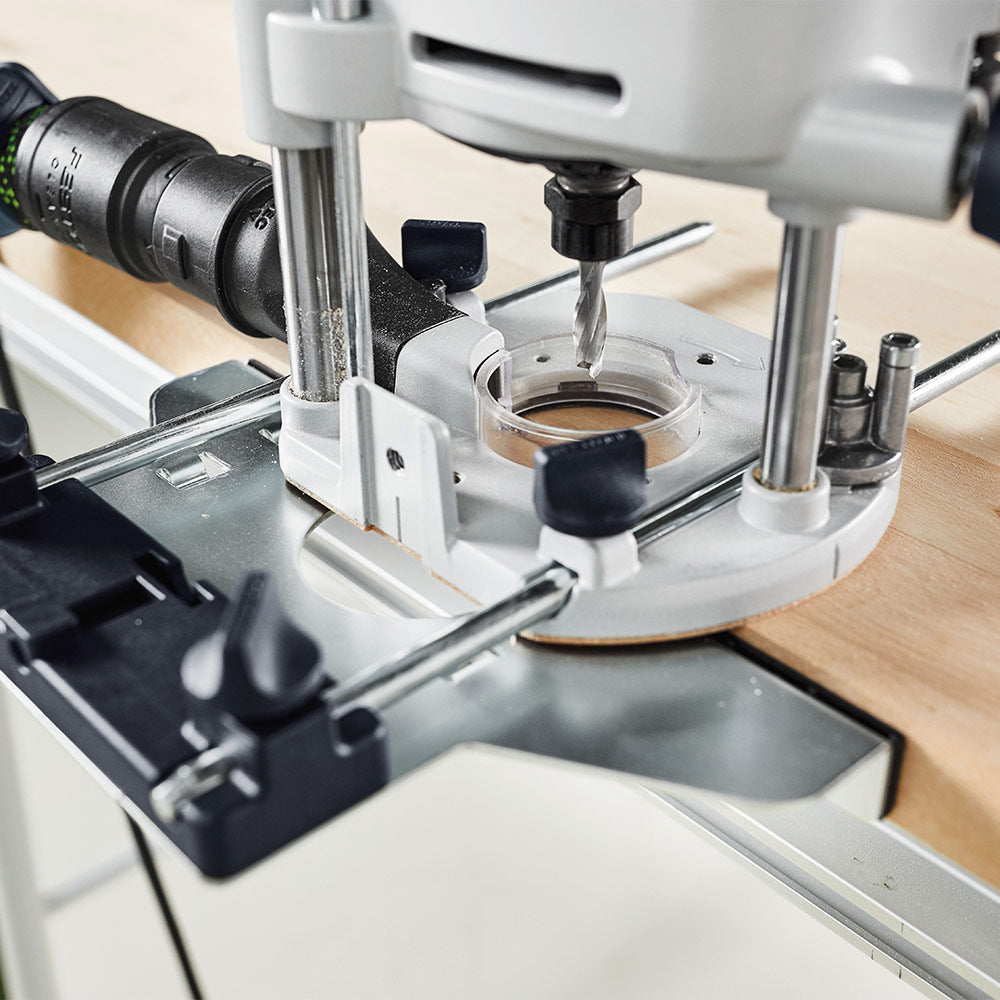

The best option for precision: The visible work area of the OF 1010 R offers an unobstructed view of the router bit. This enables users to achieve cutting results with absolute precision.

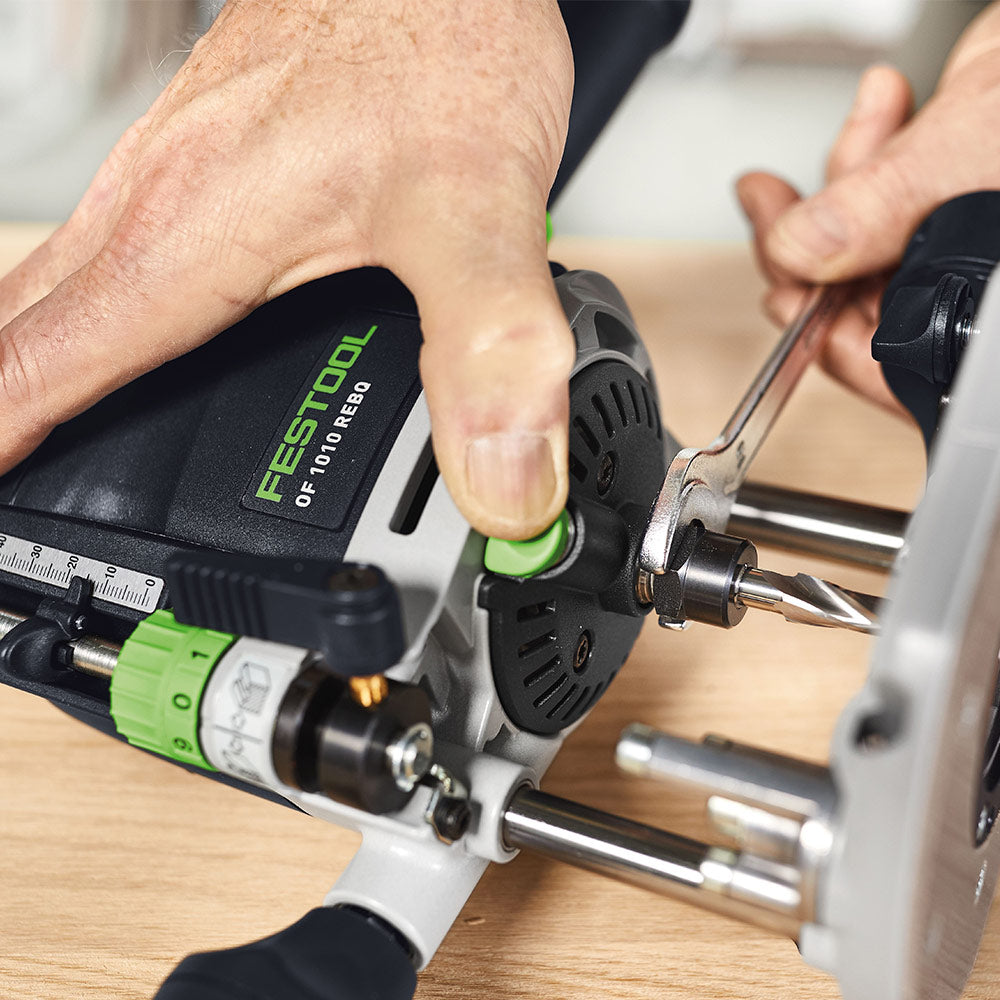

Rapid bit replacement in record time: The router bits of the OF 1010 R can be changed quickly and safely thanks to the easy-to-access work area.
Double column clamping: The OF 1010 R is clamped to both guide columns at the same time. This means that the router is secured in place with absolute torsional rigidity. This ensures perfect routing results.
Compact structure with excellent ergonomics: Its ergonomic handle makes the OF 1010 R feel like an extension of your hand and makes guiding the machine easy.

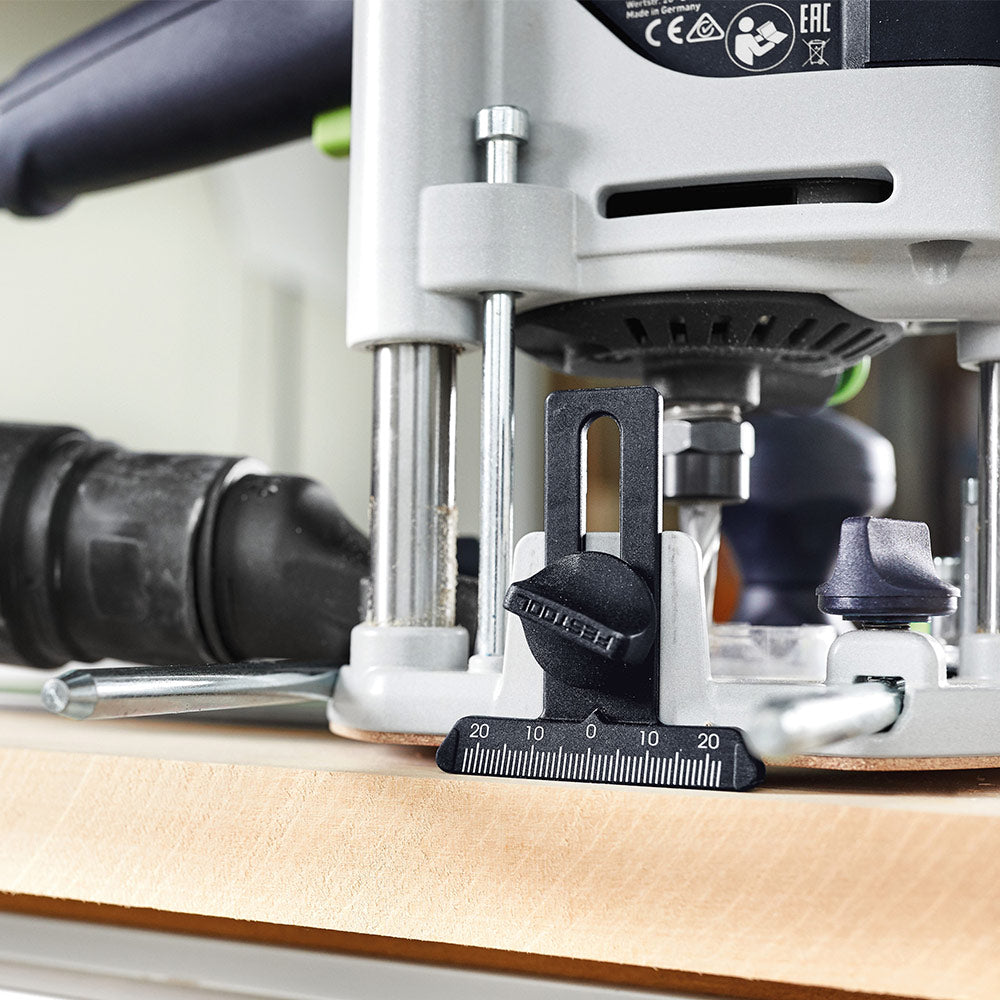

Fine adjustment: The OF 1010 R has a precise depth adjustment. It takes just a few seconds and minimal effort to finely adjust the routing depth accurately to 1/256" (0.1 mm) using the dial.

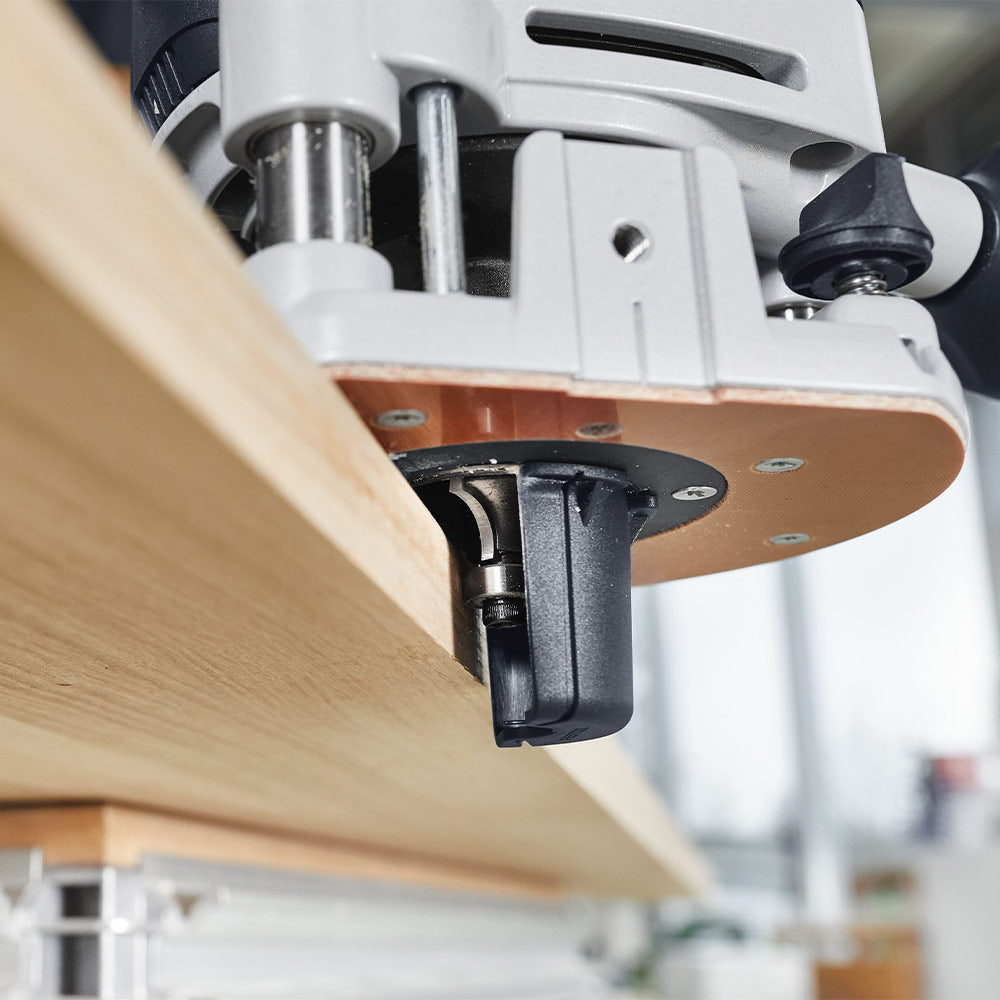

The perfect combination for clean work: The unique chip deflector enables optimal dust extraction, and guarantees excellent suction power when routing edges in combination with the dust extraction attachment and a Festool extractor.
Integrated support: The OF 1010 R is fitted with a support to prevent the router from tipping over when used with the guide rail.

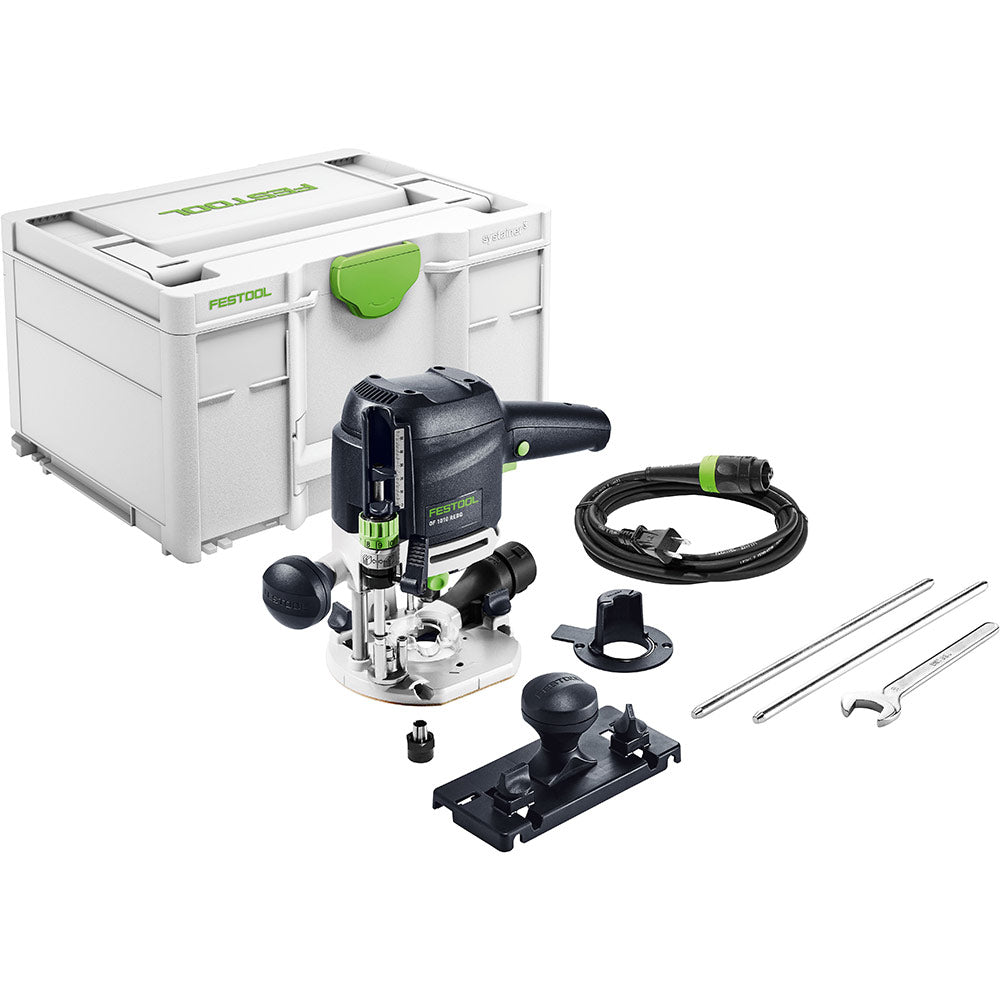

Includes
- OF 1010 Router
- Guide stop
- Guide rods
- Chip catcher
- Dia. 1/4" clamping collet (6.35mm)
- Dia. 5/16" clamping collet (8 mm)
- Collet wrench
- Systainer SYS3 M 237
Specs
Power consumption: 1010 watt
Idle engine speed: 6 500 - 26 000 RPM
Collet dia.: 1/4" - 5/16" (6 - 8 mm)
Routing stroke: 2-1/8" (55 mm)
Routing depth fine adjustment range: 5/16" (8 mm)
Dust extraction connection dia.: 1-1/16" (27 mm) /1-13/32" (36 mm)
Weight: 6.61 lbs. (3 kg)
[/TABS]
