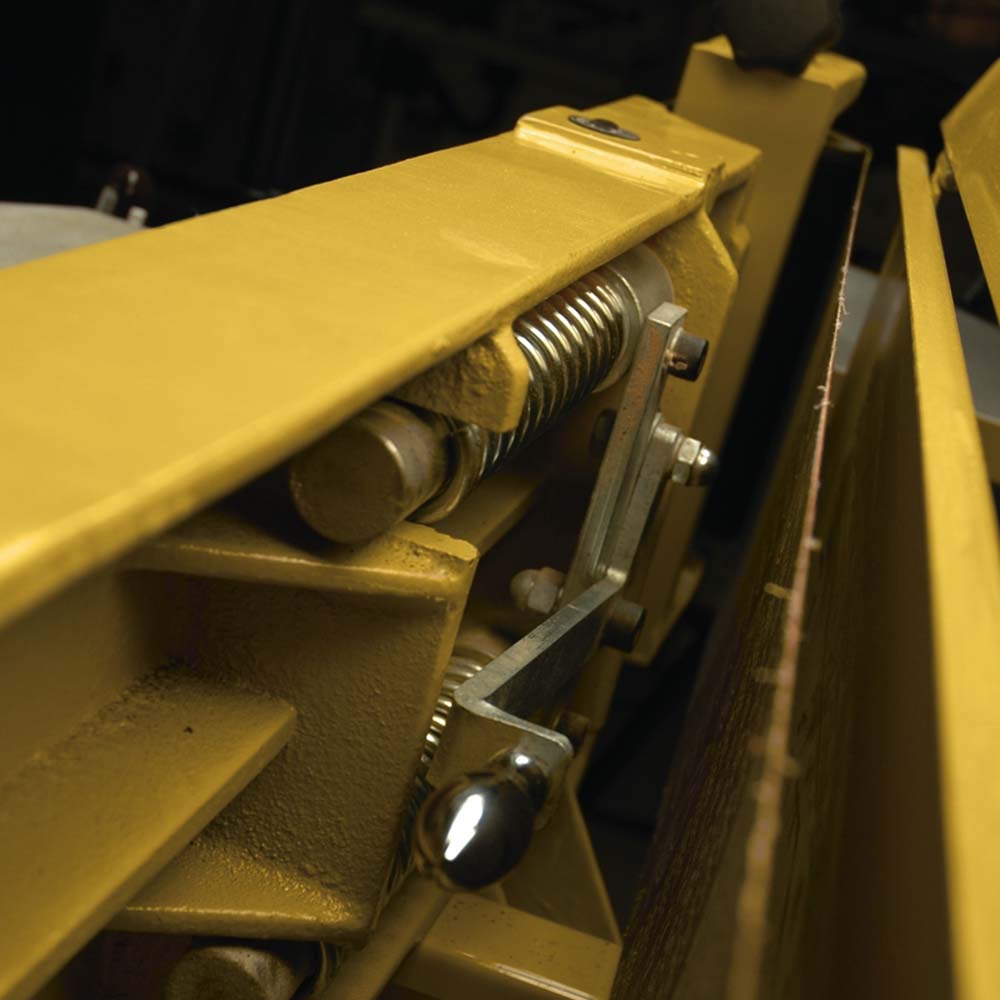

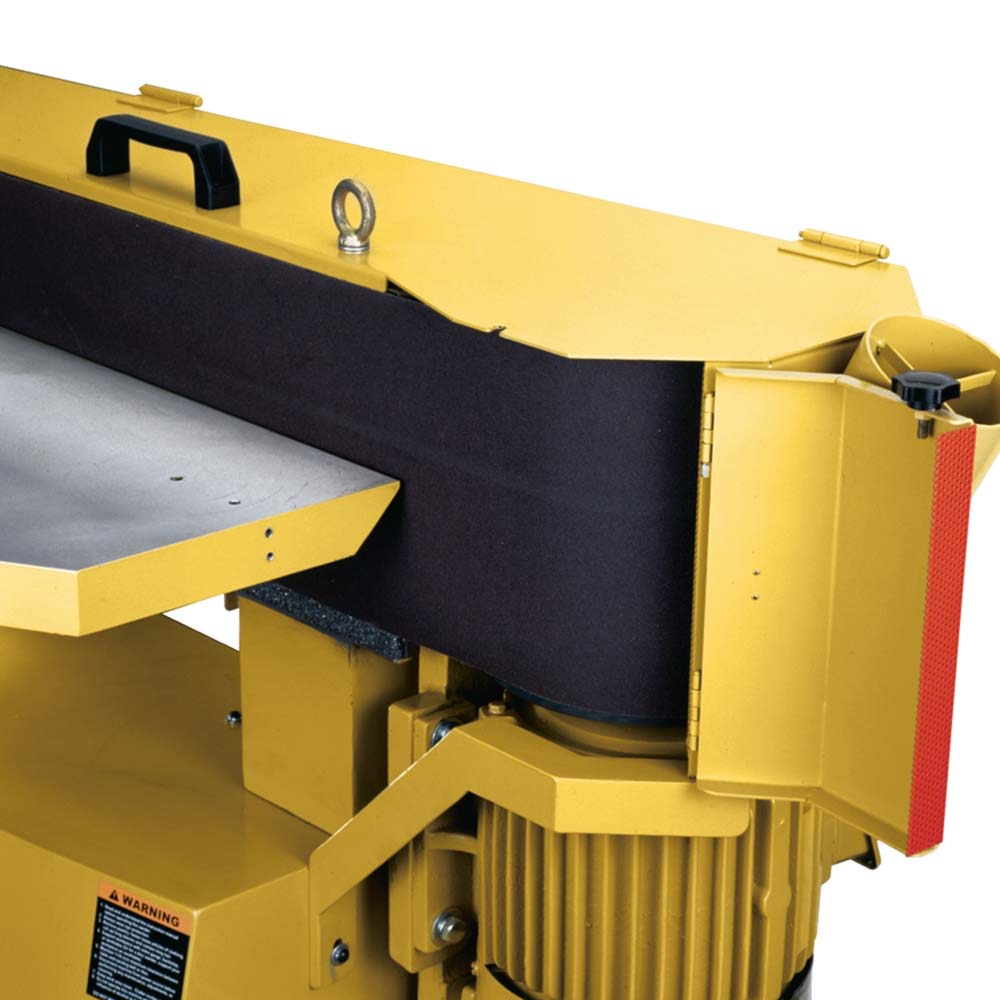

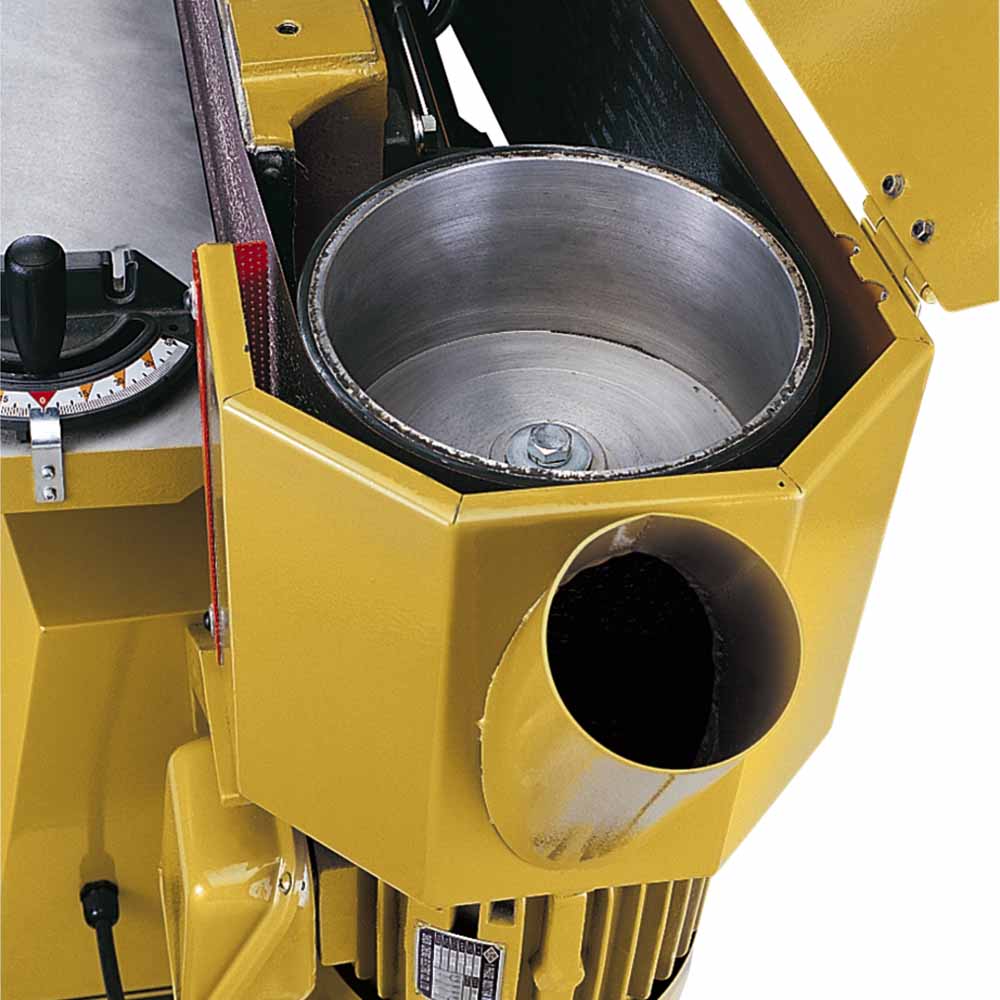

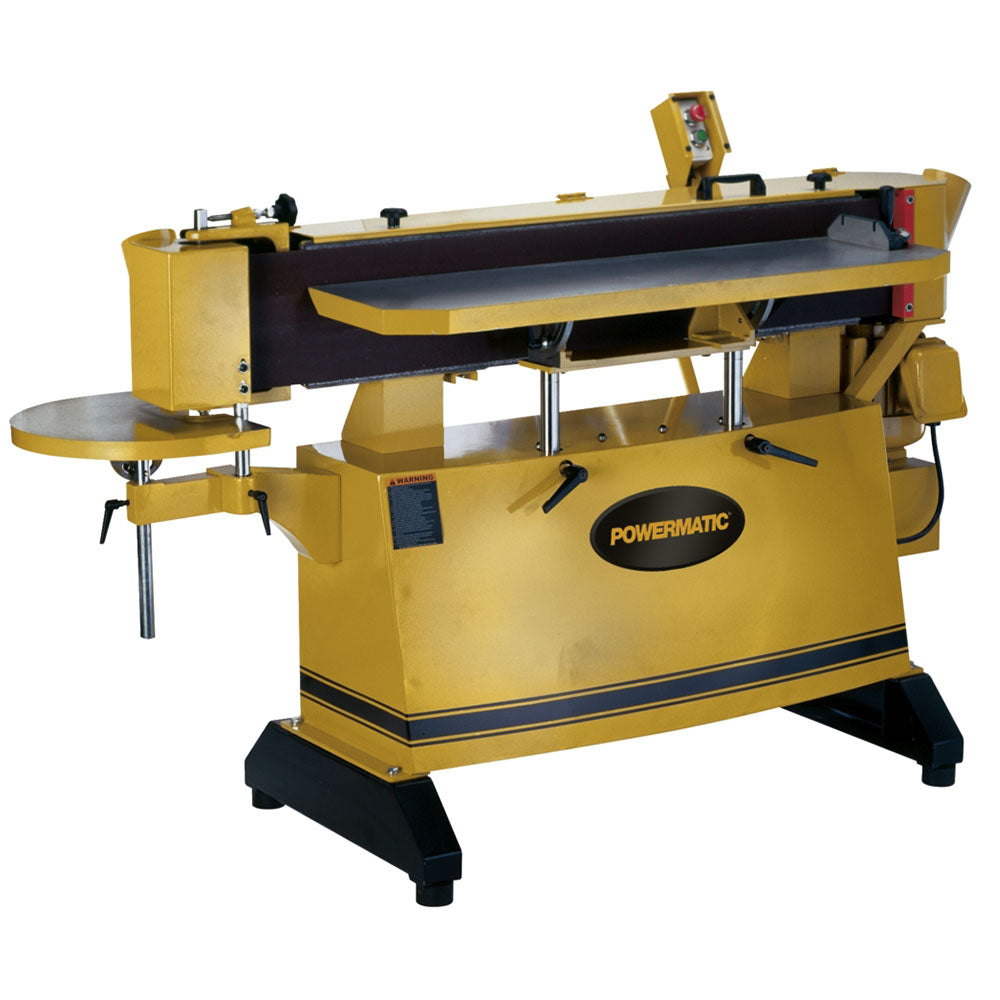

The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
| Style (Type) |
Horizontal/Vertical Oscillating Edge |
| Sanding Belt Size (L x W) (In.) |
9 x 138-3/4 |
| Belt Speed (FPM) |
3542 |
| Drum Diameter (In.) |
4 Outboard, 9 Drive |
| Platen Size (In.) |
9-1/2 x 48 |
| Oscillations Per Minute |
24 |
|
| Main Table Size (L x W) (In.) |
48 x 11-3/4 |
| Main Table Tilt (Deg.) |
5 In, 45 Out |
| Table Height from Floor (In.) |
34-1/2 - 40-3/4 |
| End Table Size (In.) |
18 |
| End Table Tilt (Deg.) |
40 In, 45 Out |
| Electrical Controls |
Magnetic Starter |
| Dust Collection Minimum CFM Required (CFM) |
1,100 |
| Dust Port Outside Diameter (In.) |
4 |
| Motor Power (HP) |
3 |
| Motor Phase |
3 |
| Motor Voltage (V.) |
230/460 |
| Prewired Voltage (V.) |
230 |
|
|
| Recommended Circuit Size (Amps.) |
15/10 |
