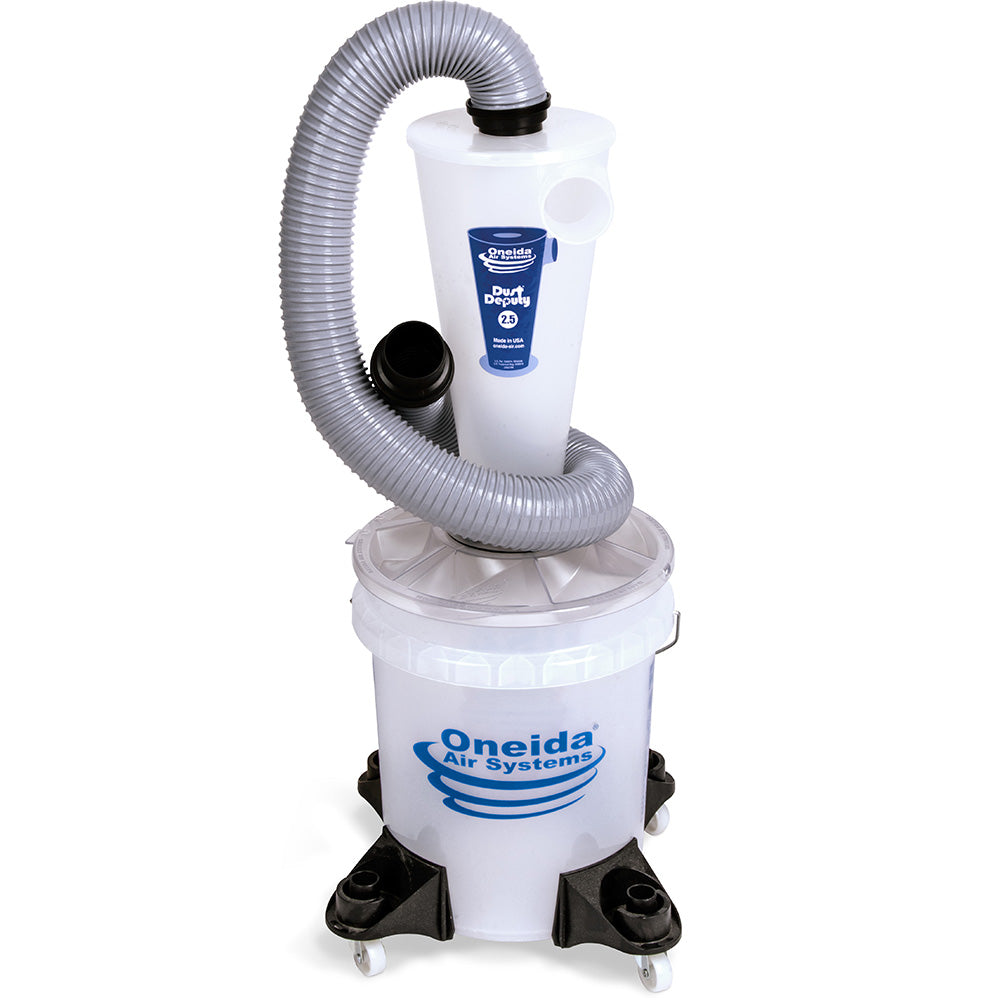

Oneida Dust Deputy 2.5 Deluxe All-Clear Cyclone Separator Kit

Sale price
$ 129.95
List price
$ 139.95

Have questions? Give us a call at 260-637-0054.

A dust-free tool is an efficient tool, but not every shop can fit (or afford) a full-sized dust control system. That's why shop vacuums have always been the first choice that craftsmen and DIYers use for dust collection. And bigger tools mean bigger messes – and bigger vacuums to clean them!

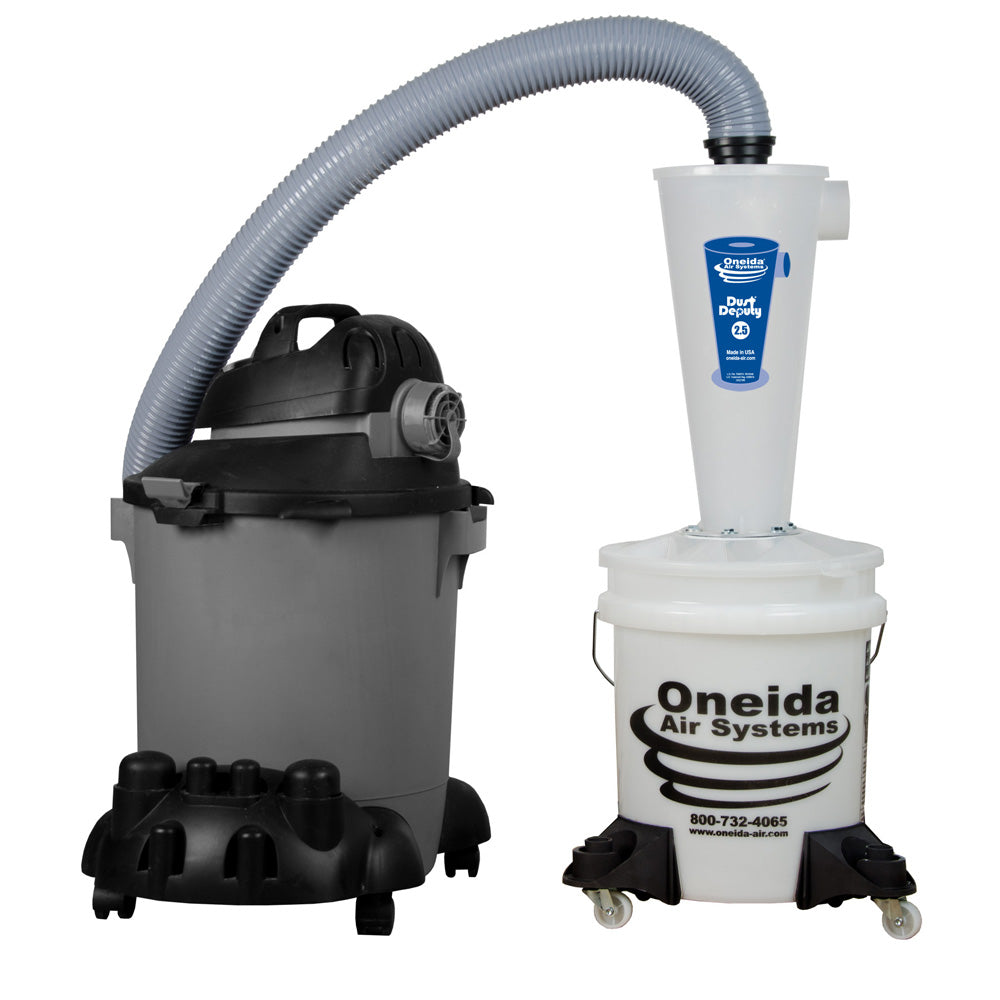

The Dust Deputy® 2.5 Cyclone Separator is Oneida Air Systems' latest innovation for woodworkers and other makers in need of an effective and affordable dust control solution. Optimized for the more powerful wet/dry vacuums that have become standard over the years, this larger cyclone delivers up to double the airflow of smaller cyclones and lid-style separators!

Like all of Oneida's patented Dust Deputy cyclones, the 2.5 uses centrifugal force to separate and remove 99% of dust and debris from the airstream before it reaches your vacuum's filter – eliminating clogged filters and suction loss!& The larger cyclone better accommodates more powerful wet/dry vacuums, delivering up to twice the airflow and significantly reducing pressure drop compared to other cyclone and lid-style separators.

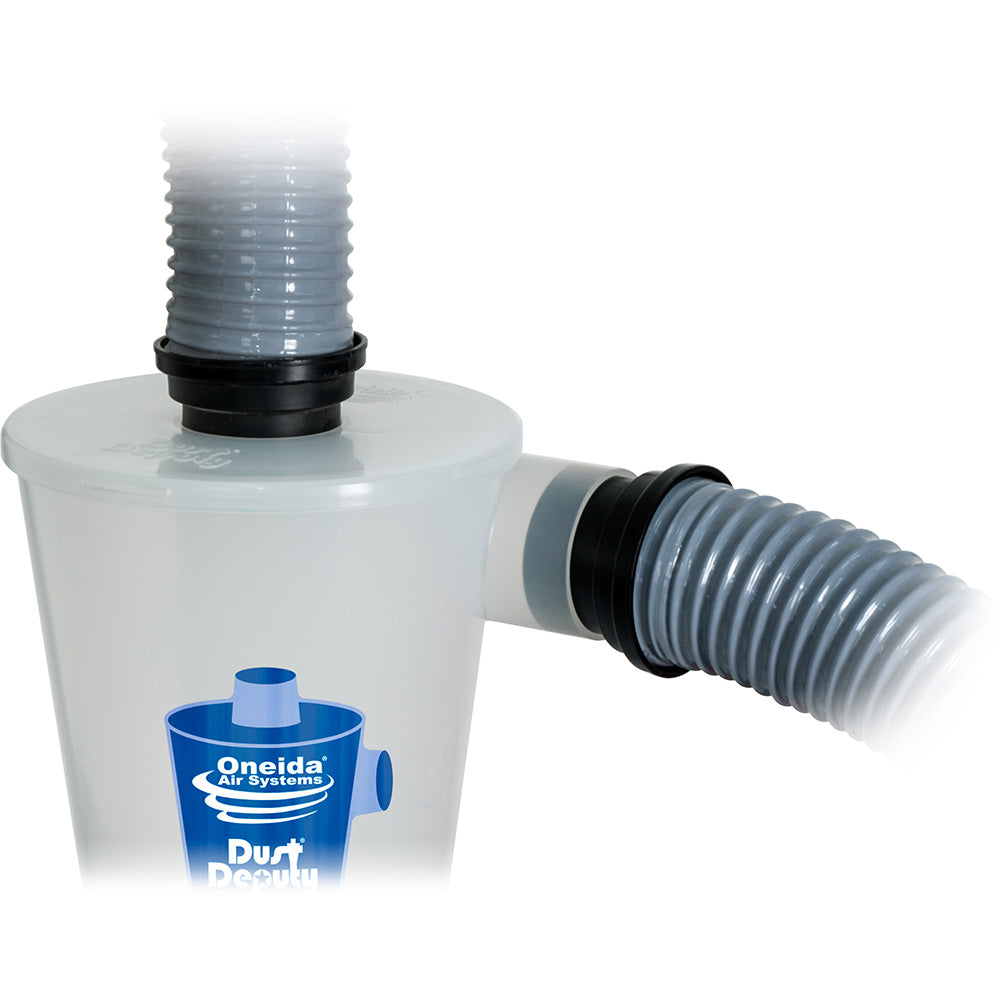

This simple and efficient design can be adapted for use with any make, size, or model vacuum and features female inlet and outlet ports that fit the cuffed 2.5" hoses of larger shop vacuums.

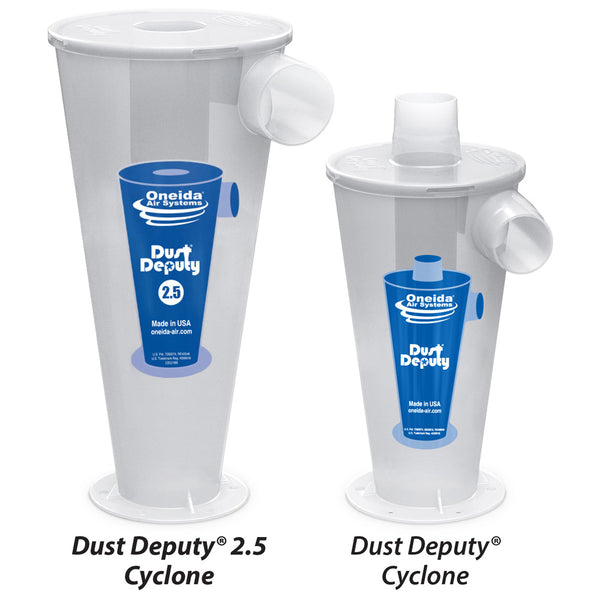

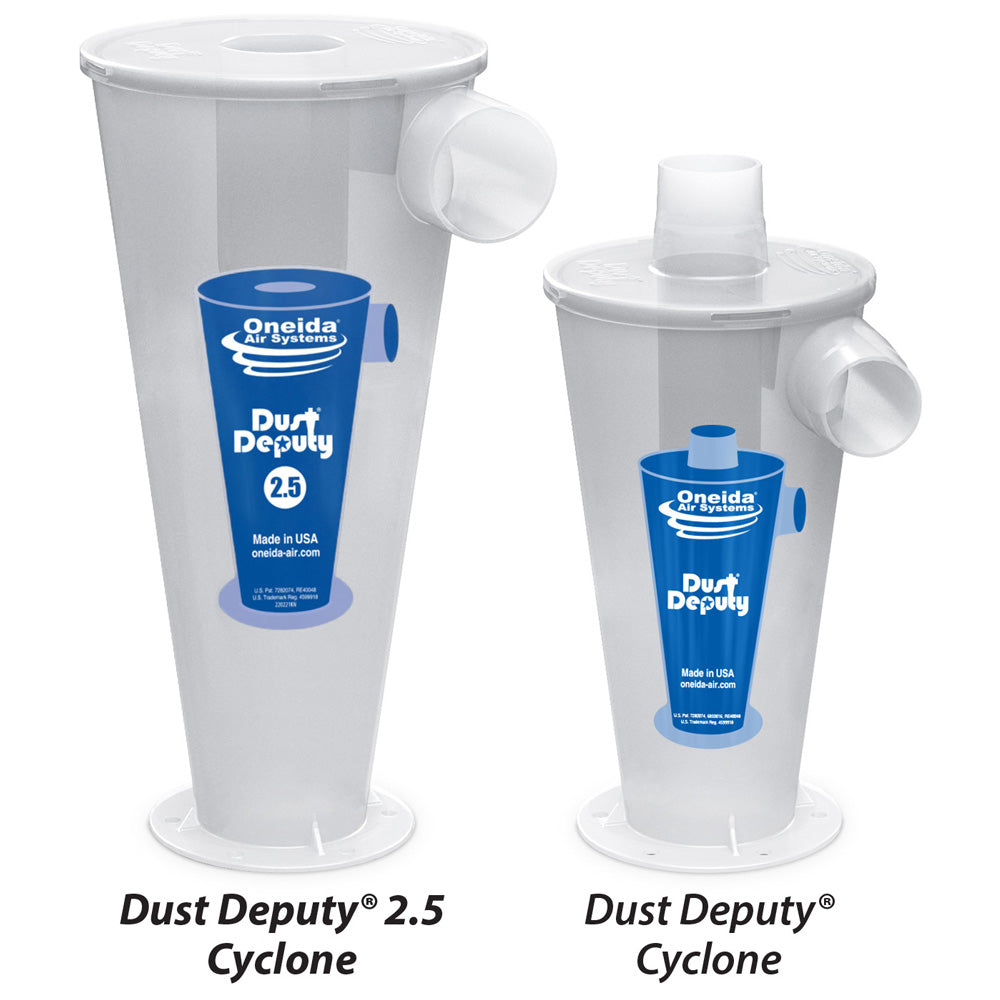

  • Up to 2x the airflow of smaller cyclones and lid-style separators
  • Upgrades any make/model shop vacuum with 2.5" hose fittings
  • Clear components allow you to easily spot potential blockages within the cyclone and give you a real-time view of how much dust the cyclone is separating from the air
  • Neutral-vane technology improves separation efficiency by 20%
  • Female inlet and outlet ports readily accept the 2.5" cuffed hose fittings standard with shop vacuums commonly used for dust collection
  • Collapse-proof 5 gal. bucket won't fold under high vacuum pressures
  • Compact and stable footprint with four free-rotating mounted casters
  • Includes highly flexible, wire-reinforced, vacuum hose with swivel-cuffs
  • Anti-static components significantly reduce the likelihood of static shocks

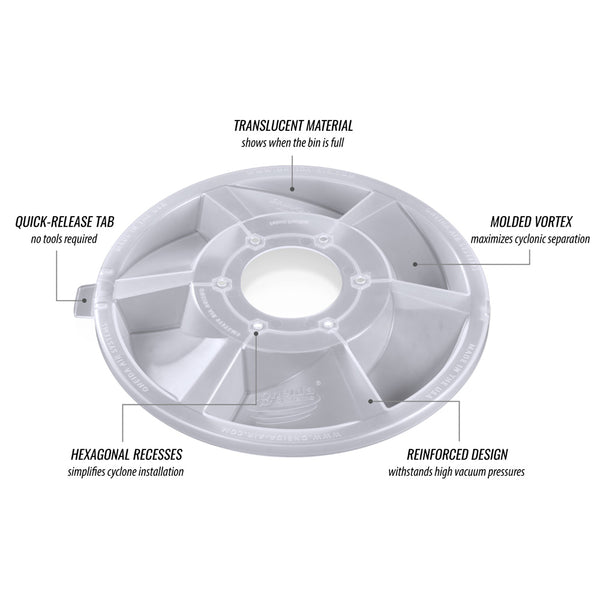

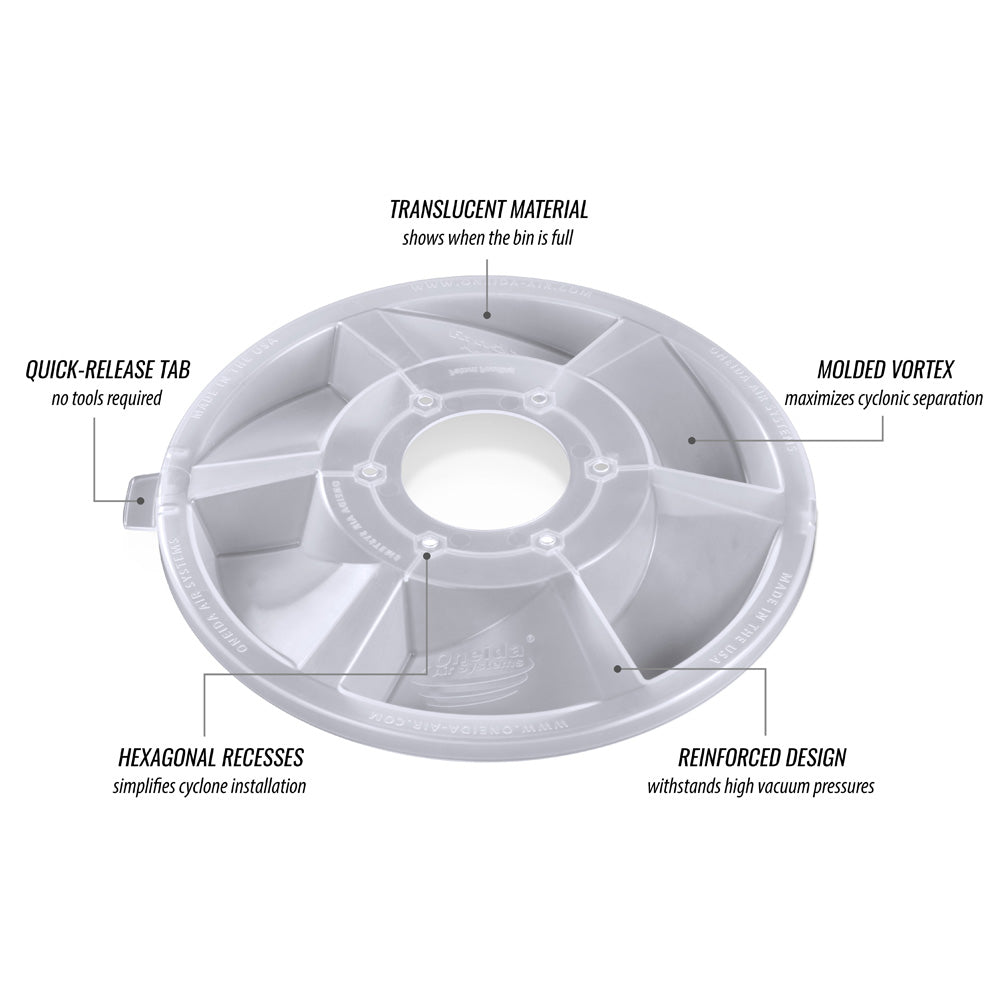

  • Reinforced, quick-release, cyclone lid for fast and easy emptying
  • Backwards compatible 3" ID flange makes upgrades quick and easy

Waste Capacity: 5 gallons
Nominal Inlet Size: 2.25" I.D. / 2.5" O.D.
Actual Inlet Size: Tapered 2.31" to 2.29" I.D.
Nominal Outlet Size: 2.25" I.D.
Actual Outlet Size: Tapered 2.31" to 2.29" I.D.
Discharge Size: 3" I.D.
Width: 17-3/4"
Depth: 13-1/2"
Height: 32-1/8"

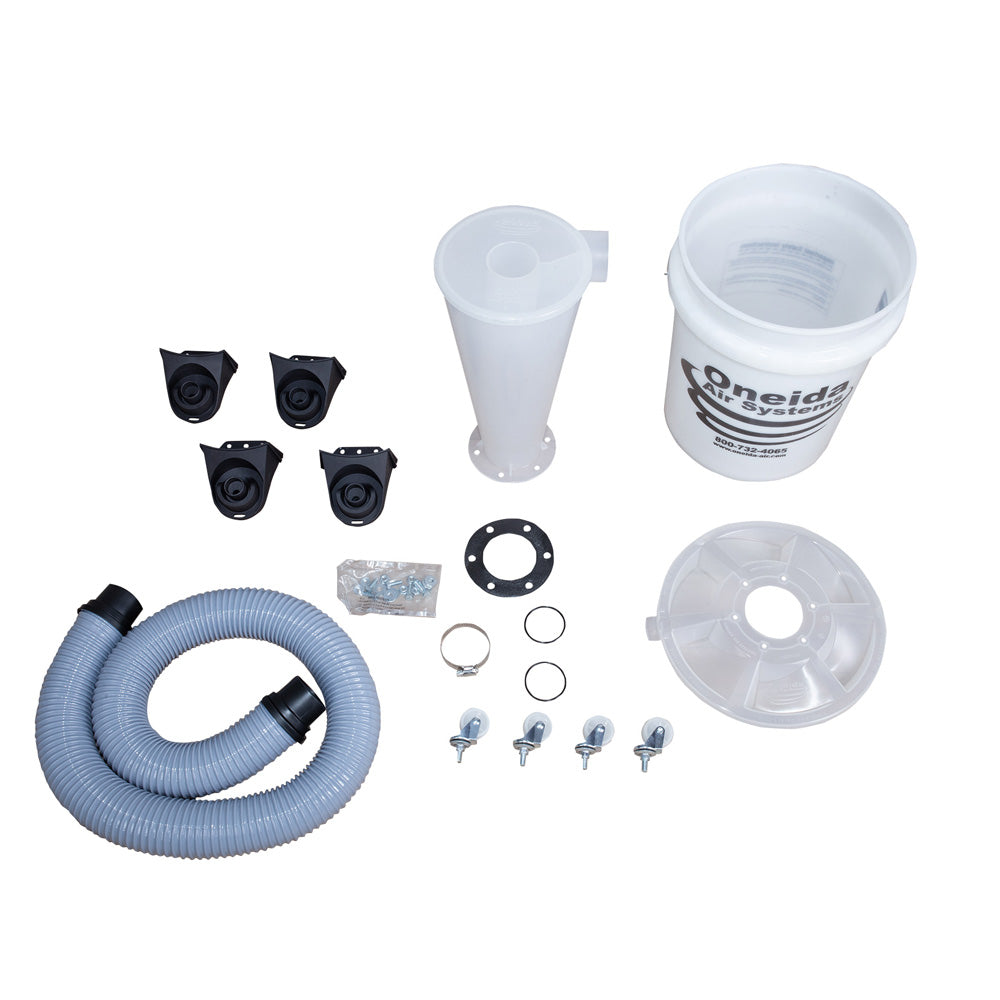

  • Anti-Static Dust Deputy Cyclone Pre-Separator
  • Quick-Release Bucket Lid w/ Cyclonic Design
  • Clear Collapse-Proof 5-Gallon Dust Bucket*
  • Caster Mounts with On-Board Accessory Storage
  • Free-Rotating Caster Wheels
  • Vacuum Connection Tether Kit
  • 2.5" x 4.5' Wire-Reinforced Vacuum Connection Hose
  • Pre-cut Neoprene Foam Gasket

*Not for use in positive-pressure applications i.e. when connected to a blower instead of a vacuum. A container with a locking lid (such as the 10-gallon kit) is recommended instead.
