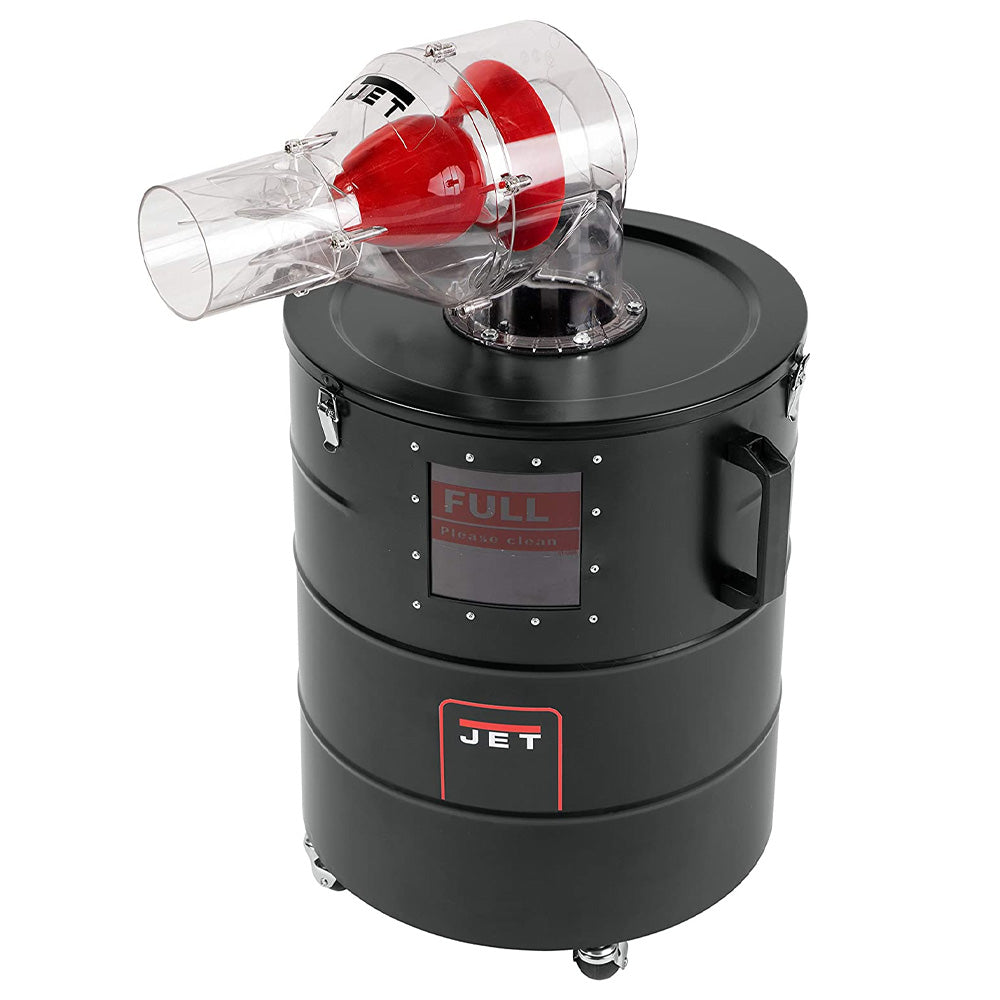

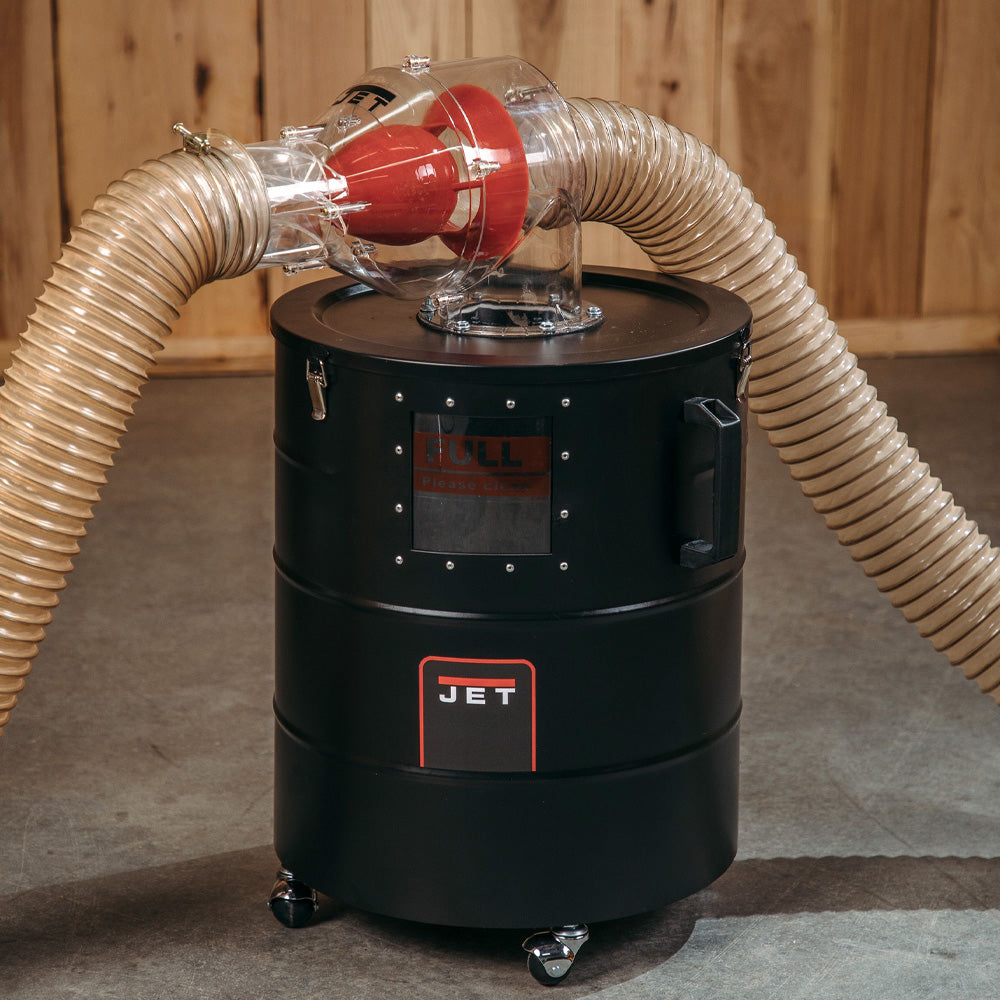

The JET Cyclonic Separator maximizes dust collection efficiency by maintaining the air flow of a dust collection system by deflecting chips and large debris inline freeing up dust collection filters to trap fine particles.
The red bullet separator deflects chips down ward in to a bin, reducing damage and obstruction to the dust collection hoses, impellors and filters. The JET Cyclonic Separator can be purchased with a 30 gallon steel bin that includes handles and 360* casters.

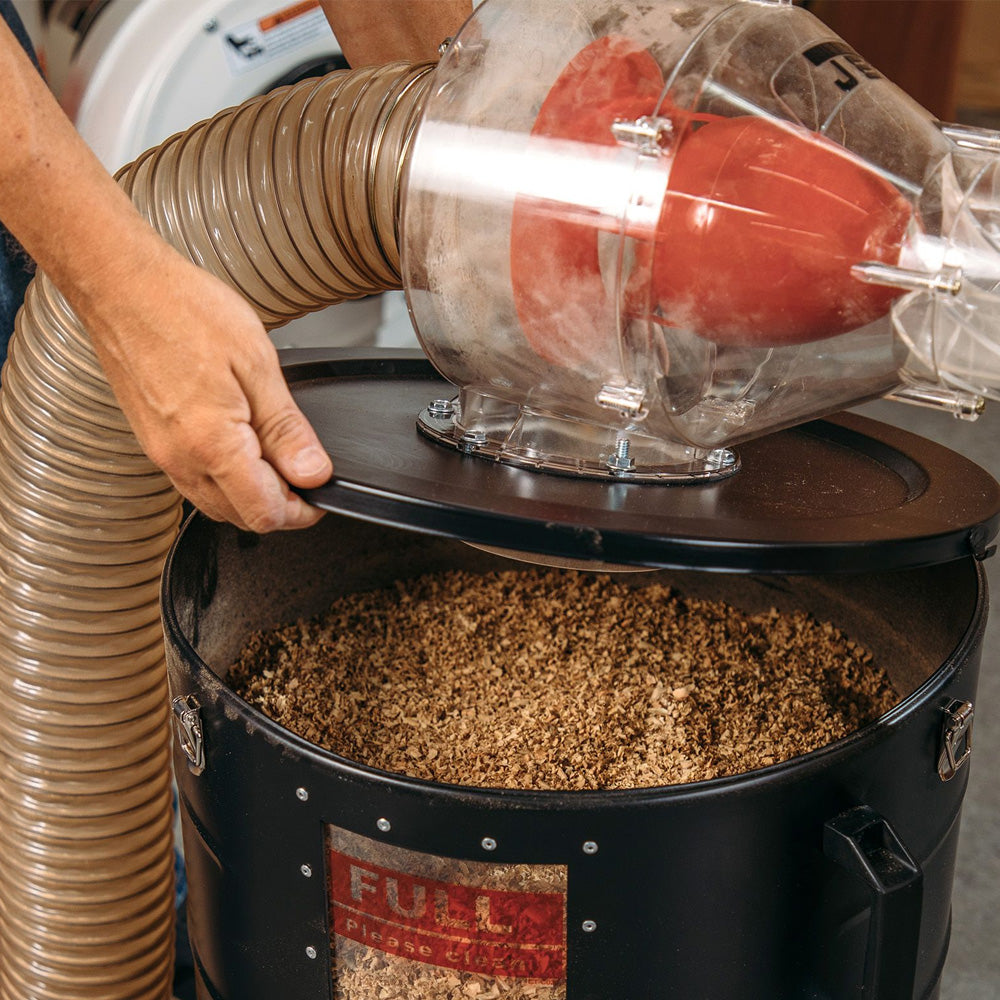

The JET Cyclonic Separator also can be placed on the lid of almost any size container. Bolt pattern is included. Bring cyclonic power and efficiency inline.
[TABS]
Features
- For best performance, select cutterhead and cutting speed to produce chips 2” or smaller
- Clamping metal lid with gaskets prevents loss of suction.
- Clear Polycarbonate material allows for viewing of separation

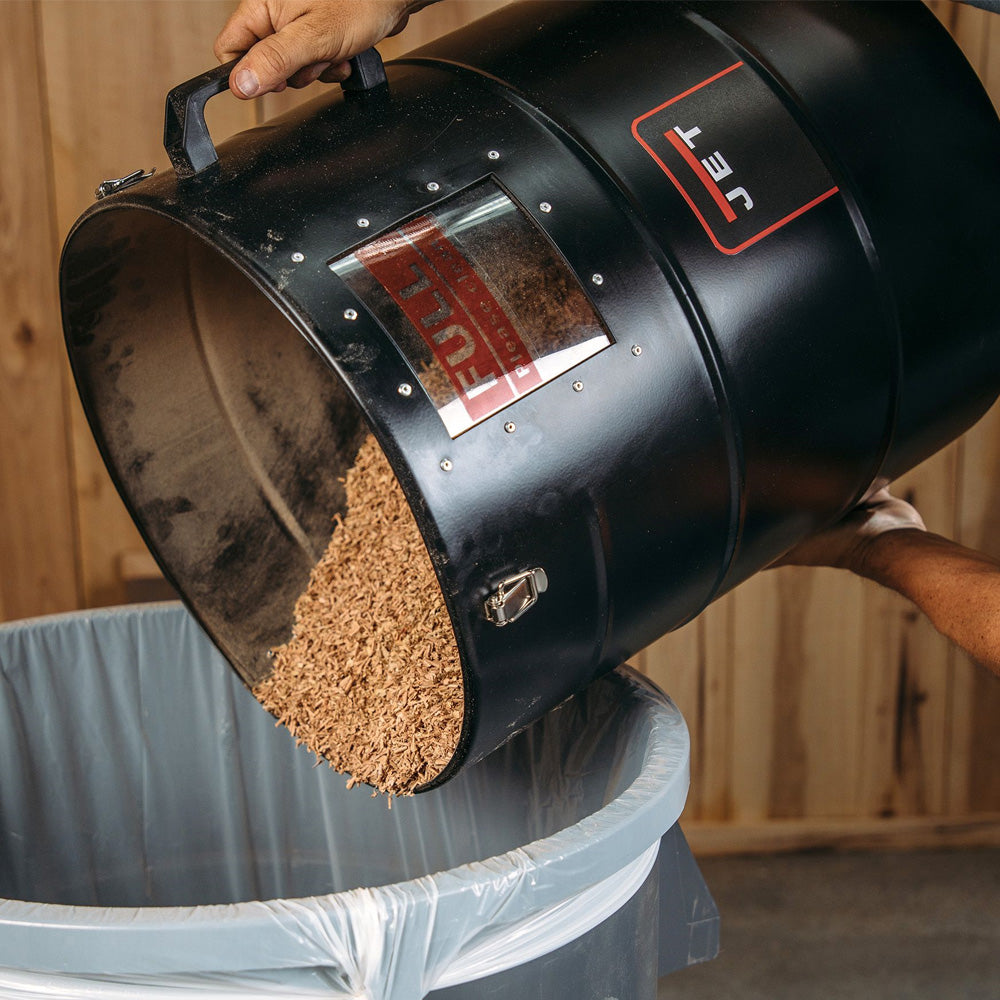

- Durable metal 30-gallon collection bin with window for viewing the fill capacity.
- Extends the life of the filter and impellers by extracting the larger debris before entering the dust collector
- Maintain the air flow of a dust collection system by deflecting chips and large debris inline freeing up dust collection filters to trap fine particles

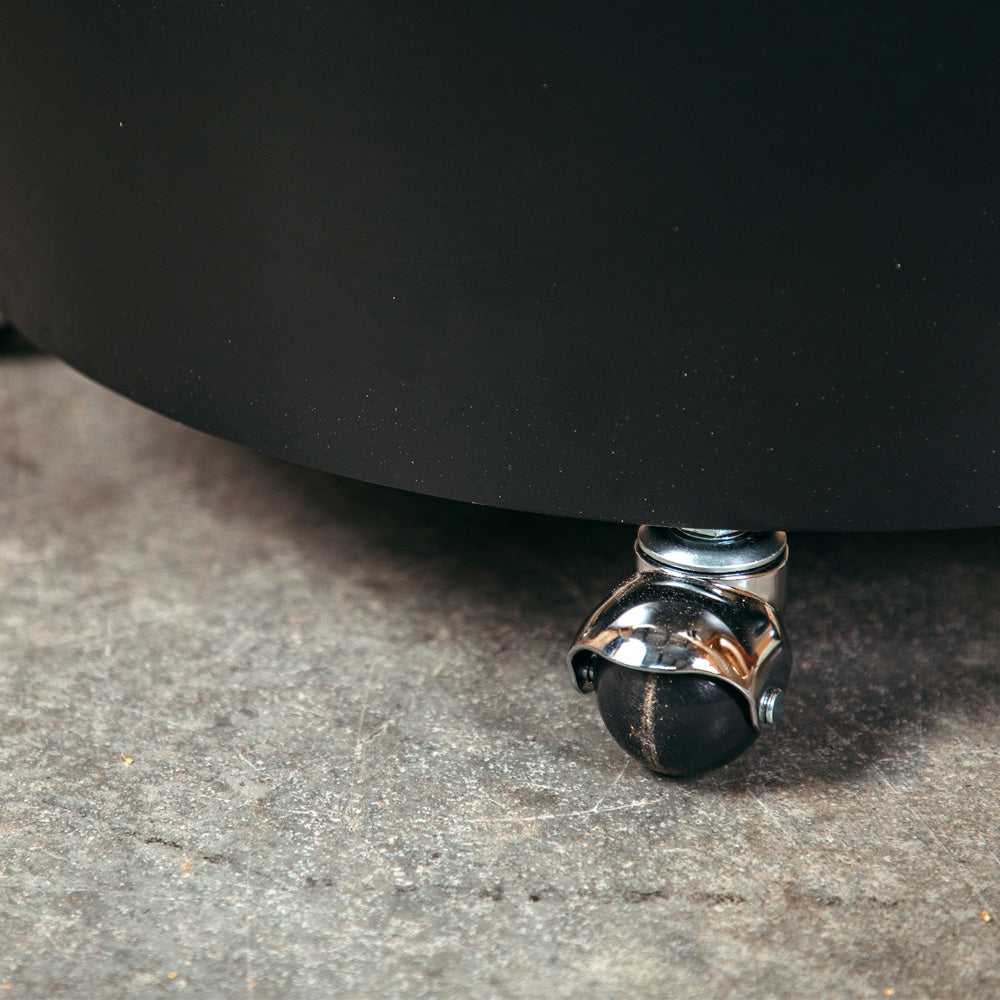

- Swivel Casters and handle on bin make it easy to move around the shop
- The red bullet separator deflects chips to a bin, reducing damage and obstruction to the dust collection hoses, impellors, and filters
Specs
Net weight: 18.7 lbs.
JET bin capacity: 20 gal.
Overall dimensions: 20.9 x 16.6 x 30.5"
Inlet/outlet diameter: 4"
Bin connection diameter: 5"
Includes
- Jet Cyclone Chip Separator
- Steel collection bin
- (2) 4" Wire hose clamps
- Mounting template
- (6) Washer head screws
- (6) Flanged hex nuts
- Gasket
- Wrench
- (4) Casters
- (2) Pan head screws
- Handle
