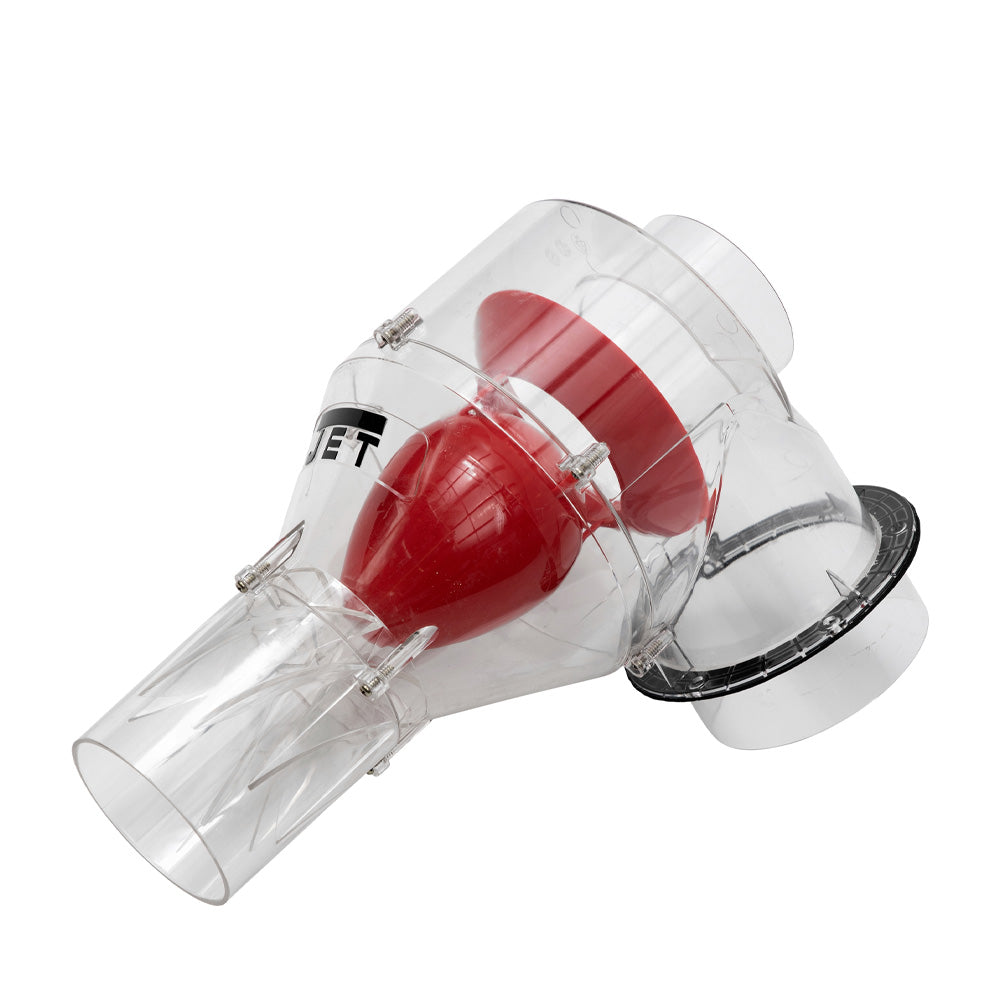

The JET Cyclonic Separator maximizes dust collection efficiency by maintaining the air flow of a dust collection system by deflecting chips and large debris inline freeing up dust collection filters to trap fine particles.
The red bullet separator deflects chips down ward in to a bin, reducing damage and obstruction to the dust collection hoses, impellors and filters. The JET Cyclonic Separator can be placed on the lid of almost any size container.
Bolt pattern is included. Bring cyclonic power and efficiency inline.
[TABS]
Features
- For best performance, select cutterhead and cutting speed to produce chips 2” or smaller

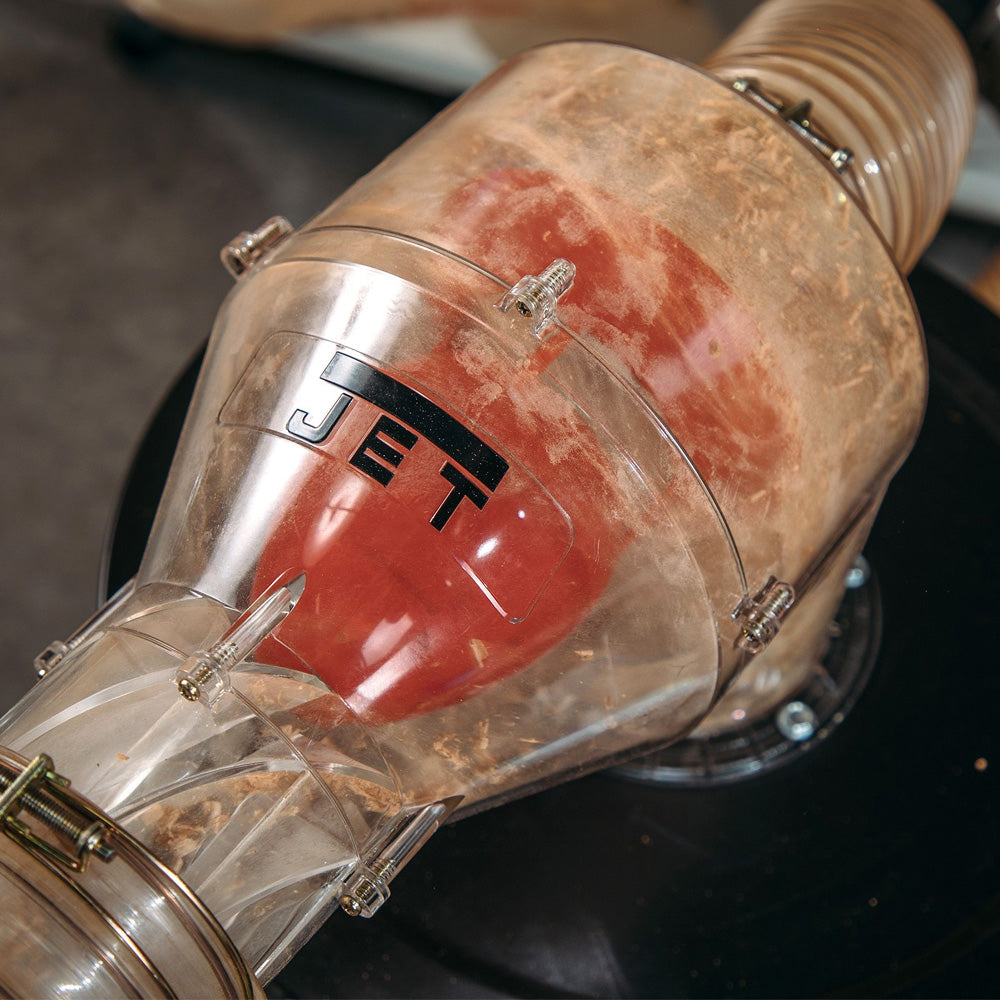

- Clear Polycarbonate material allows for viewing of separation
- Extends the life of the filter and impellers by extracting the larger debris before entering the dust collector
- Maintain the air flow of a dust collection system by deflecting chips and large debris inline freeing up dust collection filters to trap fine particles

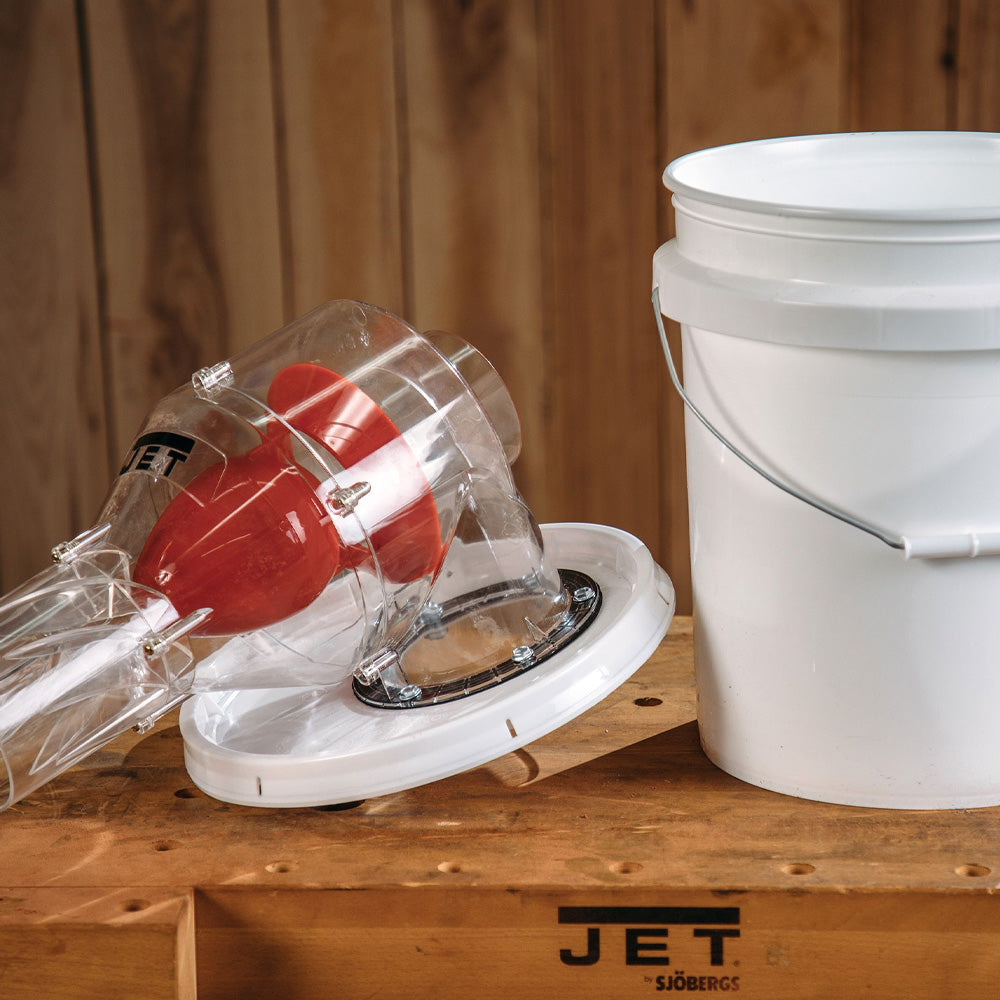

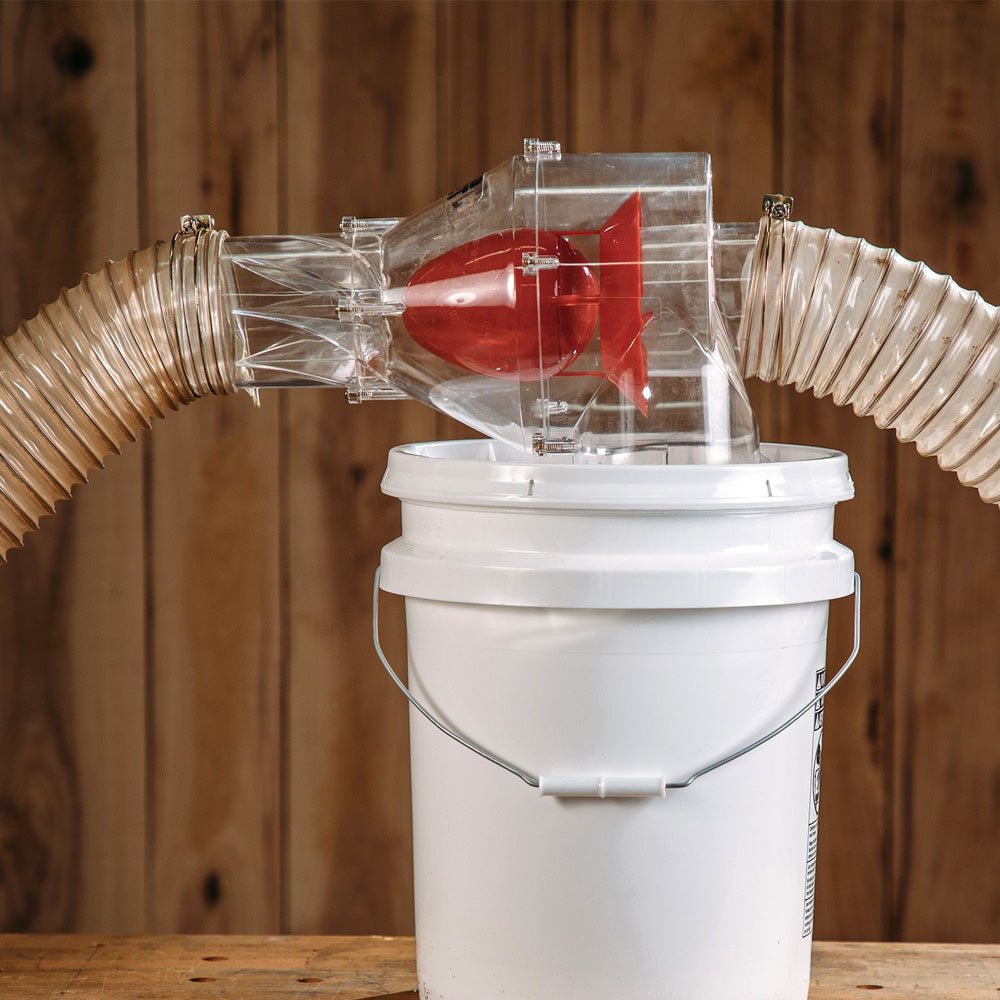

- Can be placed on the lid of almost any size container
- The red bullet separator deflects chips to a bin, reducing damage and obstruction to the dust collection hoses, impellors, and filters
Specs
Net weight: 3.5 lbs.
Overall dimensions: 15.75 x 8.7 x 11.1"
Inlet/outlet diameter: 4"
Bin connection diameter: 5"
Includes
- Jet Cyclone Chip Separator
- (2) 4" Wire hose clamps
- Mounting template
- (6) Washer head screws
- (6) Flanged hex nuts
- Gasket
- Wrench
[/TABS]
