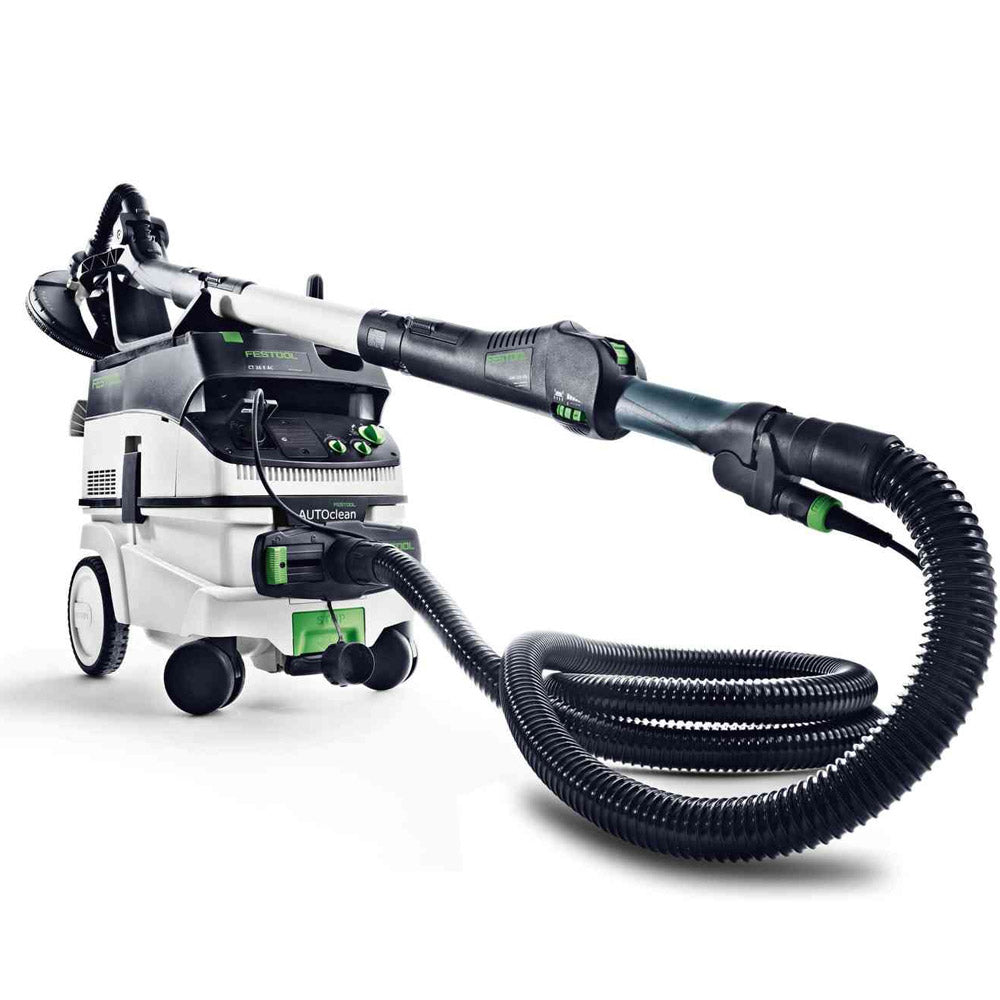

The CT 26 E AC is ideal for drywall dust and works hand-in-hand with the Festool PLANEX drywall sander.
No more clogged filters – the AUTOCLEAN (AC) automatic main filter cleaning keeps the filter clean and provides a continuously high suction power. The CT 36 AC is designed to be used with the PLANEX and PLANEX easy drywall sanders. With its huge container capacity of 36 l, the CT 36 AC provides maximum volume and a high degree of flexibility. Equipped with swivelling castor wheels and rear wheels for optimum mobility. It also has a locking brake that provides stability on any surface as well as during transport. The flat filter fully integrated in the suction head ensures the full volume is utilized: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 137 CFM (3900 l/min) volume flow means that nothing remains except clean air.
- AUTOCLEAN automatic main filter cleaning system with infinitely adjustable cleaning intervals for consistently high suction power
- Can be individually retrofitted with an additional compressed air or Bluetooth® module for remote control on the suction hose or automatic start via the Bluetooth® battery pack.
- OSHA Table 1 Silica dust control solution for the applications outlined as; iii, vii, viii, x, xi, xii (always check your local guidelines to ensure the proper equipment and PPE is being used for the given application)
- Smooth suction hose and optimized SYS-Dock with cord holder and T-LOC function for conveniently connecting Systainers to the mobile dust extractor
- Antistatic function prevents static developing during work
- ComfortClean closing slide (accessory) for even more powerful cleaning
- Attachment of Systainers via SYS-Dock
- Hose garage and cable windup for greater tidiness and safety
- Economical because of the optimal use of the available volume with a SELFCLEAN filter bag in the container
[TABS]
Features
Save Time: Outfitted with both a HEPA filter and automatic filter-cleaning mechanism the powerful CT 36 E HEPA AC is perfect for working with high volume dust tasks and larger machines such as track saws, routers, hammer drills, and for those tasks, as defined by OSHA Table 1, related to silica dust.
Convenient & Safe: Capable of supporting most common Jobsite tasks such as sawing, routing, planing, sanding, cutting, and site clean up. Equipped with tool-triggered operation, variable suction control, parking brake, hose storage, and more to make work easier and more efficient.
System Connected: Can be coupled with SystainerS and SORTAINERS on the SYS dock.
Automatic filter cleaning: AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times. The benefits of this include time savings, longer work intervals, less maintenance effort, and cost savings.
Manual cleaning: Even heavily clogged filters can be cleaned. When the container inlet is closed manually with the ComfortClean sealing slide, a strong vacuum is generated, which cleans the filter with maximum force.
Adjustable according to requirements: The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately
Safe transport: Accessories and tools in the Systainer and SORTAINER can be easily attached to the extractor via the SYS-Dock.
More Features
Everything in perfect order: The power cable and suction hose are stored tidily and optimally protected in the permanently integrated Festool hose holder and cable holder.
High suction power: Extremely powerful, compact and light: The high-performance turbine provides considerably higher suction power and requires very little space.
Tear-resistant fleece filter bag: The fleece filter bags are self-cleaning because they collapse after the extractor is turned off. This SELFCLEAN effect guarantees consistently high suction performance until the bag is full to capacity.
Disposable bag: Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.
Fast maintenance: An optimized approach to servicing saves time and money by shortening the time required for repairs. The structural design allows faster access to the spot where repairs are needed.
Mobile-ready: The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over. The wheels can be turned, and the material that they are made from is resistant to wear. Because of the location of its center of gravity, the extractor is easy to carry.
Large capacity: The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container. This allows the bag to be filled uniformly and a nearly 100% utilization of the filter bag volume.
Optional extension: Depending on requirements, the extractor can be equipped with additional modules, such as the compressed air module, an electrical outlet with continuous power, automatic electronic switch-on/shut-off switch, or an energy box module.

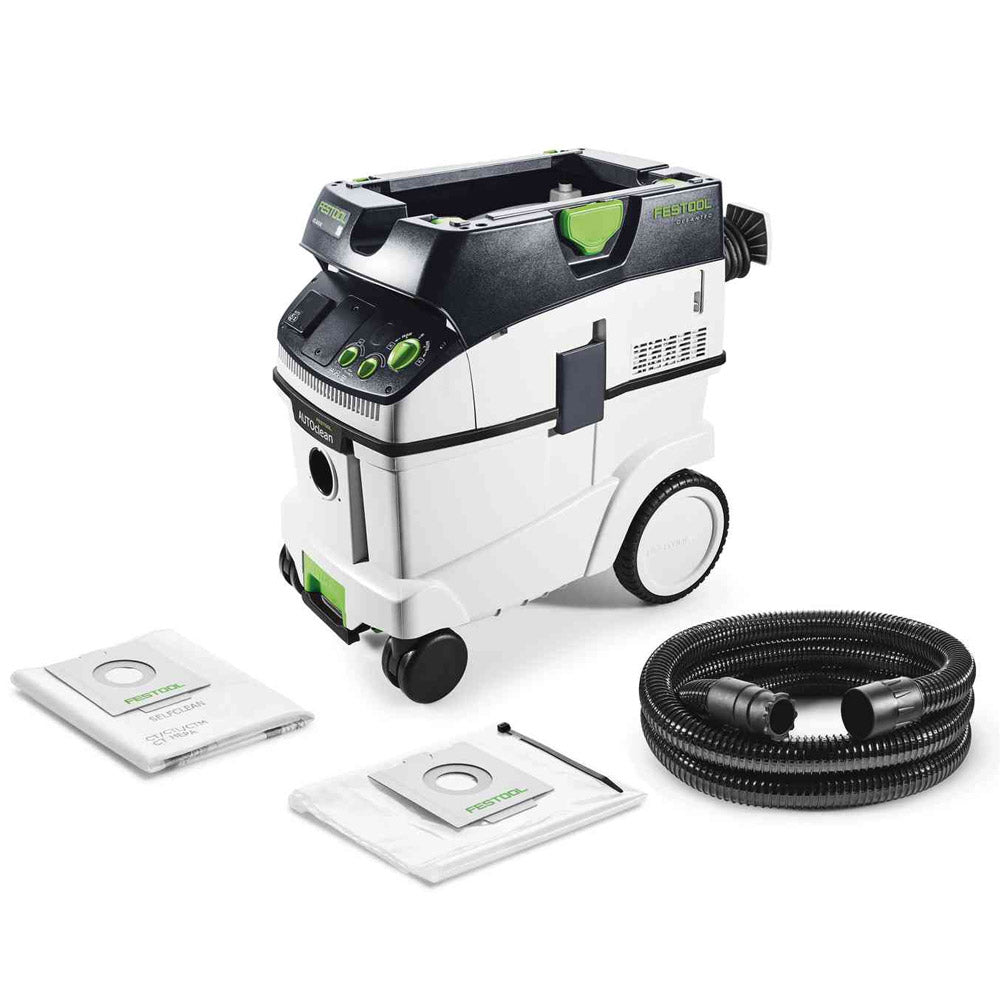

Includes
- High-performance Filter
- SELFCLEAN Filter Bag
- Plastic liner
- Suction hose kink-resistant D 36x3.5-AS/KS/B/LHS 225
Specs
Weight: 33.51 lbs (15.2 kg)
Power cable: 25 ft (7.5 m)
Dimensions (L x W x H): 25" (630 mm) x 14.4" (365 mm) x 23.4" (596 mm)
Container/filter bag capacity: 9.5 gal (36 l)/9.0 gal (34 l)
Filter surface area: 979 in² (6 318 cm²)
Max. volume flow: 138 CFM (3 900 l/min)
Max. vacuum: 96" static water lift (24 000 Pa)
[/TABS]
