CMT Universal Dovetail Jig

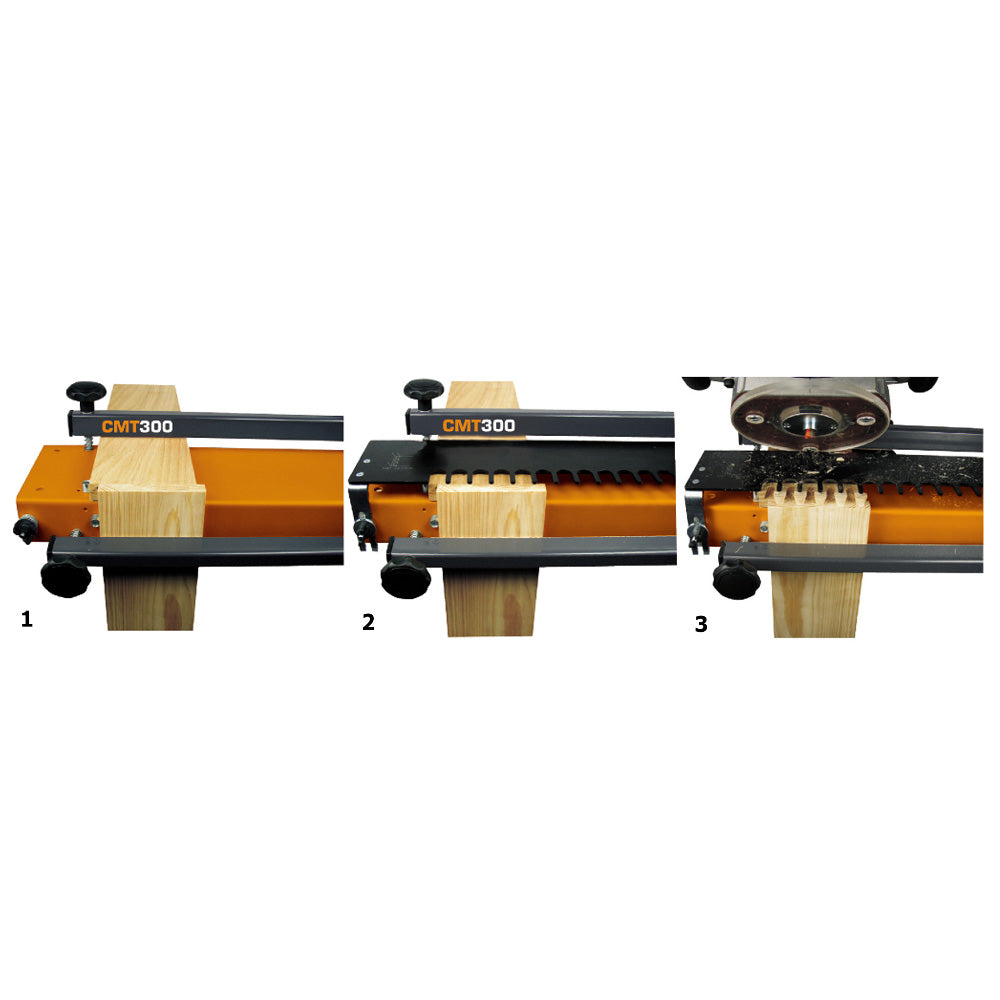

Dovetail joints give a touch of craftsmanship to your work, but many woodworkers avoid these joints, because of their apparent complexity. CMT’s 305mm (12") dovetail jig is the fast, easy solution! Thanks to precise templates, permanent stops and easy adjustments, this jig takes the “tinkering” out of the dovetail joinery. Simply clamp your workpiece in with the edges against the factory-set stops, set your bit depth, and then you are ready to rout.

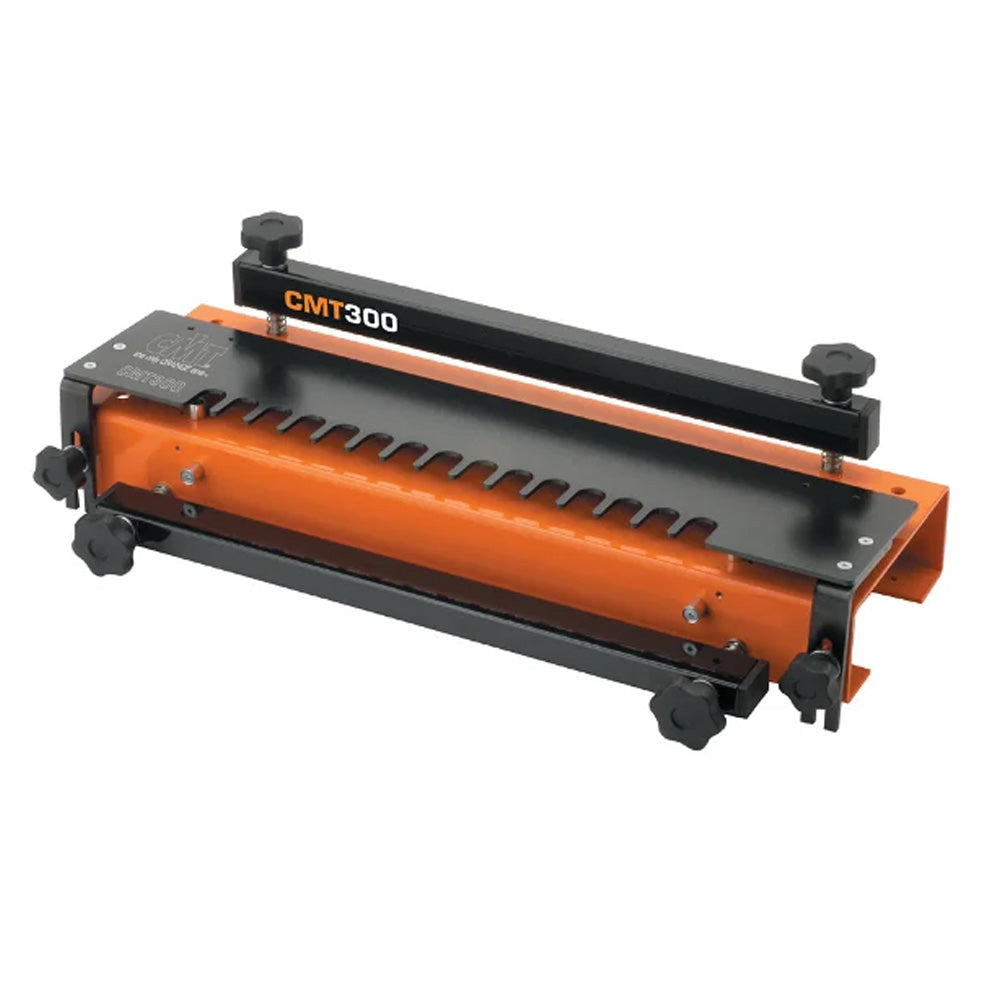

This jig features steel body, templates, stops and clamping bars, so it produces perfect long-lasting joints for all your woodworking needs. The machine accepts stock from 11 mm (7/16") to 25 mm (1") thick, and is capable of producing a variety of joints with the available templates. Standard jig includes a template for 12,7mm (1/2") half blind joints and a template guide. Optional templates are available for through dovetail and box joints.

Max length: 305 mm (12")

Joint thickness: 11 mm (7/16") ~ 25 mm (1")
